Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  2. Disconnect the wiper transmission link from the wiper motor crank arm using the J 39232  . See Special Tools and Equipment .

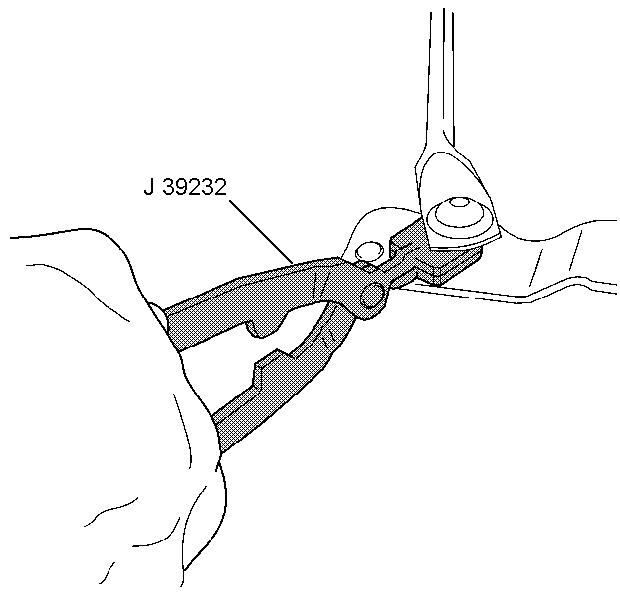

    3. Fig 1: Disconnecting Wiper Transmission From Wiper Motor Crank Arm
    GM306506Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiper drive system module screws.
    4. Fig 2: Wiper Drive System Module Screws
    GM815220Courtesy of GENERAL MOTORS CORP.
  4. Rotate the wiper drive system module to access the wiper motor electrical connector.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper drive system module from the vehicle.
