Cooling System Component Views
WARNING:
This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

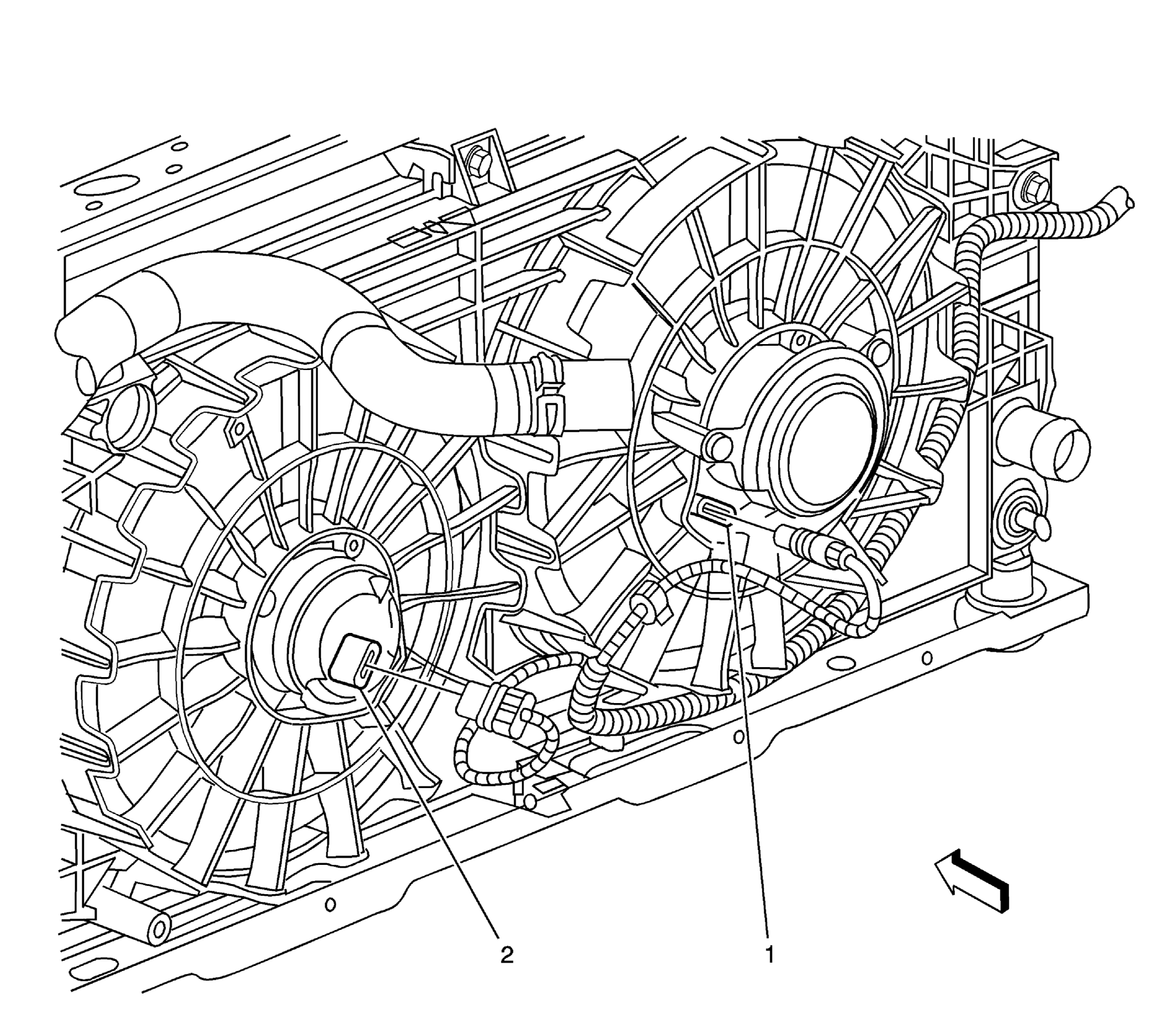

Fig 1: Behind Radiator Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Cooling Fan - Right
2
Cooling Fan - Left
