ABS Connector End Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Electronic Brake Control Module Terminal Identification (EBCM)

Courtesy of GENERAL MOTORS CORP.

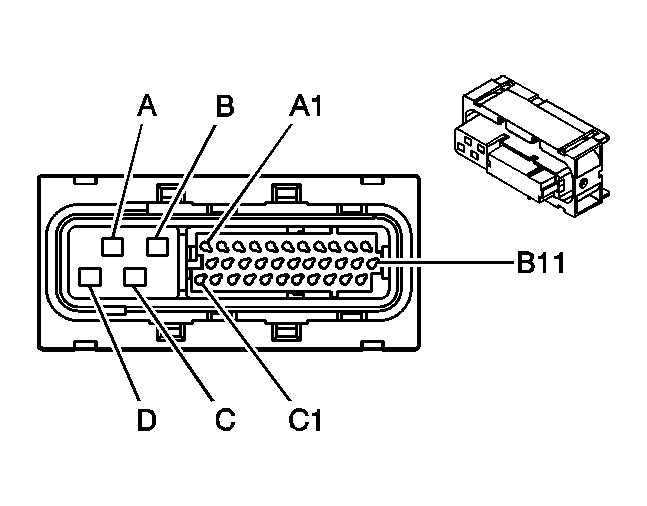

Connector Part Information		15336549 37 Way F Micro-Pack 100 W Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	202	Battery Positive Voltage
A1-A2	-	-	Not Used
A3	BLK	884	Left Rear Wheel Speed Sensor Signal
A4	RED	885	Left Rear Wheel Speed Sensor Low Reference
A5	WHT	883	Right Rear Wheel Speed Sensor Low Reference
A6	BRN	882	Right Rear Wheel Speed Sensor Signal
A7	TAN	833	Right Front Wheel Speed Sensor Low Reference
A8	DK GRN	872	Right Front Wheel Speed Sensor Signal
A9	YEL	873	Left Front Wheel Speed Sensor Low Reference
A10	LT BLU	830	Left Front Wheel Speed Sensor Signal
A11	PNK	239	Ignition 1 Voltage
B	RED	202	Battery Positive Voltage
B1-B6	-	-	Not Used
B7	LT BLU	1122	ABS/TCS Class 2 Serial Data
B8-B11	-	-	Not Used
C	BLK	251	Ground
C1	TAN/BLK	464	Delivered Torque Signal
C2-C6	-	-	Not Used
C7	WHT	17	Stop Lamp Switch Signal
C8	-	-	Not Used
C9	ORN/BLK	463	Requested Torque Signal
C10	-	-	Not Used
C11	-	-	Vent Tube
D	BLK	251	Ground

Traction Control Switch Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047785 4 Way F Metri-Pack 150 (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	1251	Ground
B	BLK	1050	Ground
B	BLK	1550	Ground (Monte Carlo)
C	GRY	8	Instrument Panel Lamp Supply Voltage - 1
D	BRN/WHT	1571	Traction Control Switch Signal

Wheel Speed Sensor Terminal Identification (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

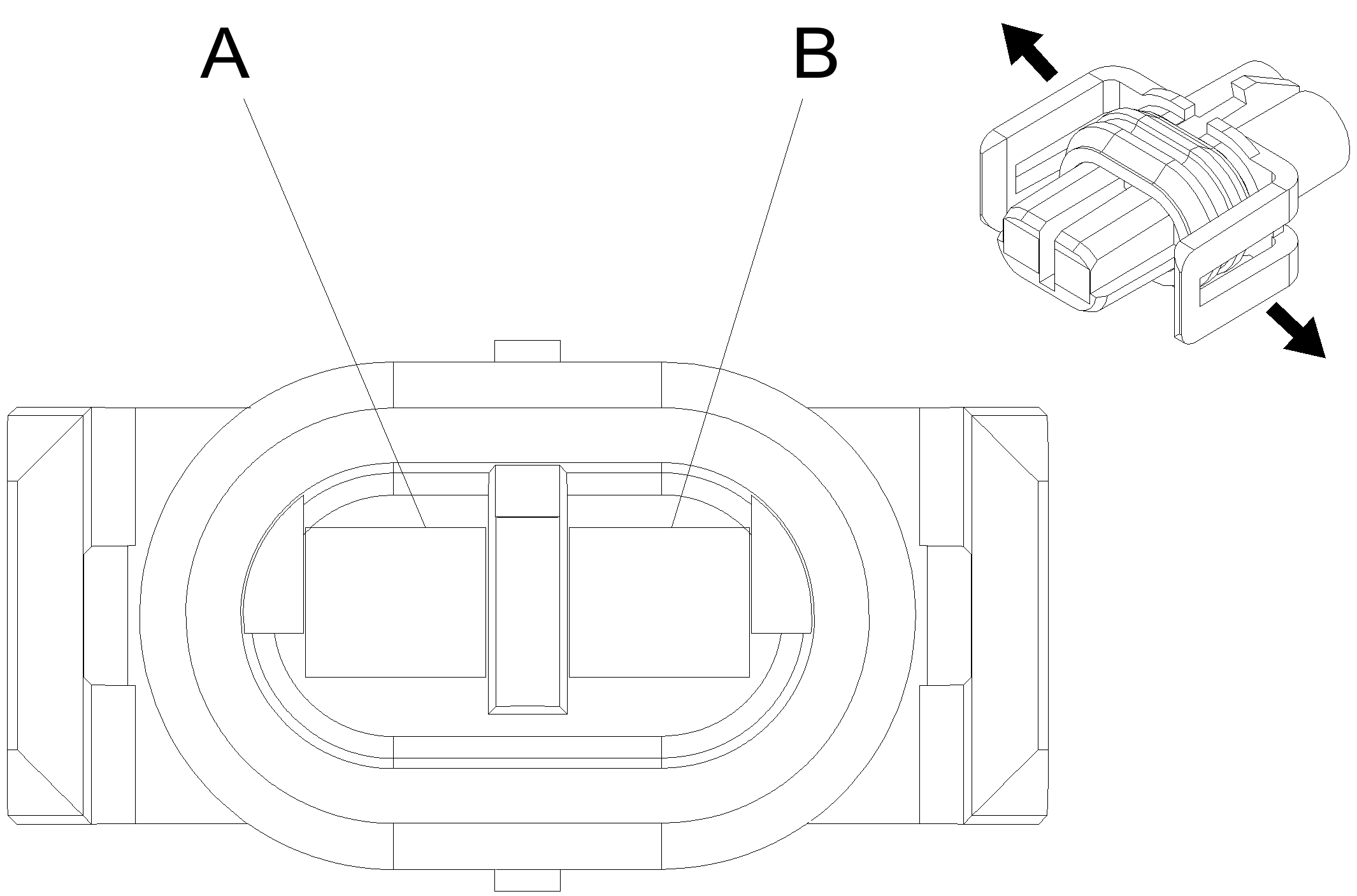

Connector Part Information		12052644 2 Way F Metri-Pack 150 Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	LT BLU	830	Left Front Wheel Speed Sensor Signal
B	YEL	873	Left Front Wheel Speed Sensor Low Reference

Wheel Speed Sensor Terminal Identification (WSS) - LR

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305168 2-Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	BLK	884	Left Rear Wheel Speed Sensor Signal
B	RED	885	Left Rear Wheel Speed Sensor Low Reference

Wheel Speed Sensor Terminal Identification (WSS) - RF

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052644 2 Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	DK GRN	872	Right Front Wheel Speed Sensor Signal
B	TAN	833	Right Front Wheel Speed Sensor Low Reference

Wheel Speed Sensor Terminal Identification (WSS) - RR

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305168 2-Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	BRN	882	Right Rear Wheel Speed Sensor Signal
B	WHT	883	Right Rear Wheel Speed Sensor Low Reference
