Engine Electrical Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

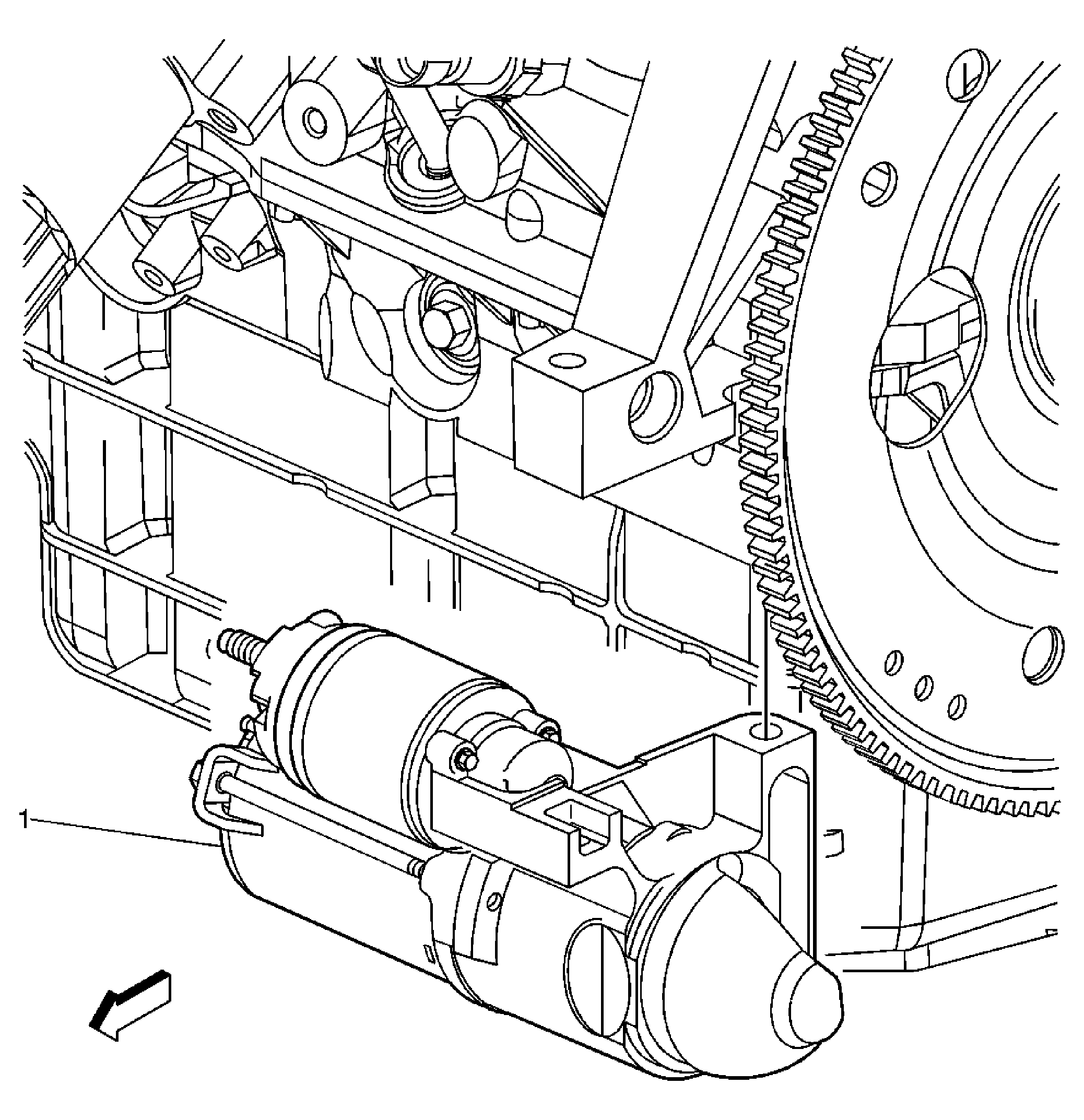

Fig 1: Front Of the Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter

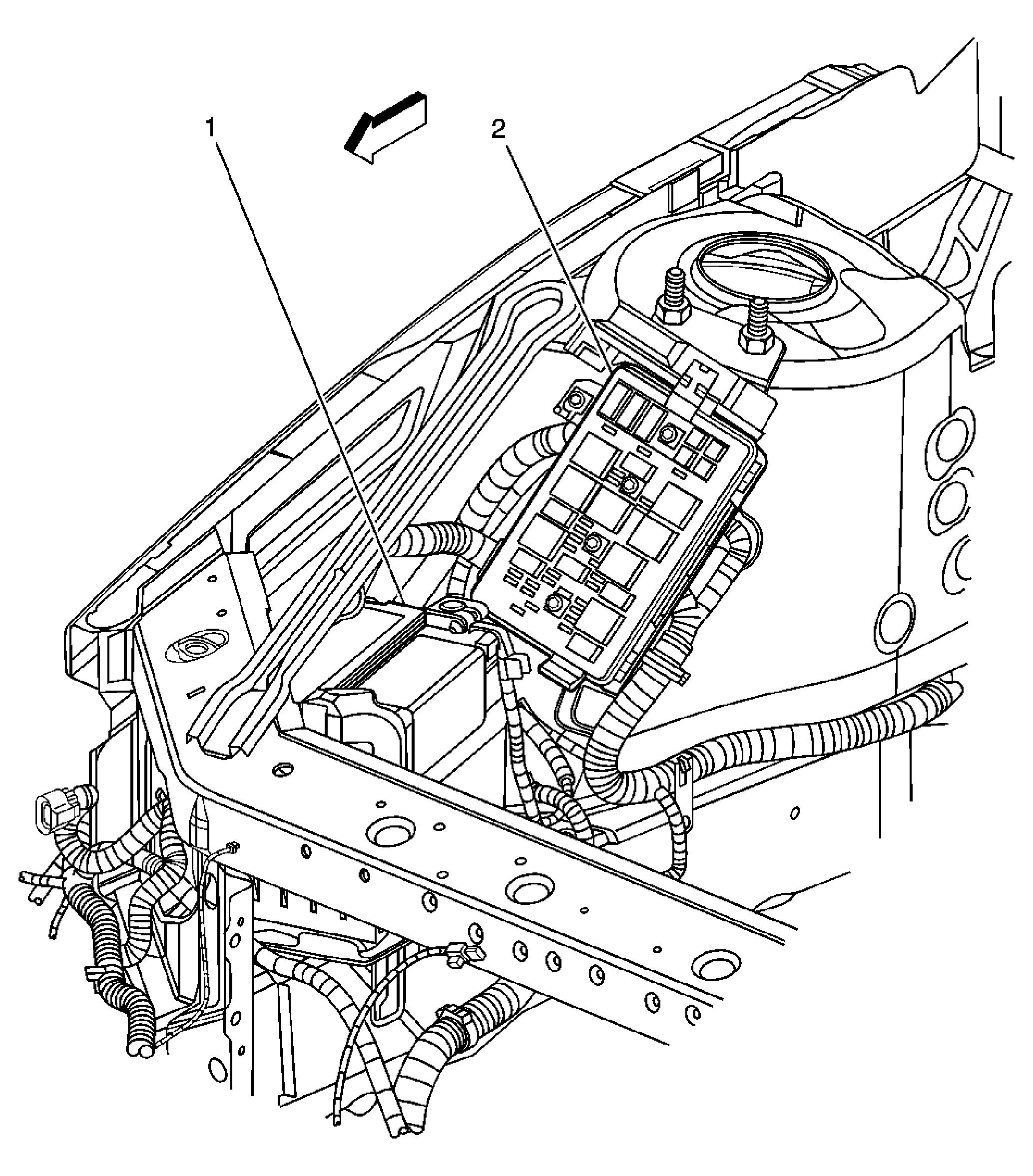

Fig 2: Right Front Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Block - Underhood

Fig 3: Upper Rear Of the Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Fuel Injector 6
3	Fuel Injector 4
4	Fuel Injector 2
5	Generator
6	Barometric Pressure (BARO) Sensor (L32)
7	Heated Oxygen Sensor (HO2S) Sensor 1
8	Manifold Absolute Pressure (MAP) Sensor (L32)
