HVAC Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

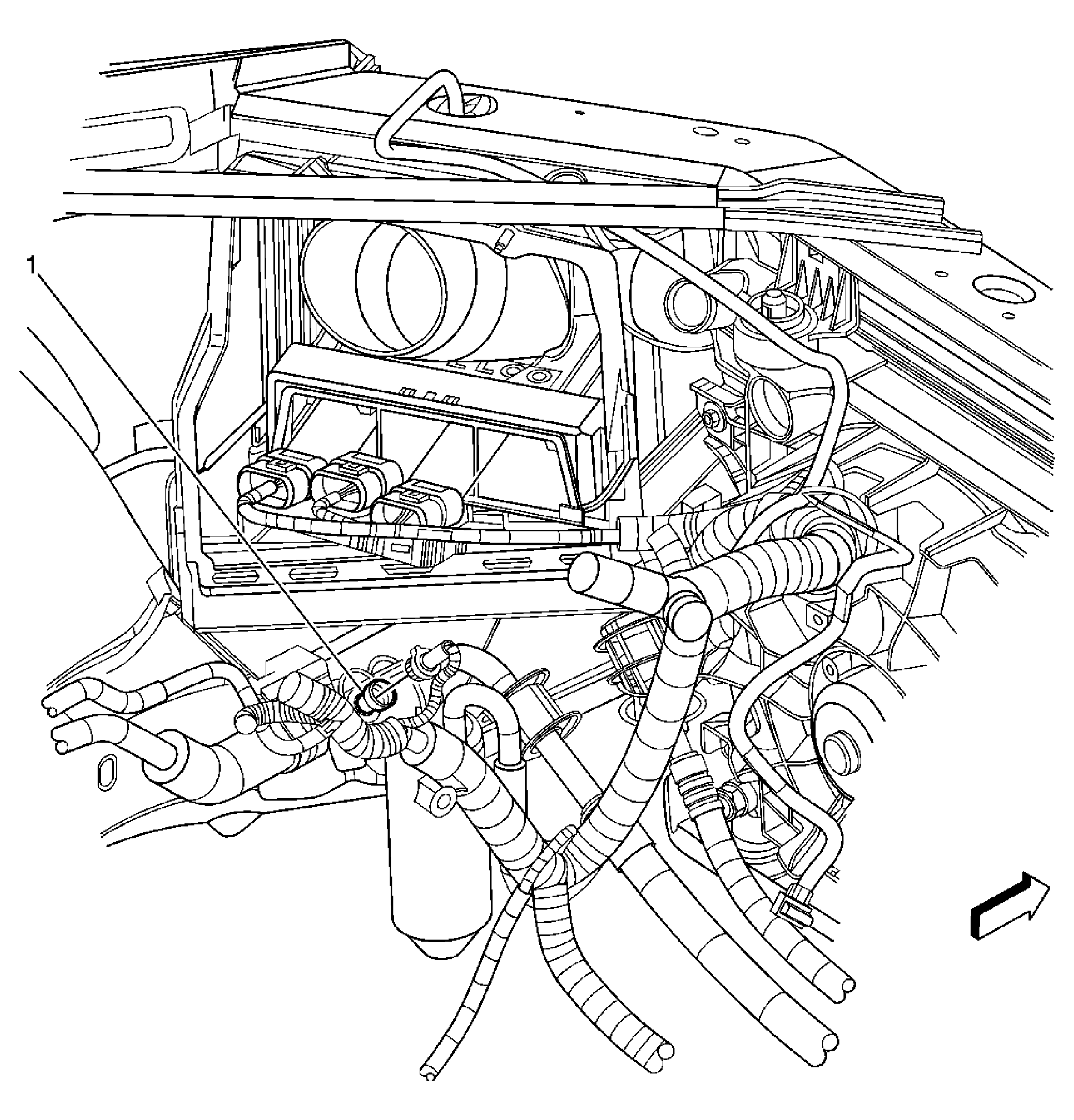

Fig 1: Left Side Of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Refrigerant Pressure Sensor

Fig 2: Lower Right Front Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch
2	A/C Compressor Clutch Connector
3	A/C Compressor

Fig 3: Left Side Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Cruise Control Switch
16	Inflatable Restraint Steering Wheel Module
17	Tilt Steering Wheel Lever
18	Steering Wheel Controls - Left
19	Interior Lamp Switch

Fig 4: Lower Right Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Blower Motor
3	Blower Motor Control Processor
4	Air Temperature Actuator

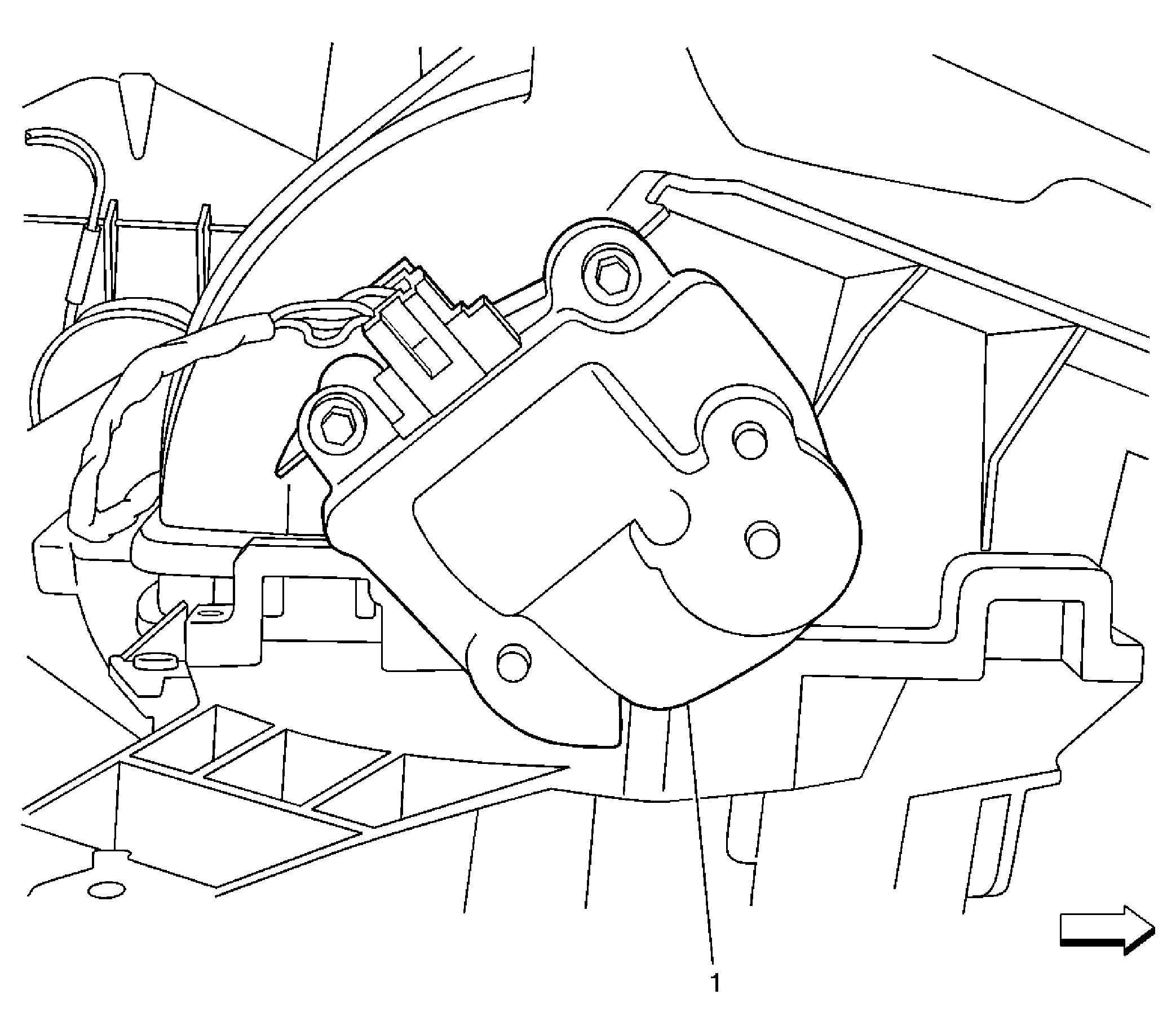

Fig 5: Right Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
