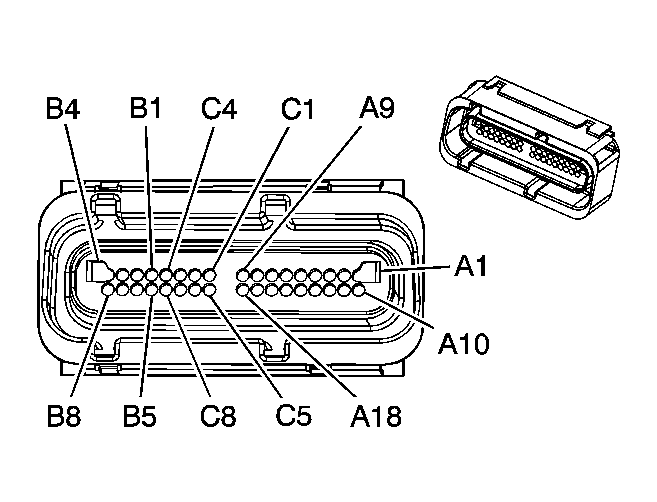

Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector End View - Aztek

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15354773 34-Way F Micro-Pack (YE)
Pin	Wire Color	Circuit No.	Function
A1	WH	347	Steering Wheel Module High Control
A2	D- GN	348	Steering Wheel Module Low Control
A3	D- GN/ WH	1404	I/P Module Low Control
A4	WH/BK	1403	I/P Module High Control
A5	BN	2137	Side Impact Module - LF High Control (AJ7)
A6	YE/BK	2138	Side Impact Module - LF Low Control (AJ7)
A7	L- GN	2136	Side Impact Module - RF Low Control (AJ7)
A8	BK/WH	2135	Side Impact Module - RF High Control (AJ7)
A9	BK/WH	1751	Ground
A10	YE	1139	Ignition 1 Voltage
A11	D- BU	1128	Class 2 Serial Data
A12-A13	-	-	Not Used
A14	BK/WH	238	Seat Belt Switch - Left
A15-A18	-	-	Not Used
B1-B8	-	-	Not Used
C1-C4	-	-	Not Used
C5	YE	2131	Side Impact Sensing Module - Left - Voltage (AJ7)
C6	WH	2132	Side Impact Sensing Module - Left - Signal (AJ7)
C7	D- GN	2134	Side Impact Sensing Module - Right - Signal (AJ7)
C8	TN	2133	Side Impact Sensing Module - Right - Voltage (AJ7)
