Installation Procedure

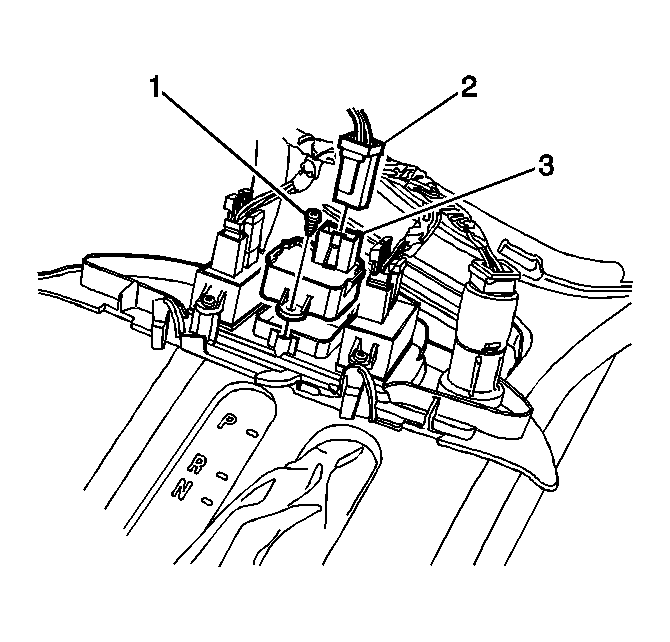

Fig 1: Locating Traction Control Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the traction control switch mounting screw (1).
Tighten: Tighten the traction control mounting screw to 2 N.m (18 lb in).
Connect the electrical connector (2) to the traction control switch.
Install the console accessory switch mount plate. Refer to Console Accessory Switch Mount Plate Replacement in Instrument Panel, Gages and Console.
Install the trim plate bezel - IP Cluster. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
