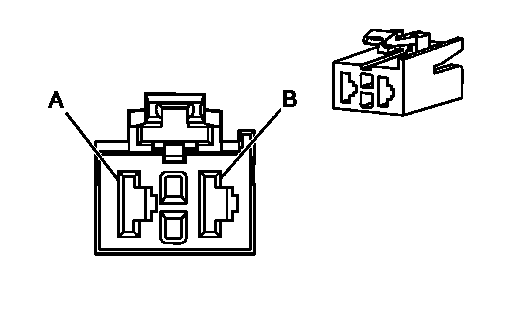

Power Steering Control Module - C1 Connector End View
Power Steering Control Module - C1 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15319797
- 2-Way F Metri-Pack 800 Series (WH)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
BK |
550 |
Ground |
| B |
RD/BK |
642 |
Battery Positive Voltage |
