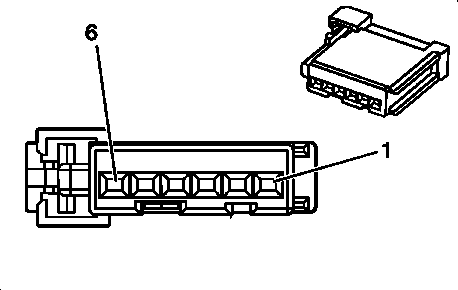

Theft Deterrent Control Module Connector End View
Theft Deterrent Control Module Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BN | 4 | Accessory Voltage |
| 2 | RD/WH | 1440 | Battery Positive Voltage |
| 3 | - | - | Not Used |
| 4 | BK/WH | 651 | Ground |
| 5 | D-GN | 5060 | Low Speed GMLAN Serial Data |
| 6 | D-GN | 5060 | Low Speed GMLAN Serial Data |
