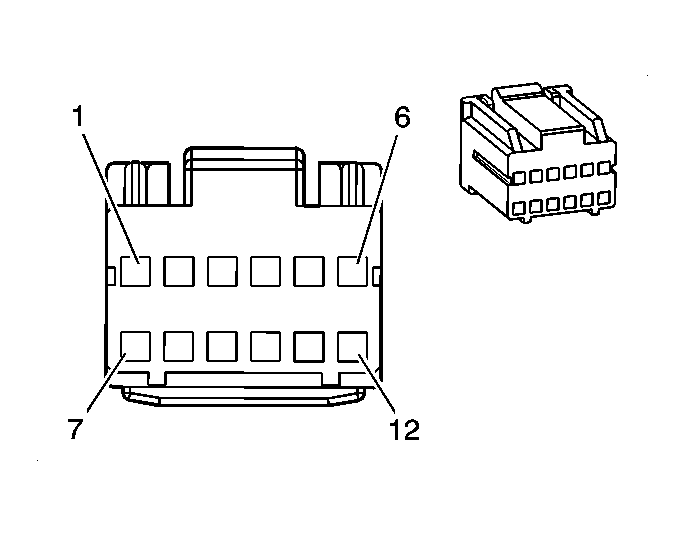

Vehicle Communication Interface Module (VCIM) C3 Connector End View
Vehicle Communication Interface Module (VCIM) C3 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-GN | 5060 | Low Speed GMLAN Serial Data |
| 2 | TN/BK | 2500 | High Speed GMLAN Serial Data Bus (+) |
| 3 | TN | 2501 | Low Speed GMLAN Serial Data Bus (-) |
| 4-6 | - | - | Not Used |
| 7 | D-GN | 5060 | Low Speed GMLAN Serial Data |
| 8 | TN/BK | 2500 | High Speed GMLAN Serial Data Bus (+) |
| 9 | TN | 2501 | Low Speed GMLAN Serial Data Bus (-) |
| 10-12 | - | - | Not Used |
