Power Seat Systems Component Views

Fig 1: Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Cushion (KA1)
2	Seat Belt Switch
3	Heated Seat Element - Driver Back (KA1)
4	Seat Adjuster Switch - Driver (AG1/ASN)
5	Heated Seat Switch - Driver (KA1)

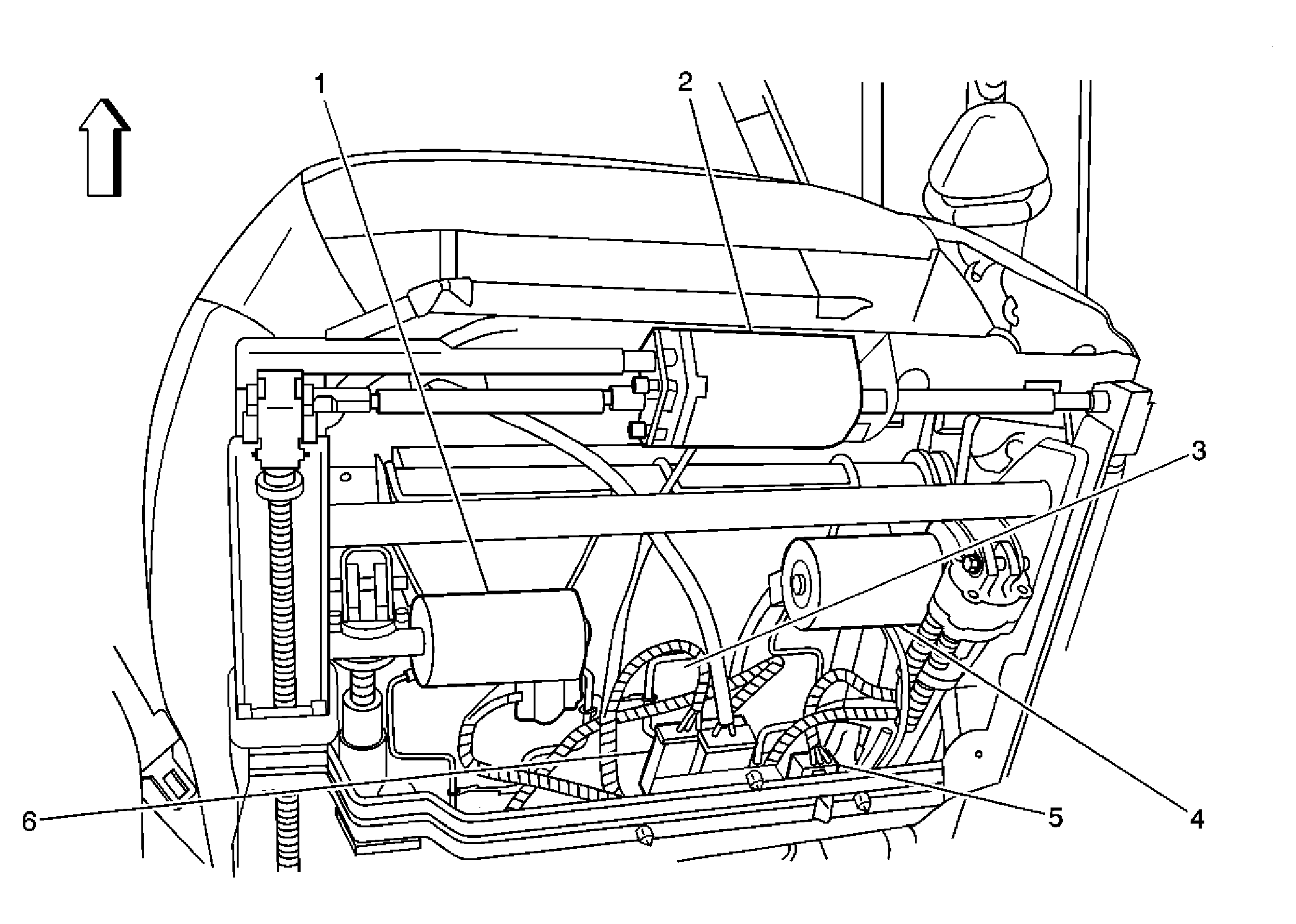

Fig 2: Under Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Motor (AG1)
2	Seat Horizontal Motor (AG1)
3	Heated Seat Cushion Temperature Sensor - Driver (KA1)
4	Seat Rear Vertical Motor (AG1)
5	C300
6	Heated Seat Control Module - Driver (KA1)

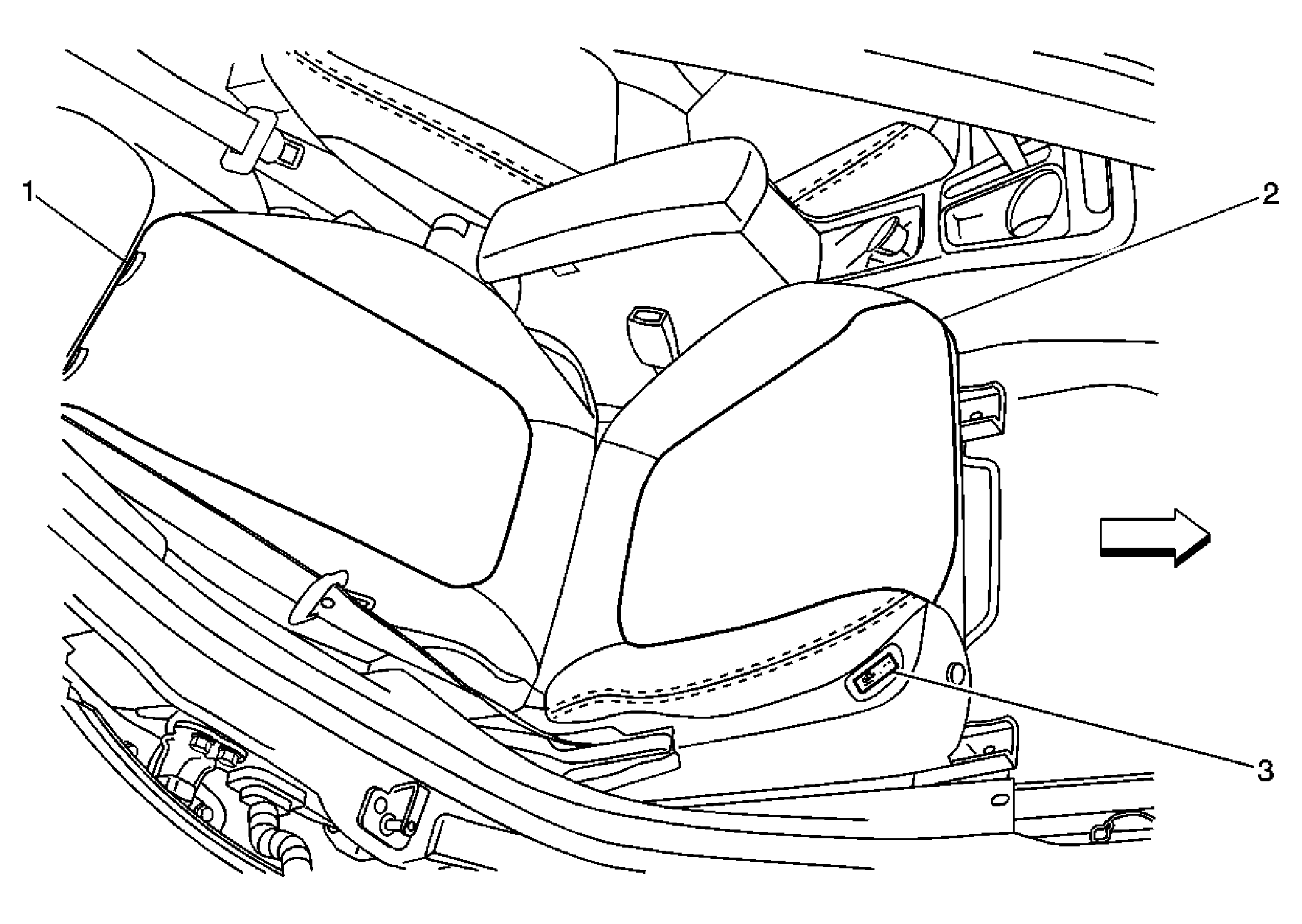

Fig 3: Front Passenger Seat (KA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Front Passenger Back
2	Heated Seat Element - Front Passenger Cushion
3	Heated Seat Switch - Passenger

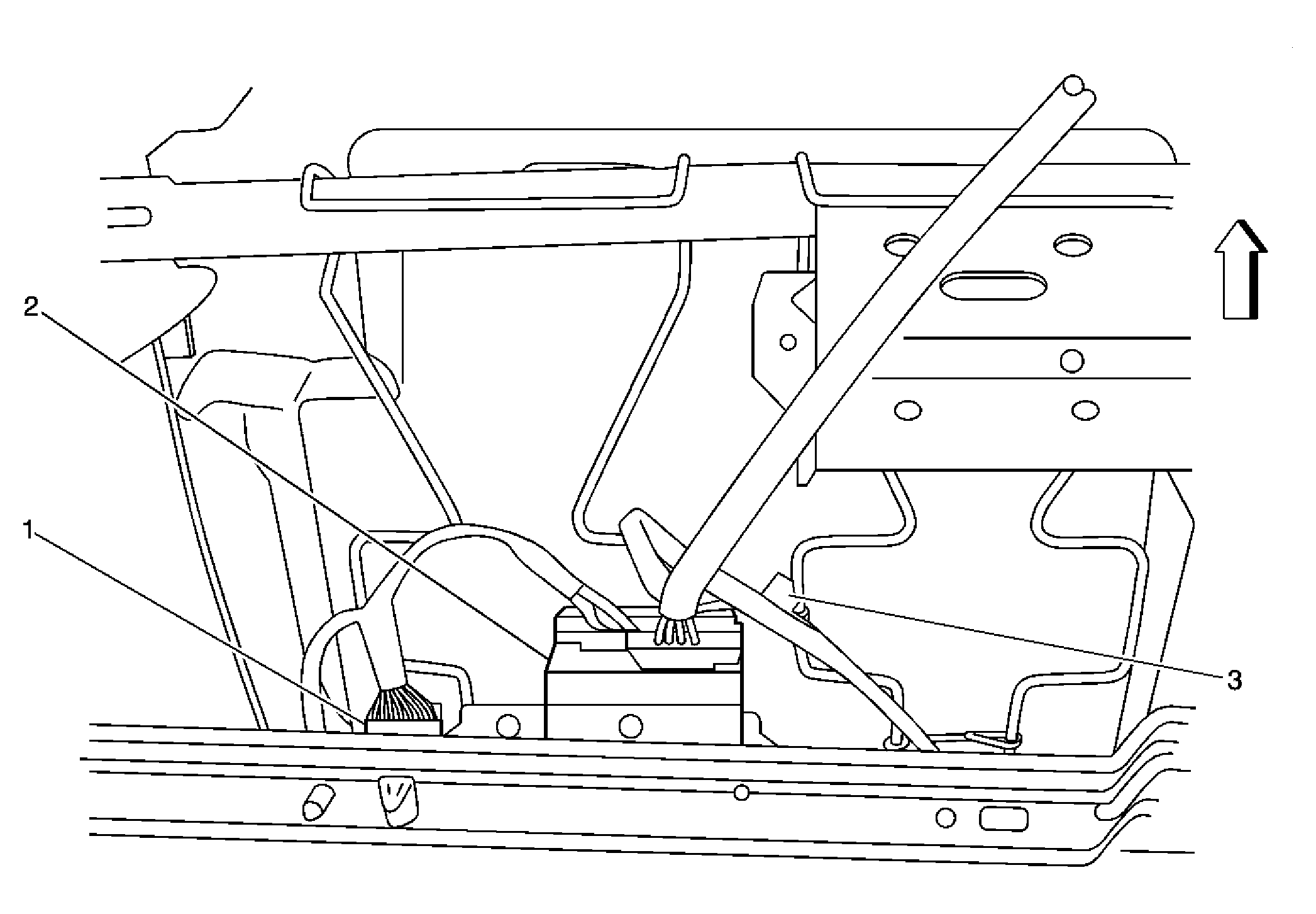

Fig 4: Under Front Passenger Seat (KA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C310
2	Heated Seat Control Module - Passenger
3	Heated Seat Cushion Temperature Sensor - Passenger
