Power Door Systems Component Views

Fig 1: Left Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror - Switch
4	Speaker - LF Door Tweeter
5	Window Switch - Driver
6	Speaker - LF Door
7	Rear Compartment Lid Release Switch
8	Window Motor - Driver
9	Door Latch Assembly - Driver

Fig 2: Right Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Tweeter (UZ6)
2	Outside Rearview Mirror - Front Passenger
3	Door Lock Switch - Passenger
4	Window Switch - Passenger
5	Door Latch Assembly - Passenger
6	Window Motor - Passenger
7	Speaker - RF Door

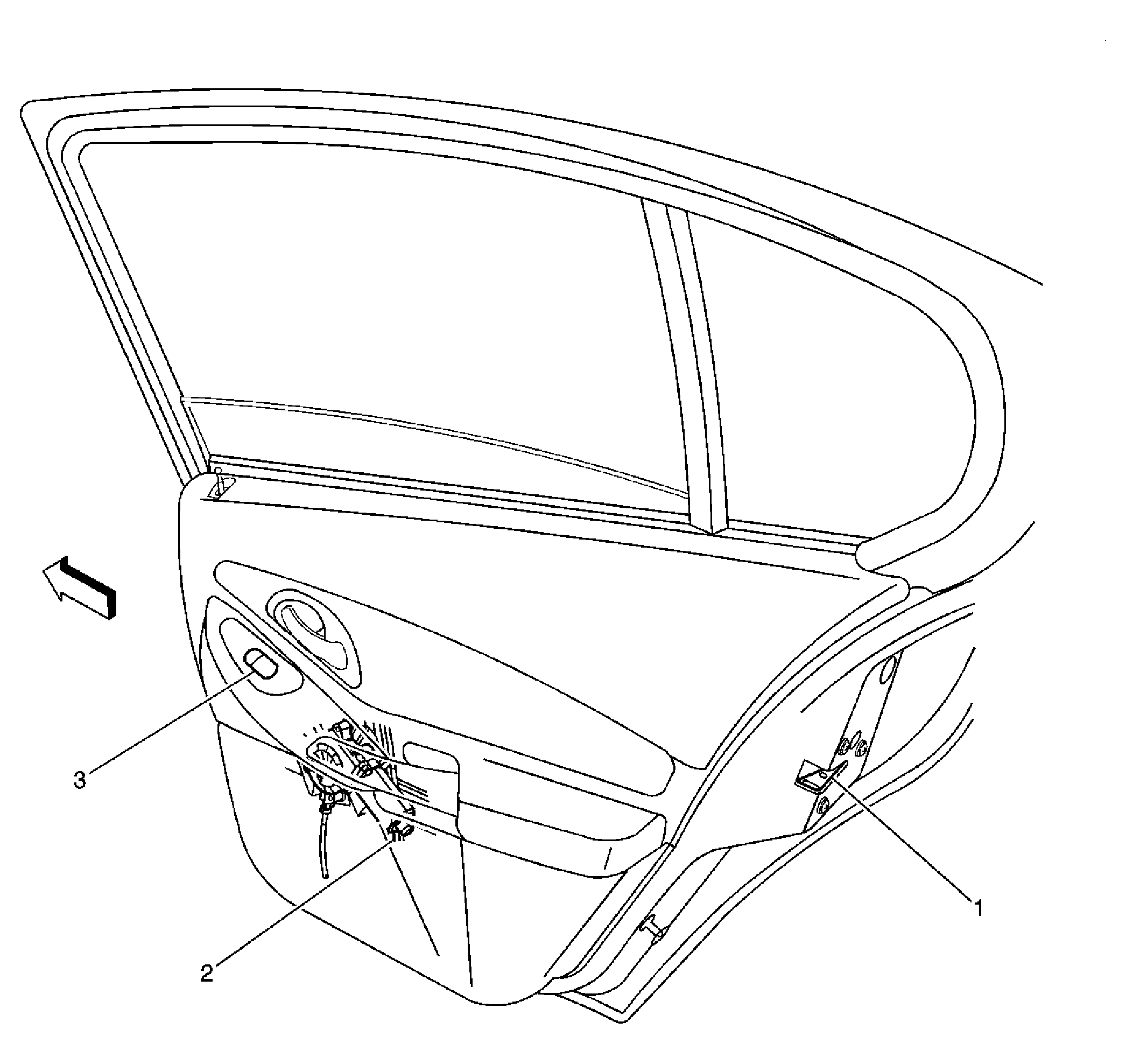

Fig 3: Left Rear Door

Courtesy of GENERAL MOTORS CORP.

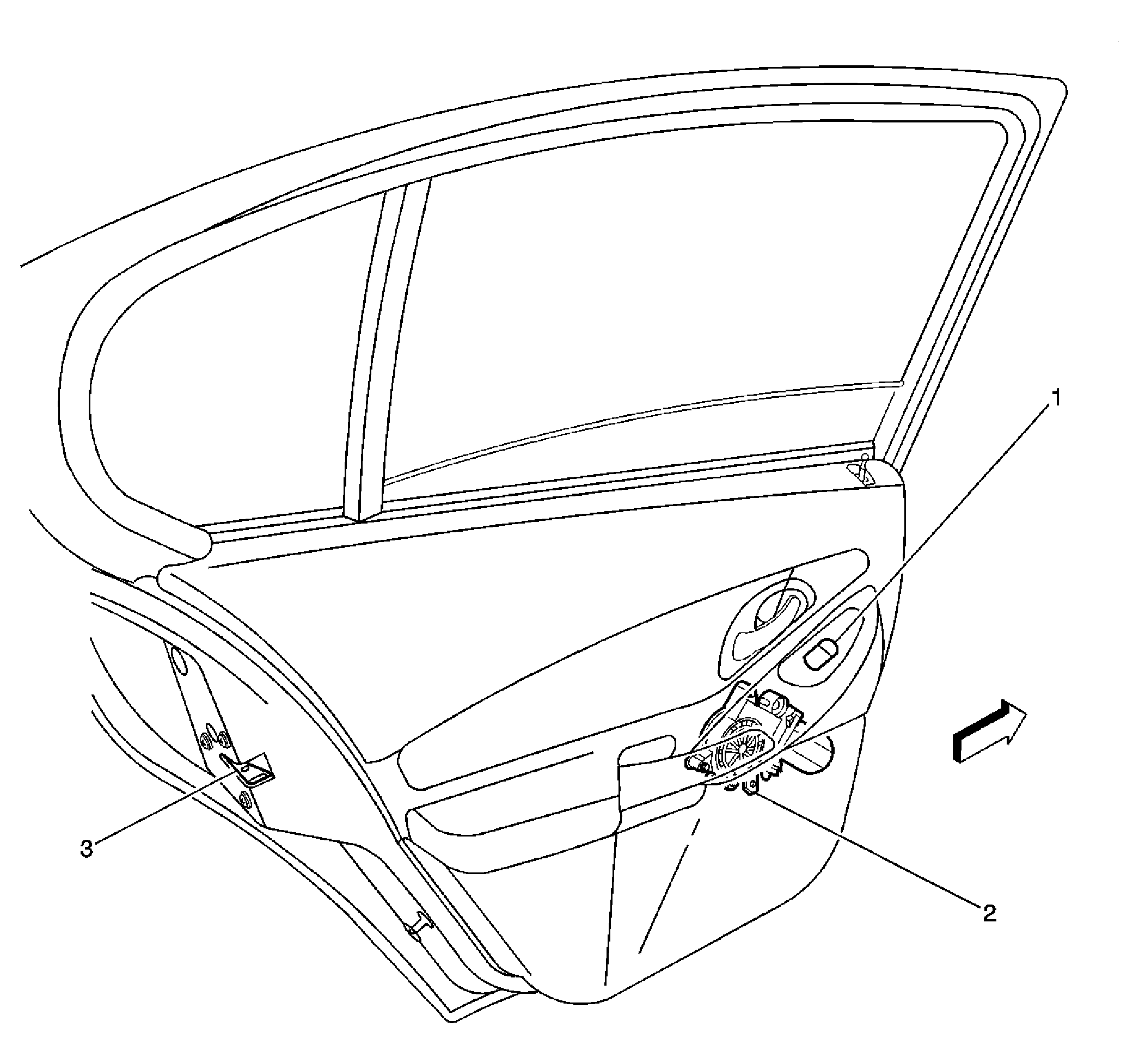

Fig 4: Right Rear Door

Courtesy of GENERAL MOTORS CORP.
