Installation Procedure

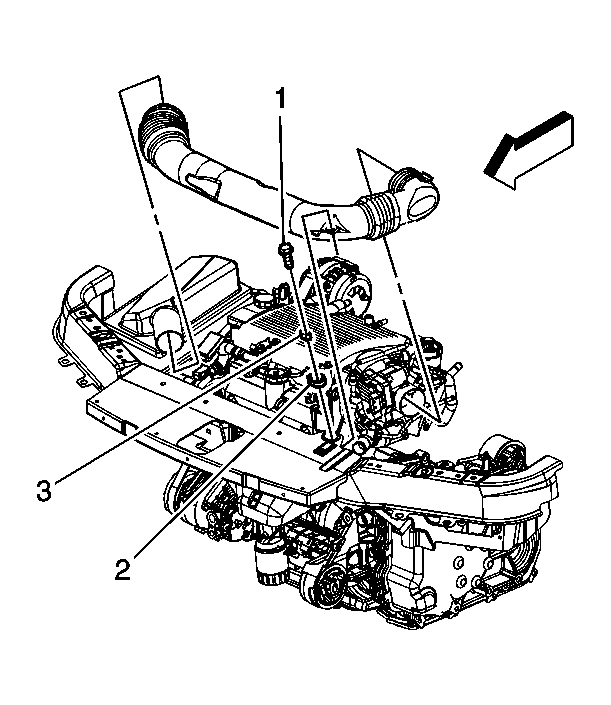

    Fig 1: Removing Air Cleaner Intake Duct
    GM1459596Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the air cleaner intake duct.
  2. Install the air intake duct bolt (1).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Tighten the air cleaner intake duct clamps at the MAF sensor and throttle body.

    Tighten:  Tighten the clamps to 2 N.m (18 lb in).

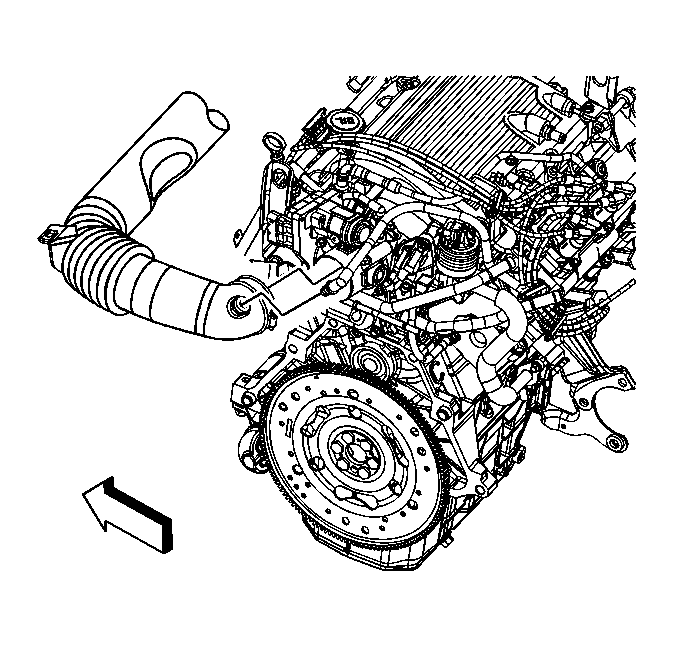

    4. Fig 2: View Of PCV Tube & Air Cleaner Duct
    GM1492073Courtesy of GENERAL MOTORS CORP.
  4. Install the PCV fresh air tube to the air cleaner intake duct.
