Installation Procedure

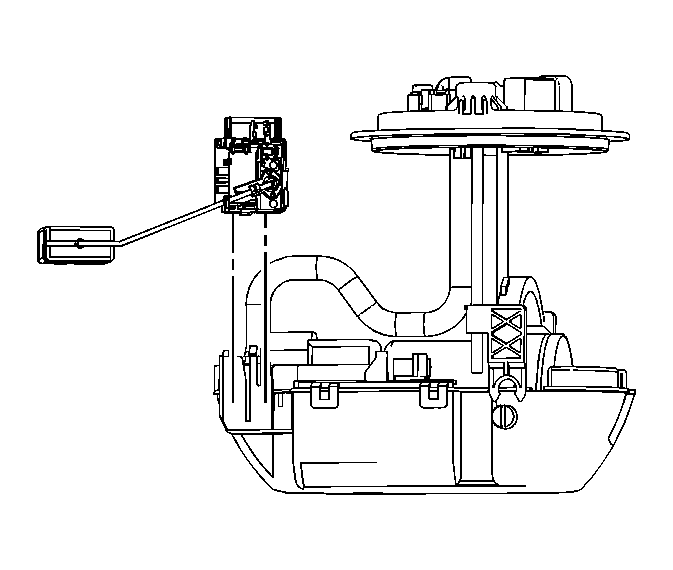

- Carefully slide the fuel level sensor into the slots on the fuel pump module bowl.
- Secure the retaining tab on the sensor into the slot on the pump module bowl.
- Connect the fuel level sensor electrical connector to the pump module cover.
- Install the fuel level sensor wiring harness to the molded-in tab on the pump module bowl.
- Install the fuel pump module assembly. Refer to Fuel Sender Assembly Replacement .
