Installation Procedure

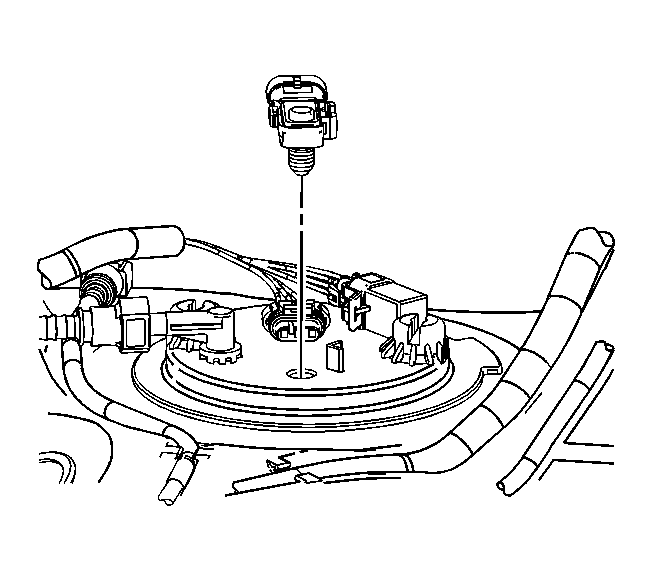

    Fig 1: Removing Fuel Tank Pressure Sensor From Modular Fuel Sender
    GM1236106Courtesy of GENERAL MOTORS CORP.
  1. Install the new fuel tank pressure sensor to modular fuel sender.
  2. Install the electrical connector to fuel tank pressure sensor.
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
  4. Refill tank.
  5. Install the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
