Turn Signal/Multifunction Switch C1 (Late Production)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

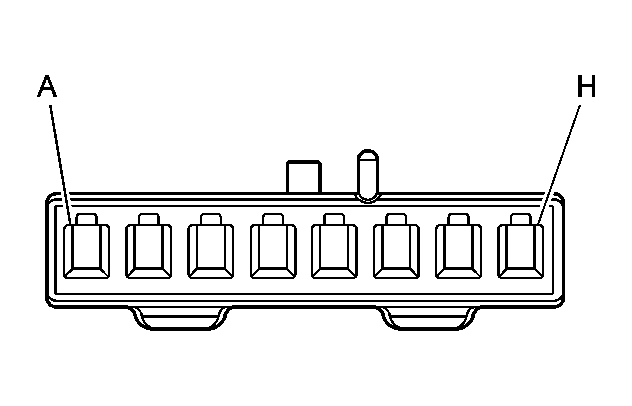

Fig 1: Turn Signal/Multifunction Switch C1 (Late Production) Connector End View
GM1553931Courtesy of GENERAL MOTORS CORP.
Lighting Systems Connector End Views

Connector Part Information
  • OEM: 15497899
  • Service: See Catalog
  • Description: 8-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal: 12064971/Tray 5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-2A
Turn Signal/Multifunction Switch C1 (Late Production)

Pin Wire Color Circuit No. Function
A-E - - Not Used
F L-BU/WH 1414 Left Turn Signal Switch Signal
G BK/WH 1551 Ground
H D-BU/WH 1415 Right Turn Signal Switch Signal
