Computer/Integrating Systems Component Views

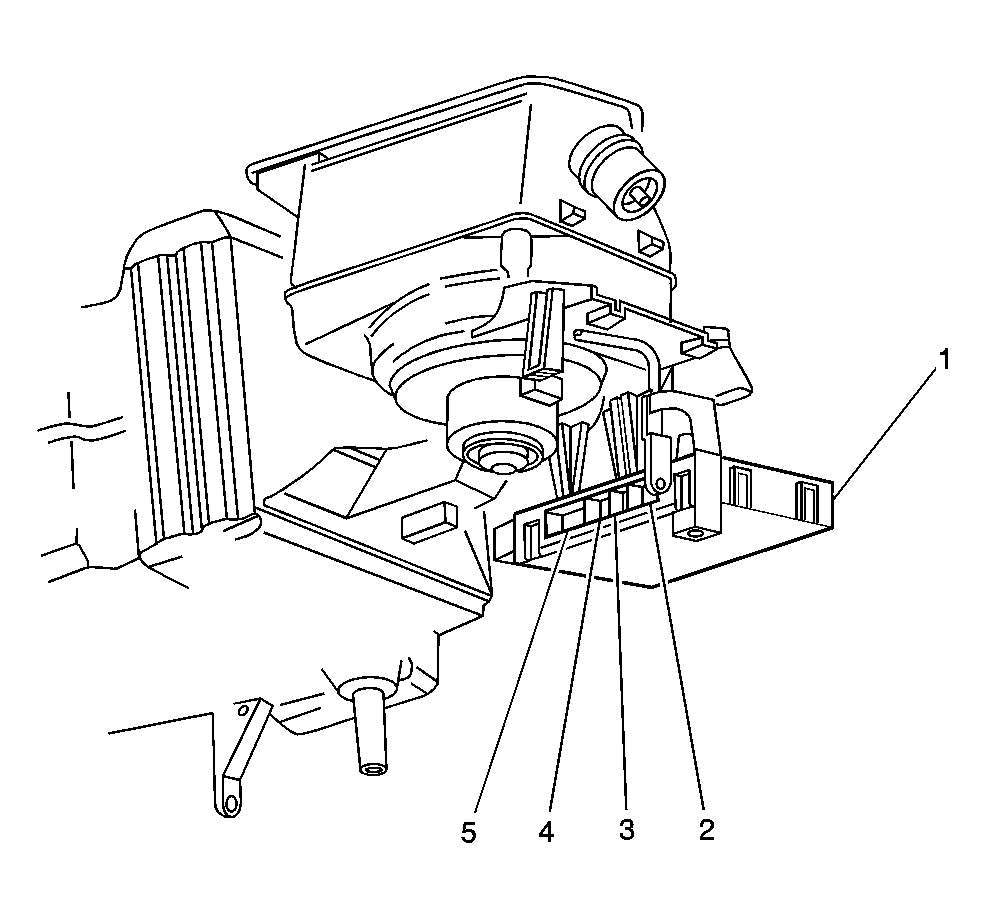

Fig 1: View Of Body Control Module
GM1355387Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 BCM Connector-1
3 BCM Connector-2
4 BCM Connector-3
5 BCM Connector-4

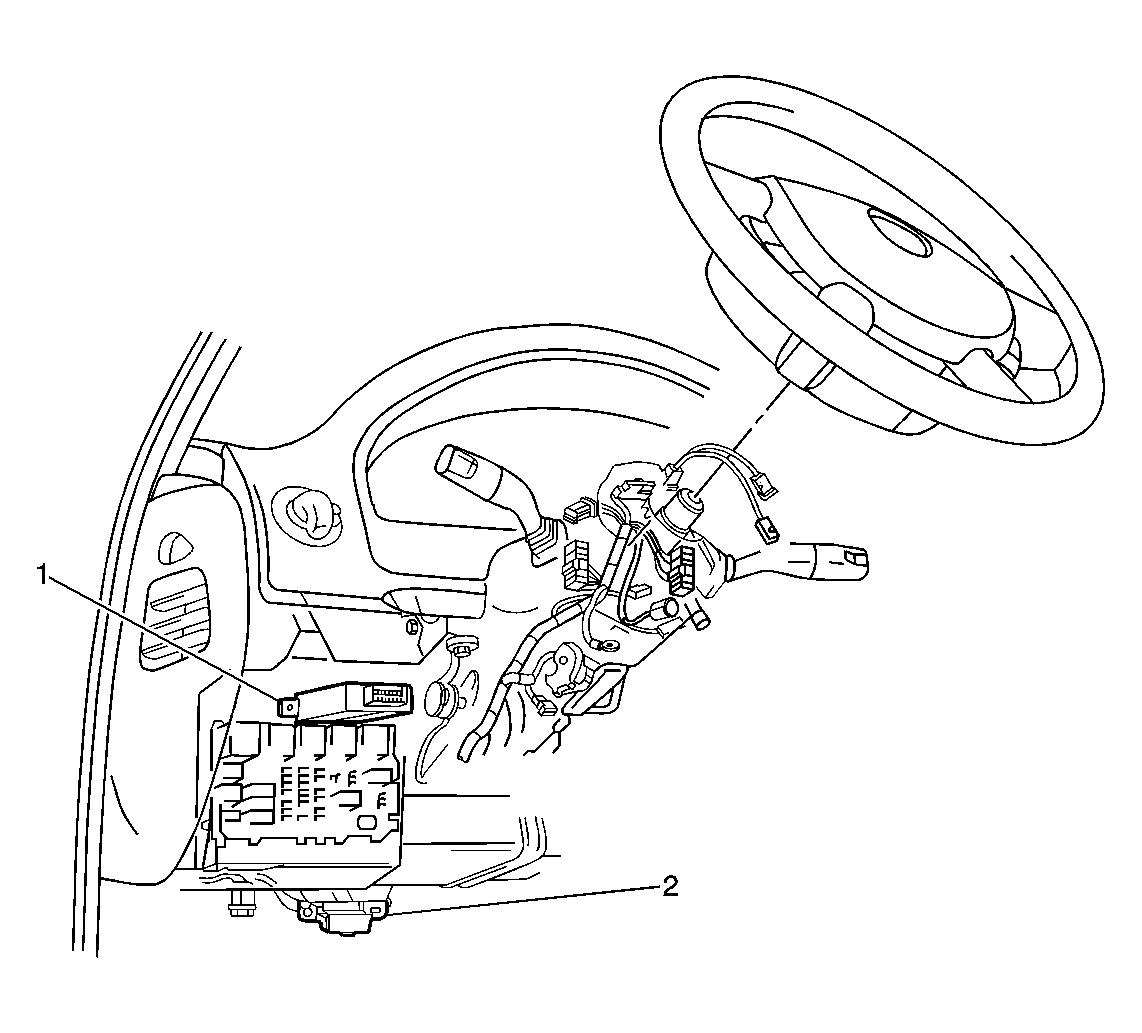

Fig 2: View Of Powertrain Integration Module (PIM)
GM1562157Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain Integration Module
