Body Control System Schematics

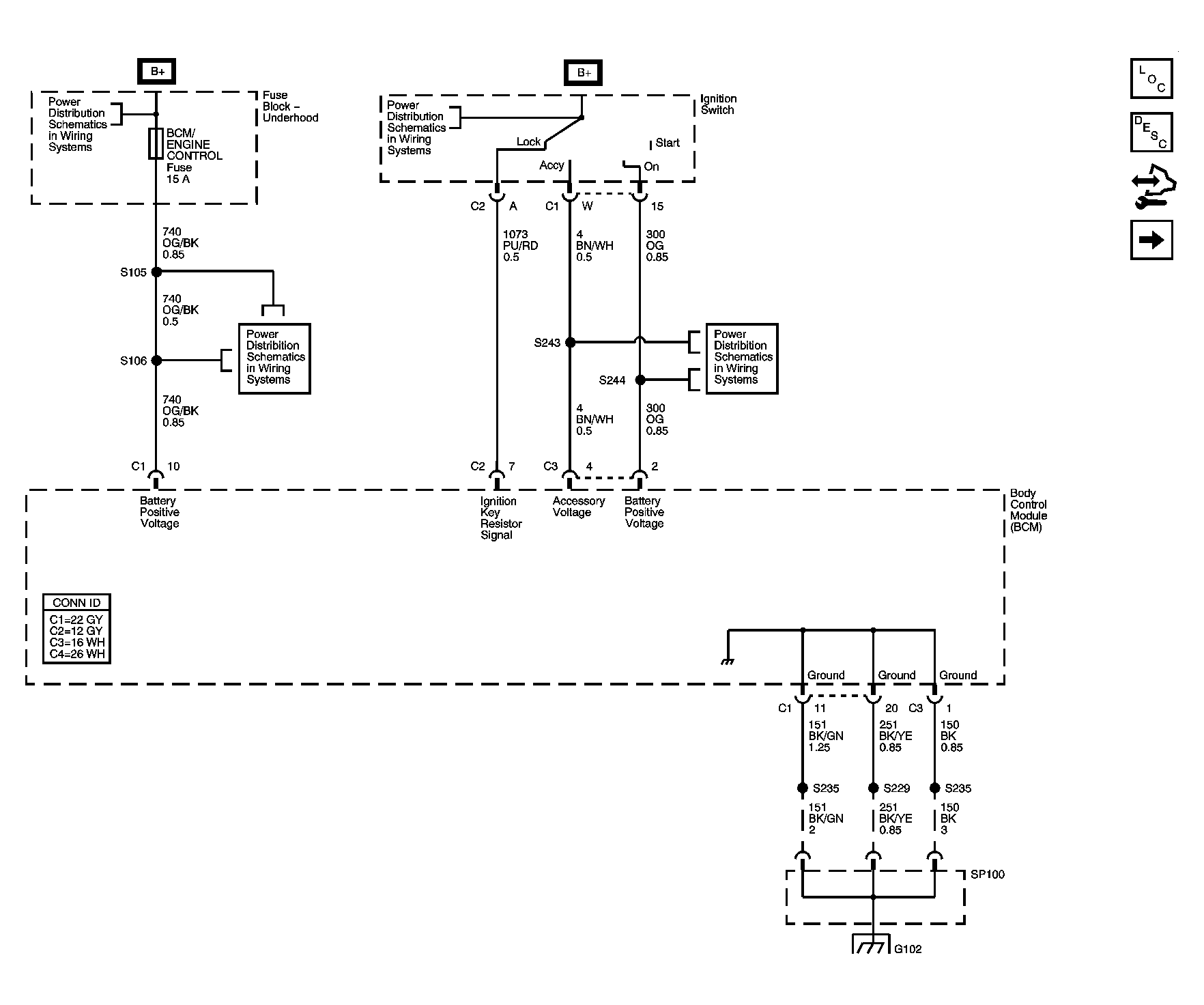

Fig 1: Body Control Module (BCM) Power & Ground Schematic
Courtesy of GENERAL MOTORS CORP.

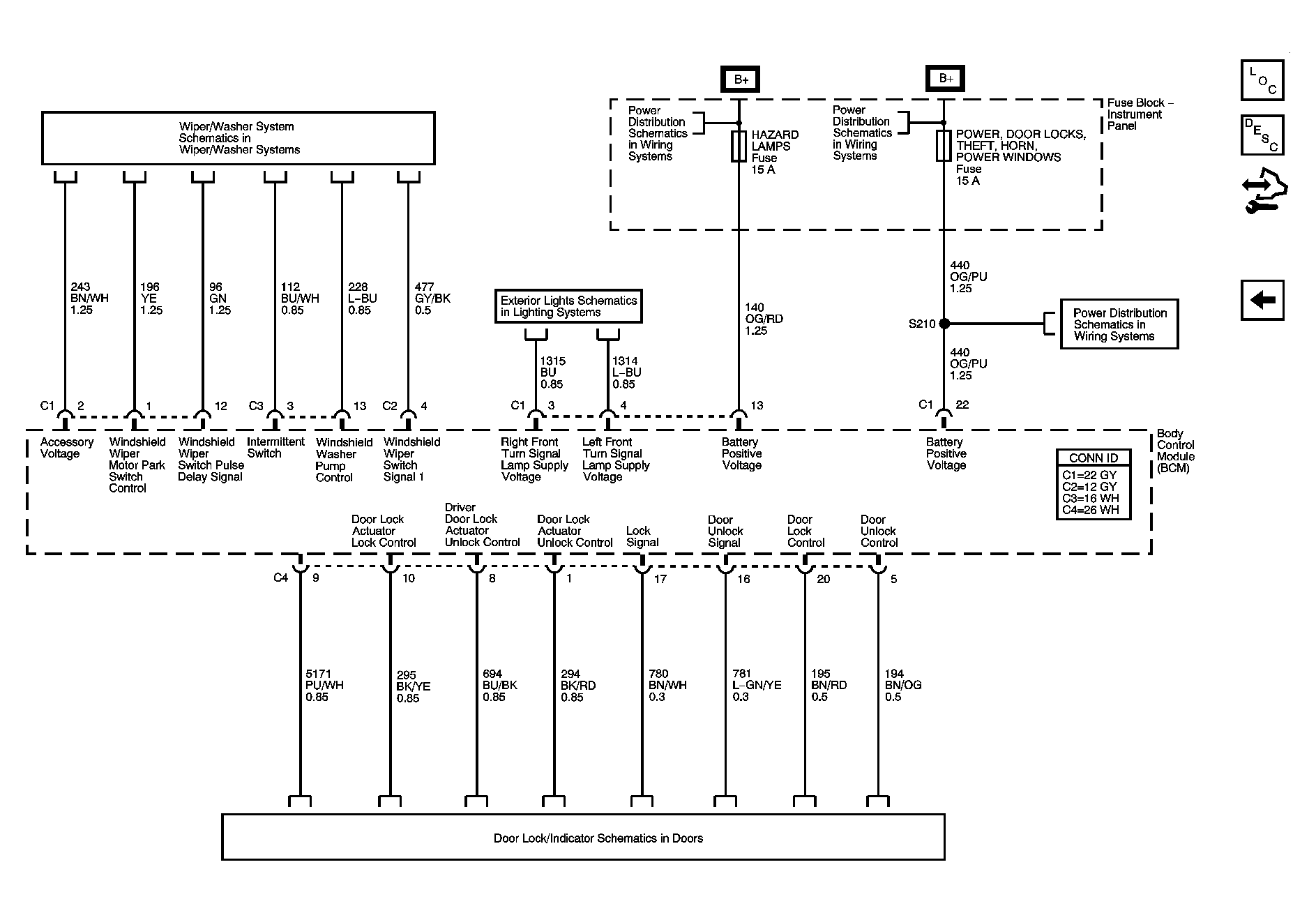

Fig 2: Controlled/Monitored Subsystem References Schematic (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

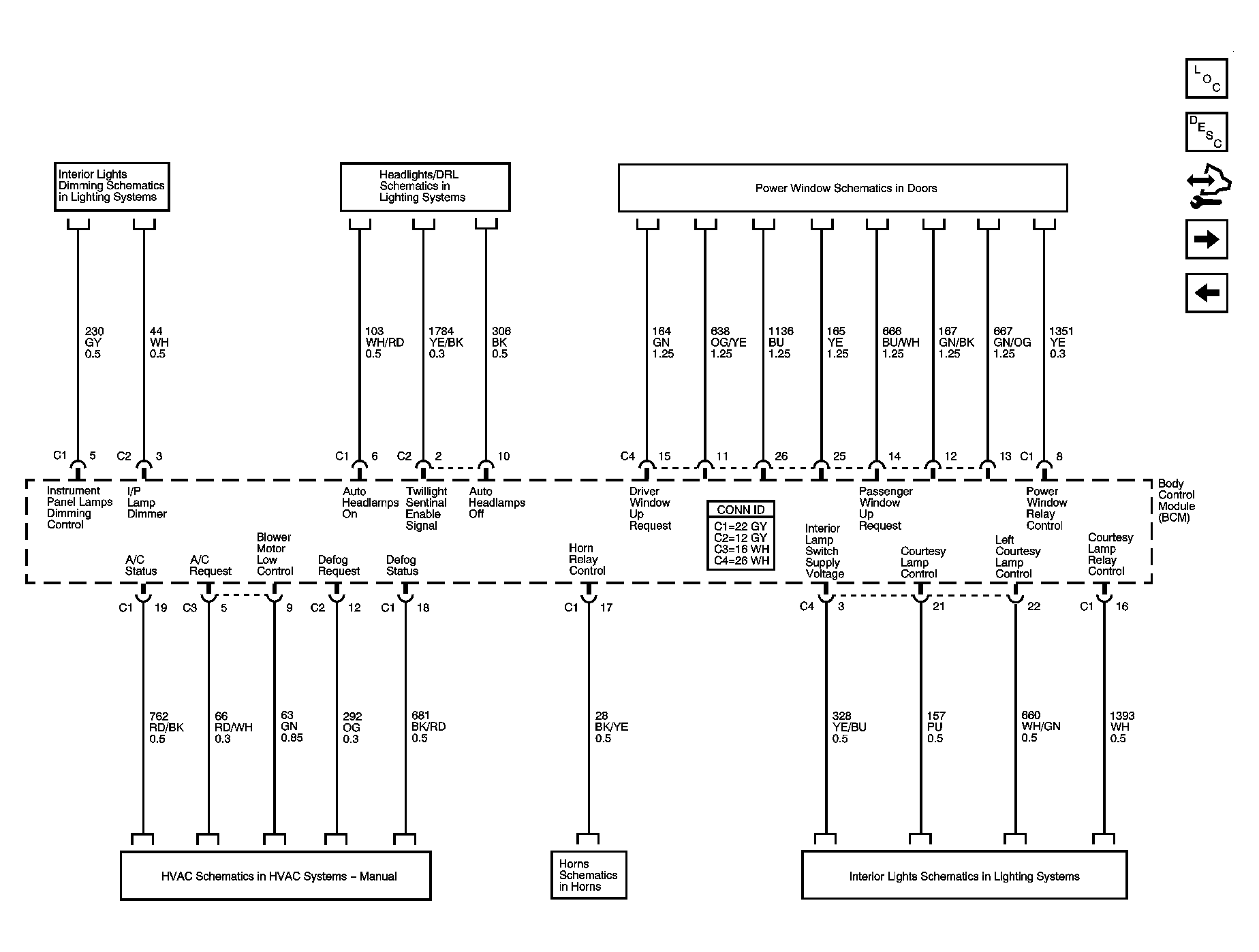

Fig 3: Controlled/Monitored Subsystem References Schematic (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

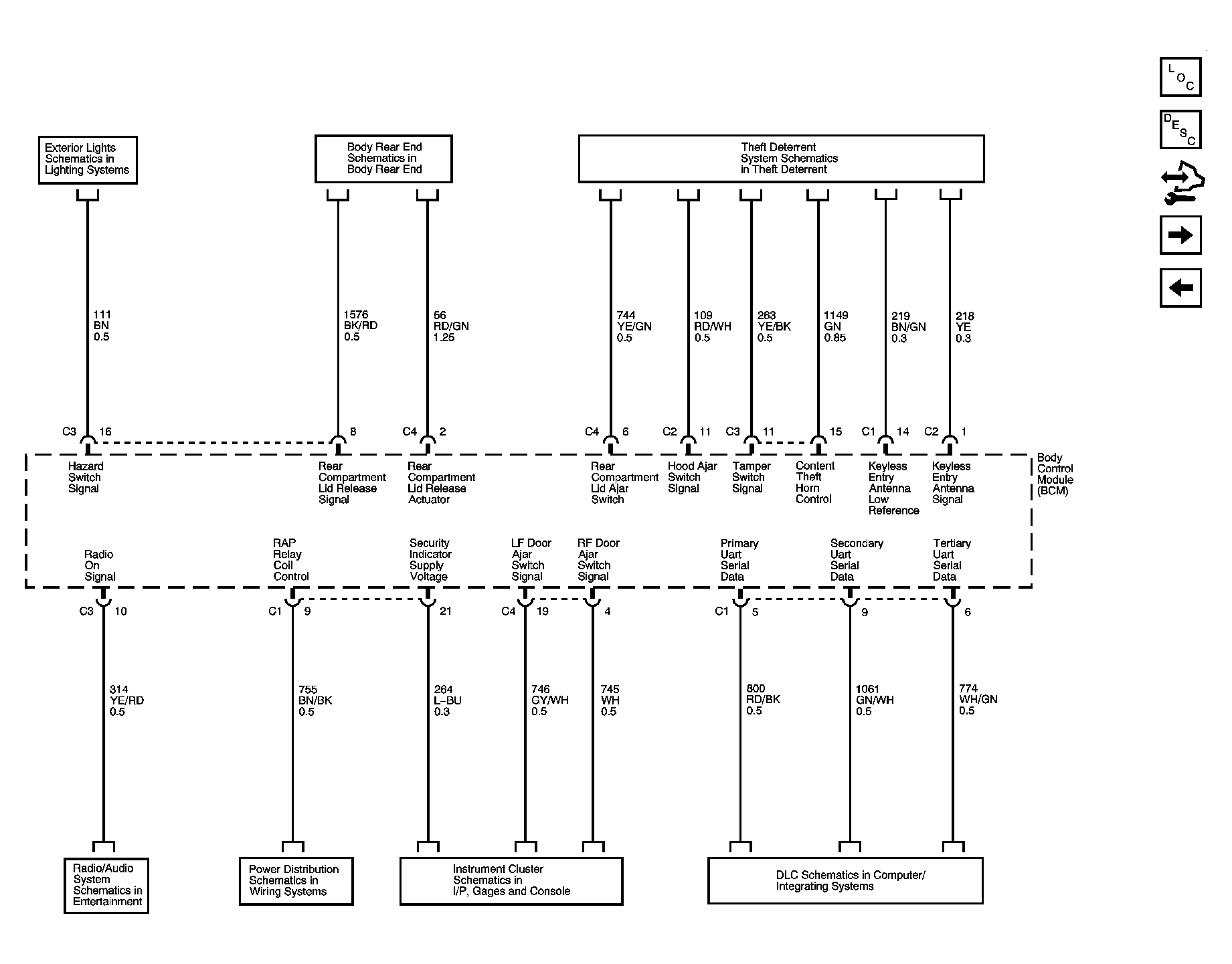

Fig 4: Controlled/Monitored Subsystem References Schematic (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
