Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

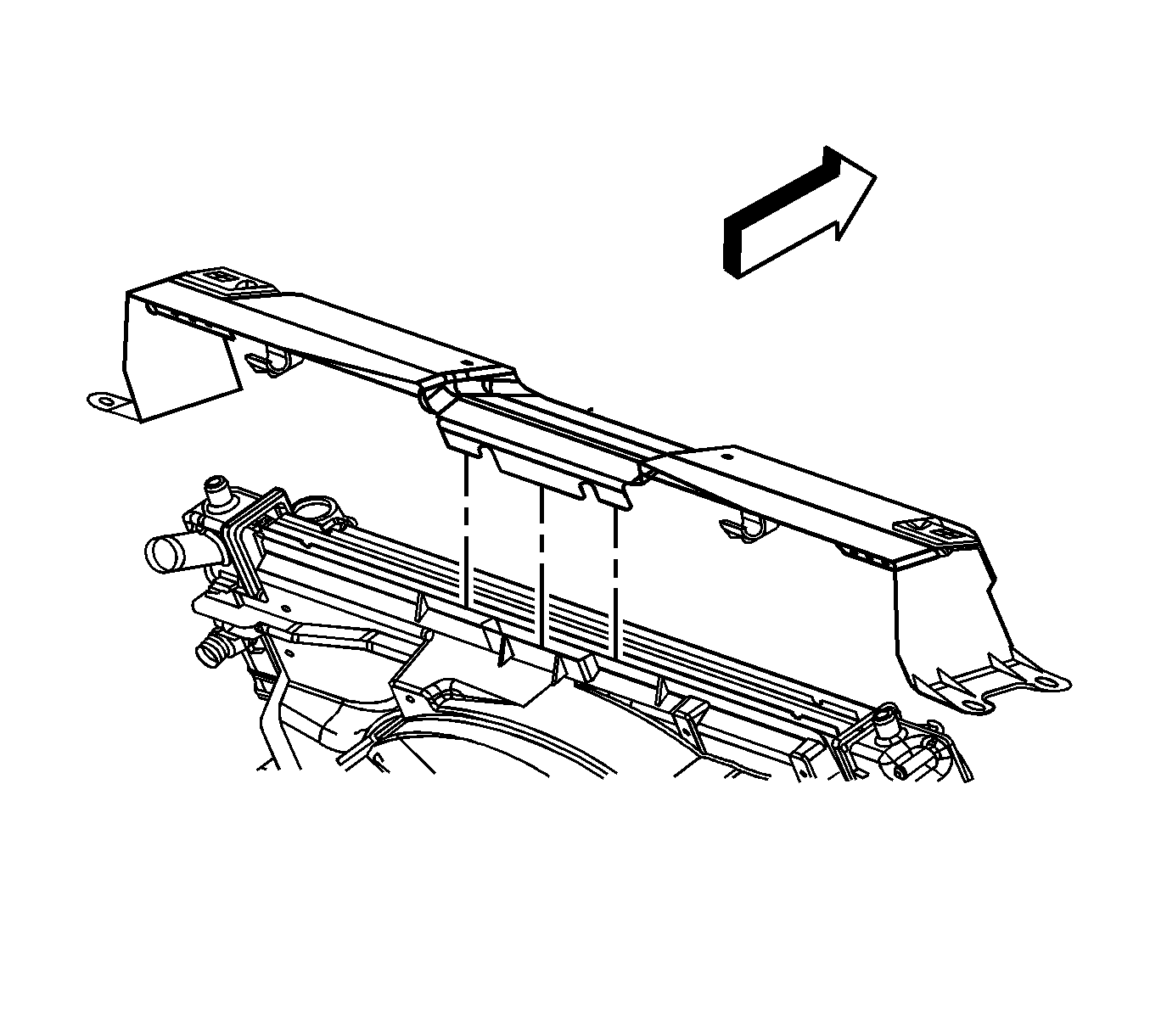

Fig 1: Radiator Support

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Position the radiator support in the correct relationship to the fan shroud.

Install the radiator support.

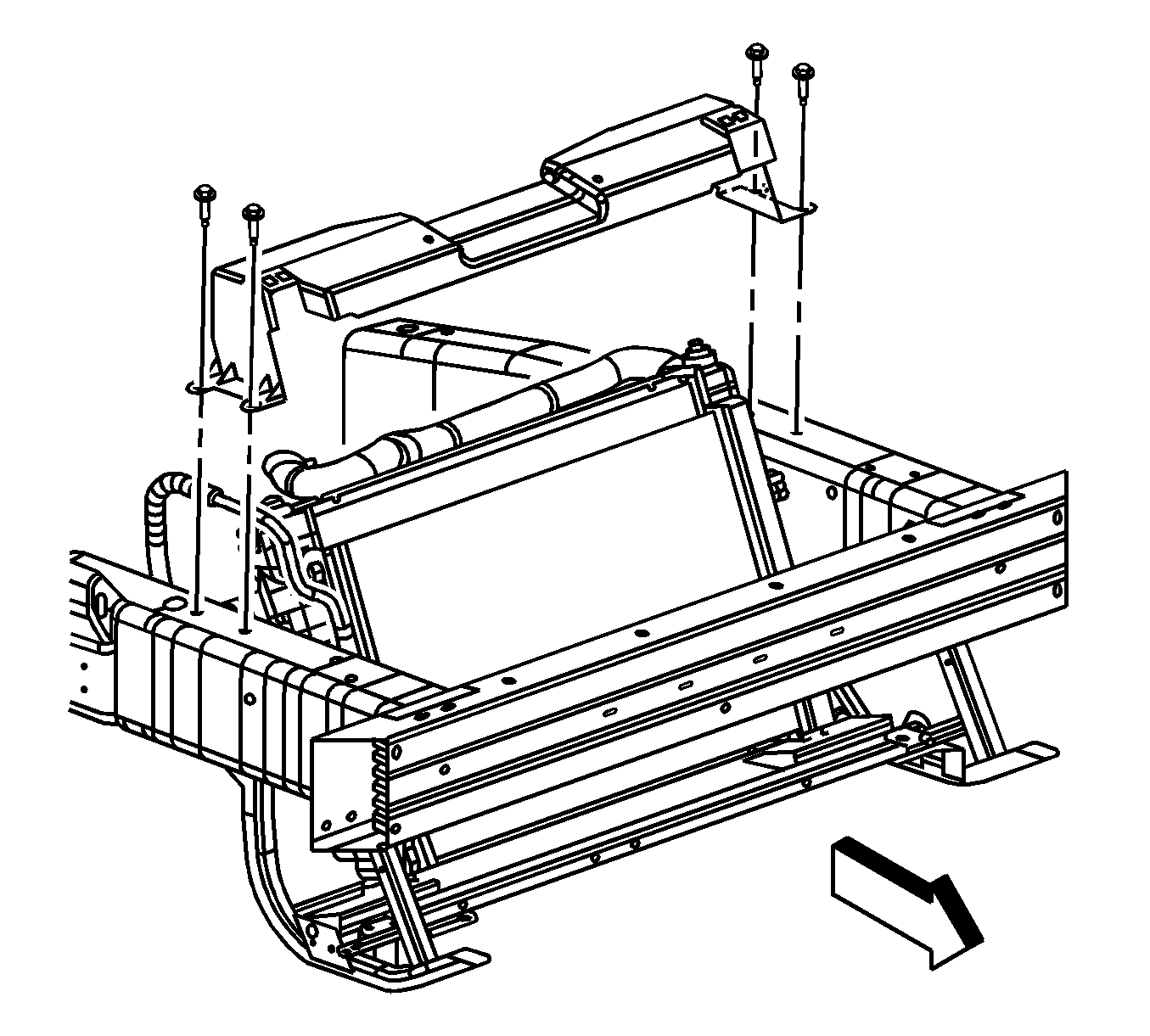

Fig 2: Radiator Support & Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the radiator support bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).

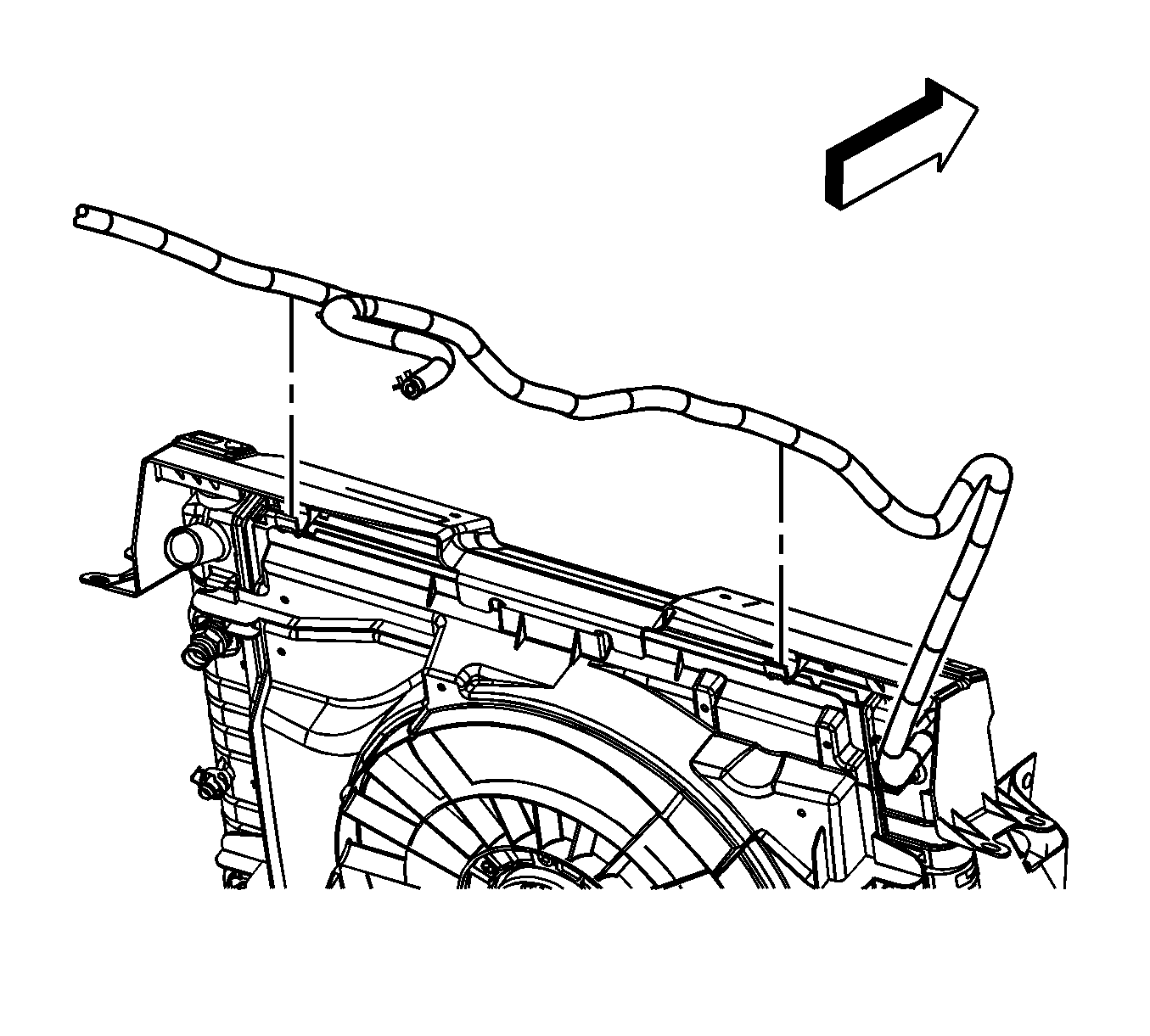

Fig 3: Surge Tank Inlet Hose Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the surge tank inlet hose assembly to the radiator support tabs.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 6.0L.
