Engine Control Module (ECM) C3

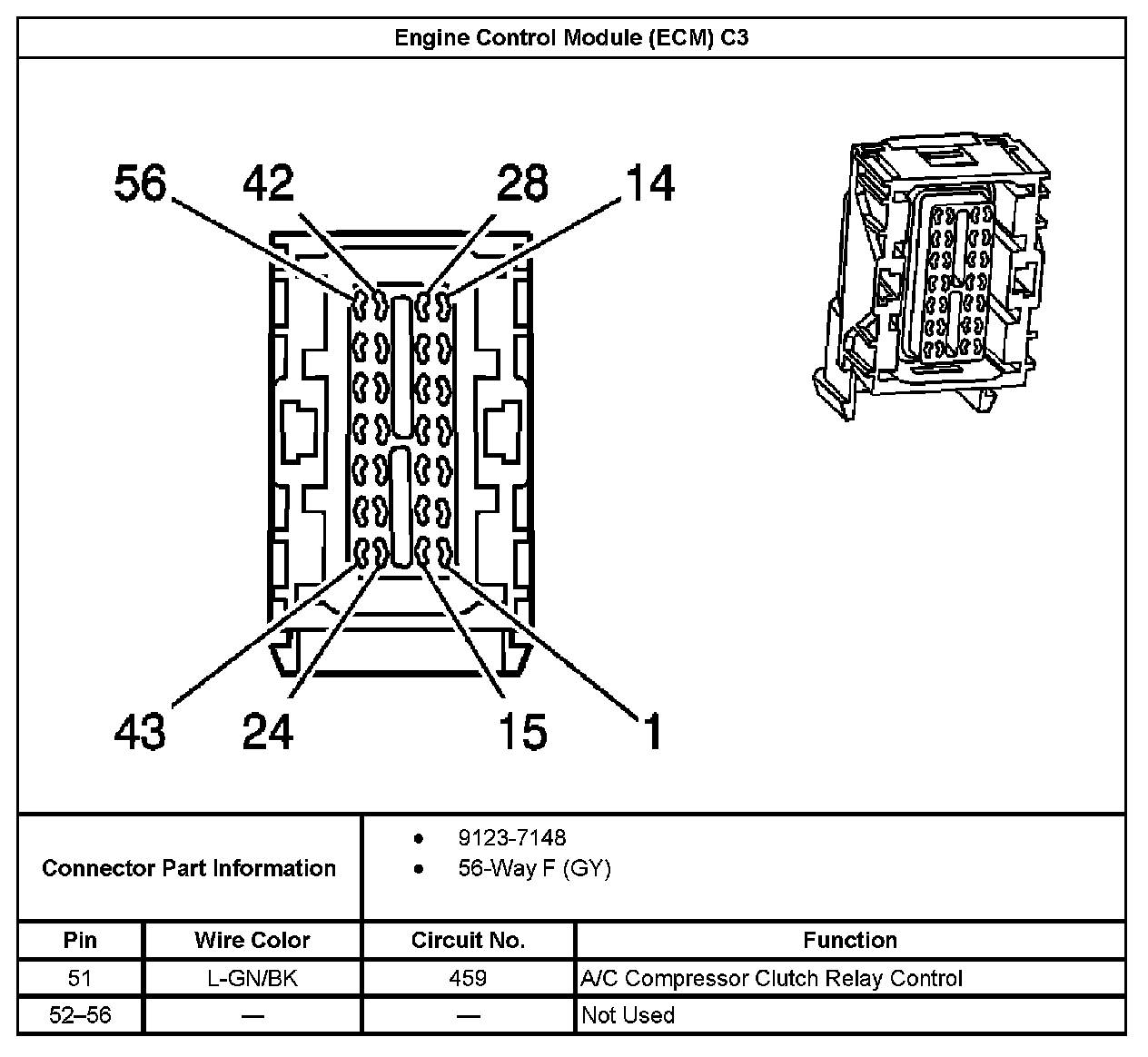

Engine Control Module (ECM) C3 Part1:

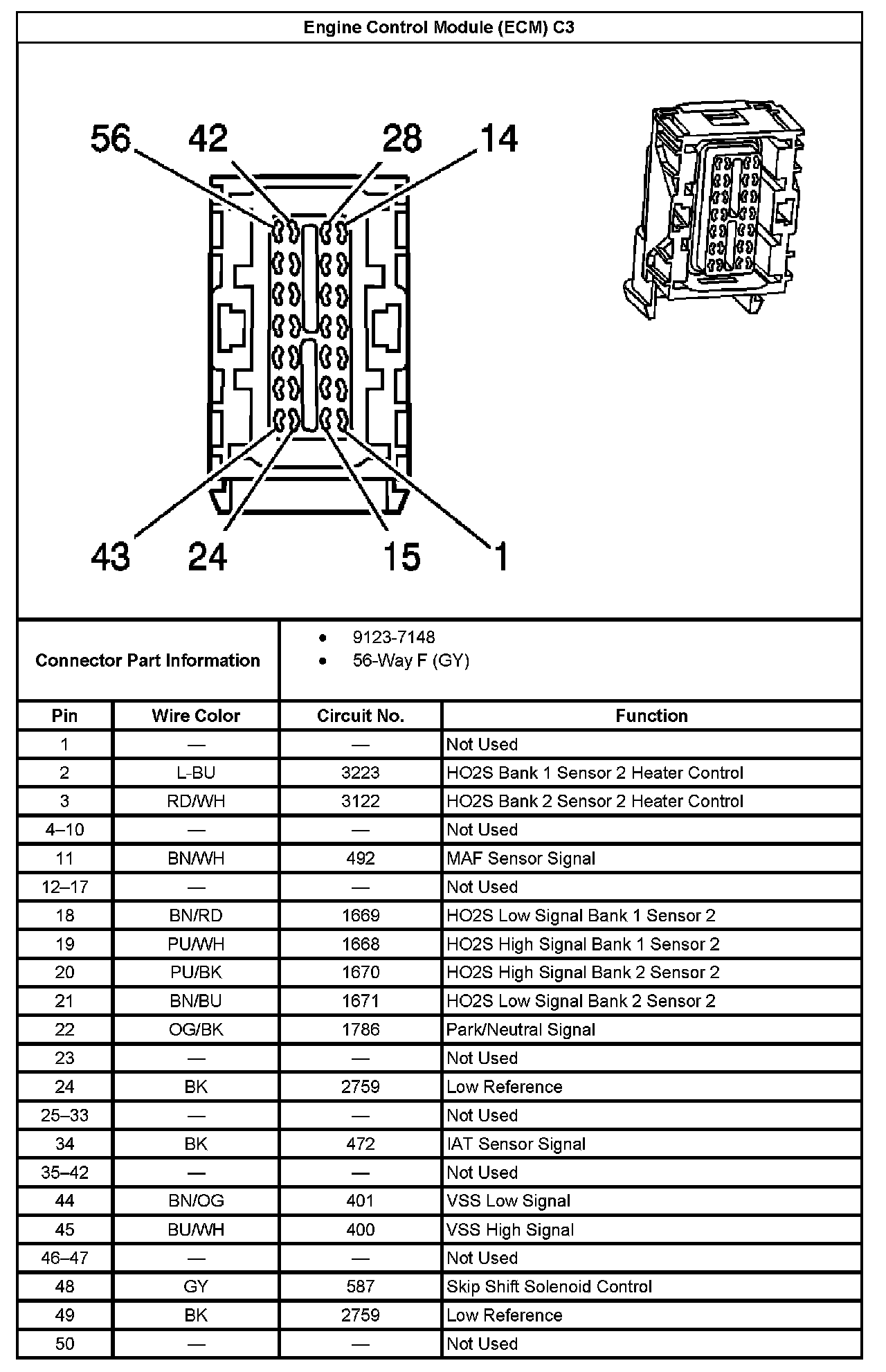

Engine Control Module (ECM) C3 Part 2:
