Connector Views

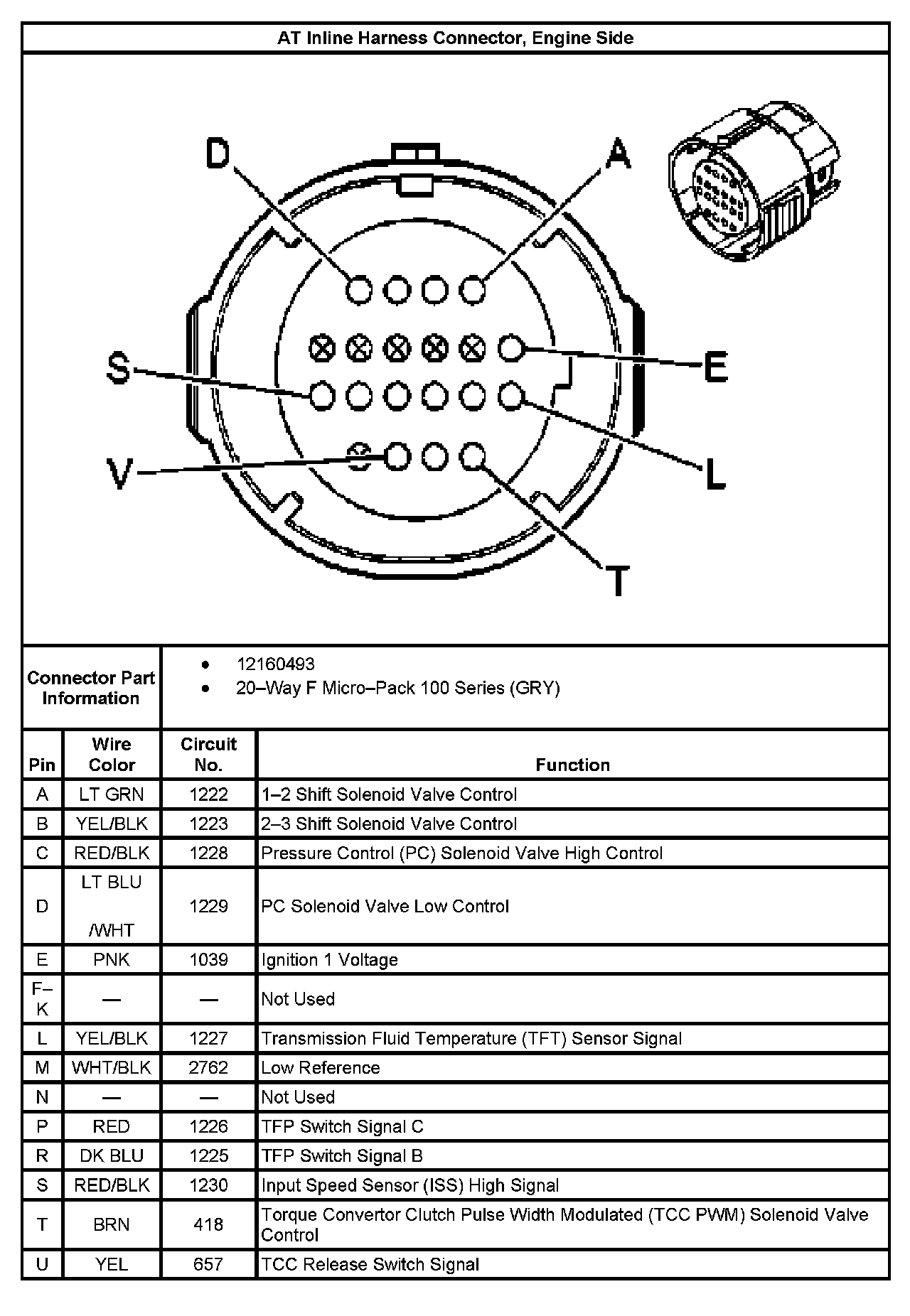

AT Inline Harness Connector, Engine Side:
AT Inline Harness Connector, Engine Side:

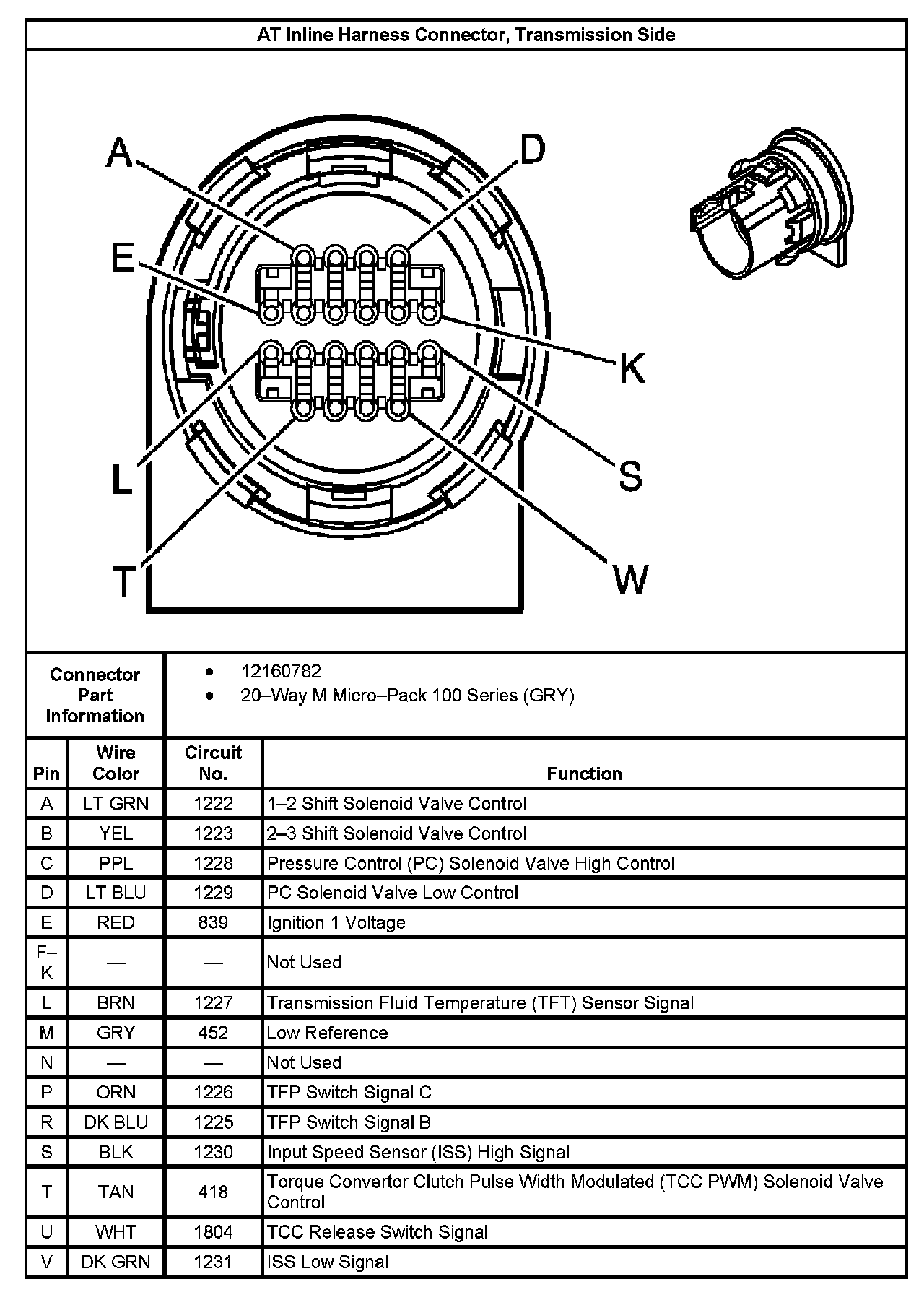

AT Inline Harness Connector, Transmission Side:

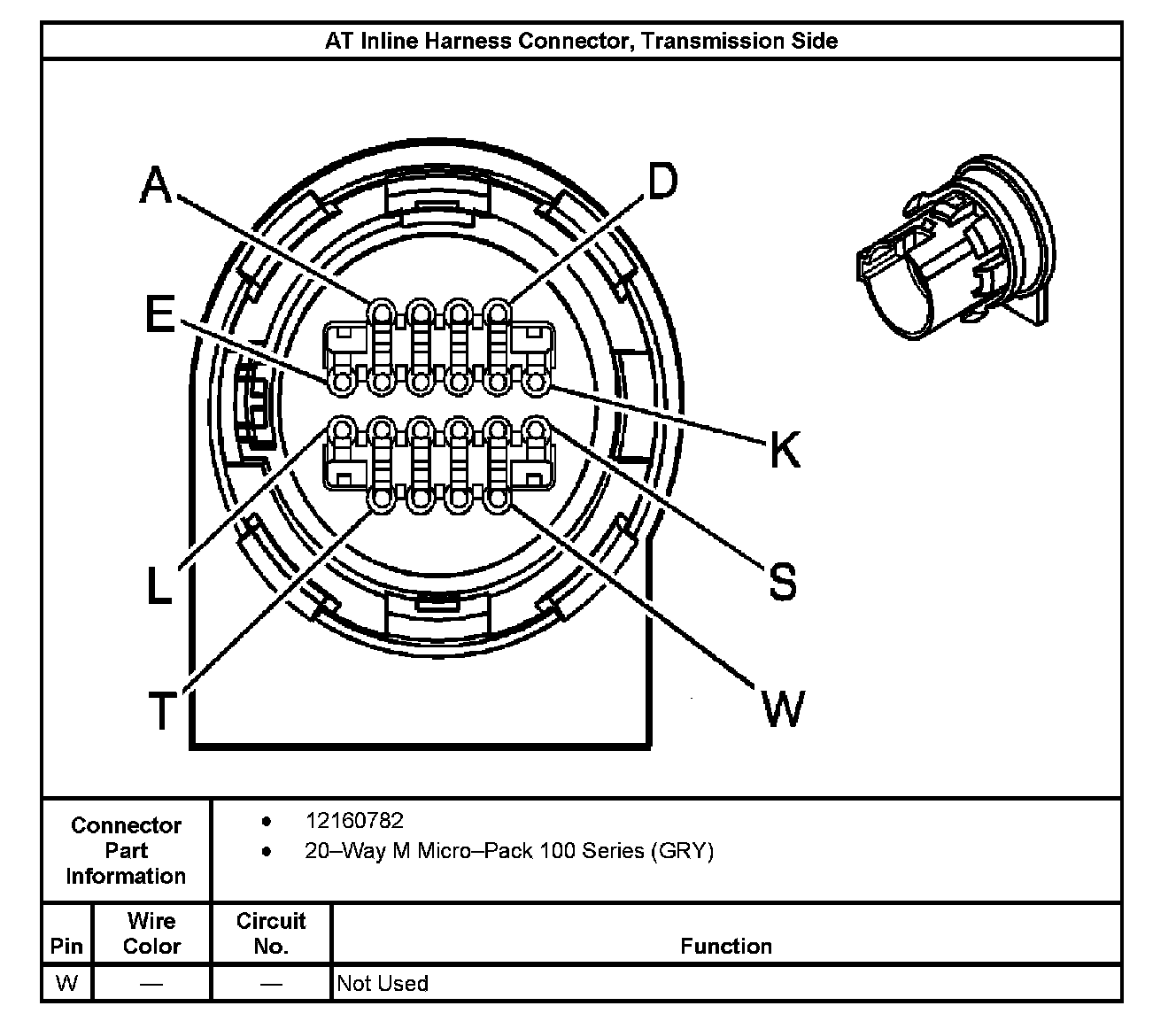

AT Inline Harness Connector, Transmission Side:
