Power Door Systems Component Views

Fig 1: Left Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver Connector
2	Outside Rearview Mirror Switch
3	Window Switch - Driver Connector
4	Outside Rearview Mirror - Driver Connector
5	Window Motor - Driver
6	Speaker - LF Connector
7	Door Lock Actuator - Driver Connector
8	Door Jamb Switch - LF Connector

Fig 2: Right Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger Connector
2	Door Jamb Switch - RF Connector
3	Door Lock Actuator - Front Passenger Connector
4	Speaker - RF Connector
5	Window Motor - Front Passenger
6	Outside Rearview Mirror - Passenger Connector
7	Window Switch - Front Passenger - Connector

Fig 3: Left Rear Door (The Right Rear Door is Similar) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - LR Connector
2	Window Motor - LR Connector
3	Door Lock Actuator - LR Connector
4	Door Ajar Switch - LR Connector

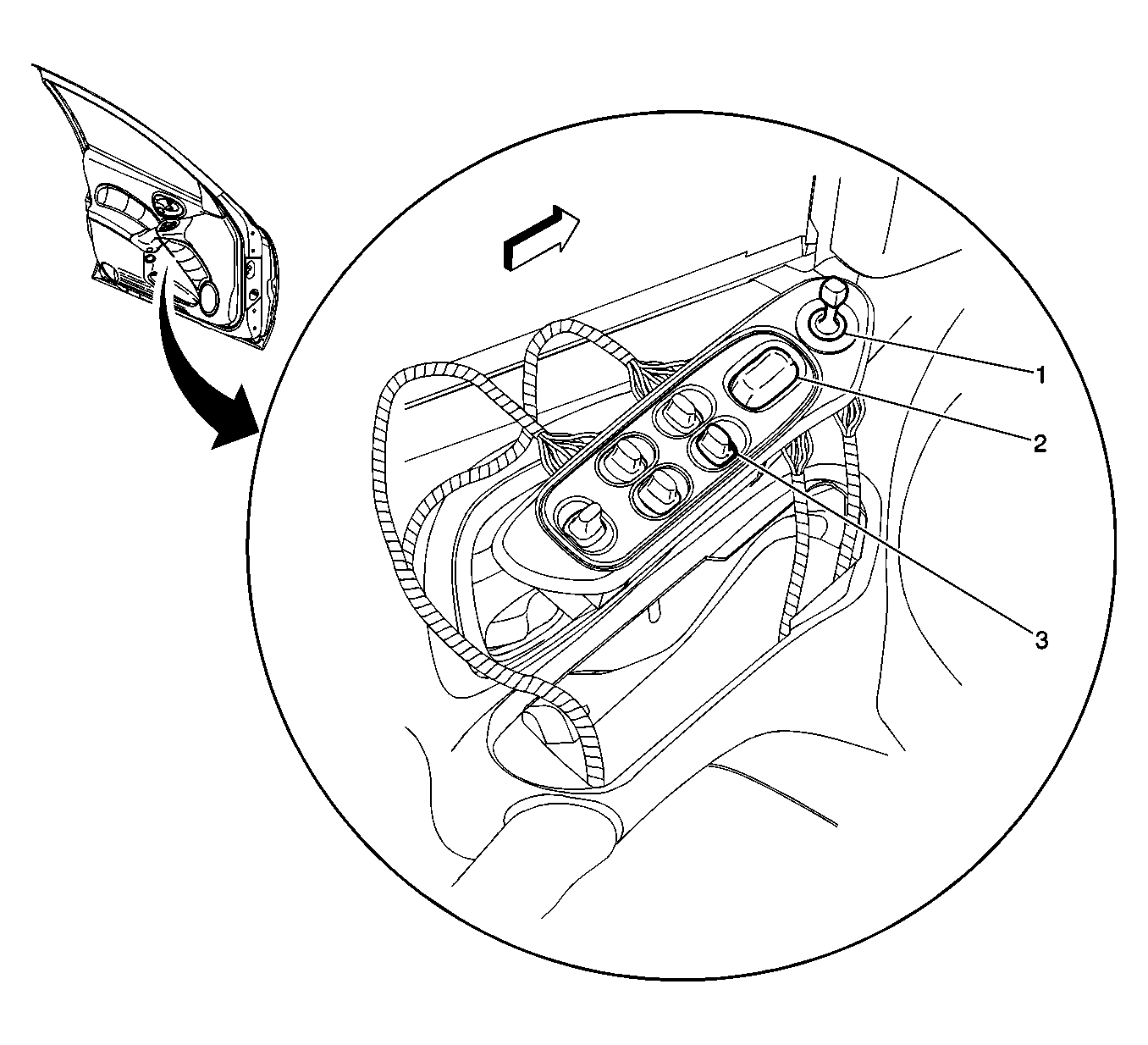

Fig 4: Door Switches Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Door Lock Switch - Driver (RF Similar)
3	Window Switch - Driver (RF Similar)

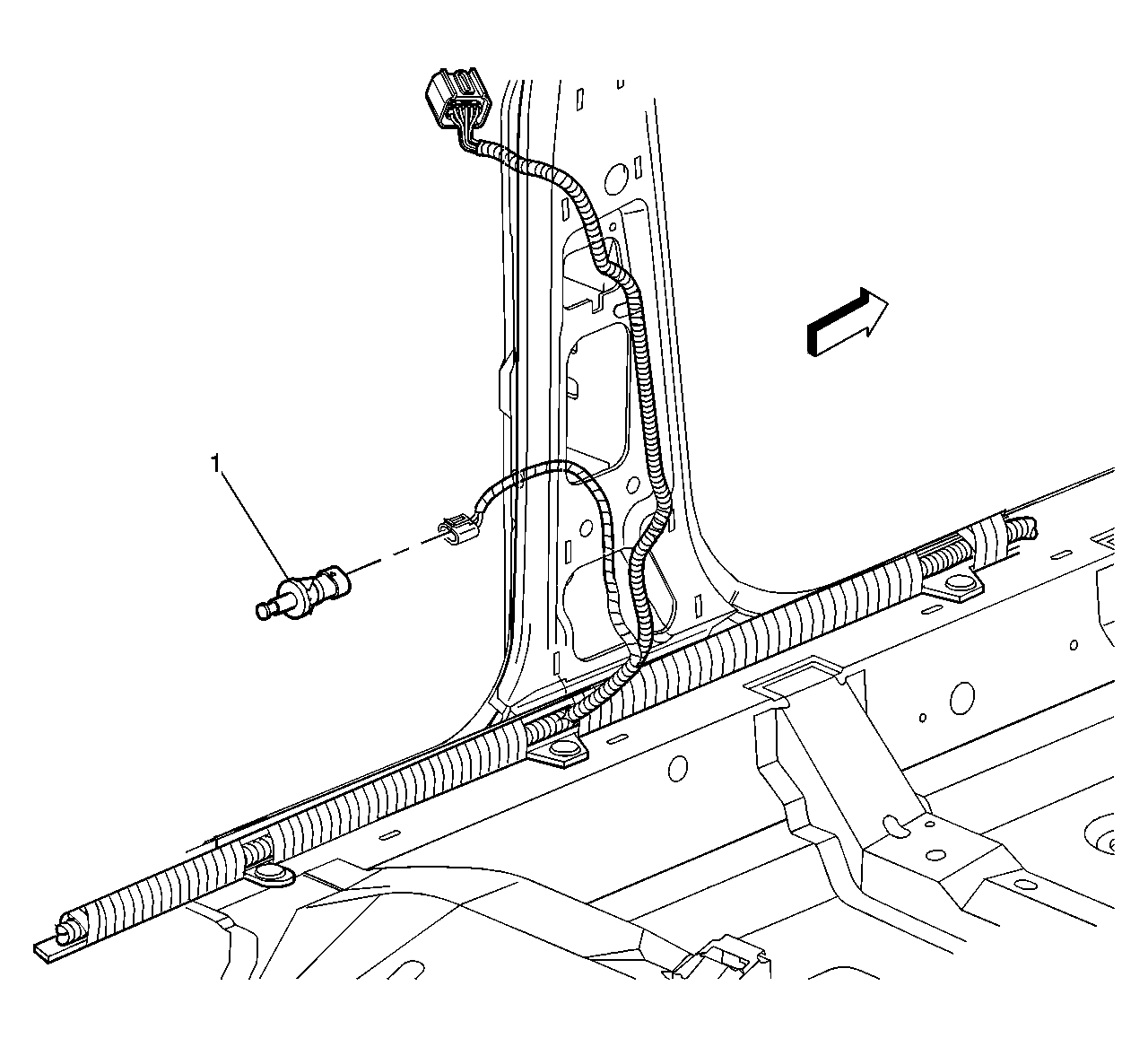

Fig 5: Door Ajar Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Ajar Switch - LR (RR Similar)
