ABS Component Views

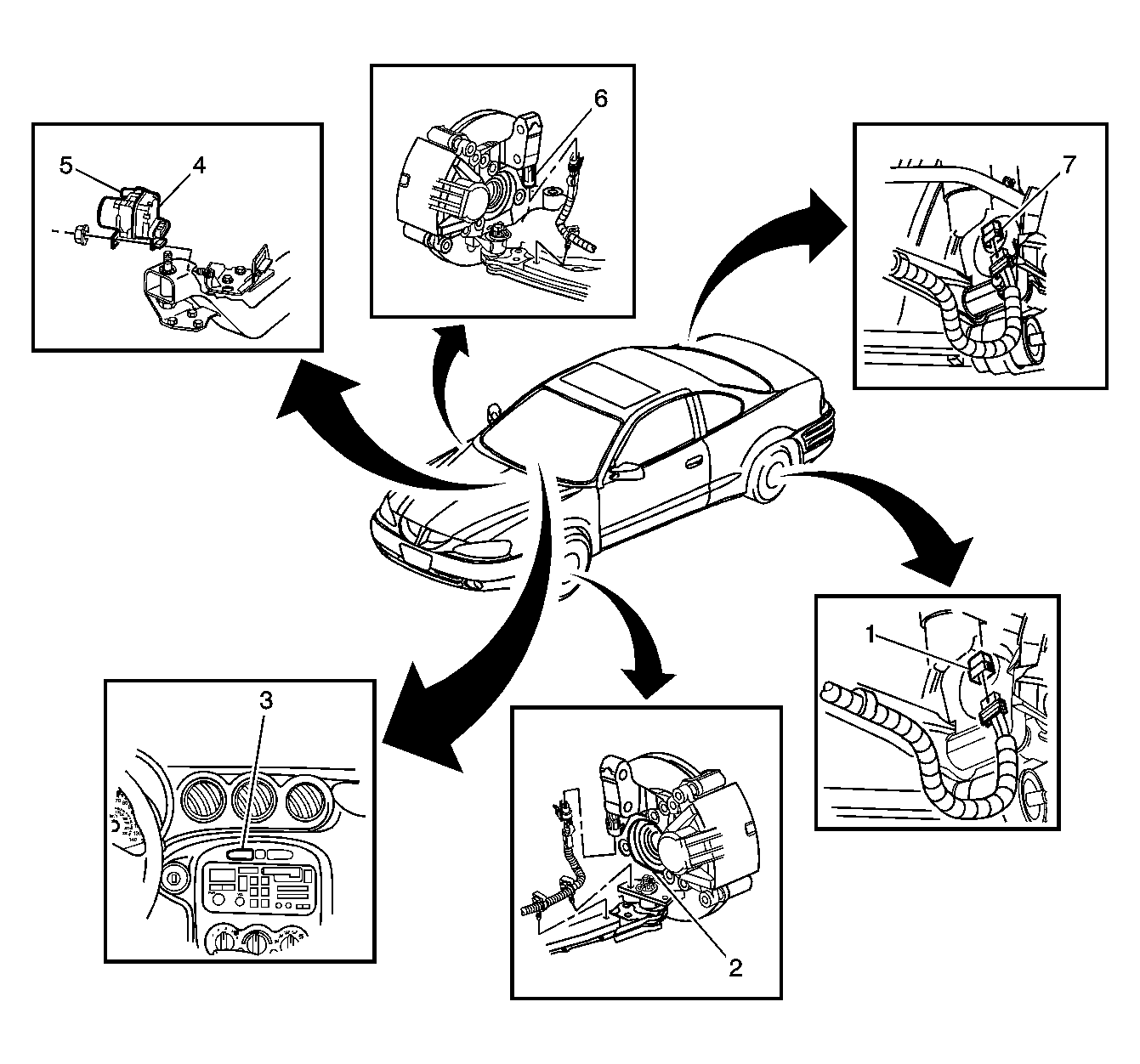

Fig 1: ABS Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Wheel Speed Sensor (WSS) - LR
2
Wheel Speed Sensor (WSS) - LF
3
Traction Control Switch
4
Electronic Brake Control Module (EBCM)
5
Brake Pressure Modulator Valve (BPMV)
6
Wheel Speed Sensor (WSS) - RF
7
Wheel Speed Sensor (WSS) - RR
