Installation Procedure

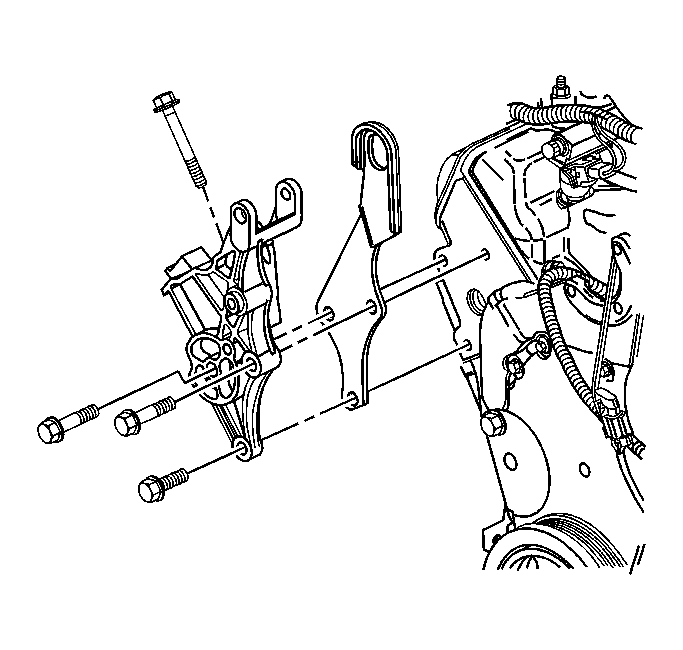

Fig 1: Generator Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the generator bracket bolts.
Tighten: Tighten the bolts in sequence to 50 N.m (37 lb ft).

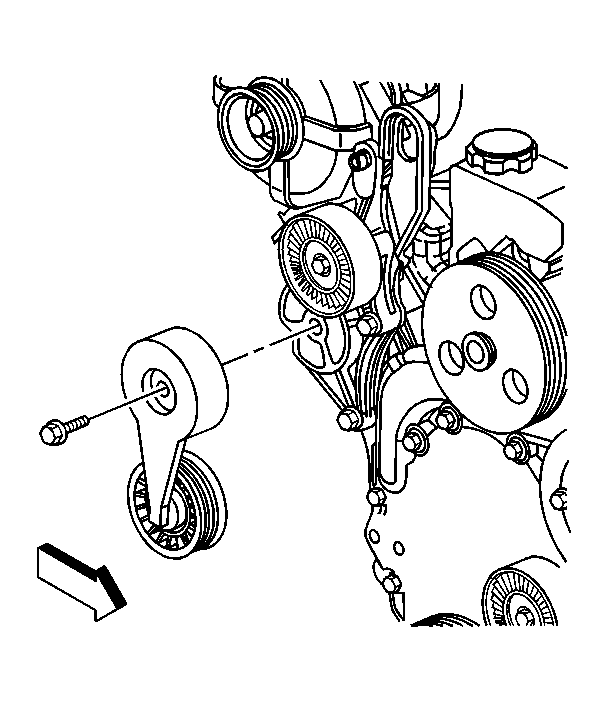

Fig 2: Identifying Drive Belt Tensioner Assembly

Courtesy of GENERAL MOTORS CORP.

Install the drive belt tensioner.
Install the drive belt tensioner bolt.
Tighten: Tighten the bolt to 50 N.m (37 lb ft).
Install the drive belt idler pulley.
Install the drive belt idler pulley bolt.
Tighten: Tighten the bolt to 50 N.m (37 lb ft).

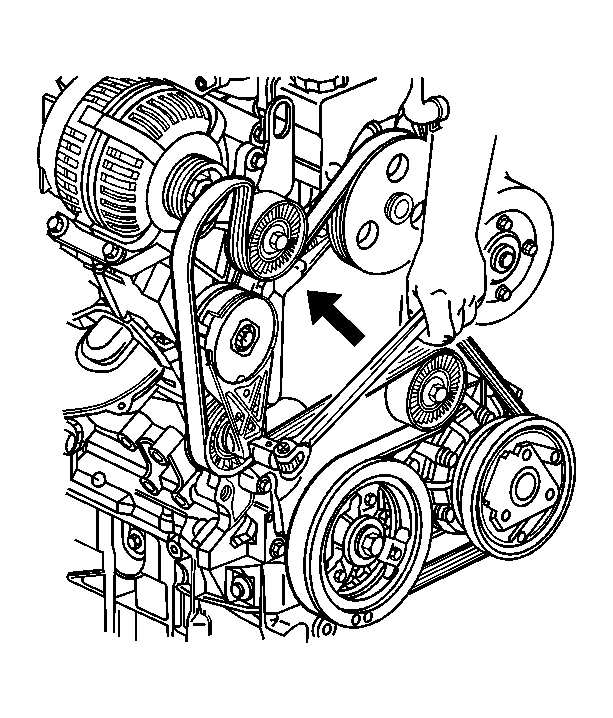

Fig 3: Rotating Drive Belt Tensioner

Courtesy of GENERAL MOTORS CORP.

Install the generator. Refer to Generator Replacement (2.2L (L61)) or Generator Replacement (3.4L) .
Rotate the drive belt tensioner counter clockwise.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
