Engine Controls Component Views

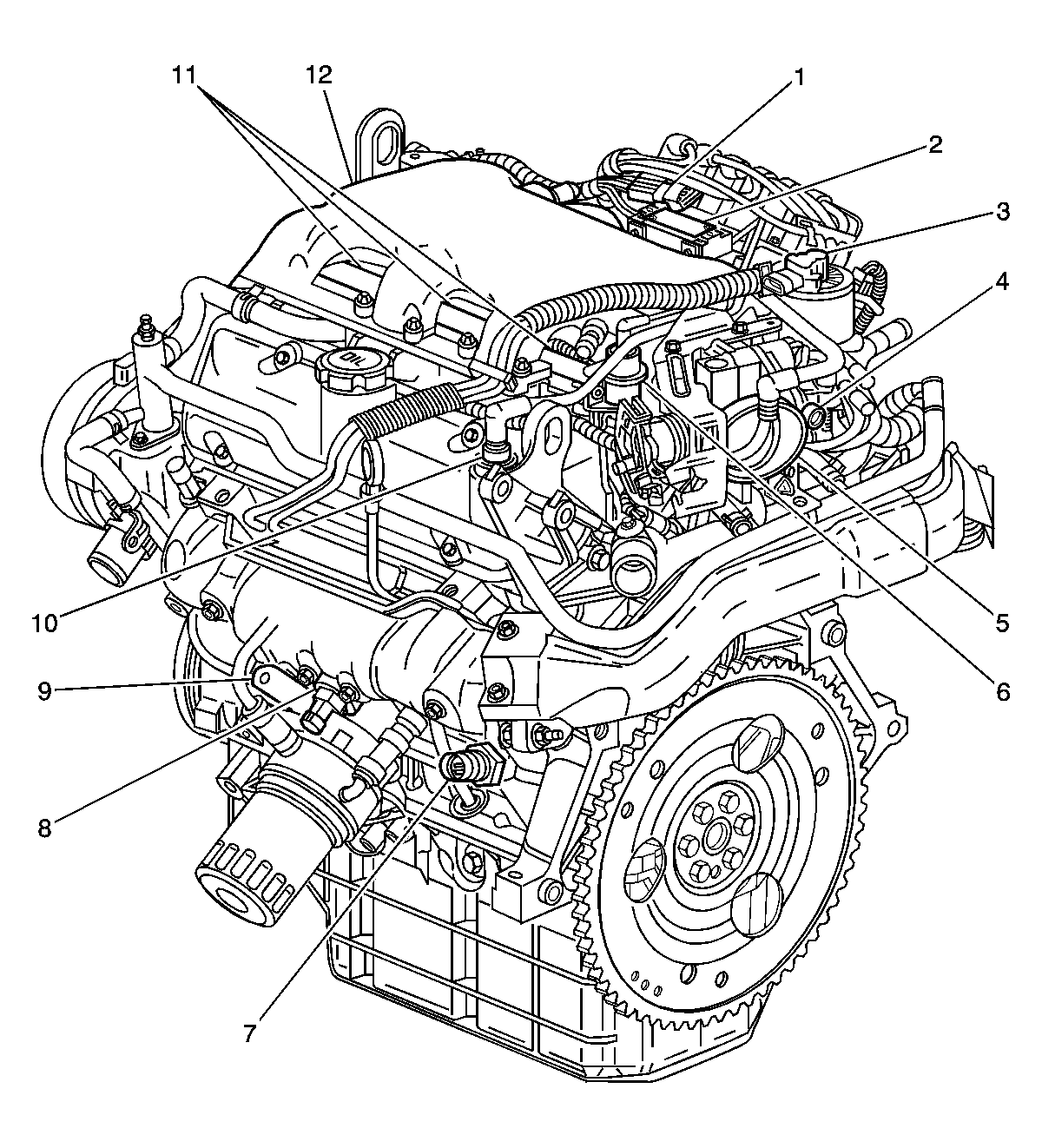

Fig 1: LH Side Of Engine Component Views
GM891991Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C130
2 Manifold Absolute Pressure (MAP) Sensor
3 Exhaust Gas Recirculation (EGR) Valve
4 Throttle Position (TP) Sensor
5 Throttle Body
6 Fuel Pressure Regulator
7 Engine Oil Pressure (EOP) Sensor
8 Knock Sensor (KS)
9 Crankshaft Position (CKP) Sensor A Connector
10 Positive Crankcase Ventilation (PCV) Valve
11 Fuel Rail
12 Upper Intake Manifold

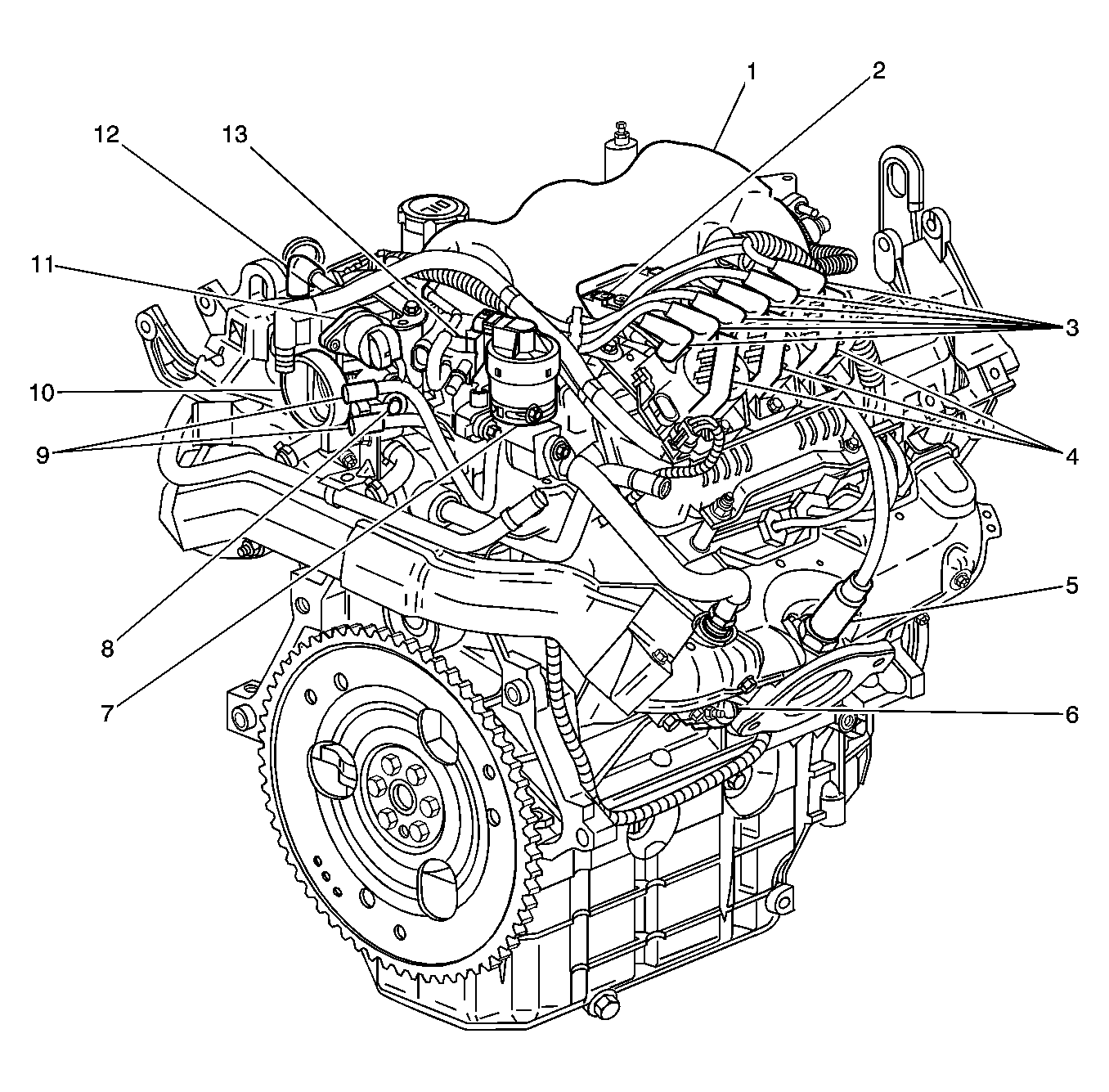

Fig 2: RH Side Of Engine Component Views
GM891993Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Upper Intake Manifold
2 Manifold Absolute Pressure (MAP) Sensor
3 Spark Plug Wires
4 Ignition Coil
5 Heated Oxygen Sensor (HO2S) Sensor 1
6 Crankshaft Position (CKP) Sensor B
7 Exhaust Gas Recirculation (EGR) Valve
8 Throttle Position (TP) Sensor
9 Fuel Feed and Return Pipes
10 Throttle Body
11 Idle Air Control (IAC) Valve
12 Positive Crankcase Ventilation (PCV) Valve
13 Evaporative Emission (EVAP) Canister Purge Solenoid

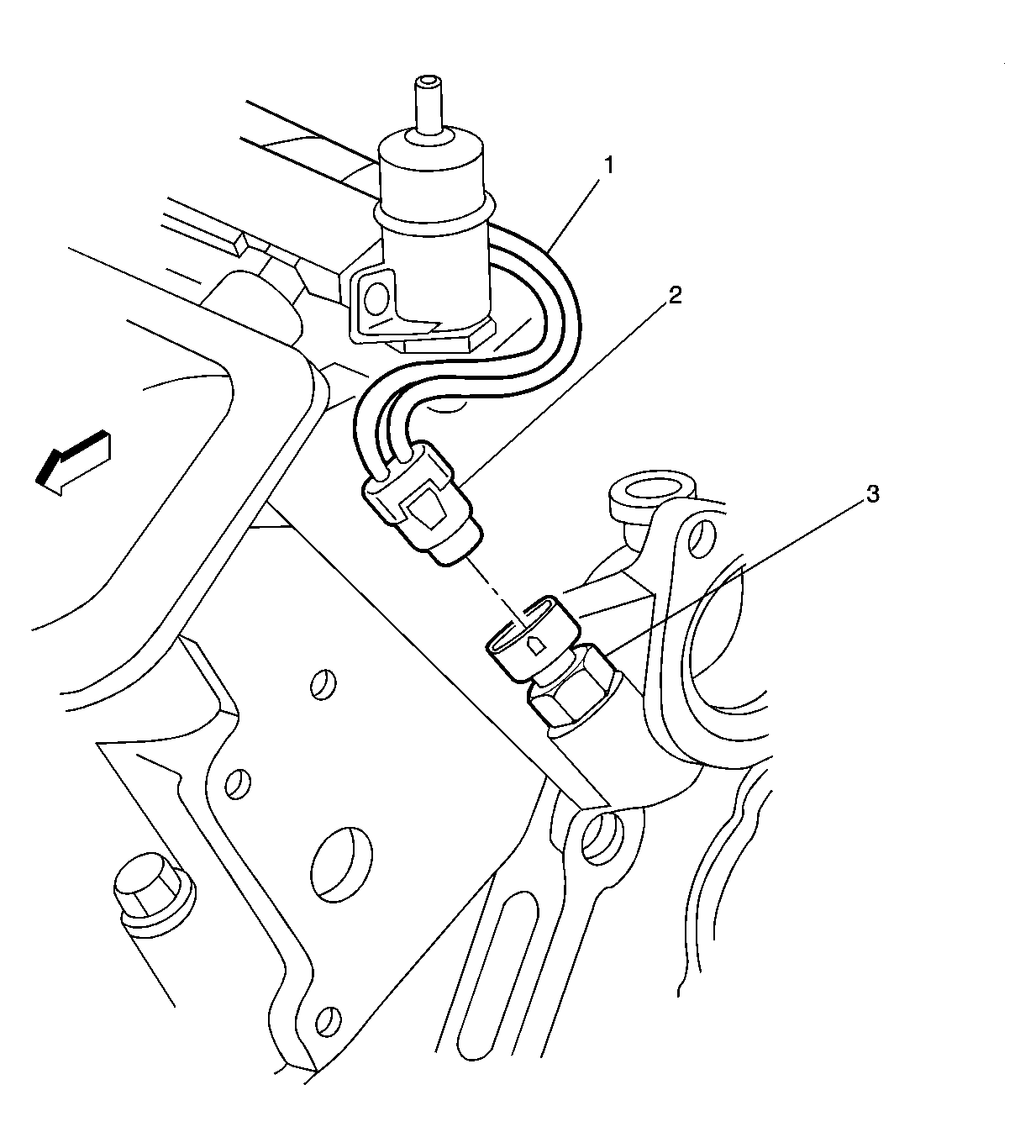

Fig 3: Left Front Of Intake Manifold Component Views
GM1333021Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector Harness
2 Engine Coolant Temperature (ECT) Sensor Connector
3 Engine Coolant Temperature (ECT) Sensor

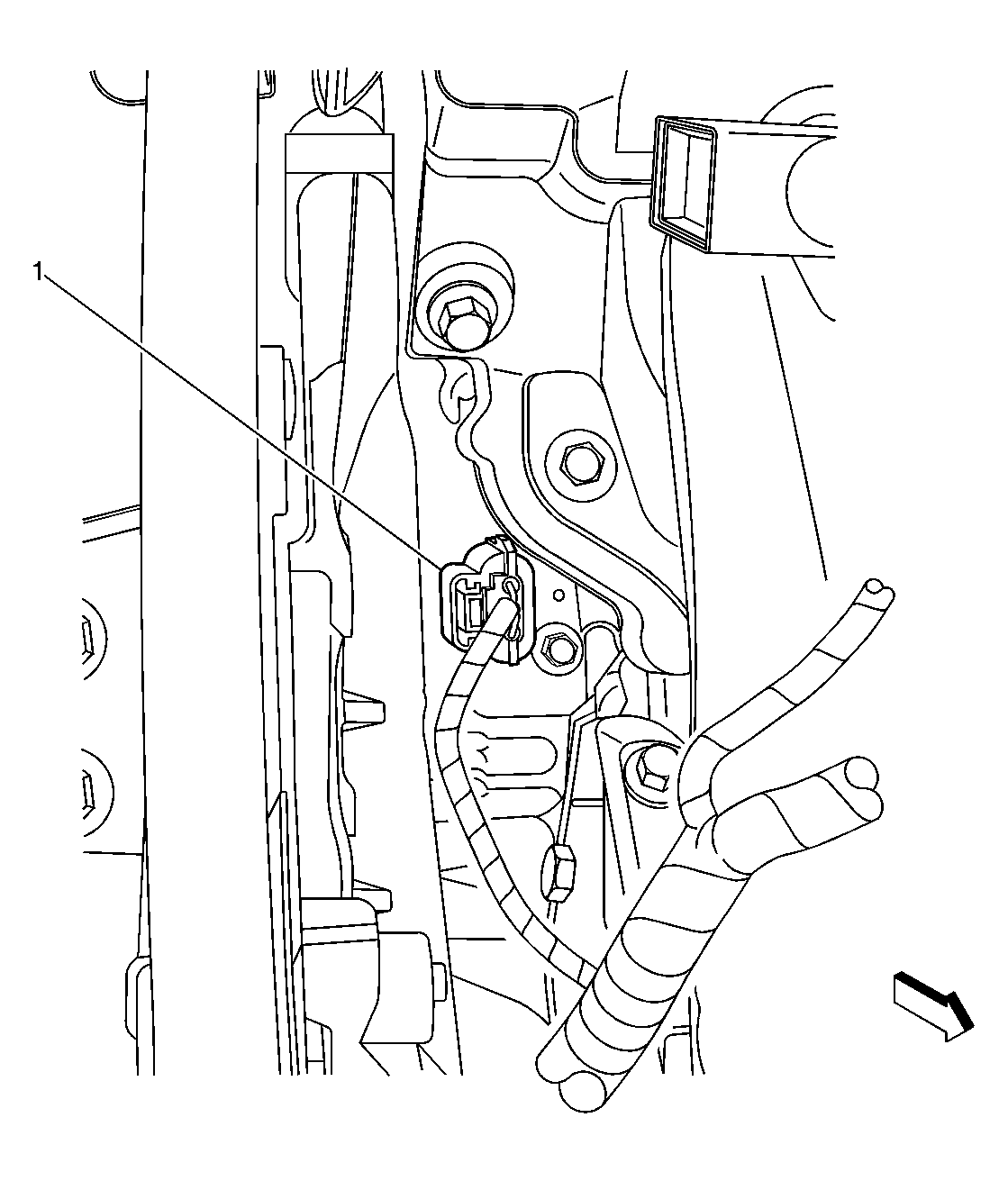

Fig 4: Left Middle Of Engine Component Views
GM1333016Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor

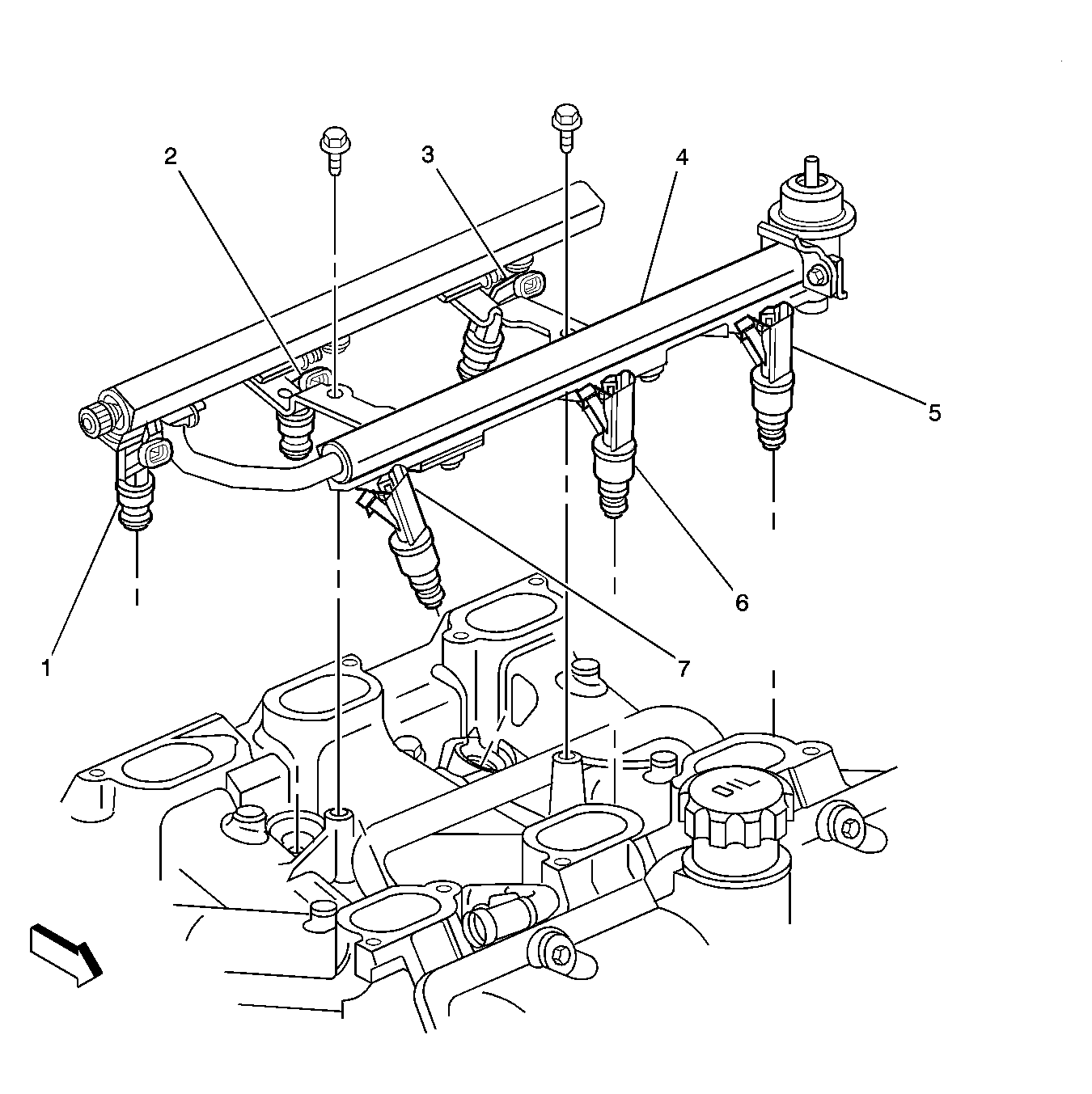

Fig 5: Fuel Rail Component Views
GM1333019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 2
2 Fuel Injector 4
3 Fuel Injector 6
4 Fuel Rail
5 Fuel Injector 5
6 Fuel Injector 3
7 Fuel Injector 1

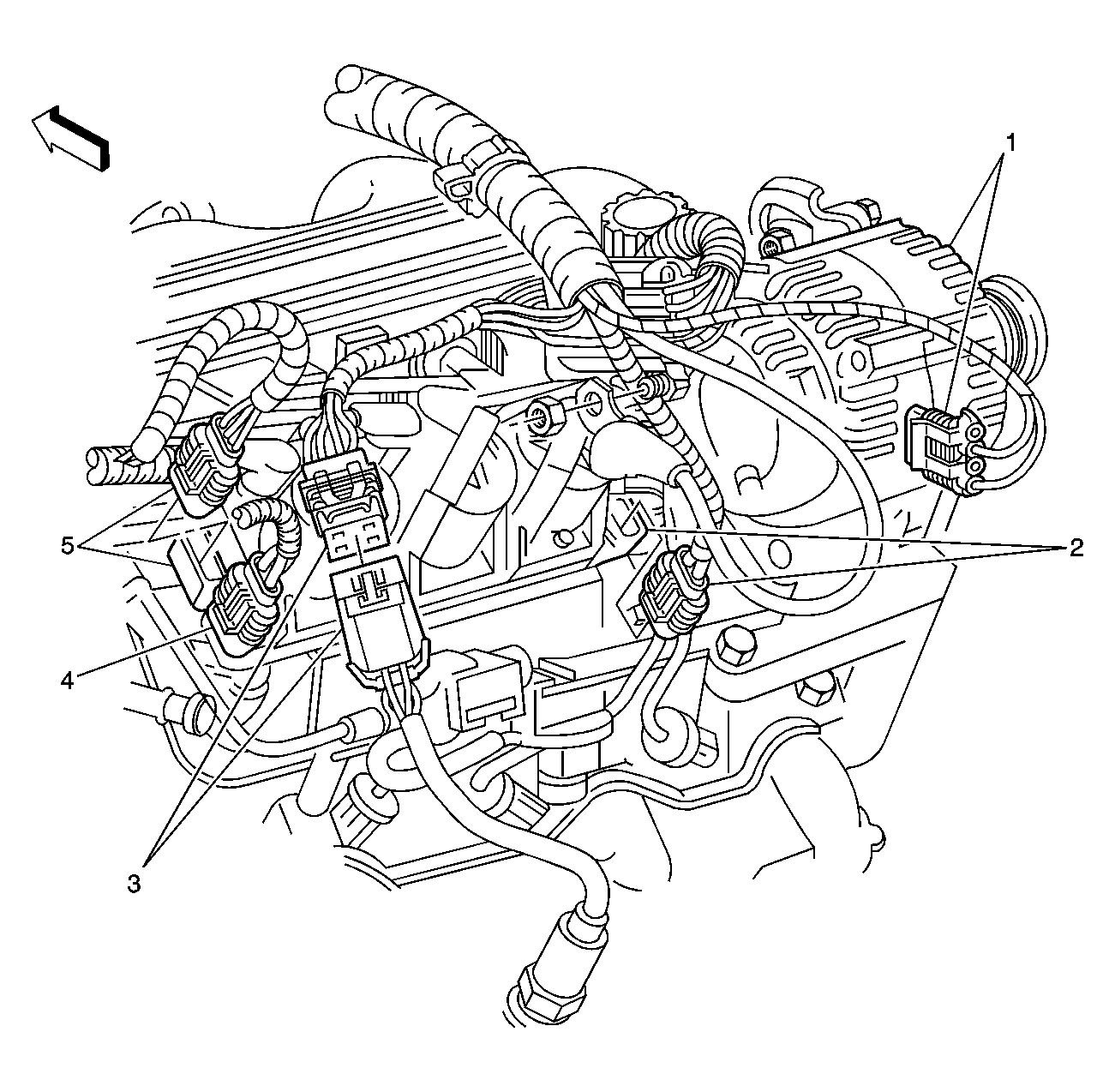

Fig 6: Upper Left Rear Of Engine Component Views
GM1333140Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Ignition Control Module (ICM), C3
3 Heated Oxygen Sensor (HO2S) Sensor 1 Pigtail and Connector
4 Ignition Control Module (ICM), C2
5 Ignition Control Module (ICM), C1

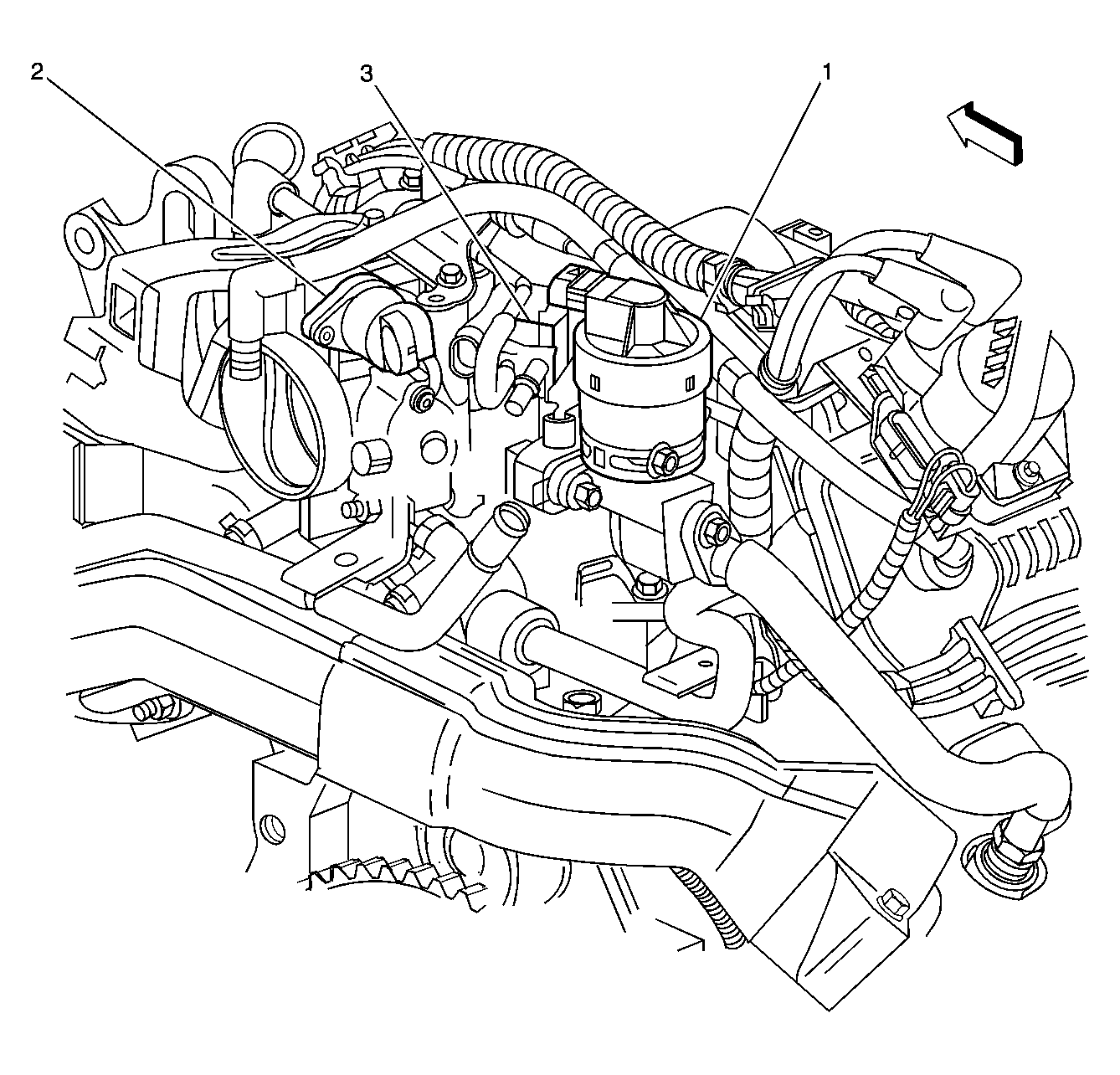

Fig 7: Top Left Side Of Engine Component Views
GM531485Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Gas Recirculation (EGR) Valve
2 Idle Air Control (IAC) Valve
3 Evaporative Emission (EVAP) Canister Purge Solenoid

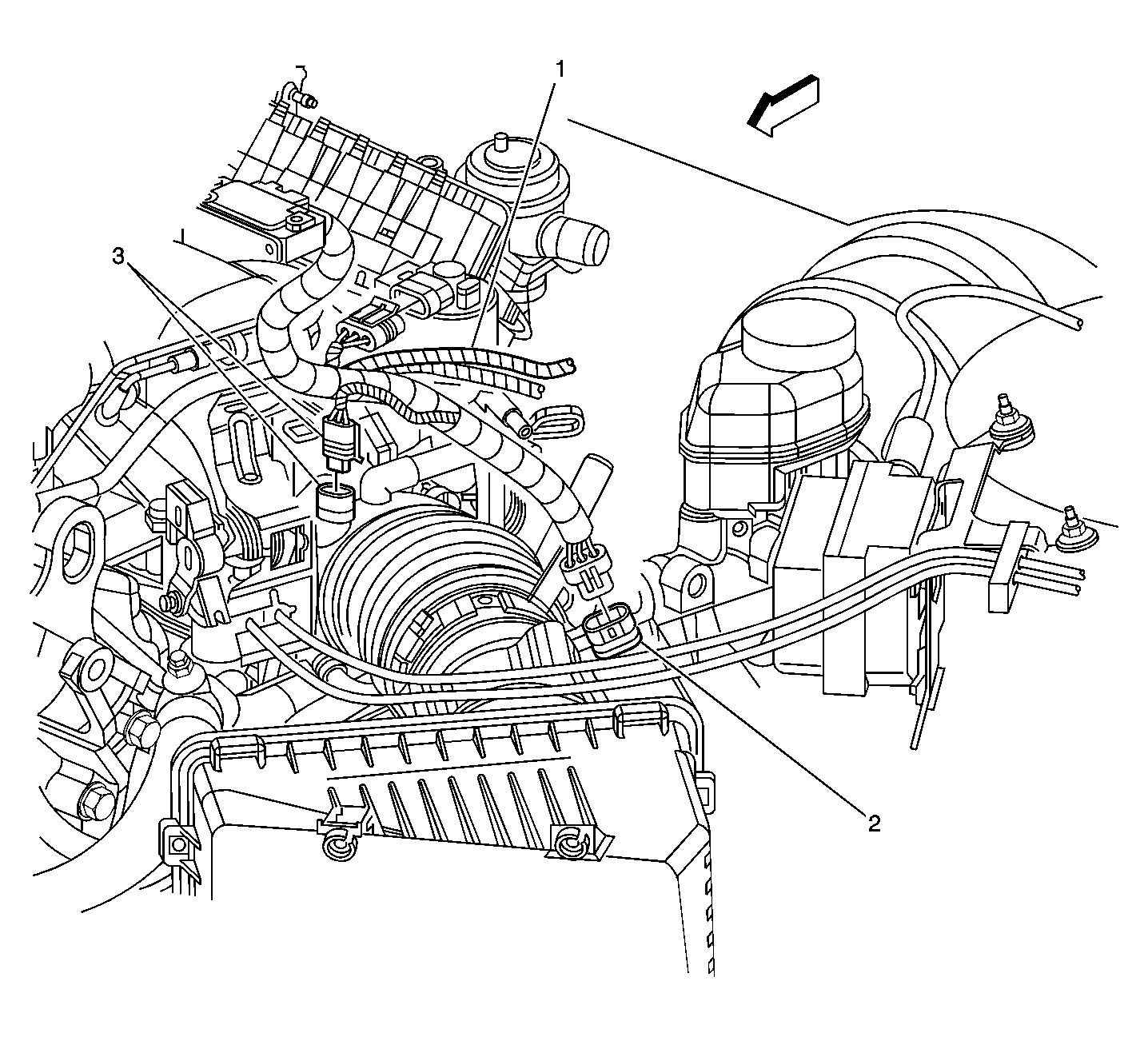

Fig 8: Left Top Of Engine Component Views
GM1375031Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Gas Recirculation (EGR) Valve
2 Mass Air Flow (MAF) Sensor
3 Intake Air Temperature (IAT) Sensor

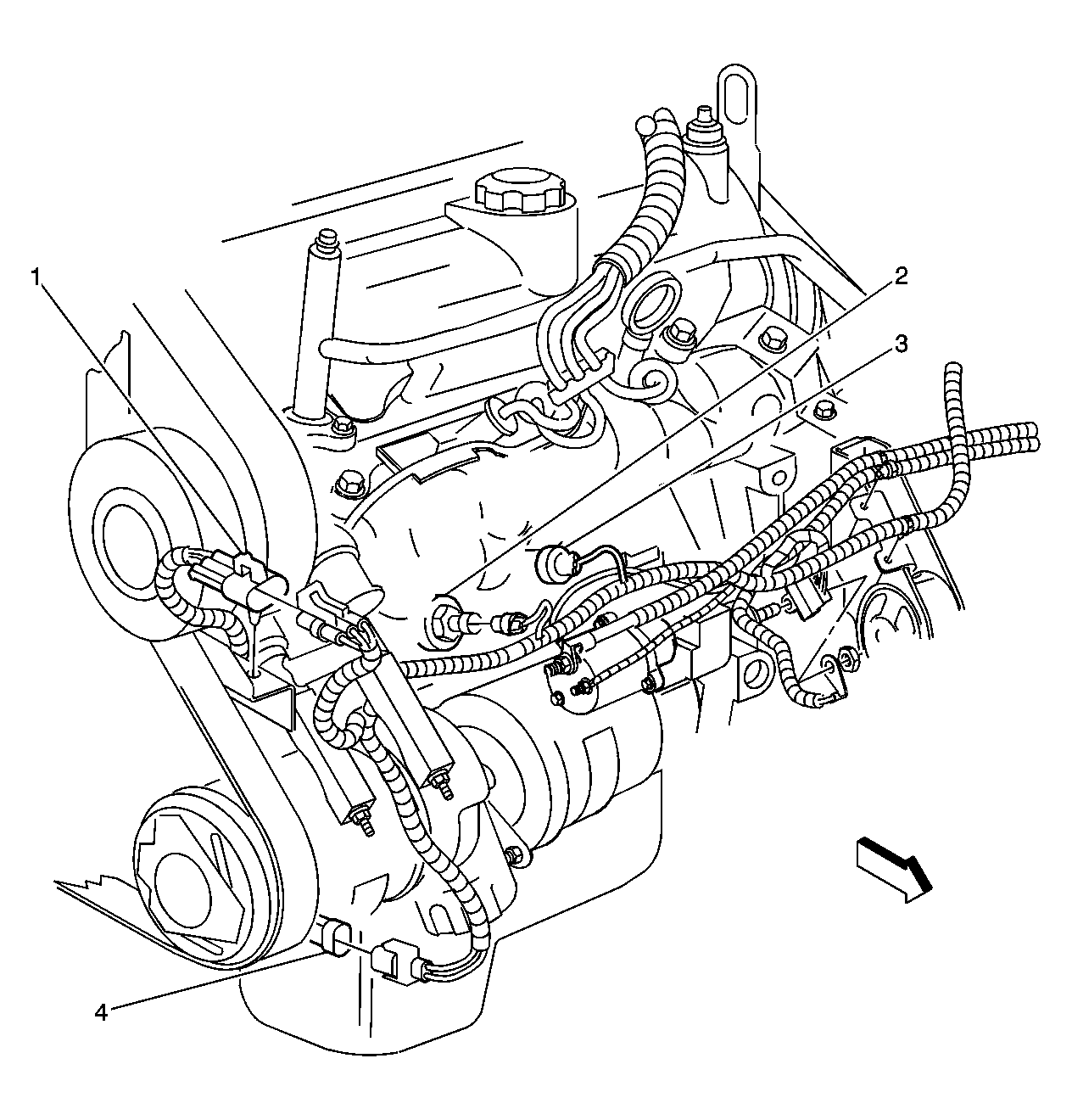

Fig 9: Front Of The Engine Compartment Component View
GM891406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Position (CKP) Sensor A
2 Knock Sensor (KS)
3 Engine Oil Pressure (EOP) Sensor
4 A/C Compressor Clutch

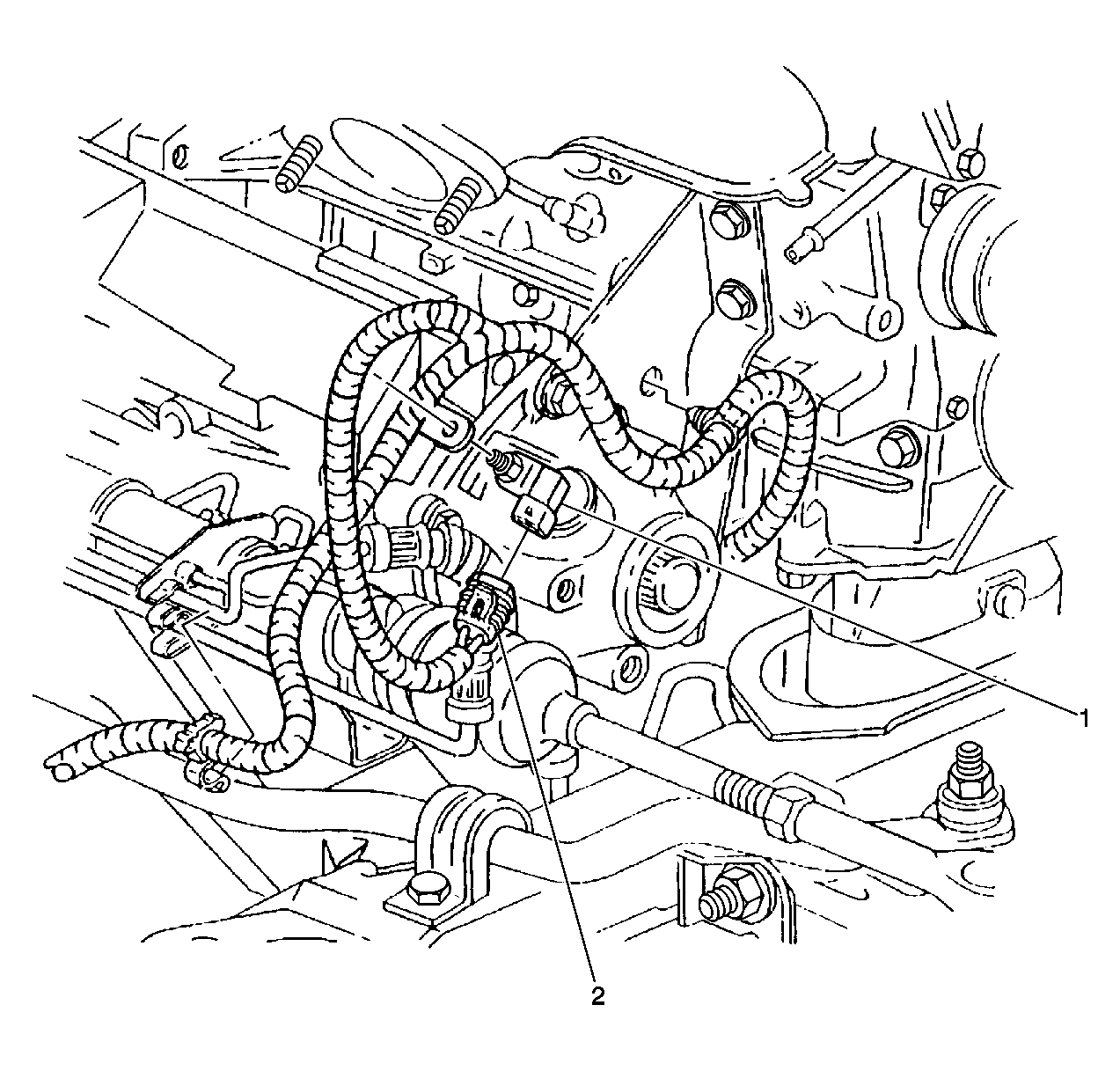

Fig 10: Right Rear Of Engine Component Views
GM374682Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Speed Sensor (VSS)
2 Vehicle Speed Sensor (VSS) Connector

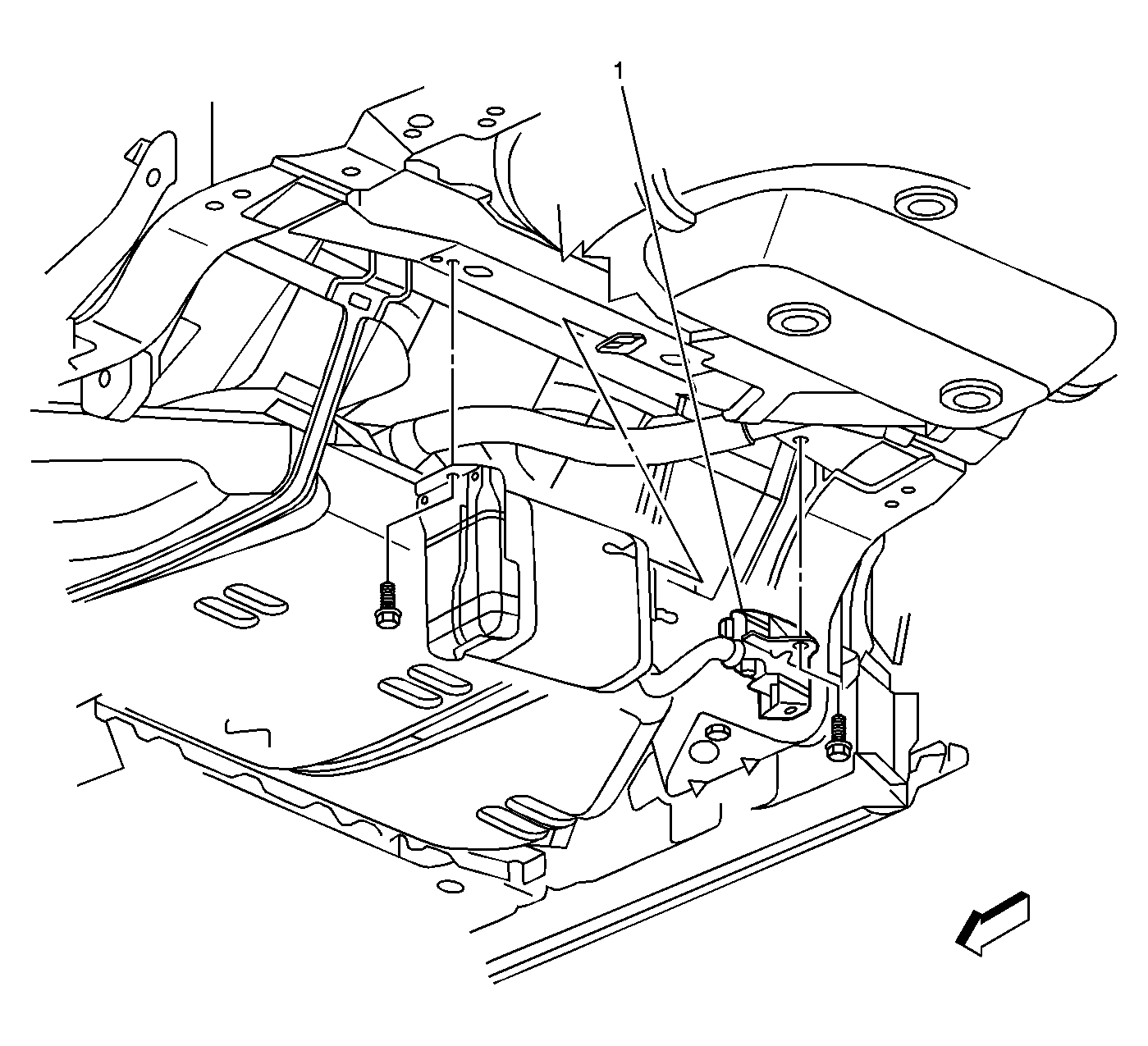

Fig 11: Evaporative Emission (EVAP) Canister Vent Solenoid Component Views
GM801033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Vent Solenoid

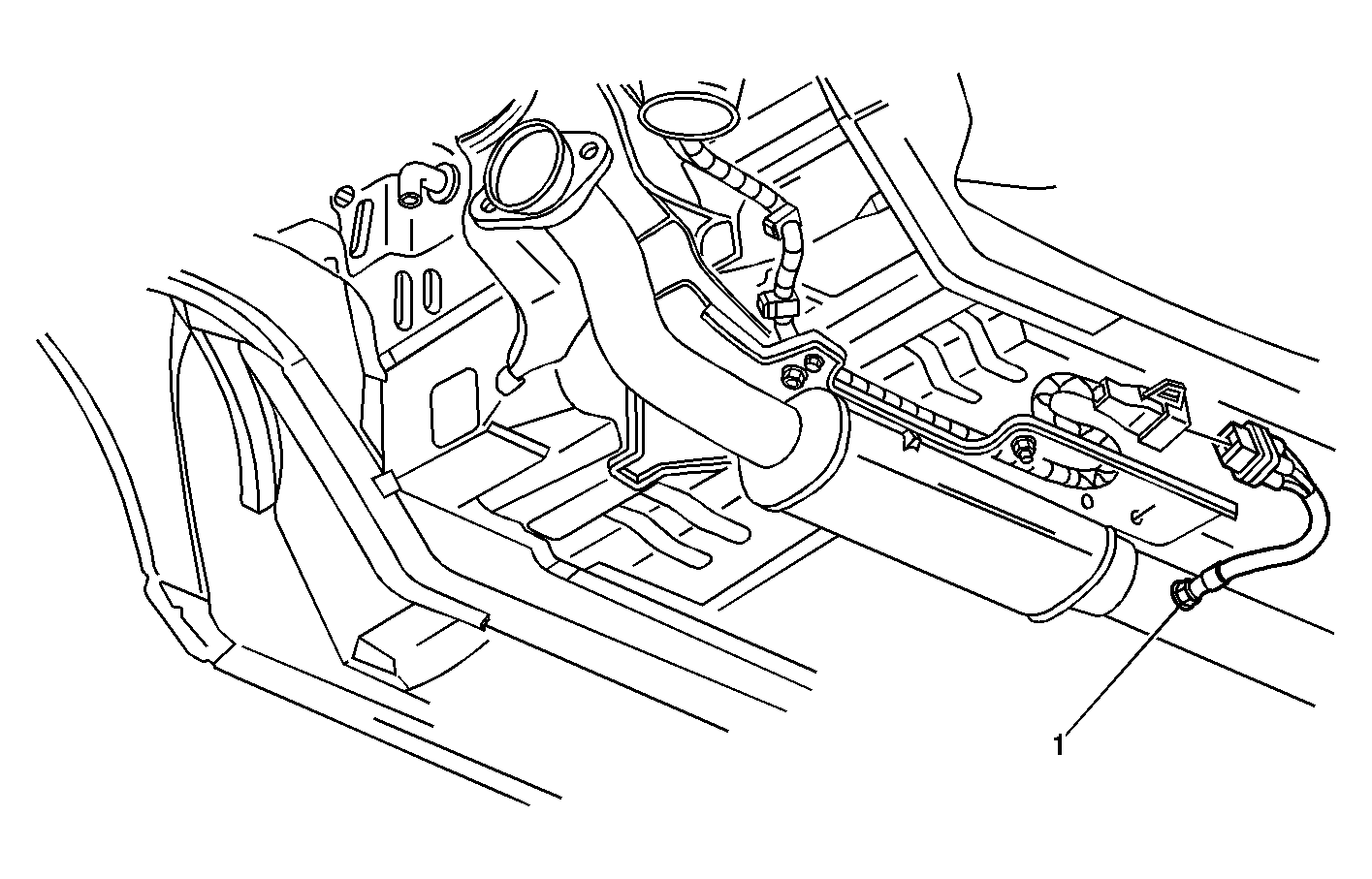

Fig 12: Heated Oxygen Sensor (HO2S) Sensor 2 Component Views
GM801037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) Sensor 2

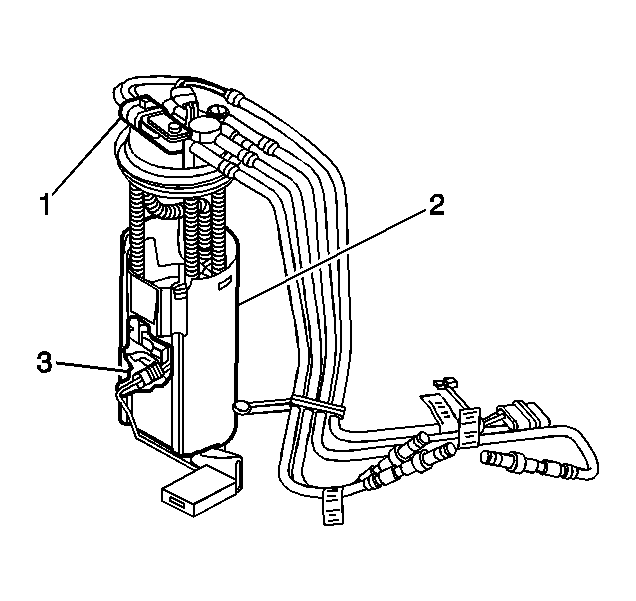

Fig 13: Fuel Pump & Sender Assembly Component View
GM801039Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor
2 Fuel Pump and Sender Assembly
3 Fuel Level Sensor

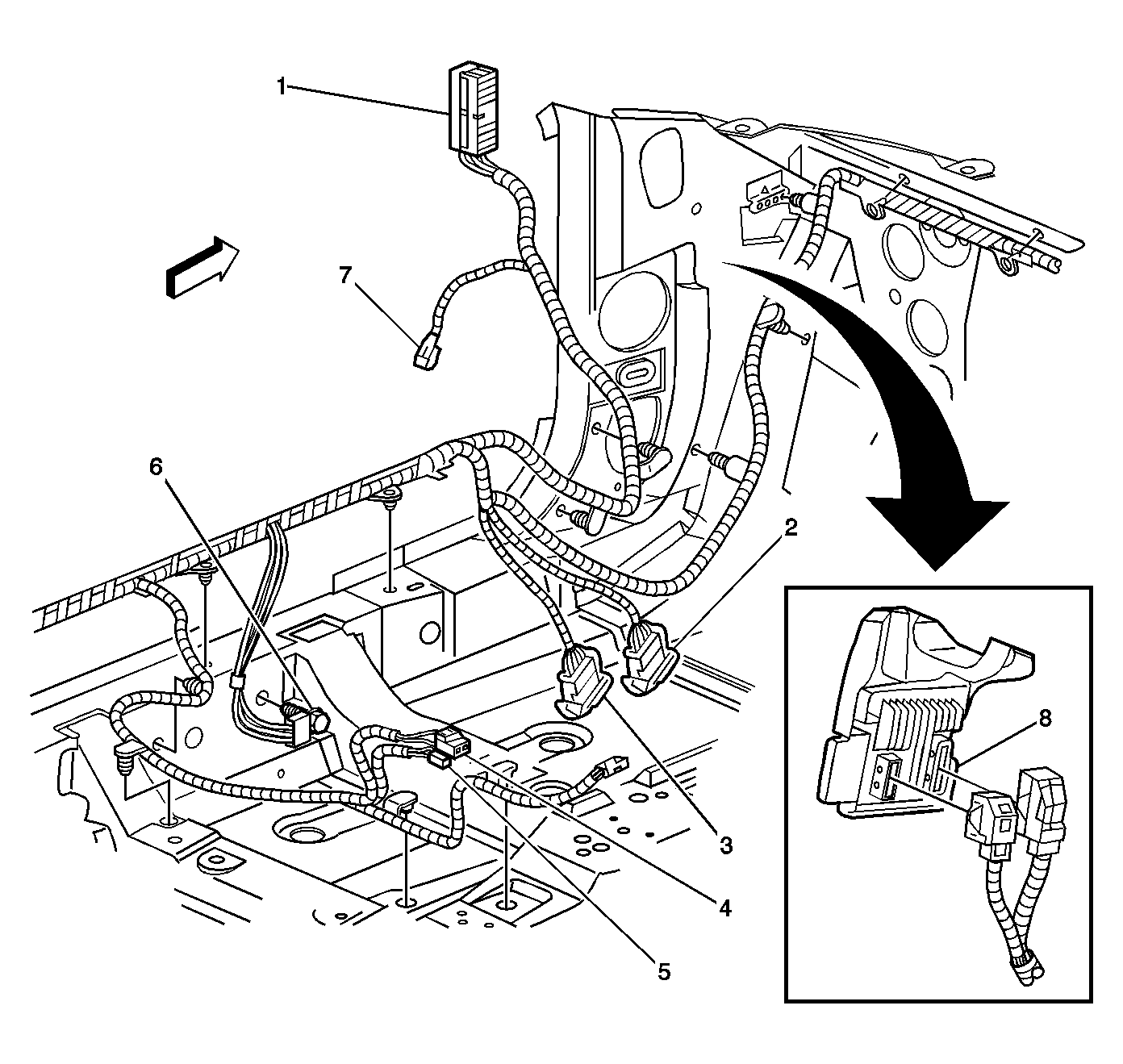

Fig 14: Left Side Of Passenger Compartment Component Views
GM801031Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Left I/P
2 C500
3 C501
4 Seat Belt Switch Connector
5 C306
6 G301
7 C300
8 Powertrain Control Module (PCM)
