Installation Procedure

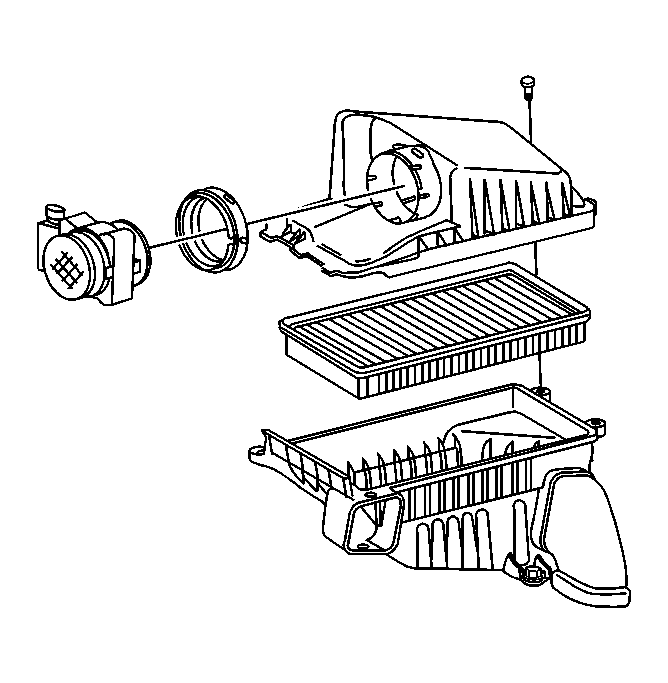

    Fig 1: Air Cleaner Element Components
    GM537321Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element in the air cleaner assembly.
  2. Position the air cleaner cover on the air cleaner assembly.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the air cleaner retainer screws.

    Tighten:  Tighten the screws to 6 N.m (40 lb in).

  4. Install the MAF sensor to the air cleaner cover.

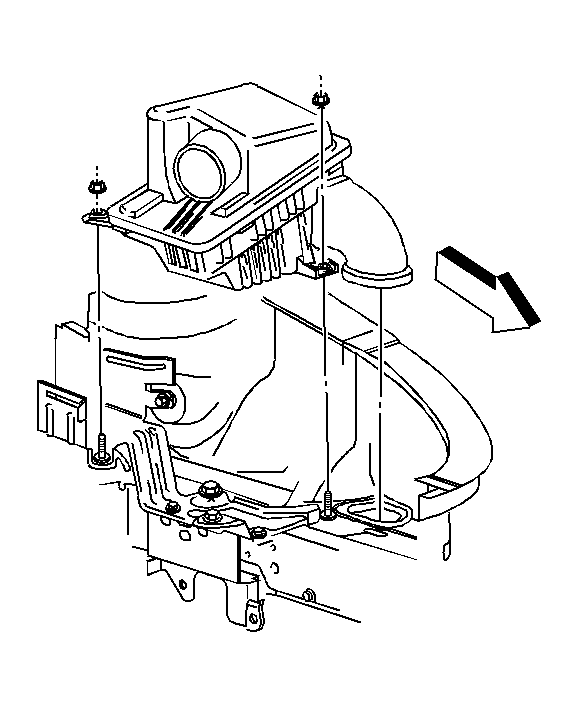

    5. Fig 2: Air Cleaner Assembly
    GM73897Courtesy of GENERAL MOTORS CORP.
  5. Place the air cleaner assembly in the vehicle.
  6. Install the air cleaner assembly retainer screws.

    Tighten:  Tighten the air cleaner housing nuts to 10 N.m (89 lb in).

  7. Install the air intake duct.
  8. Tighten the two air intake duct clamps.
  9. Connect the breather tube to the air intake duct.
  10. Connect the IAT sensor electrical connector.
  11. Connect the mass air flow (MAF) sensor electrical connector.
