Body Control System Schematics

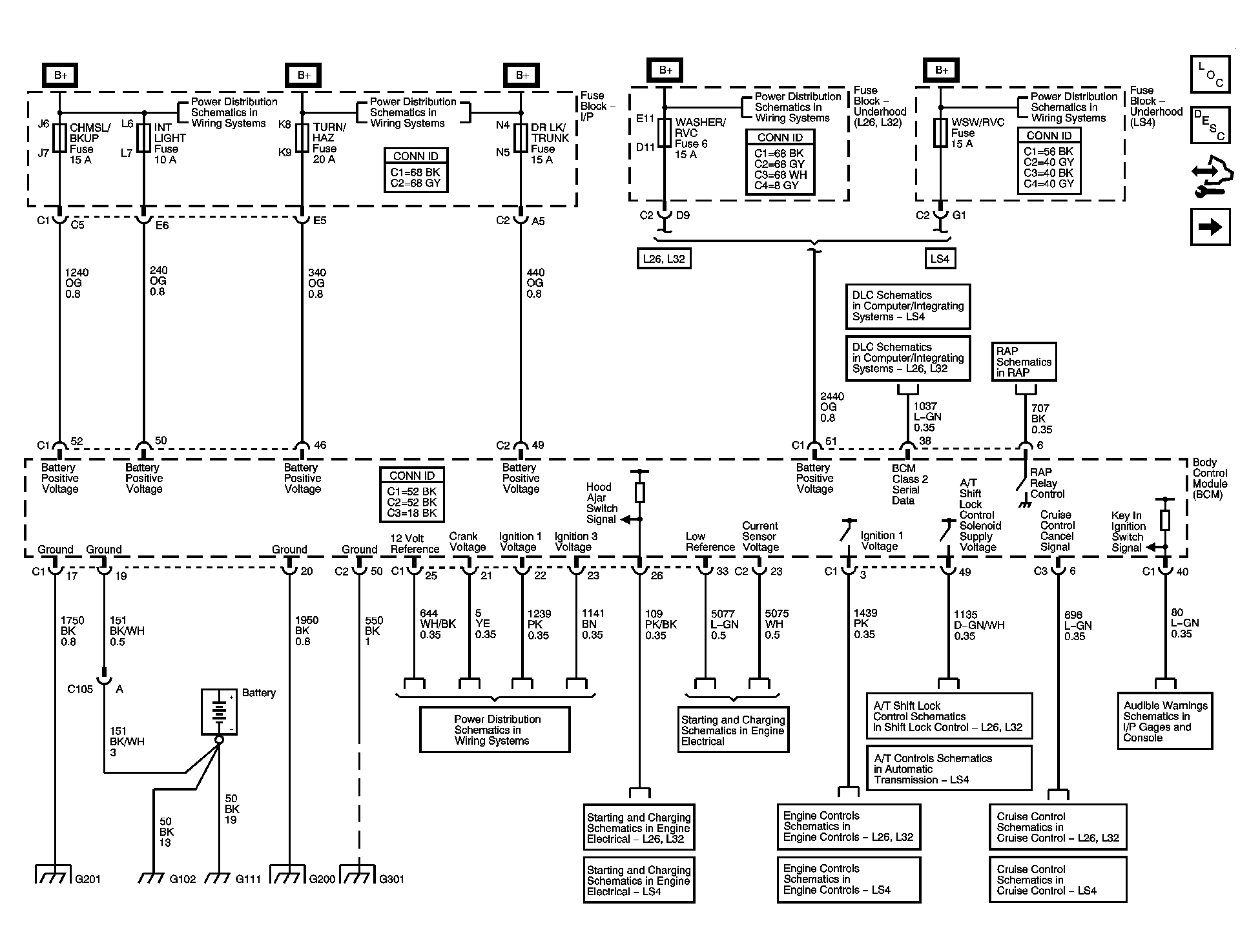

Fig 1: Power, Ground and References Schematics

Courtesy of GENERAL MOTORS CORP.

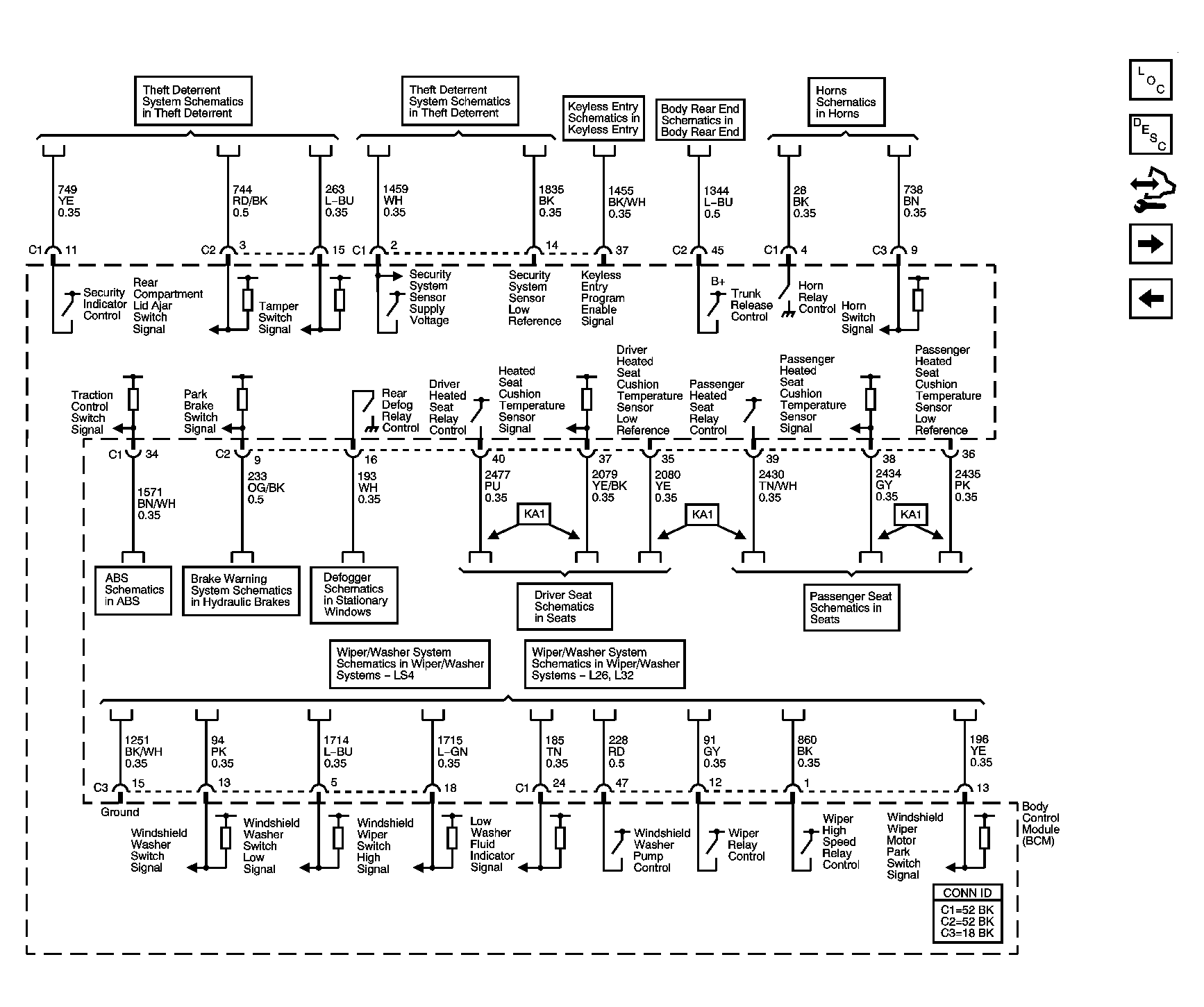

Fig 2: Theft Deterrent, Keyless Entry, Body Rear End, Horns, ABS, Brake Warning, Defogger, Heated Seats and Wiper/Washer System References Schematics

Courtesy of GENERAL MOTORS CORP.

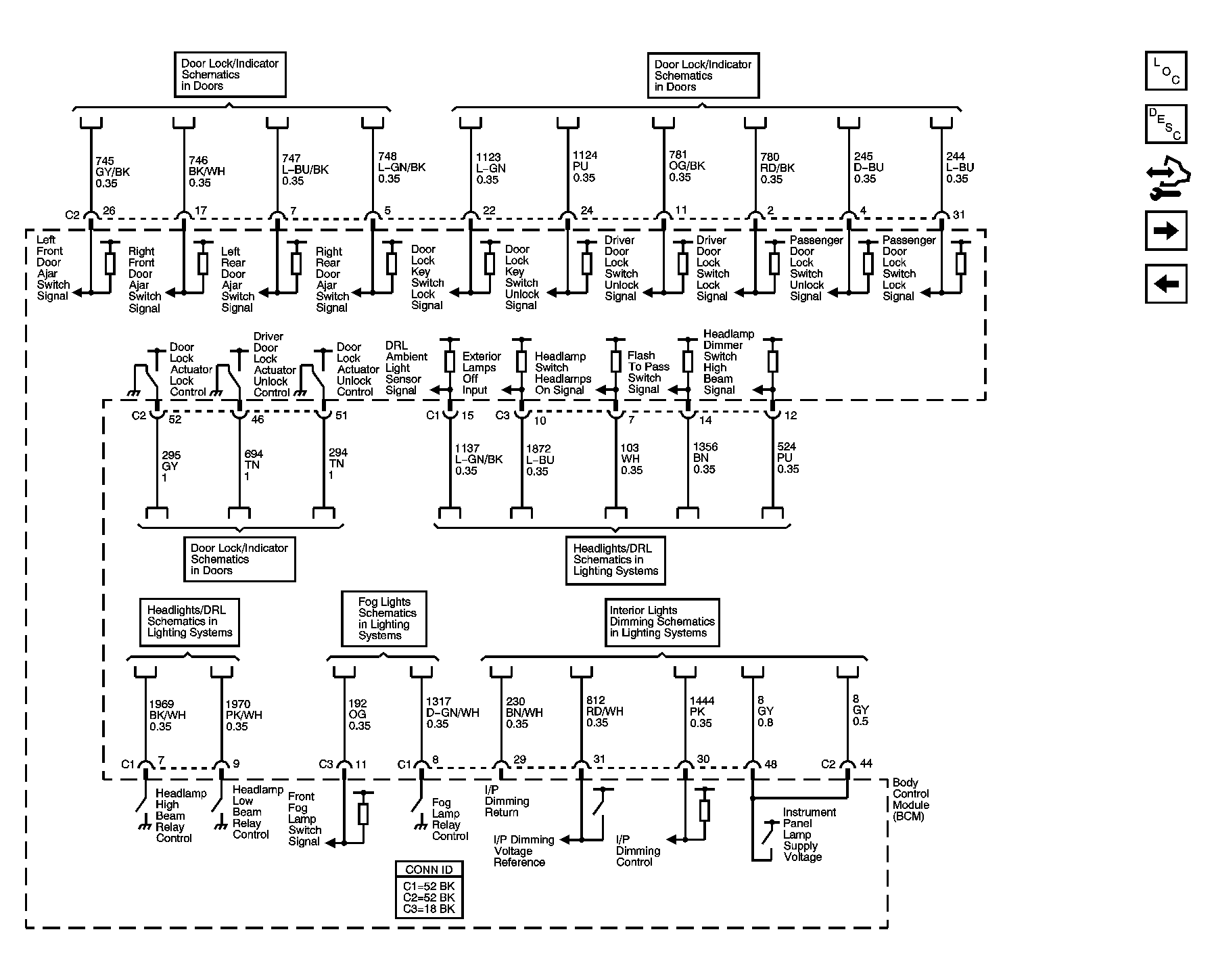

Fig 3: Door Lock/Indicator and Lighting Systems References Schematics - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

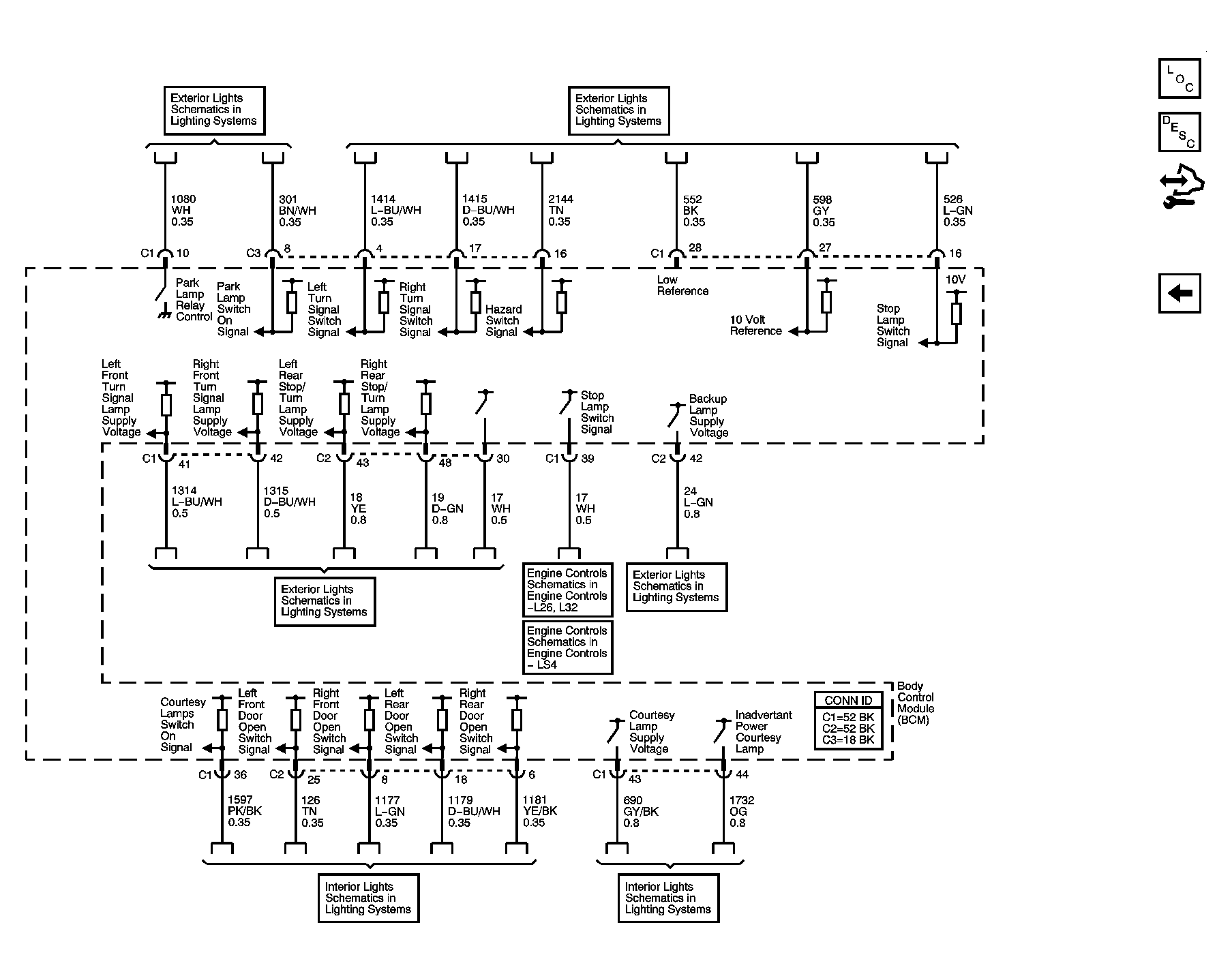

Fig 4: Lighting Systems References Schematics - 2 Of 2

Courtesy of GENERAL MOTORS CORP.
