Installation Procedure

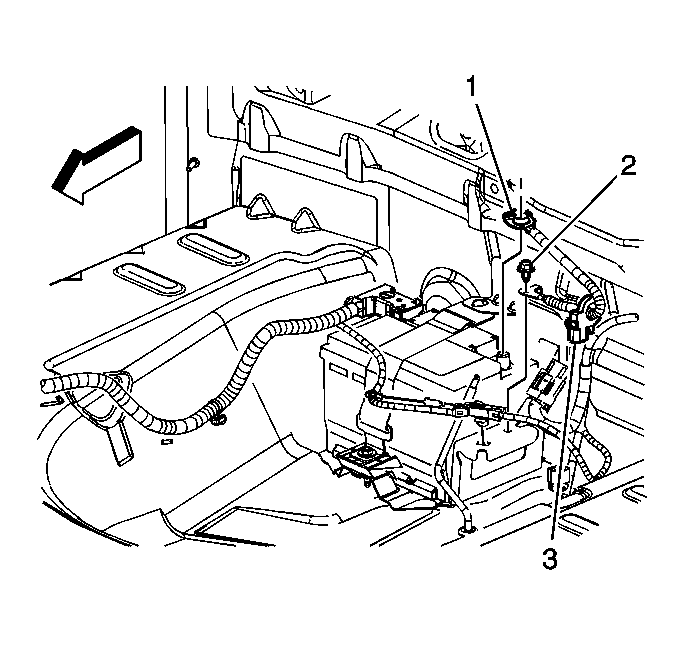

    Fig 1: Battery Current Sensor
    GM1548362Courtesy of GENERAL MOTORS CORP.
  1. Connect the sensor (3).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the negative battery cable bolt (2).

    Tighten:  Tighten the bolt to 20 N.m (15 lb ft).

  3. Connect the negative battery cable (1). Refer to Battery Negative Cable Disconnect/Connect Procedure .
