Engine Electrical Component Views

Fig 1: Front Lower Left of the Engine (LSJ)

GM1550909

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor (C67)
2	Generator
3	A/C Refrigerant Pressure Sensor (C67)
4	Starter
5	After Cooling Pump (LSJ)
6	A/C Compressor Clutch (C67)

Fig 2: Front Lower Left of the Engine (L61)

GM1550908

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Fusible Link
3	Starter Solenoid
4	A/C Compressor Clutch (C67)

Fig 3: Front Lower Left of the Engine (LSJ)

GM1550909

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor (C67)
2	Generator
3	A/C Refrigerant Pressure Sensor (C67)
4	Starter
5	After Cooling Pump (LSJ)
6	A/C Compressor Clutch (C67)

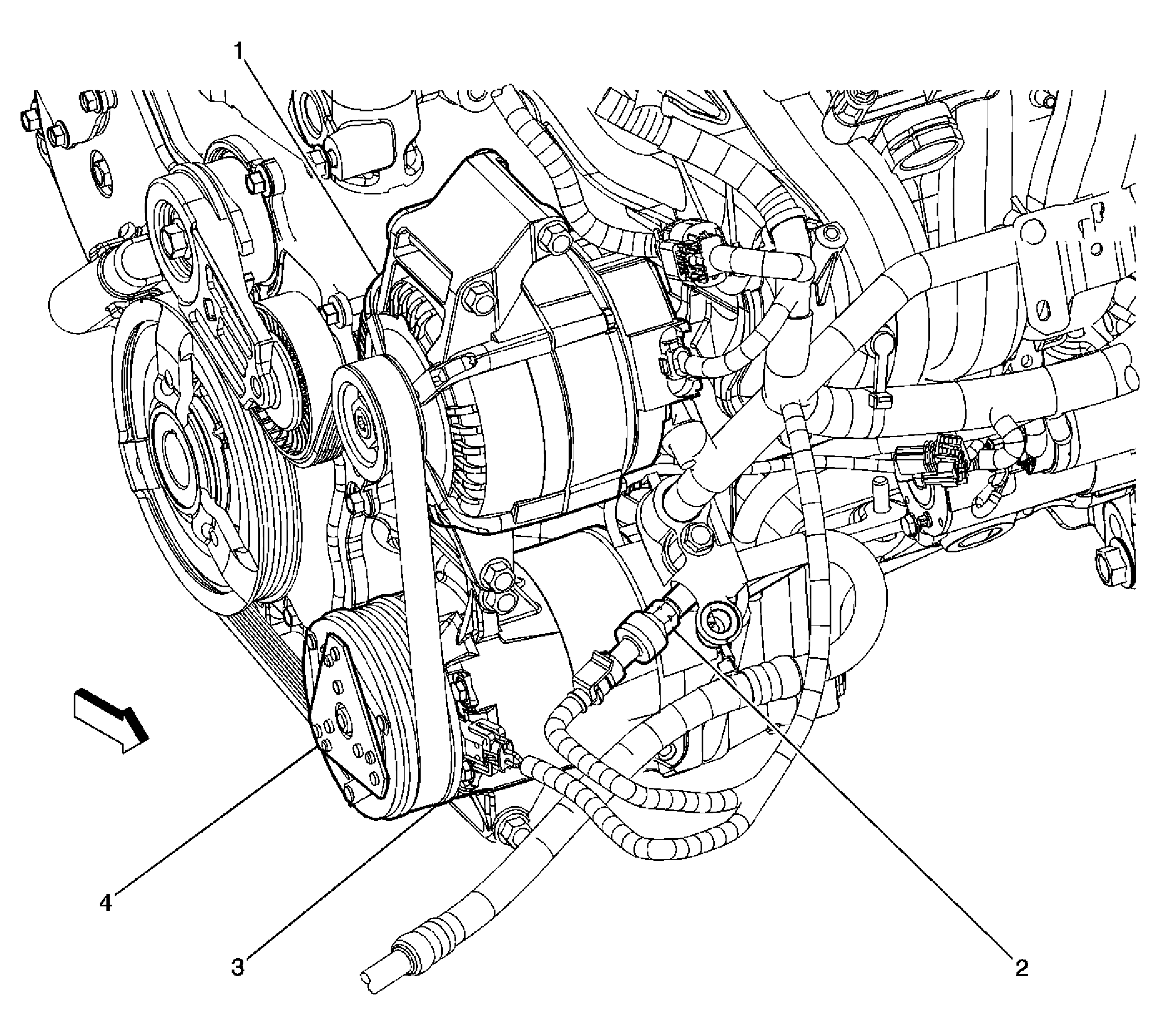

Fig 4: Generator and A/C Compressor (L61)

GM1546036

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	A/C Refrigerant Pressure Sensor (C67)
3	A/C Compressor (C67)
4	A/C Compressor Clutch (C67)

Fig 5: Pedal Components

GM1543932

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CCP) Switch (M86)
2	Clutch Start Switch (M86)
3	Stop Lamp Switch
4	Cruise Control Cancel Switch (M86)
5	Accelerator Pedal Position (APP) Sensor
6	Floor Pan

Fig 6: View Of Right Lower Front of Engine - L61

GM1265624

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	Starter Solenoid

Fig 7: Rear Floor Pan Components and G403

GM1549037

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Holder 50A
3	Battery Current Sensor
4	G403
5	C400
6	Spare Tire Well

Fig 8: Steering Wheel and Column

GM1543927

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right (UK3)
6	Horn Switch
7	Steering Wheel Controls - Left (UK3)
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid (MN5)
