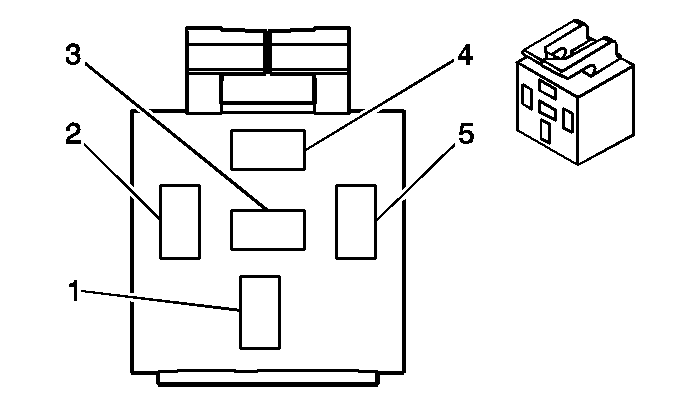

Turn Signal/Hazard Flasher Module Connector End View
Turn Signal/Hazard Flasher Module
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12034003
- 5-Way F Metri-Pack 630 Series (BLK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
PNK |
539 |
Ignition 1 Voltage |
| 2 |
ORN |
140 |
Battery Positive Voltage |
| 3 |
BRN |
27 |
Hazard Flasher Signal |
| 4 |
PPL |
16 |
Turn Signal Flasher Signal |
| 5 |
BLK |
150 |
Ground |
