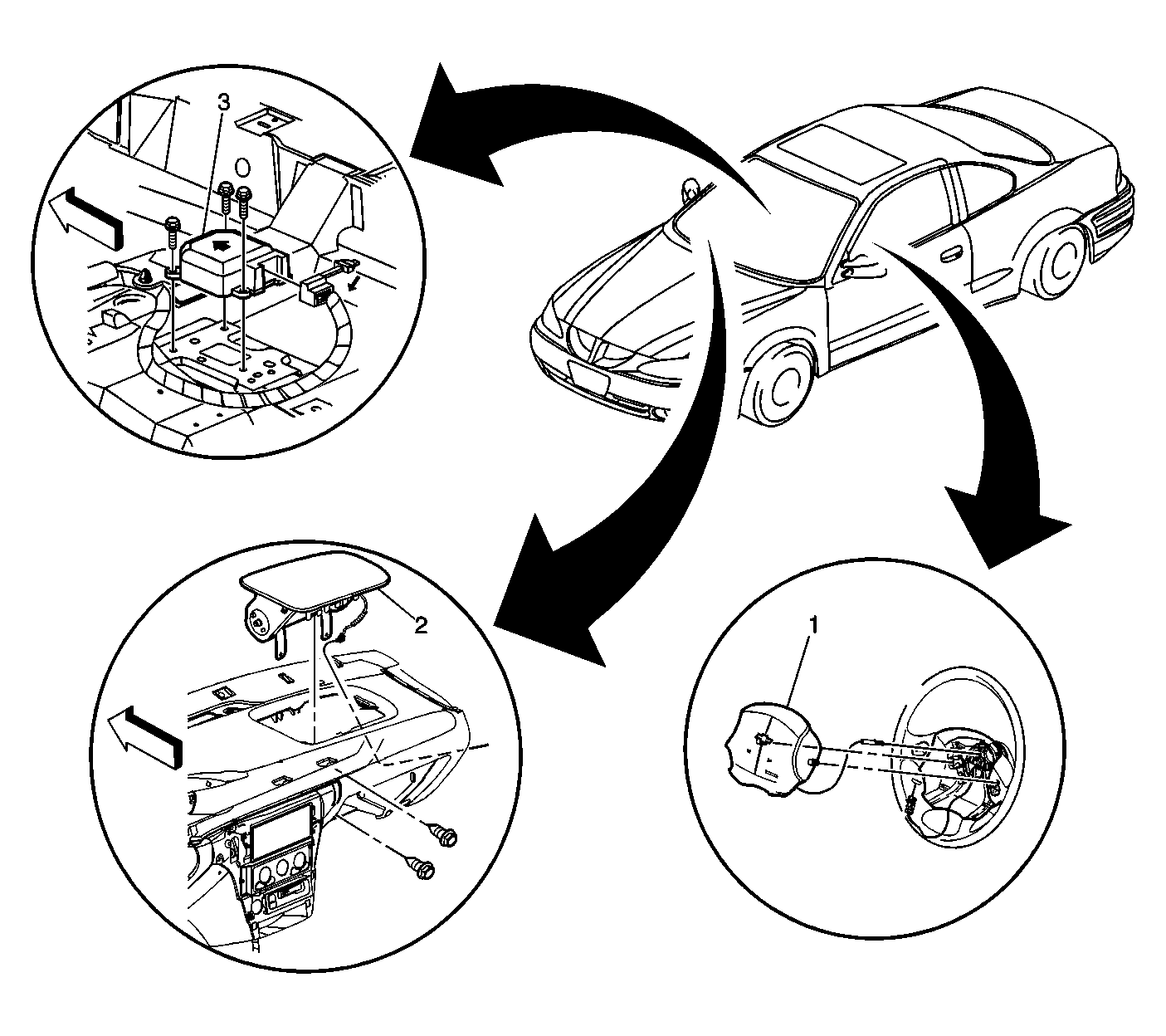

SIR Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module |
| 2 |
Inflatable Restraint I/P Module |
| 3 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module Coil |
| 2 |
Steering Column Assembly |
