Power Seat Systems Component Views

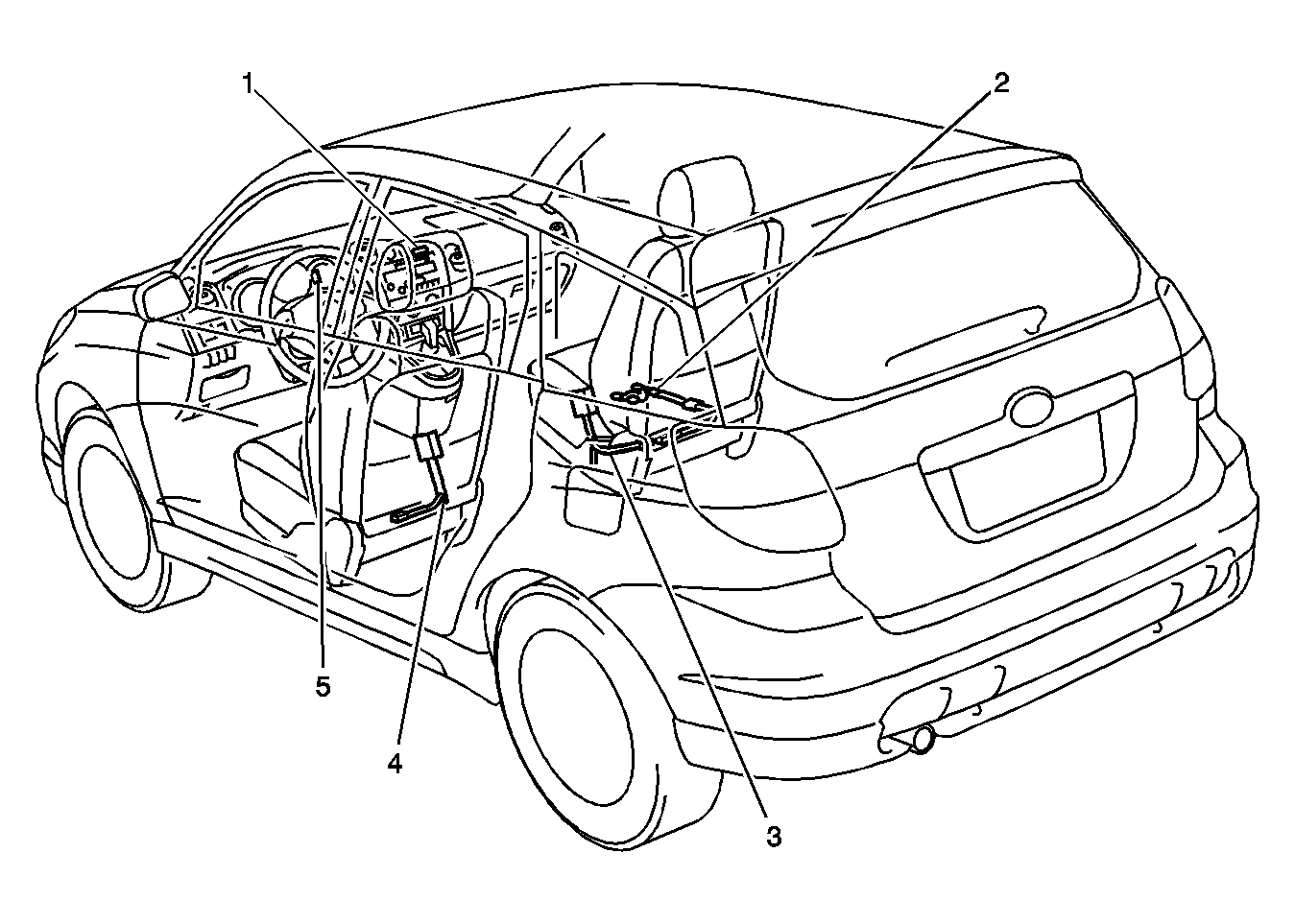

Fig 1: Seat Belt Warning System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passengers Seat Belt Warning Lamp
2	Passenger Seat Belt Warning Sensor
3	Passenger Inner Seat Belt Assembly
4	Driver Inner Seat Belt Assembly
5	Drivers Seat Belt Warning Lamp

Fig 2: Front Seat Belt Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Belt Anchor Assembly
2	Front Outer Seat Belt Assembly

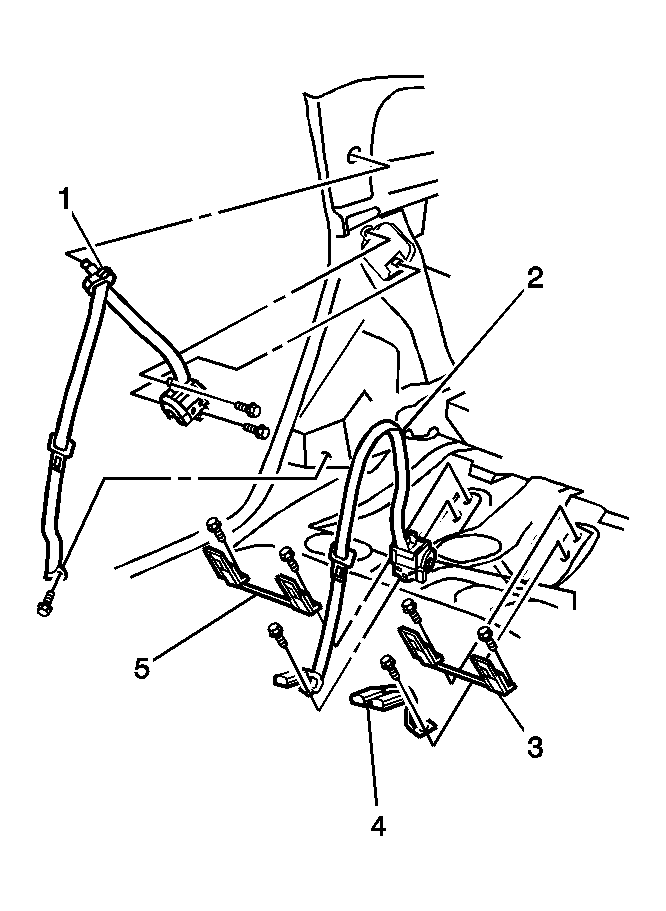

Fig 3: Rear Seat Belt Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Belt Assembly
2	Rear Center Seat Belt Retractor
3	Child Restraint Seat Anchor Bracket
4	Rear Inner Seat Belt Assembly
5	Child Restraint Seat Anchor Bracket
