Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor

GM334913Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11858
  • BK
Pin Wire Color Function
1 YE Low Reference
2 WH APP Sensor 2 Signal
3 YE Low Reference
4 BK 5-Volt Reference
5 GN APP Sensor 1 Signal
6 BK 5-Volt Reference
Ambient Air Temperature Sensor

GM334404Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11030
  • BK
Pin Wire Color Function
1 BK Ambient Air Temperature Sensor Input
2 BK/BU Ground
Back Up Lamp Switch

GM334404Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11250
  • GY
Pin Wire Color Function
1 RD/BK Back Up Lamp Switch Feed Circuit
2 RD/WH Back Up Lamp Switch Signal Circuit
Camshaft Position (CMP) Sensor

GM339853Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10947
  • BK
Pin Wire Color Function
1 BK Camshaft Position Input
2 WH Sensor Ground
Camshaft Position (CMP) Actuator Solenoid Valve

GM820095Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11162
  • BN
Pin Wire Color Function
1 YE CMP Actuator High Control
2 BK/YE CMP Actuator Low Control
Circuit Opening Relay

GM660786Courtesy of GENERAL MOTORS CORP.
Connector Part Information -
Pin Wire Color Function
1 BK Relay Coil Supply Voltage
2 GN/RD Relay Coil Control
3 BK/RD Switch Fuel Pump
5 WH/BK Switch Supply Voltage
Clutch Pedal Position (CPP) Switch

GM820095Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10825
  • WH
Pin Wire Color Function
1 RD CPP Feed Circuit
2 BK CPP Signal Circuit
Crankshaft Position (CKP) Sensor

GM339853Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10947
  • GY
Pin Wire Color Function
1 BK Crankshaft Position Input
2 WH Sensor Ground
Engine Coolant Temperature (ECT) Sensor

GM820010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10737
  • D-GY
Pin Wire Color Function
1 BN Sensor Ground
2 WH ECT Input
EFI Relay

GM660786Courtesy of GENERAL MOTORS CORP.
Connector Part Information -
Pin Wire Color Function
1 BK/WH Relay Coil Supply Voltage
2 WH/BK Relay Coil Ground Circuit
3 BK Relay Load
5 RD/WH Switch Supply Voltage
EVAP Pressure Switching Solenoid, AWD only

GM334995Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11859
  • BK
Pin Wire Color Function
1 RD EVAP Control
2 BK EVAP Feed Circuit
EVAP Purge Solenoid Valve

GM339854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11156
  • BU
Pin Wire Color Function
1 BU/BK EVAP Control Circuit
2 BK EVAP Feed Circuit

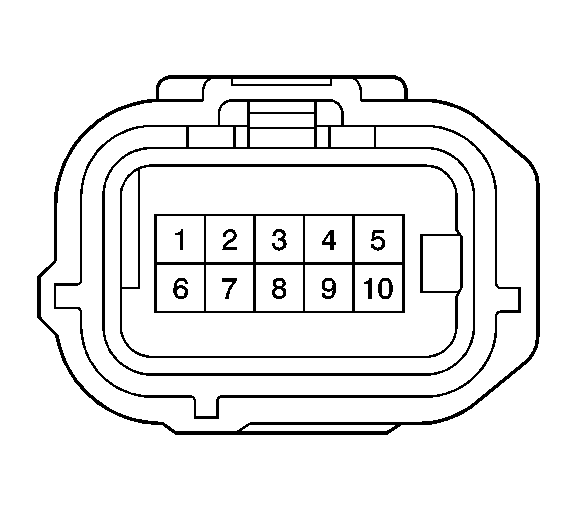

EVAP System Vacuum Leak Pump, FWD Only

GM1489449Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12380
  • BK
Pin Wire Color Function
1 GY Vacuum Pump Control
2 BN Sensor Ground
3 BU Fuel Tank Pressure (FTP) Input
4 YE 5-Volt Reference
5 - Not Used
6 WH/BK Ground
7 - Not Used
8 RD EVAP Vent Solenoid Control
9 BK EVAP Vent Solenoid Supply Voltage
10 - Not Used
EVAP Vent Solenoid Valve, AWD Only

GM820255Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11162
  • BK
Pin Wire Color Function
1 BU EVAP Control Circuit
2 BK EVAP Feed Circuit
Fuel Injector #1

GM334996Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11875
  • GY
Pin Wire Color Function
1 BK/WH Fuel Injector #1 Feed Circuit
2 YE Fuel Injector #1 Control Circuit
Fuel Injector #2

GM334996Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11875
  • GY
Pin Wire Color Function
1 BK/WH Fuel Injector #2 Feed Circuit
2 BK Fuel Injector #2 Control Circuit
Fuel Injector #3

GM334996Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11875
  • GY
Pin Wire Color Function
1 BK/WH Fuel Injector #3 Feed Circuit
2 WH Fuel Injector #3 Control Circuit
Fuel Injector #4

GM334996Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11875
  • GY
Pin Wire Color Function
1 BK/WH Fuel Injector #4 Control Circuit
2 BU Fuel Injector #4 Feed Circuit
Fuel Sender Assembly

GM334997Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11077
  • WH
Pin Wire Color Function
1 - Not Used
2 YE Fuel Gage
3 BN Low Fuel Indicator
4 BK/RD Fuel Pump Feed Circuit
5 WH/BK Ground
Fuel Tank Pressure Sensor, AWD Only

GM335005Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11143
  • BK
Pin Wire Color Function
1 BN Sensor Ground
2 BU Fuel Tank Pressure Input
3 YE Reference Voltage
Heated Oxygen Sensor (HO2S) 1

GM335001Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10869
  • D-GY
Pin Wire Color Function
1 PK HO2S1 Input
2 BK HO2S1 Heater Feed Circuit
3 BK HO2S1 Heater Control
4 BN Low Reference
Heated Oxygen Sensor (HO2S) 2

GM820019Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10794
  • D-GY
Pin Wire Color Function
1 BK HO2S2 Feed Circuit
2 PK/BK HO2S2 Heater Control
3 BN Ground
4 WH HO2S2 Heater Control
Idle Air Control (IAC) Motor

GM339851Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11145
  • GY
Pin Wire Color Function
1 BK/BU IAC Valve Open Control
2 BK IAC Feed Circuit
3 WH/BK Ground
Ignition Coil 1

GM820192Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11885
  • BN
Pin Wire Color Function
1 BK/WH Ignition Coil Feed Circuit
2 BU/YE Ignition Fail Safe Input
3 RD/BU Ignition Trigger Circuit
4 WH/BK Ground
Ignition Coil 2

GM820192Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11885
  • BN
Pin Wire Color Function
1 BK/WH Ignition Coil Feed Circuit
2 BU/YE Ignition Fail Safe Input
3 YE/GN Ignition Trigger Circuit
4 WH/BK Ground
Ignition Coil 3

GM820192Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11885
  • BN
Pin Wire Color Function
1 BK/WH Ignition Coil Feed Circuit
2 BU/YE Ignition Fail Safe Input
3 GY Ignition Trigger Circuit
4 WH/BK Ground
Ignition Coil 4

GM820192Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11885
  • BN
Pin Wire Color Function
1 BK/WH Ignition Coil Feed Circuit
2 BU/YE Ignition Fail Safe Input
3 WH Ignition Trigger Circuit
4 WH/BK Ground
Knock Sensor (KS)

GM334996Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11875
  • BK
Pin Wire Color Function
1 WH KS Signal Low
2 BK KS Signal High
Mass Air Flow (MAF) Sensor

GM820101Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11317
  • BK
Pin Wire Color Function
1 BK MAF Feed Circuit
2 BU/WH MAF Signal Low
3 GN MAF Signal High
4 YE/BK IAT Sensor Input
5 BN Sensor Ground
Noise Filter

GM820022Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10843
  • GY
Pin Wire Color Function
1 BK/WH Noise Filter Feed Circuit
2 - Not Used
Park/Neutral Position (PNP) Switch (FWD)

GM820186Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12362
  • GY
Pin Wire Color Function
1 RD/BK PCM - Reverse Position Signal
2 RD/WH Ignition On Voltage
3 L-GN 2nd Gear Position Signal
4 RD Battery Supply Voltage
5 BK Ground
6 BU/RD Neutral Position Signal
7 BU Drive Position Signal
8 L-GN/BK Low Position Signal
9 - Not Used
Park/Neutral Position (PNP) Switch (AWD)

GM820186Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12362
  • GY
Pin Wire Color Function
1 RD/BK PCM - Reverse Position Signal
2 RD/WH Ignition On Voltage
3 L-GN 2nd Gear Position Signal
4 RD Battery Supply Voltage
5 BK Ground
6 BU/RD Neutral Position Signal
7 BU Drive Position Signal
8 L-GN/BK Low Position Signal
9 BU/WH Park Position Signal
Park/Neutral Position (PNP) Switch (FWD)

GM820186Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12362
  • GY
Pin Wire Color Function
1 RD/BK PCM - Reverse Position Signal
2 RD/WH Ignition On Voltage
3 L-GN 2nd Gear Position Signal
4 RD Battery Supply Voltage
5 BK Ground
6 BU/RD Neutral Position Signal
7 BLU Drive Position Signal
8 L-GN/BK Low Position Signal
9 - Not Used
PCM Connector C1 FWD

GM820235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 34-Pin
  • WH
Pin Wire Color Function
1 YE Fuel Injector 1 Control
2 BK Fuel Injector 2 Control
3 WH Fuel Injector 3 Control
4 BU Fuel Injector 4 Control
5 BN Ground
6 WH/BK Ground
7 WH/BK Ground
8 RD/BU Ignition Trigger Signal Coil 1
9 YE/GN Ignition Trigger Signal Coil 2
10 GY Ignition Trigger Signal Coil 3
11 WH Ignition Trigger Signal Coil 4
12 BK/YE Camshaft Position (CMP) Actuator Solenoid Valve High Control
13 YE Camshaft Position (CMP) Actuator Solenoid Valve Low Control
14 L-GN/BK Fan 2 Relay Control
15 - Not Used
16 RD Ignition Positive Voltage
17 BK Crank Signal
18 YE 5-Volt Reference Circuit
19 WH Engine Coolant Temperature (ECT) Sensor Input
20 YE/BK Intake Air Temperature (IAT) Sensor Input
21 L-GN Throttle Position (TP) Sensor 1 Input
22-23 - Not Used
24 BU/YE Ignition Fail Safe Input
25-26 - Not Used
27 RD EVAP Canister Vent Solenoid Valve Control
28 BN Sensor Ground
29 BU/WH Mass Air Flow (MAF) Sensor Signal Low
30 GN Mass Air Flow (MAF) Sensor Signal High
31 L-GN Throttle Position (TP) Sensor 2 Input
32-33 - Not Used
34 BU/BK EVAP Canister Purge Solenoid Valve Control
*Automatic Transmission Only
PCM Connector C2 FWD

GM820243Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 35-Pin
  • WH
Pin Wire Color Function
1 BK Knock Sensor (KS) Signal High
2 WH/BK Ground
3 WH TAC Motor Control Low
4 L-GN TAC Motor Control High
5 PK Heated Oxygen Sensor (HO2S) 1 Heater Circuit Control
6 WH/BK Ground
7 WH/BK Heated Oxygen Sensor (HO2S) Shield Ground
8 BU/RD Power Steering Pressure (PSP) Switch Input
9 BU Shift Solenoid (SS) 2 Control*
10 BU/WH Torque Converter Clutch (TCC) Control*
11 RD/YE Shift Solenoid (SS) 1 Control*
12 PK Line Pressure Control (PC) Solenoid Control Low*
13 RD/WH Line Pressure Control (PC) Solenoid Control High*
14-15 - Not Used
16 L-GN Fan 1 Relay Control
17 GY TAC Shield Ground
18-20 - Not Used
21 PK/BK Heated Oxygen Sensor (HO2S) 2 Heater Circuit Control
22 - Not Used
23 BK Heated Oxygen Sensor (HO2S) 1 Input
24 BK Camshaft Position (CMP) Sensor Input
25 BK Crankshaft Position (CKP) Sensor Input
26-27 - Not Used
28 WH Knock Sensor (KS) Signal Low
29 WH Heated Oxygen Sensor (HO2S) 2 Input
30 - Not Used
31 WH Heated Oxygen Sensor (HO2S) 1 Low Reference
32 - Not Used
33 WH CMP Sensor and CKP Sensor Ground
34 - Not Used
35 WH/BK Ground
*Automatic Transmission Only
PCM Connector C3 FWD

GM820244Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 35-Pin
  • WH
Pin Wire Color Function
1 YE AC Pressure Switch
2 YE/BK AC Compressor Clutch Relay Control
3-5 - Not Used
6 BK/RD Throttle Actuator Control (TAC) System Ignition Voltage
7 L-GN Overdrive (OD) Indicator Control*
8 L-GN/BK Park Neutral Position (PNP) Switch L Position Signal*
9 L-GN Park Neutral Position (PNP) Switch 2 Position Signal*
10 BU Park Neutral Position (PNP) Switch D Position Signal*
11 RD/BK Park Neutral Position (PNP) Switch R Position Signal*
12 GN/OG Cruise Control Interrupt Circuit
13 GN/RD Cruise Control Indicator Lamp
14 YE/RD Engine Coolant Temperature Gage Output
15-16 - Not Used
17 PU/WH Vehicle Speed Sensor (VSS) Input
18 - Not Used
19 GN/WH Cruise Brake Switch Signal
20-23 - Not Used
24 GN/YE Cruise Control Switch
25-27 - Not Used
28 YE AC Request Signal
29 GN/BK Overdrive (OD) Switch Signal*
30-31 - Not Used
32 BK/BU Evaporator Temperature Sensor Input
33 GN/WH AC On Signal
34-35 - Not Used
*Automatic Transmission Only
PCM Connector C4 FWD

GM820233Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 31-Pin
  • WH
Pin Wire Color Function
1 BK Ignition Positive Voltage
2 - Not Used
3 RD/WH Battery Voltage
4 GY EVAP Vacuum Leak Pump Control
5 BK Engine Speed Output for Tachometer
6-7 - Not Used
8 BK/WH EFI Relay High Control
9 RD Ignition Positive Voltage
10 GN/RD Circuit Opening Relay Control
11 RD/YE MIL Control
12 GN Electrical Load Idle-Up Signal, Tail Lamps
13 WH Electrical Load Idle-Up Signal, Rear Defogger
14 YE Supplemental Inflatable Restraint (SIR) System Signal
15-17 - Not Used
18 BU/RD Serial Data
19 PK Data Link Connector (DLC)
20 PK/BK Diagnostic Request Circuit
21 BU Fuel Tank Pressure (FTP) Sensor Input
22 GN Accelerator Pedal Position (APP) Sensor 1 Signal
23 WH Accelerator Pedal Position (APP) Sensor 2 Signal
24-25 - Not Used
26 BK Accelerator Pedal Position (APP) Sensor 1 Reference Voltage
27 BK Accelerator Pedal Position (APP) Sensor 2 Reference Voltage
28 YE Accelerator Pedal Position (APP) Sensor 1 Low Reference
29 YE Accelerator Pedal Position (APP) Sensor 2 Low Reference
30-31 - Not Used
*Automatic Transmission Only
PCM Connector C1 AWD

GM820235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 34-Pin
  • WH
Pin Wire Color Function
1 YE Fuel Injector 1 Control
2 BK Fuel Injector 2 Control
3 WH Fuel Injector 3 Control
4 BU Fuel Injector 4 Control
5 BK/BU Idle Air Control (IAC) Valve Control
6 WH/BK Ground
7 WH/BK Ground
8 RD/BU Ignition Trigger Signal Coil 1
9 YE/GN Ignition Trigger Signal Coil 2
10 GY Ignition Trigger Signal Coil 3
11 WH Ignition Trigger Signal Coil 4
12 BU/BK EVAP Canister Purge Solenoid Valve Control
13 YE AC Pressure Switch
14 BK/YE Camshaft Position (CMP) Actuator Solenoid Valve High Control
15 YE Camshaft Position (CMP) Actuator Solenoid Valve Low Control
16 PK Line Pressure Control (PC) Solenoid Control Low
17 RD/WH Line Pressure Control (PC) Solenoid Control High
18 YE 5-Volt Reference Circuit
19 WH Engine Coolant Temperature (ECT) Sensor Input
20 YE/BK Intake Air Temperature (IAT) Sensor Input
21 L-GN Throttle Position (TP) Sensor 1 Input
22 - Not Used
23 BU/YE Ignition Fail Safe Input
24-25 - Not Used
26 BK Camshaft Position (CMP) Sensor Input
27 BK Crankshaft Position (CKP) Sensor Input
28 BN Sensor Ground
29 - Not Used
30 WH/BU Transmission Fluid Temperature Sensor Input, with AWD Only
31-33 - Not Used
34 WH CMP Sensor and CKP Sensor Ground
PCM Connector C2 AWD

GM820243Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 35-Pin
  • WH
Pin Wire Color Function
1 BK Knock Sensor (KS) Signal High
2 WH Knock Sensor (KS) Signal Low
3 - Not Used
4 PK Heated Oxygen Sensor (HO2S) 1 Heater Circuit Control
5 WH/BK Ground
6 - Not Used
7 BN Ground
8 RD Ignition Positive Voltage
9 BK Crank Signal
10-11 - Not Used
12 BU/OG Shift Solenoid ST Control
13 - Not Used
14 BU Shift Solenoid (SS) 2 Control
15 RD/YE Shift Solenoid (SS) 1 Control
16-18 - Not Used
19 BU/WH Torque Converter Clutch (TCC) Control
20 - Not Used
21 WH Heated Oxygen Sensor (HO2S) 2 Input
22 - Not Used
23 BK Heated Oxygen Sensor (HO2S) 1 Input
24 GN Mass Air Flow (MAF) Sensor Signal High
25-26 - Not Used
27 WH Input Shaft Speed Sensor Reference High
28 WH/BK Ground
29 BU/RD Power Steering Pressure (PSP) Switch Input
30-31 - Not Used
32 BU/WH Mass Air Flow (MAF) Sensor Signal Low
33-34 - Not Used
35 BK Input Shaft Speed Sensor Reference Low
PCM Connector C3 AWD

GM820244Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 35-Pin
  • WH
Pin Wire Color Function
1 BU EVAP Canister Vent Solenoid Valve Control
2 YE/BK AC Compressor Clutch Relay Control
3 - Not Used
4 PK/BK Heated Oxygen Sensor (HO2S) 2 Heater Circuit Control
5-6 - Not Used
7 L-GN Overdrive (OD) Indicator Control
8 L-GN/BK Park Neutral Position (PNP) Switch L Position Signal
9 L GN Park Neutral Position (PNP) Switch 2 Position Signal
10 BU Park Neutral Position (PNP) Switch D Position Signal
11 RD/BK Park Neutral Position (PNP) Switch R Position Signal
12-13 - Not Used
14 YE/RD Engine Coolant Temperature Gage Output
15-16 - Not Used
17 PU/WH Vehicle Speed Sensor (VSS) Input
18 RD/YE Overdrive (OD) Cut Signal, with Cruise Control
19 GN/WH Brake Switch Signal
20-28 - Not Used
29 GN/BK Overdrive (OD) Switch Signal
30 - Not Used
31 YEL AC Request Signal
32 BK/BU Evaporator Temperature Sensor Input
33 GN/WH AC On Signal
34-35 - Not Used
PCM Connector C4 AWD

GM820233Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 31-Pin
  • WH
Pin Wire Color Function
1 BK Ignition Positive Voltage
2 - Not Used
3 RD/WH Battery Voltage
4 RD EVAP Pressure Switching Solenoid Control
5 BK Engine Speed Output for Tachometer
6 GN Fan 1 Relay Control
7 GN/BK Fan 2 Relay Control
8 BK/WH EFI Relay High Control
9 BK/OG Ignition Positive Voltage
10 GN/RD Circuit Opening Relay Control
11 RD/YE MIL Control
12 GN Electrical Load Idle-Up Signal, Tail Lamps
13 WH Electrical Load Idle-Up Signal, Rear Defogger
14 YE Supplemental Inflatable Restraint (SIR) System Signal
15 - Not Used
16 BU/WH Cruise Control Idle
17 - Not Used
18 BU/RD Serial Data
19 PK Data Link Connector (DLC)
20 PK/BL Diagnostic Request Circuit
21 BU Fuel Tank Pressure (FTP) Sensor Input
22-31 - Not Used
Throttle Actuator Control Module (TAC), FWD Only

GM334913Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11858
  • BK
Pin Wire Color Function
1 WH Motor Control Low
2 BK Motor Control High
3 BN Sensor Ground
4 L-GN TP Signal Sensor 2
5 YE 5-Volt Reference
6 L-GN TP Signal Sensor 1
Throttle Position (TP) Sensor, AWD Only

GM339857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11261
  • BK
Pin Wire Color Function
1 YE Reference Voltage
2 BN Sensor Ground
3 L-GN Throttle Position Input
Transmission Connector FWD

GM820252Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10854
  • GY
Pin Wire Color Function
1 RD/WH PC Solenoid High
2 BU/WH TCC Solenoid Control
3 RD/YE Shift Solenoid 1 Control
4 PK PC Solenoid Low
5 - Not Used
6 BU Shift Solenoid 2 Circuit
Transmission Connector AWD

GM820120Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11658
  • GY
Pin Wire Color Function
1 WH/BU Transmission Fluid Temperature Input Circuit
2 BU/OR 2nd Brake Control Solenoid
3 RD/WH PC Solenoid High
4 BU/WH TCC Solenoid Control
5 RD/YE Shift Solenoid 1 Control
6 BN Transmission Fluid Temperature Ground Circuit
7 - Not Used
8 PK PC Solenoid Low
9 - Not Used
10 BU Shift Solenoid 2 Circuit
Vehicle Speed Sensor (VSS) FWD (w/o ABS)

GM335027Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11143
  • BK
Pin Wire Color Function
1 RD/WH VSS Feed Circuit
2 BN Sensor Ground
3 WT/GN VSS Input Circuit
Vehicle Speed Sensor (VSS) AWD

GM820010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11156
  • BK
Pin Wire Color Function
1 BK Sensor Ground
2 WH VSS Input
scientia non olet · About LEMON Manuals
