Engine Controls Schematics

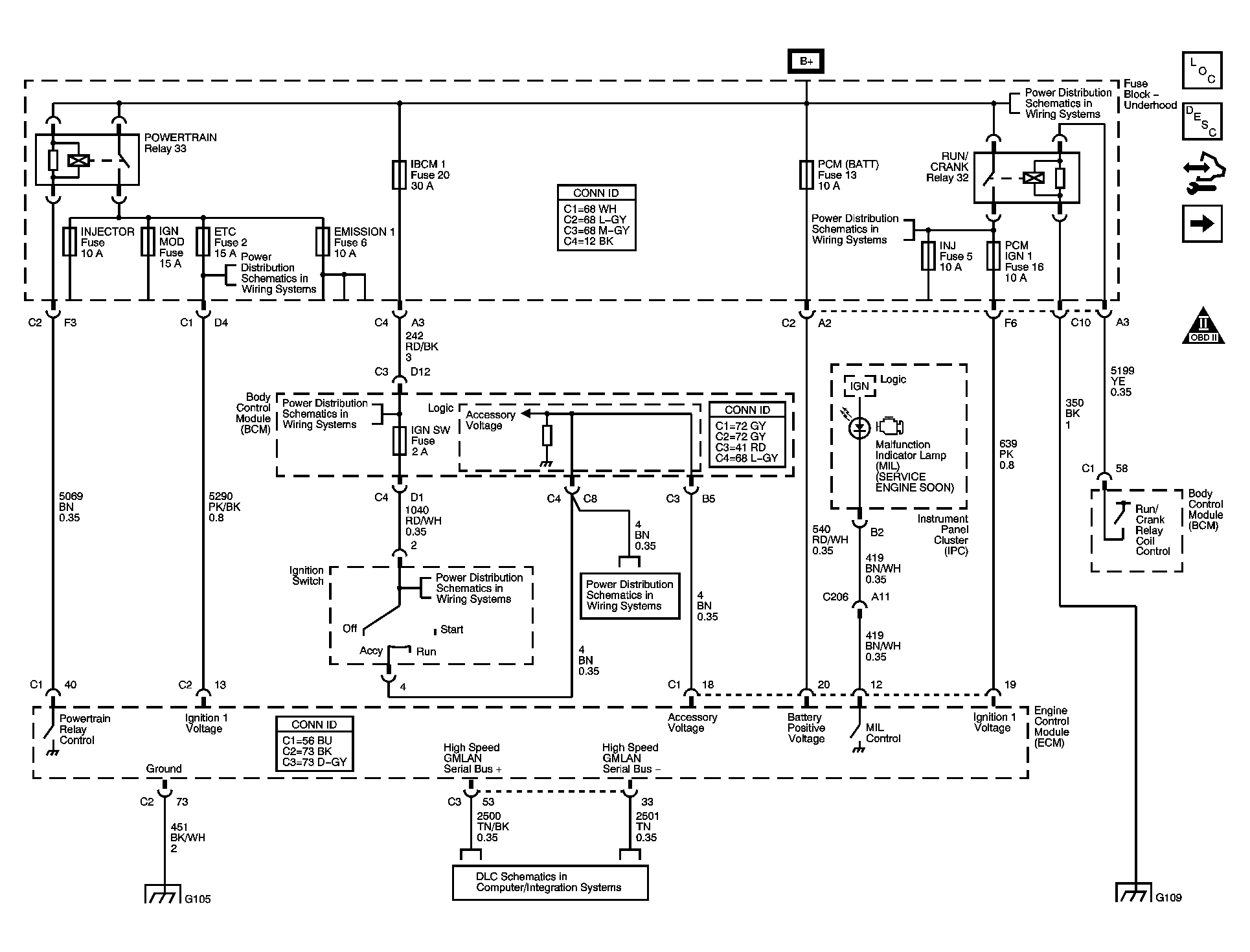

Fig 1: DLC, Ground, MIL & Power Schematic

Courtesy of GENERAL MOTORS CORP.

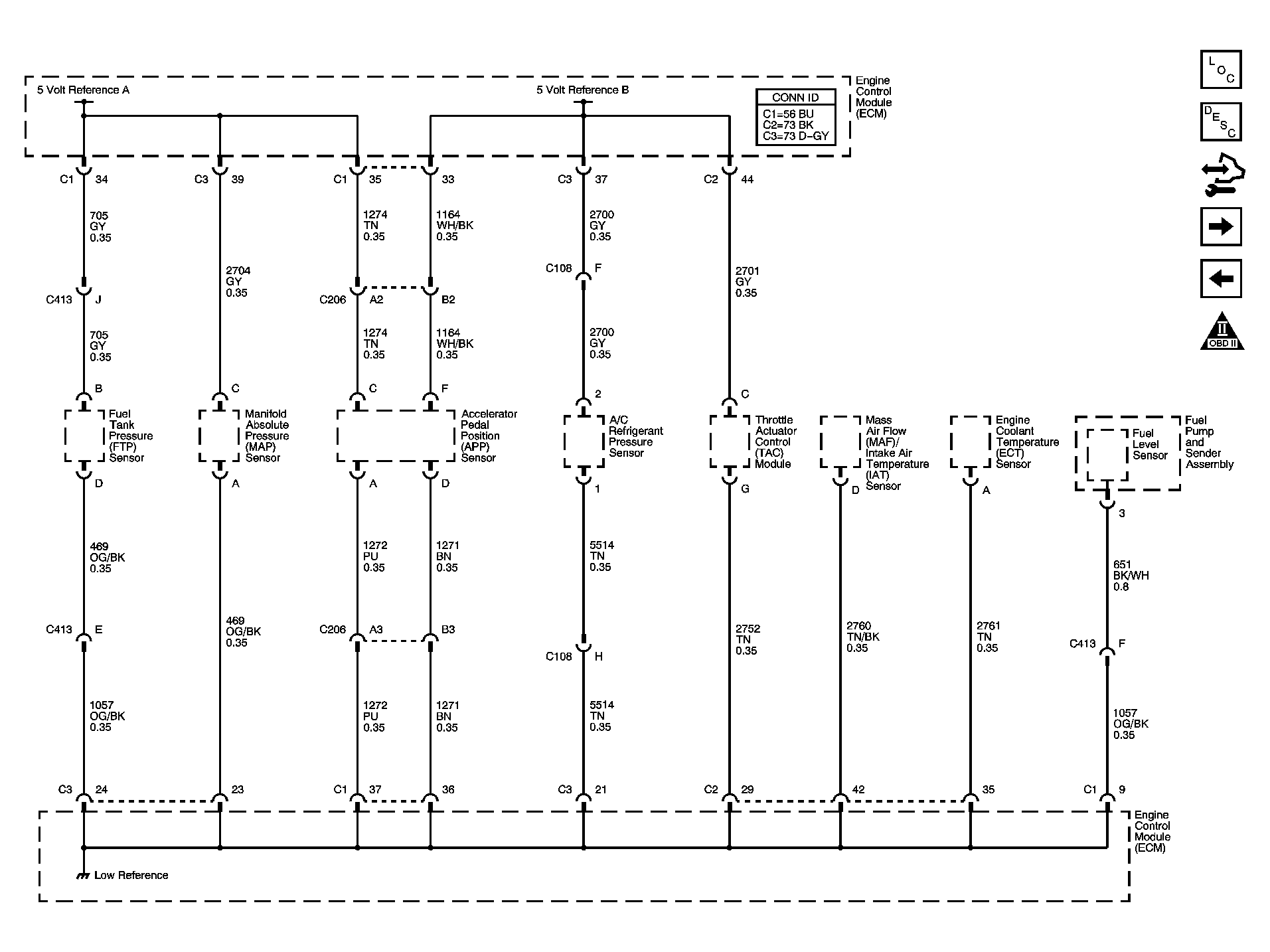

Fig 2: 5-Volt & Low References Schematic

Courtesy of GENERAL MOTORS CORP.

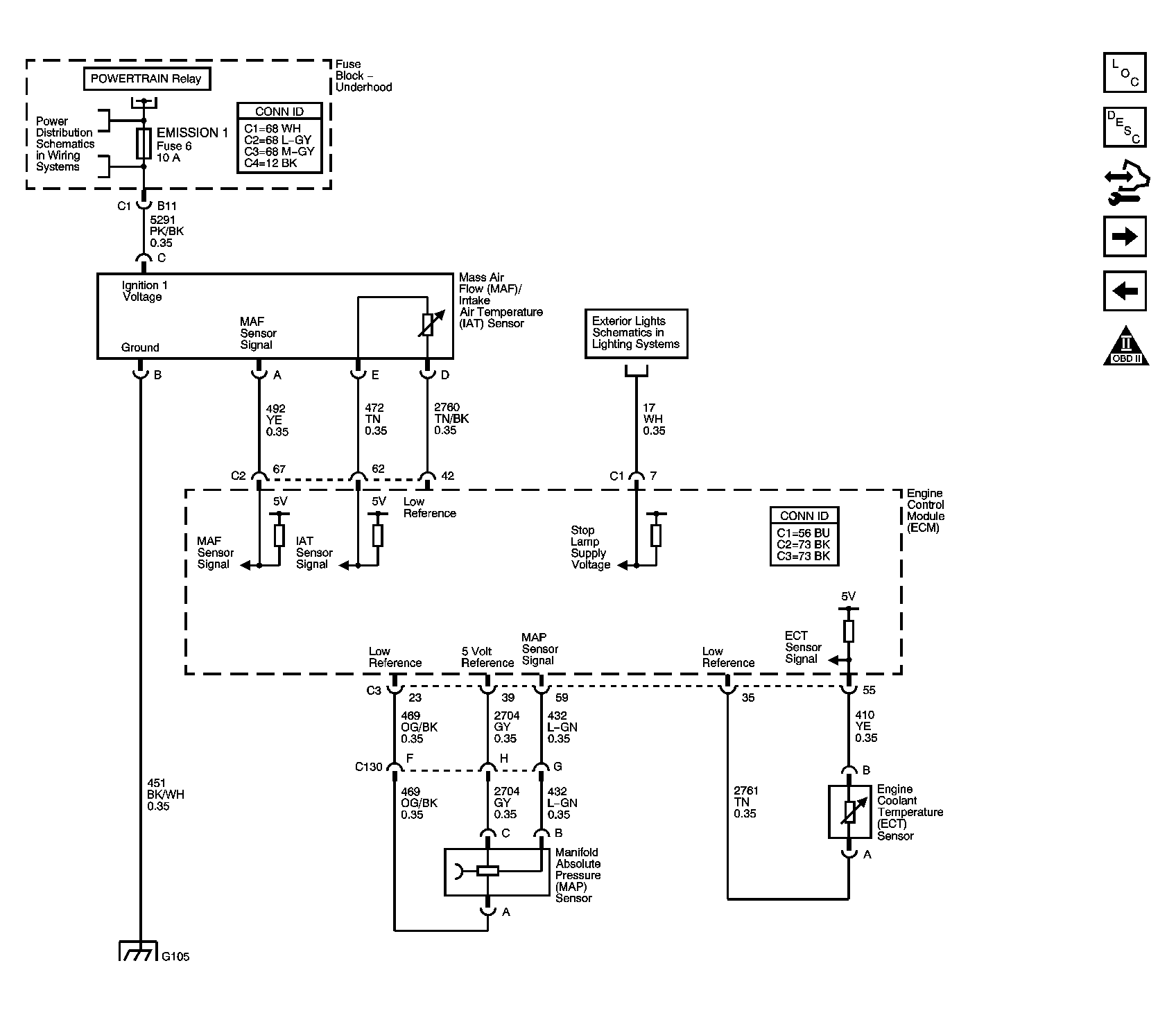

Fig 3: MAF, VSS & Extended Brake Travel Switch Schematic

Courtesy of GENERAL MOTORS CORP.

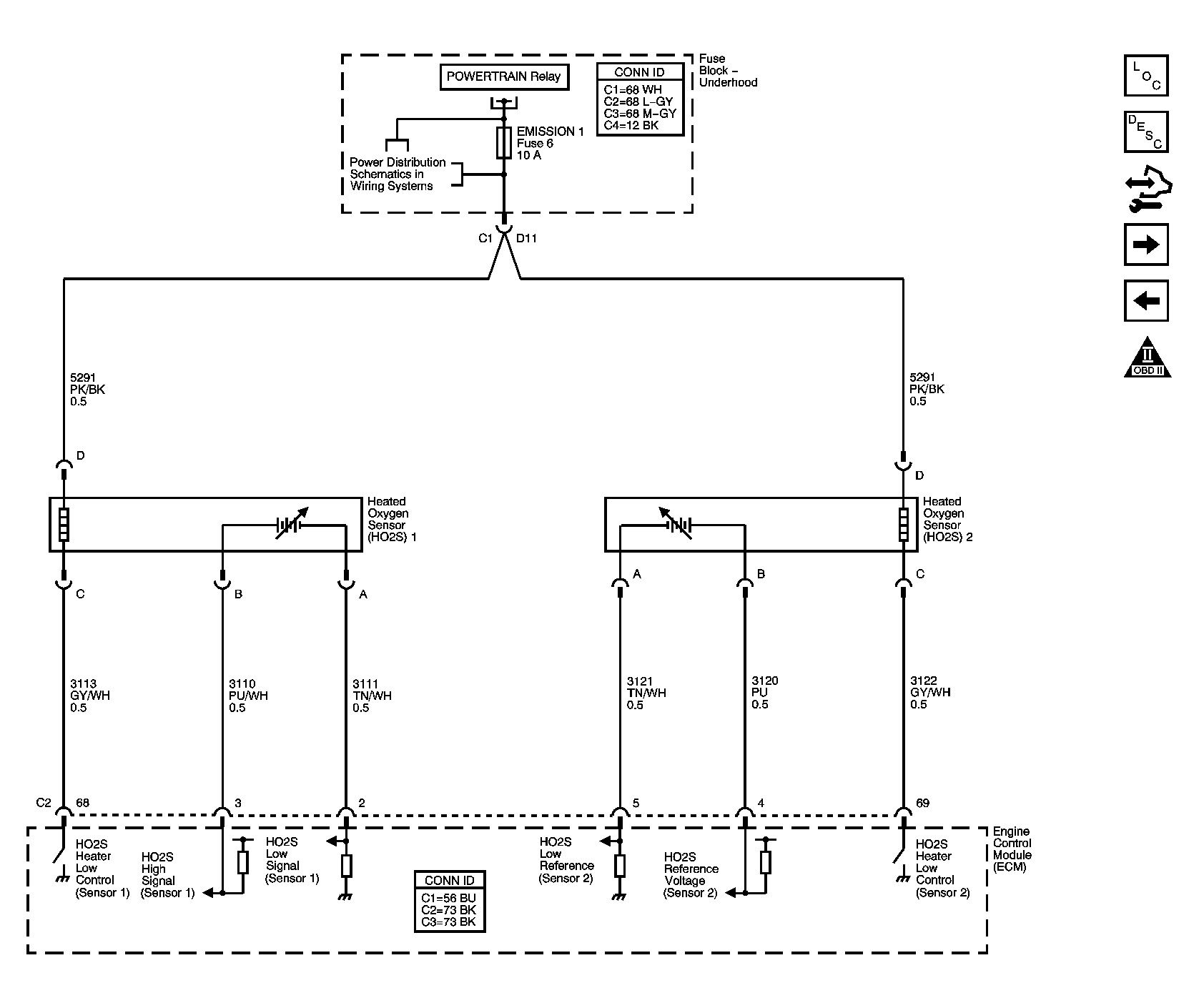

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

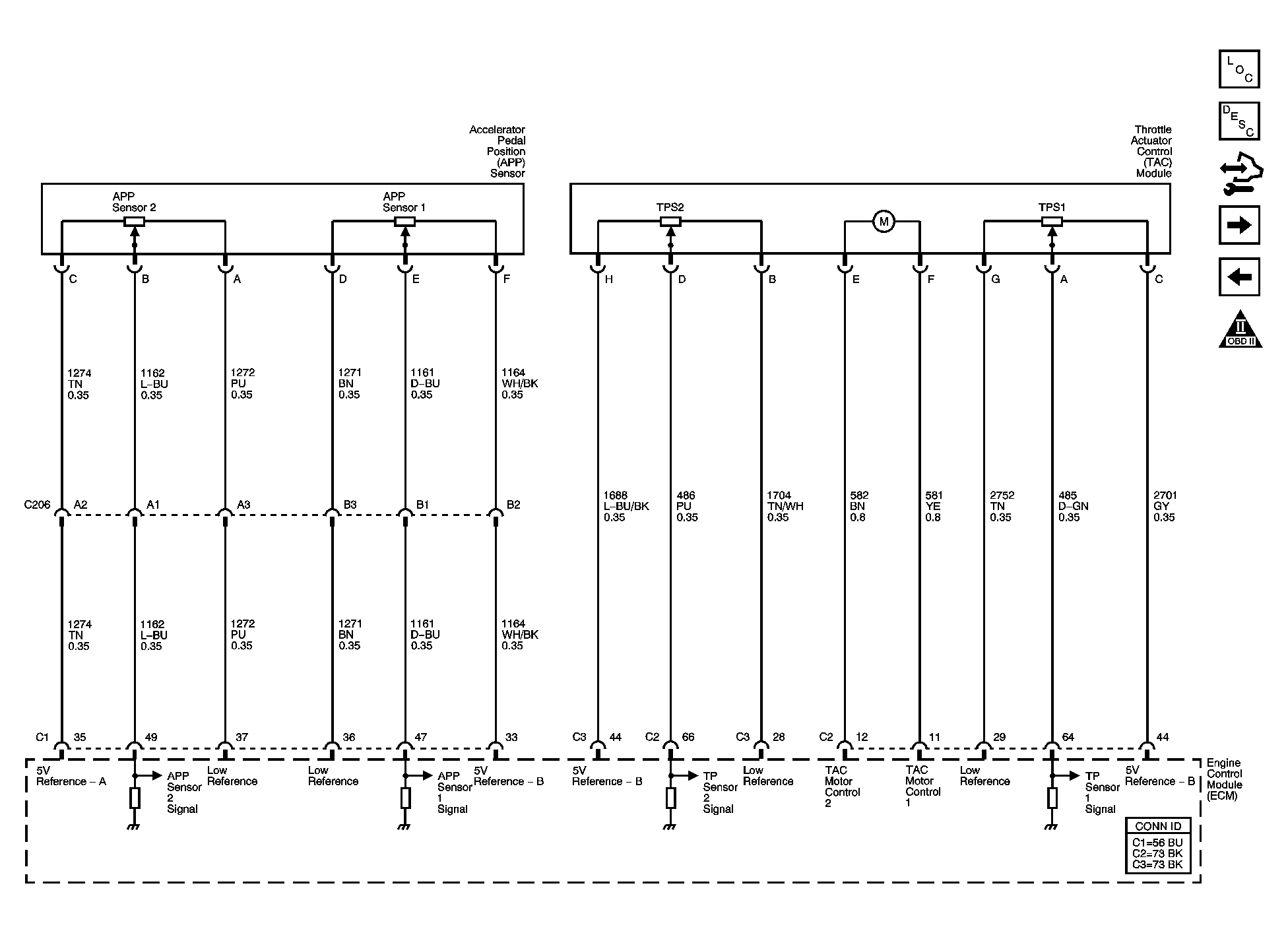

Fig 5: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

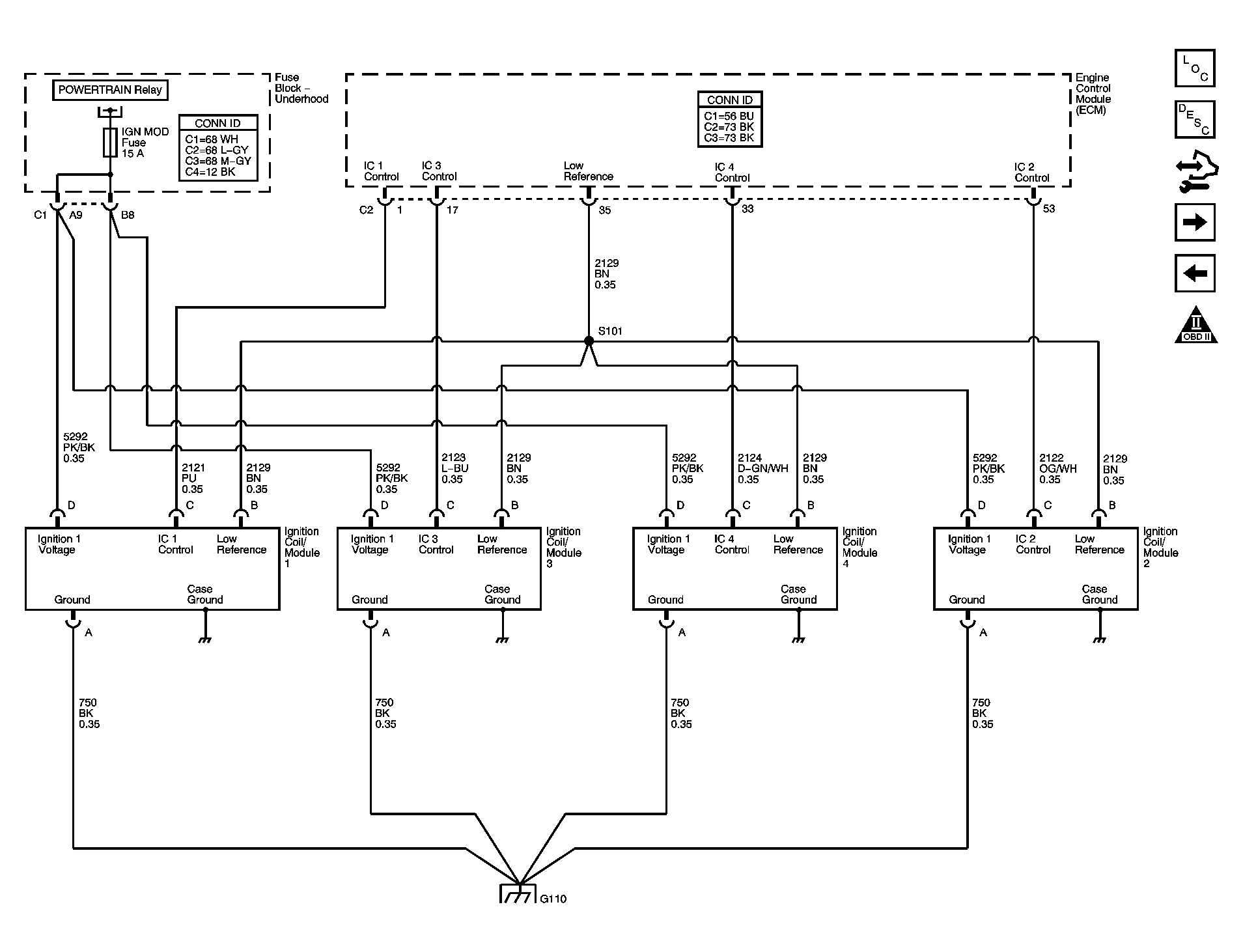

Fig 6: Ignition Coils/Modules Schematic

Courtesy of GENERAL MOTORS CORP.

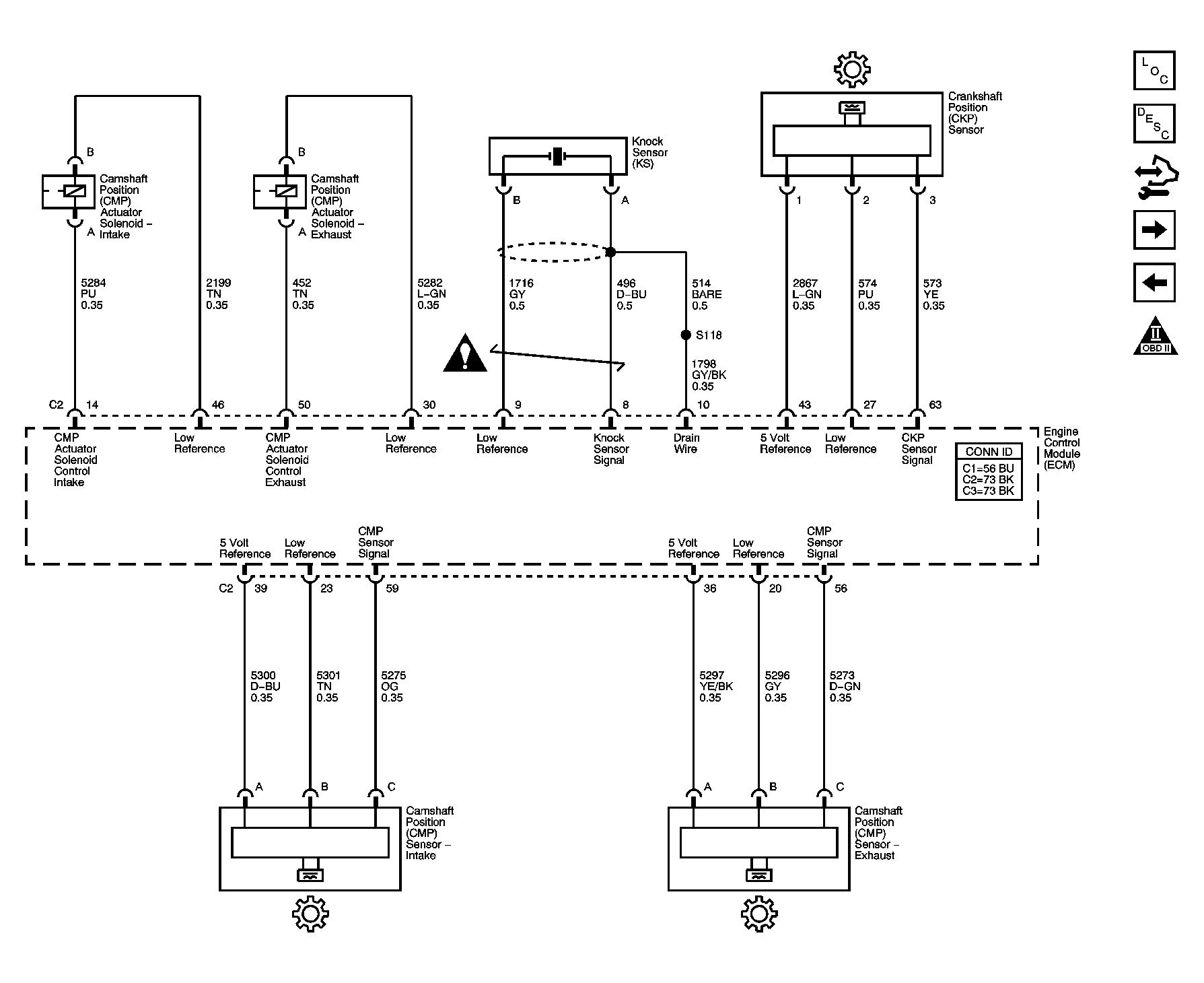

Fig 7: Ignition Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

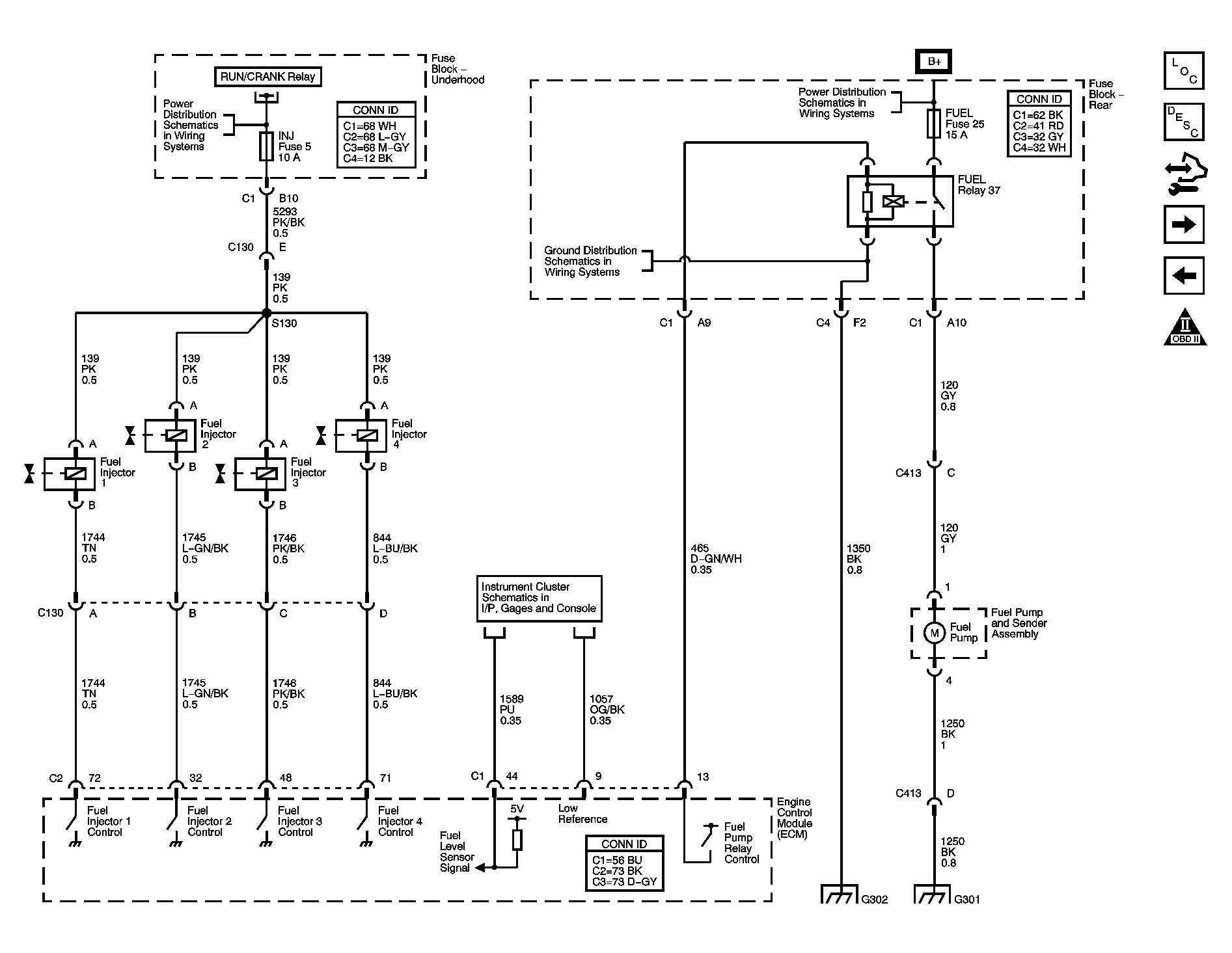

Fig 8: Fuel Injectors & Fuel Pump Schematic

Courtesy of GENERAL MOTORS CORP.

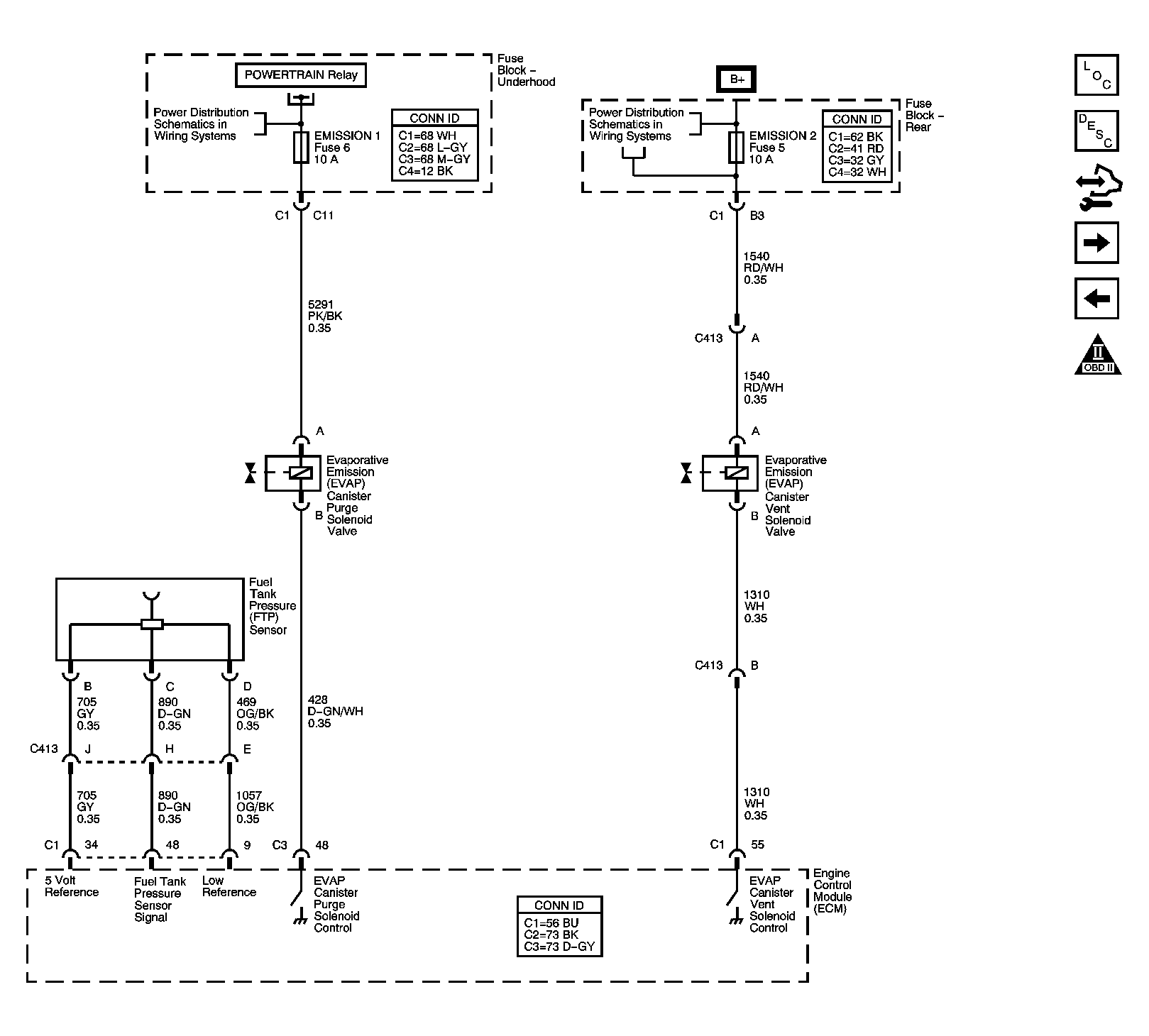

Fig 9: EVAP Controls & FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

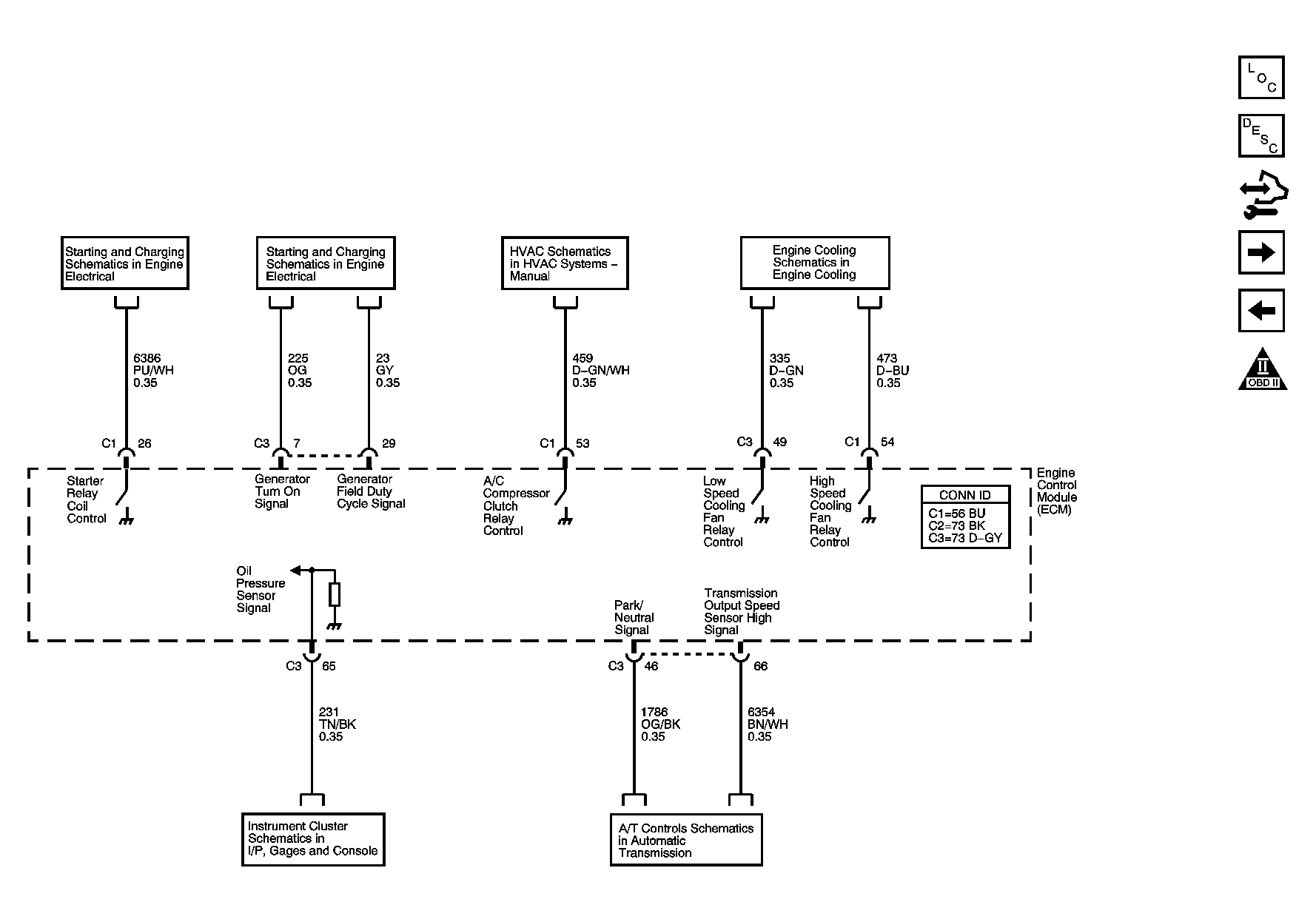

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
