Engine Controls Schematics

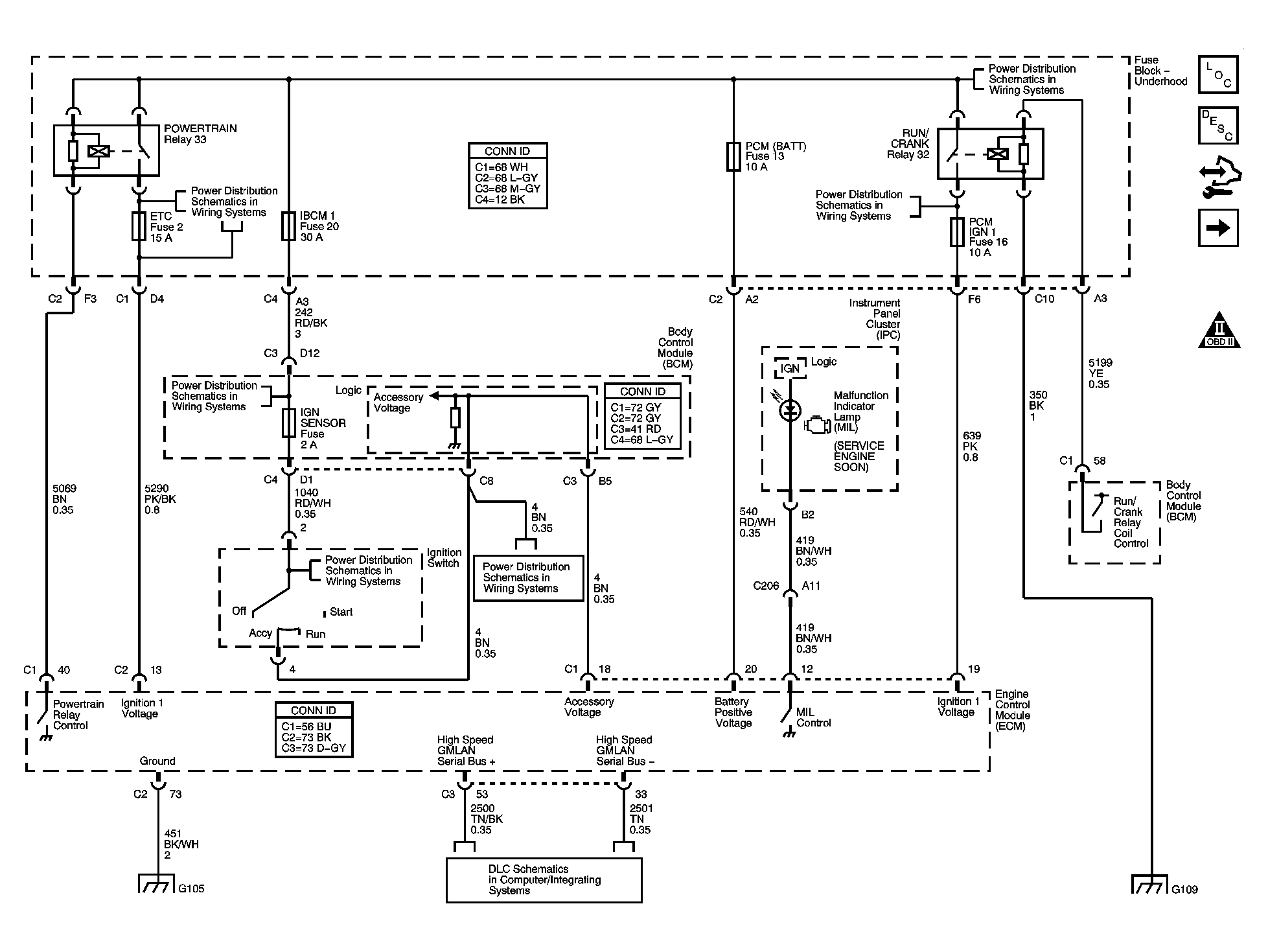

Fig 1: DLC, Ground, MIL and Power
GM1566258Courtesy of GENERAL MOTORS CORP.

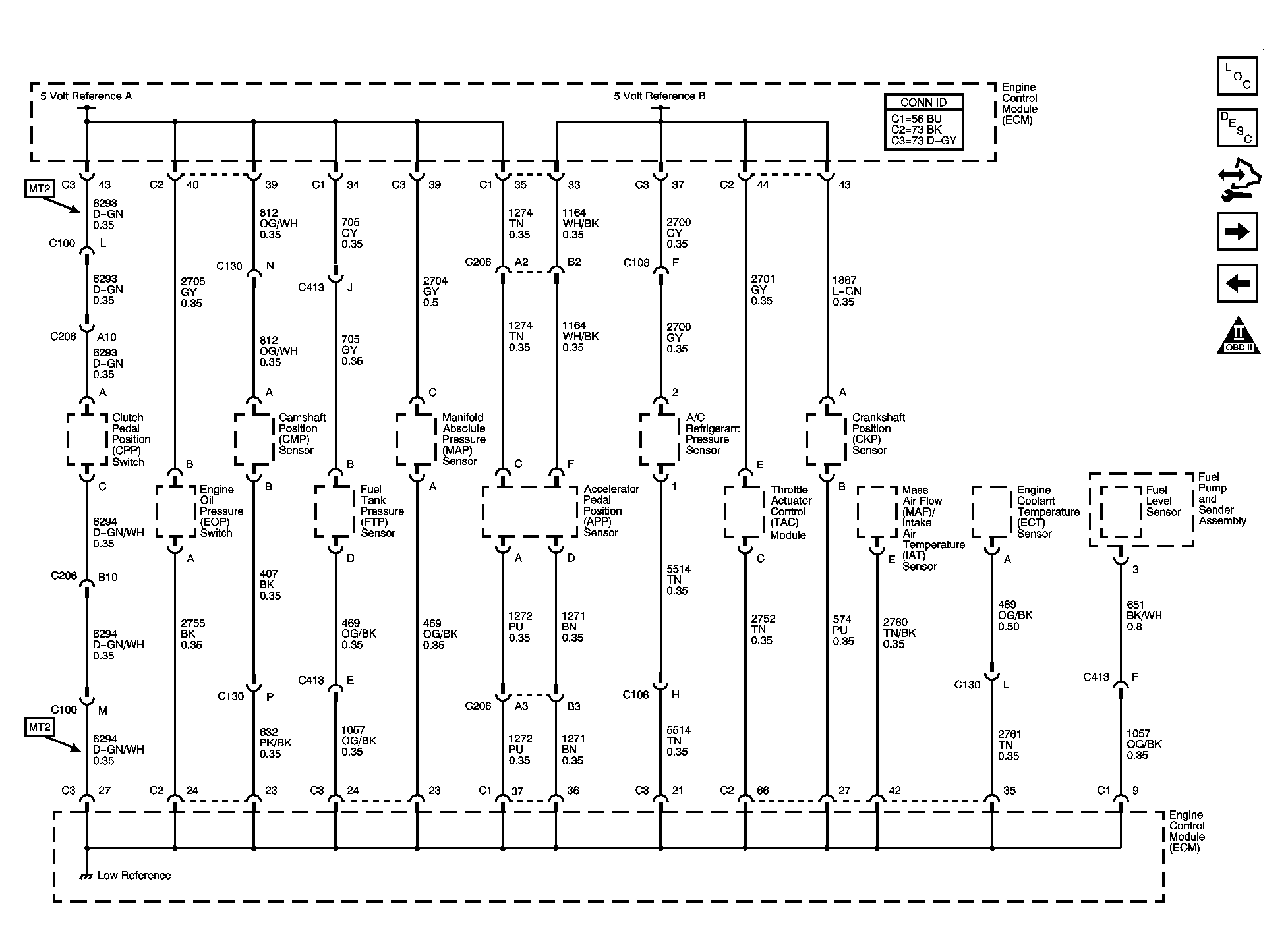

Fig 2: 5-Volt and Low References
GM1566259Courtesy of GENERAL MOTORS CORP.

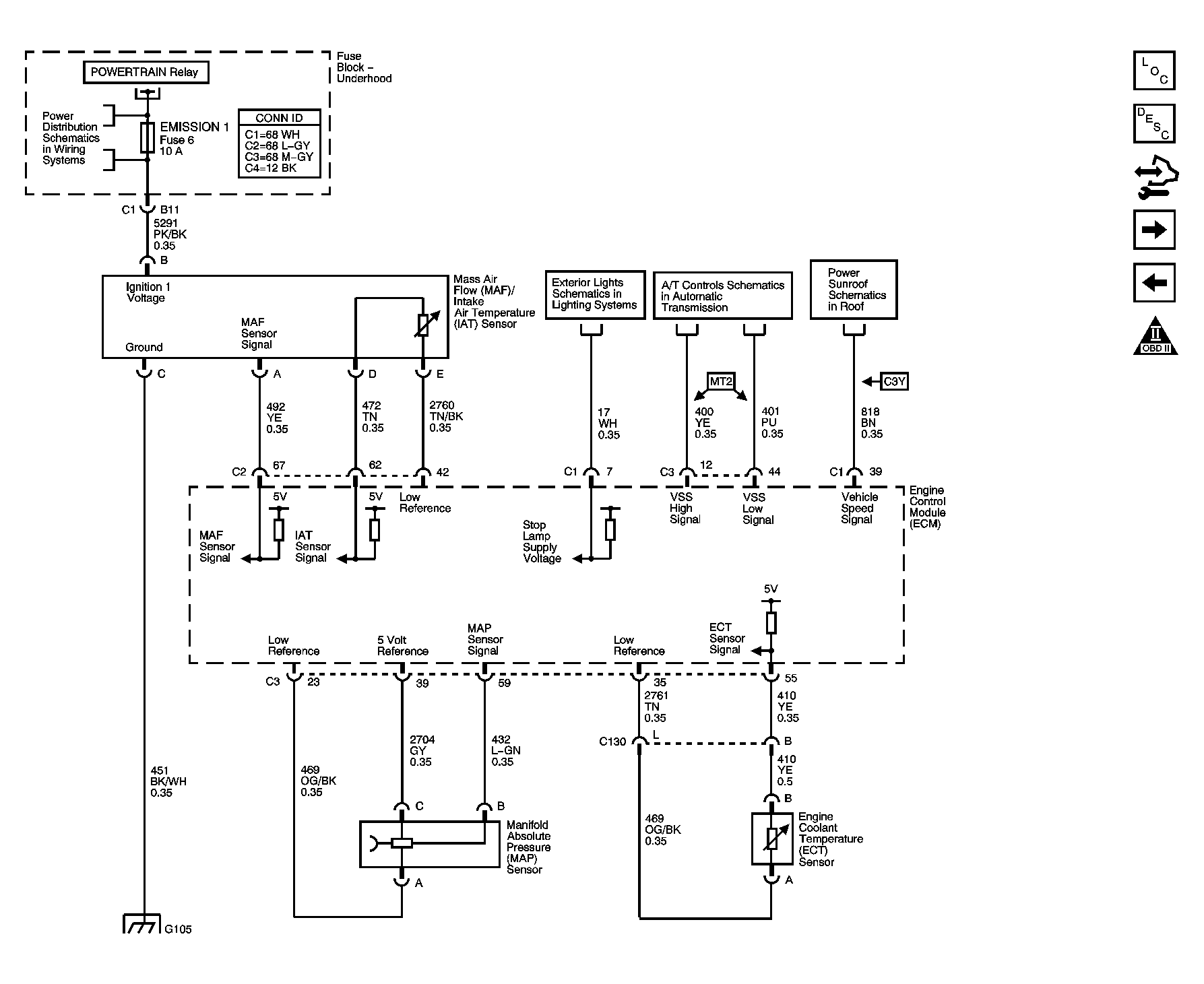

Fig 3: MAF, VSS and Extended Brake Travel Switch
GM1566260Courtesy of GENERAL MOTORS CORP.

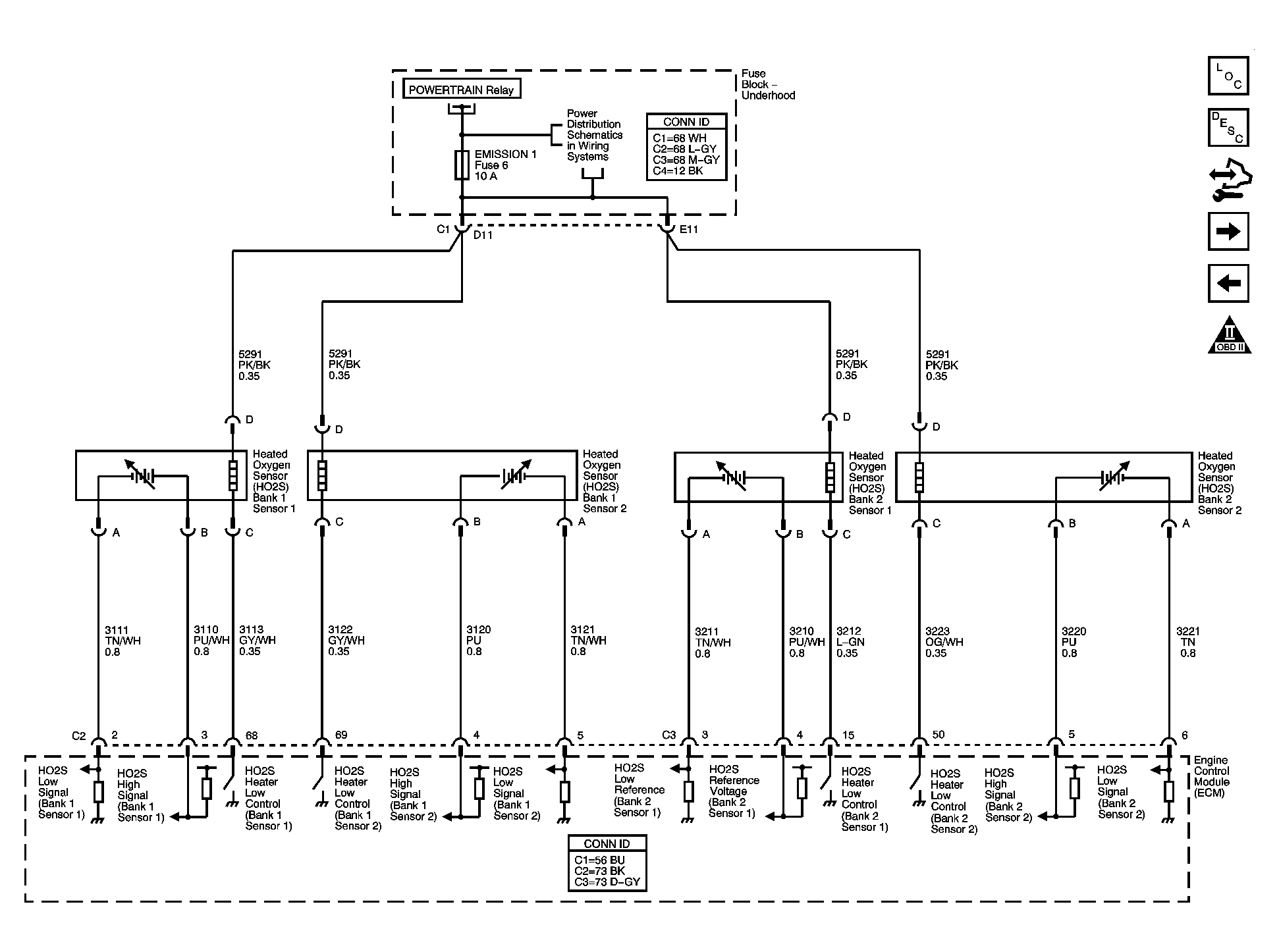

Fig 4: Heated Oxygen Sensors
GM1566261Courtesy of GENERAL MOTORS CORP.

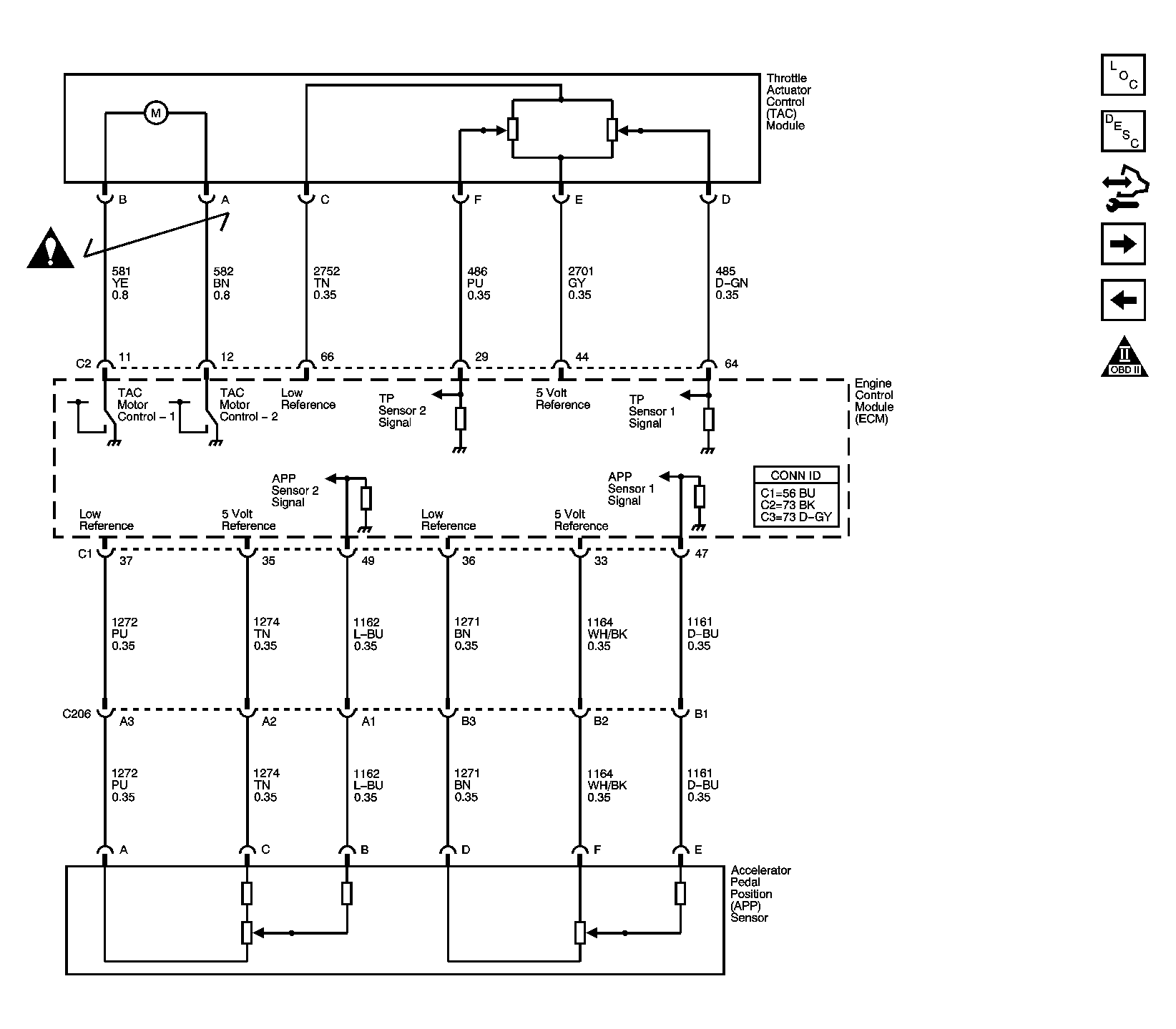

Fig 5: Electronic Throttle Controls
GM1566262Courtesy of GENERAL MOTORS CORP.

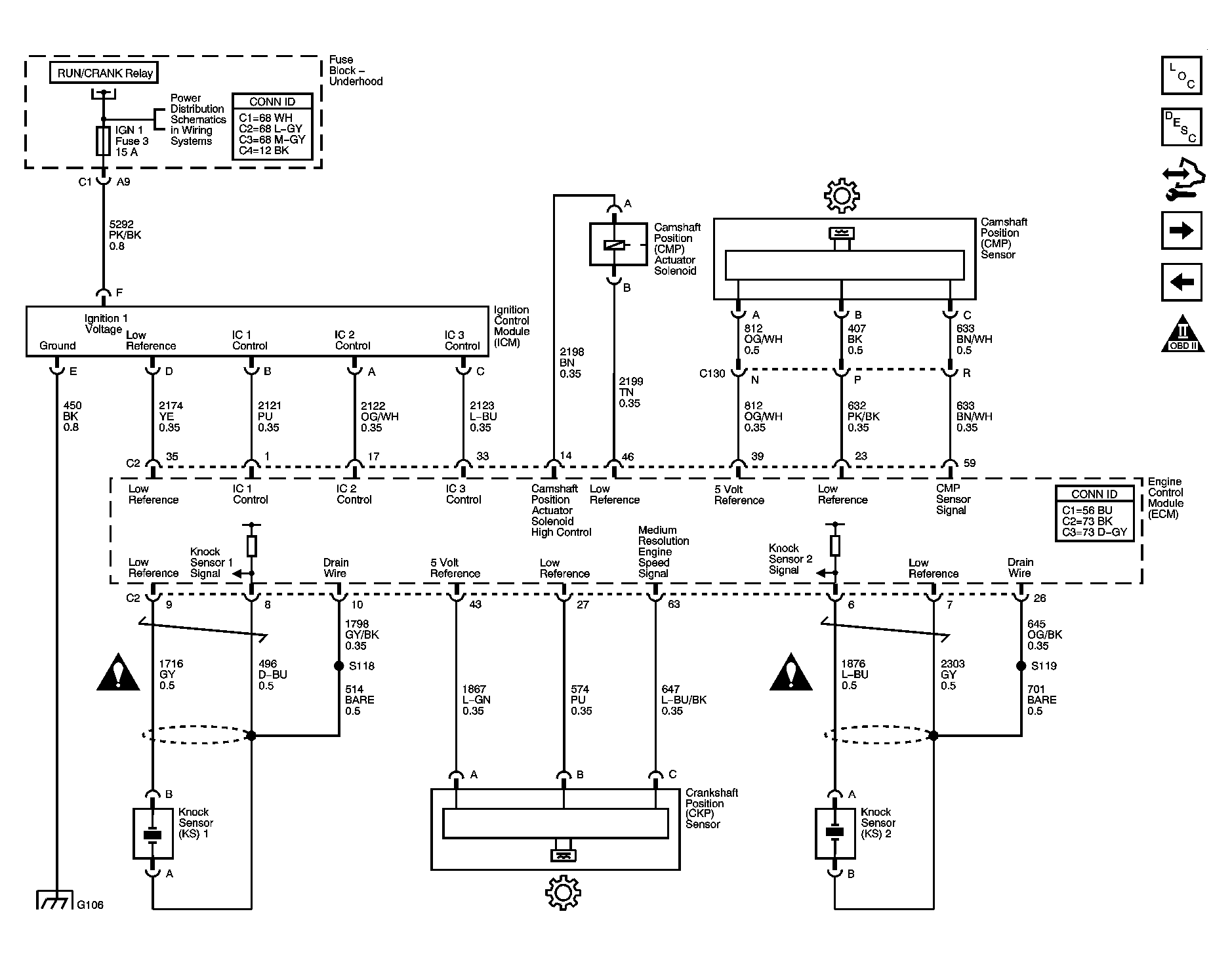

Fig 6: Ignition System
GM1566263Courtesy of GENERAL MOTORS CORP.

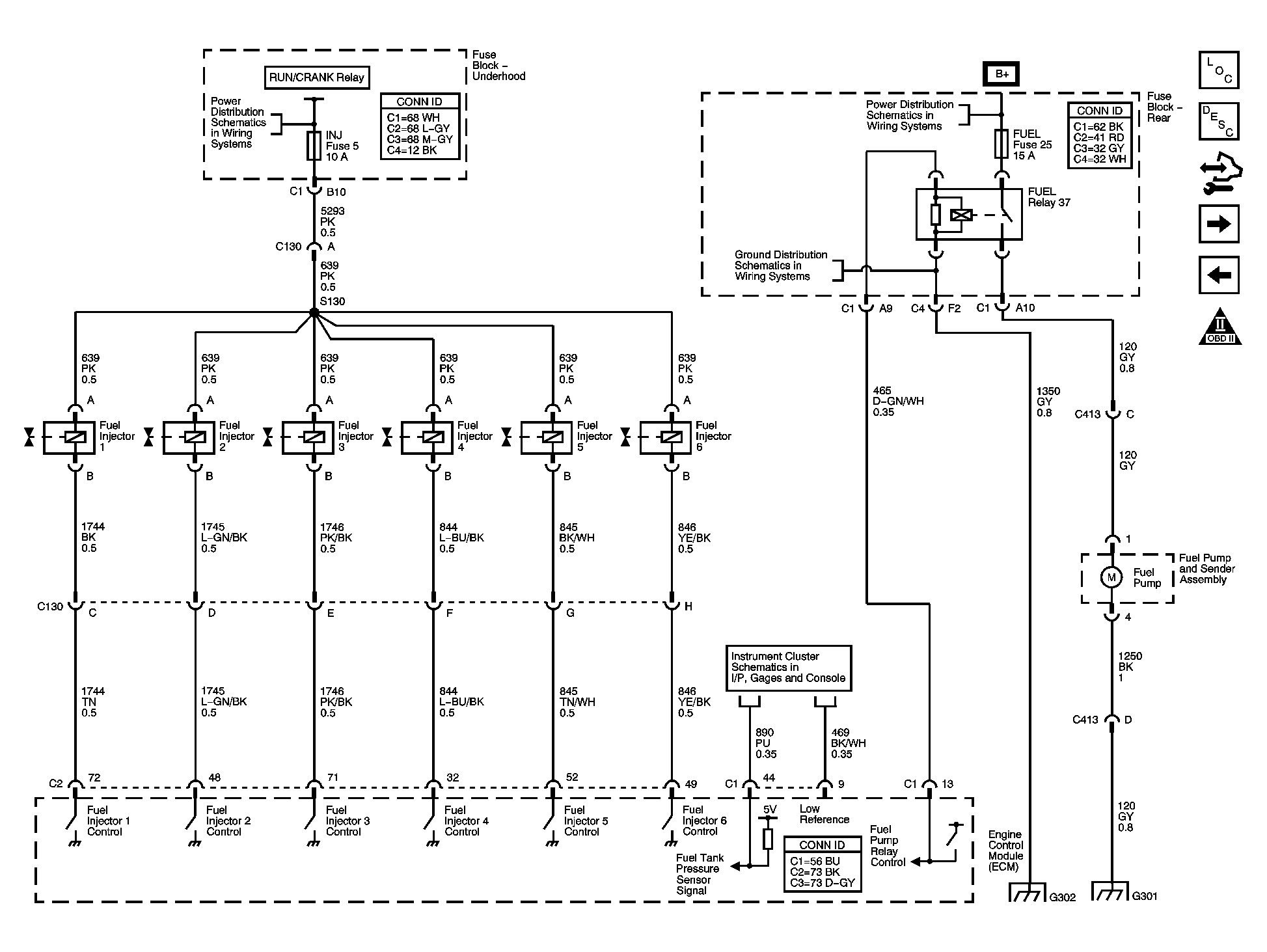

Fig 7: Fuel Injectors and Fuel Pump
GM1566264Courtesy of GENERAL MOTORS CORP.

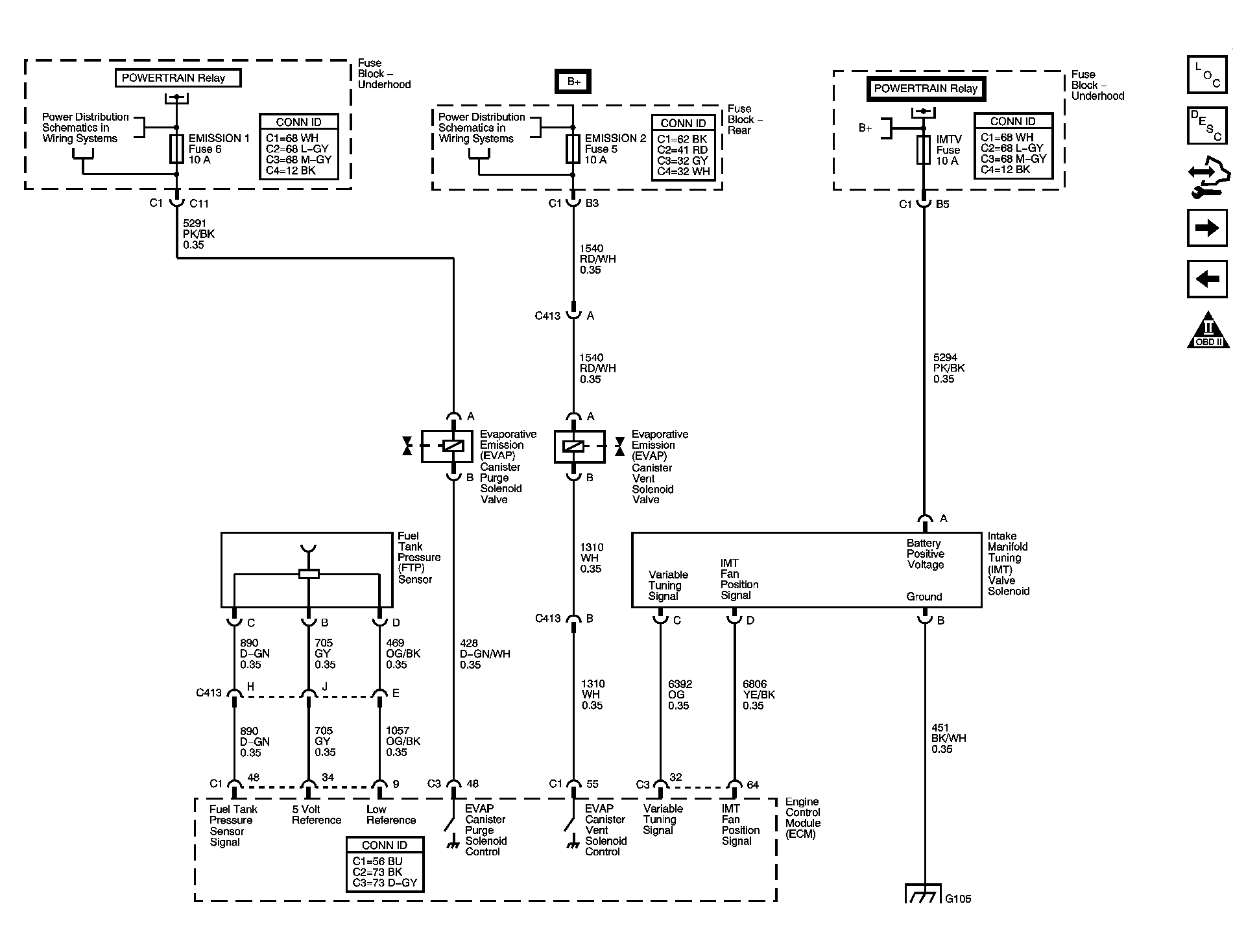

Fig 8: EVAP Controls and FTP Sensor
GM1566265Courtesy of GENERAL MOTORS CORP.

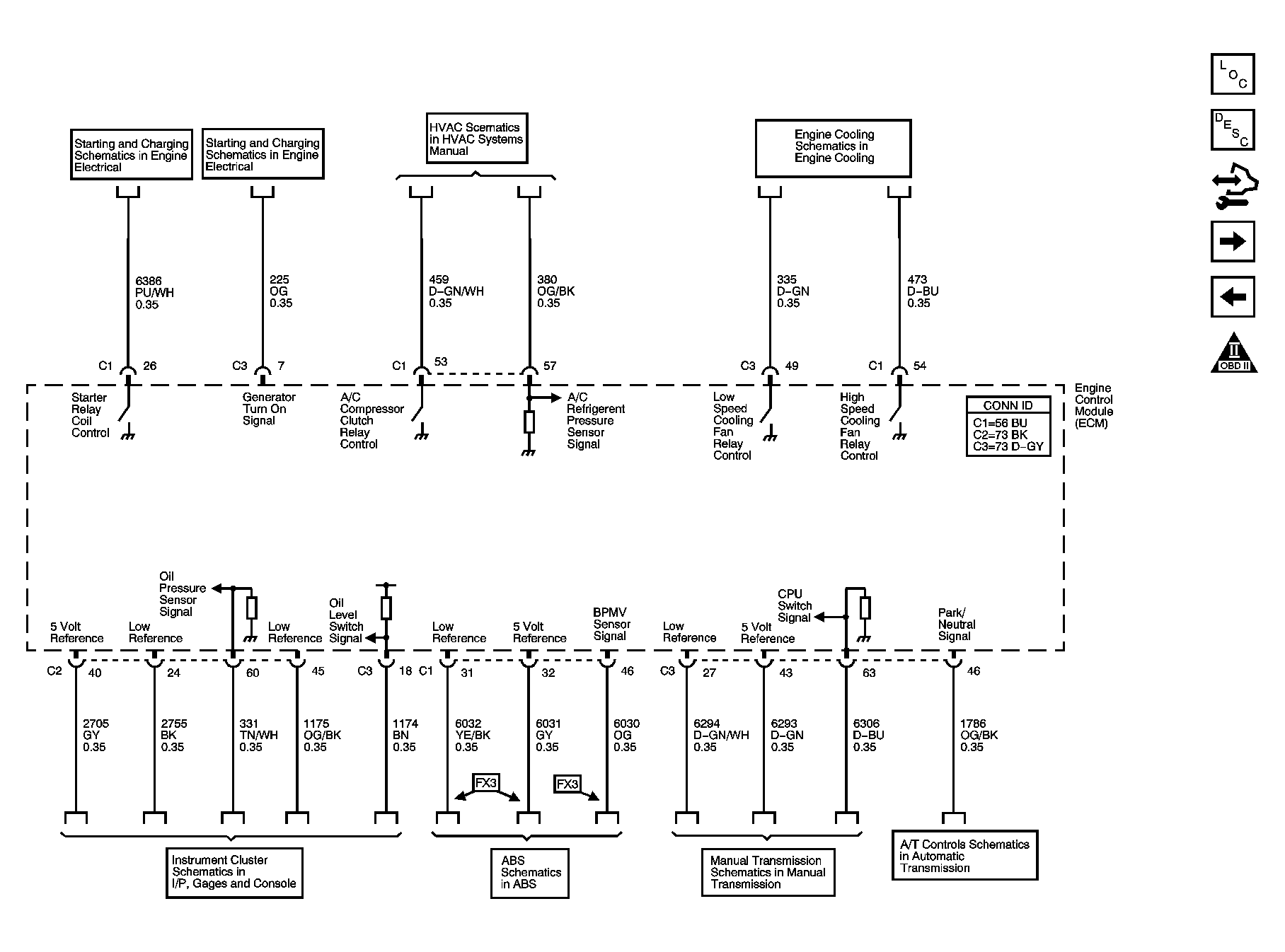

Fig 9: Controlled/Monitored Subsystem References
GM1566266Courtesy of GENERAL MOTORS CORP.
