Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement
Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

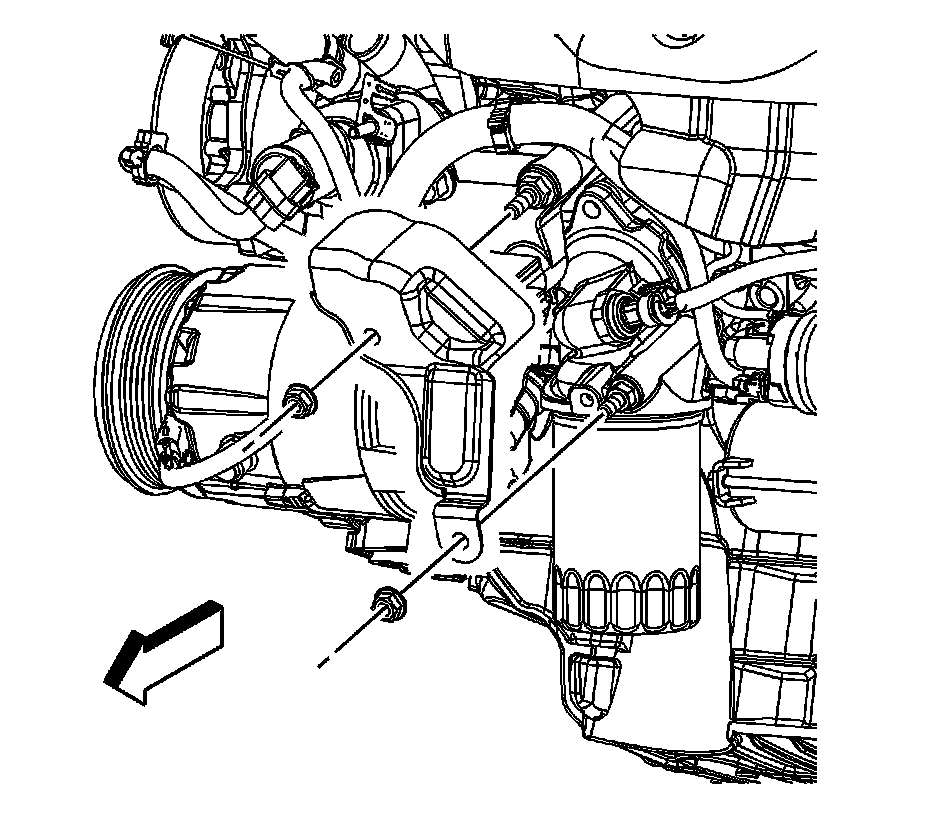

2. Remove the oil pressure heat shield bolts and shield.

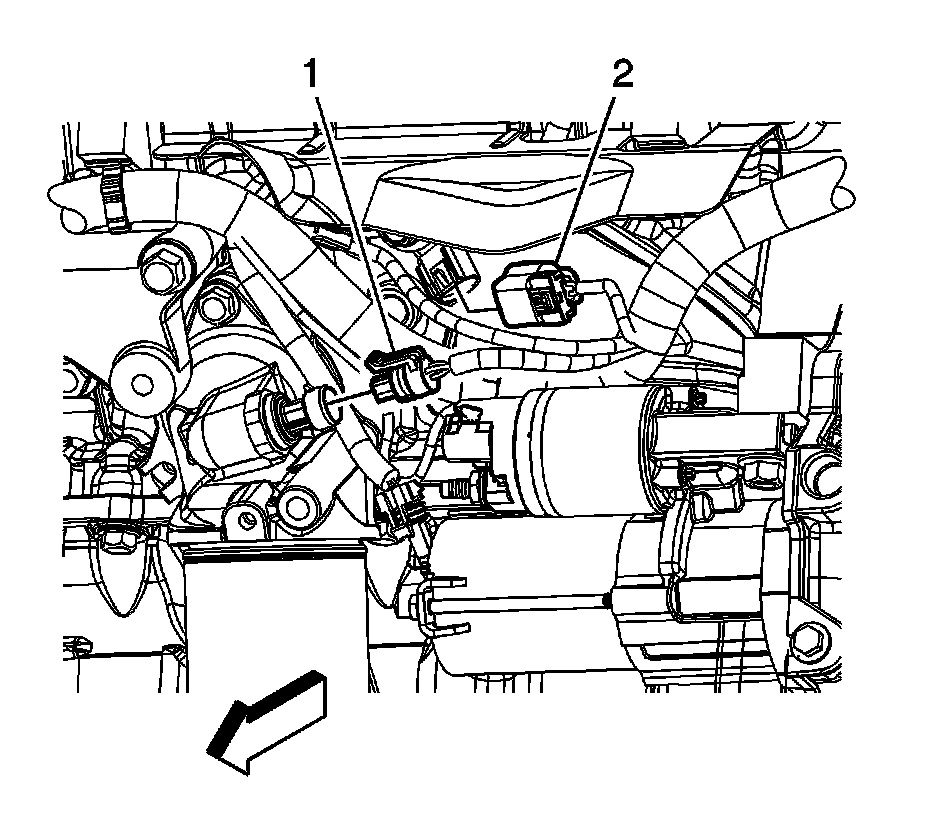

3. Disconnect engine oil pressure sensor electrical connector (1).





4. Remove the engine oil pressure sensor.

Installation Procedure





1. Notice: Refer to Fastener Notice.

Install the engine oil pressure sensor.
Tighten the sensor to 16 Nm (12 ft. lbs.).





2. Connect engine oil pressure sensor electrical connector (1).





3. Install the oil pressure heat shield and bolts.
Tighten the bolts to 10 Nm (89 inch lbs.).
4. Lower the vehicle.
