Stationary Windows Component Views

Fig 1: View Of Roof/Headliner Components
GM1206302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
Fig 2: Left Side Of The I/P
GM1206068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Multifunction Turn Signal Lever
2 TAP Shift Switch - Left
3 Hazard Warning Switch
4 Instrument Panel Cluster (IPC)
5 TAP Shift Switch - Right
6 Windshield Wiper/Washer Switch
7 Ignition Switch
8 Driver Information Center (DIC)
9 Radio
10 HVAC Control Module
11 Heated Seat Switch - Front Passenger
12 Rear Defogger Switch
13 Heated Seat Switch - Driver
14 Steering Wheel Controls - Right
15 Cruise Control Switch
16 Inflatable Restraint Steering Wheel Module
17 Tilt Steering Wheel Lever
18 Steering Wheel Controls - Left
19 Interior Lamp Switch

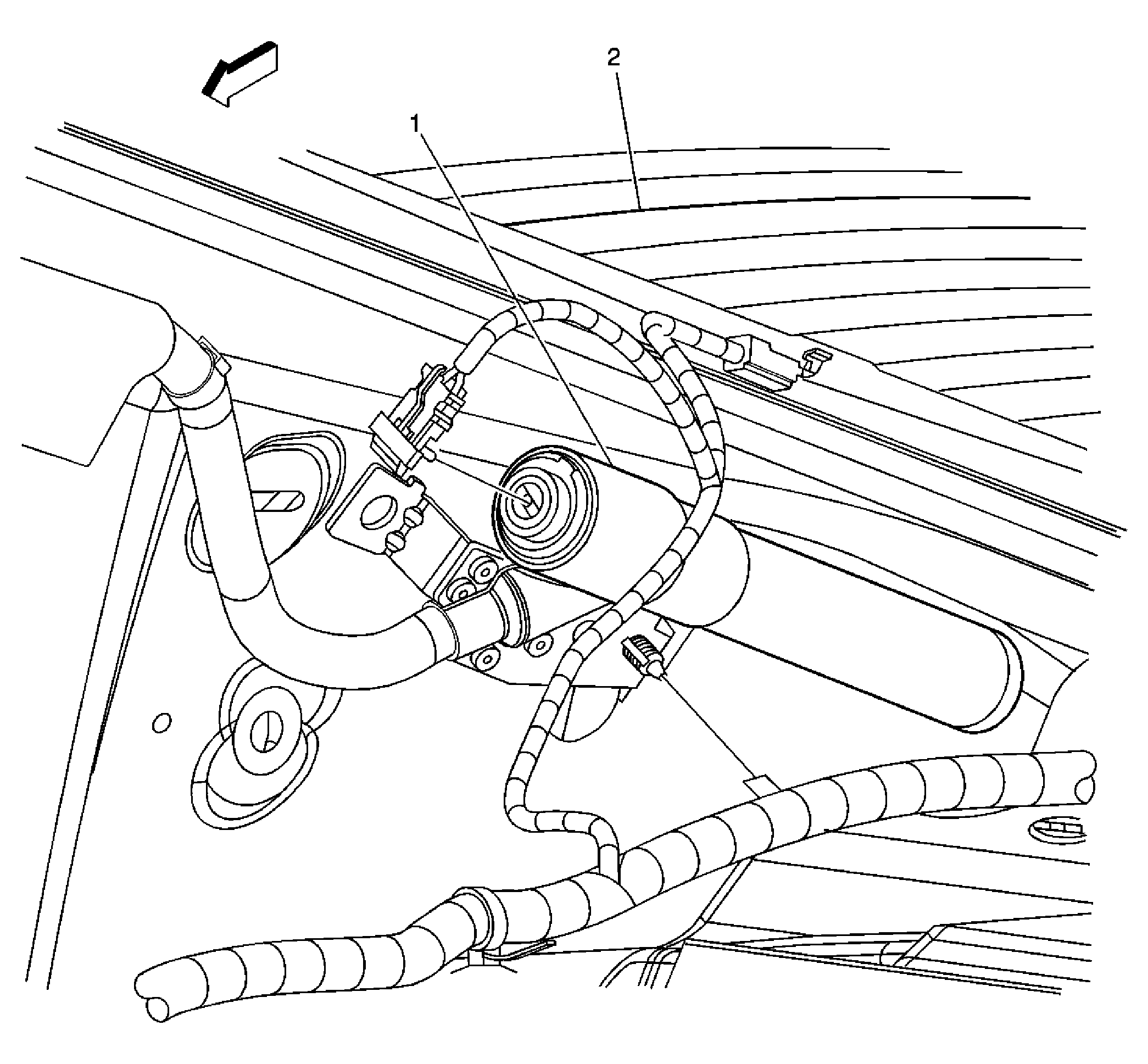

Fig 3: Right Rear Of The Passenger Compartment Component Views
GM1205645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Rail Module - Right (AY1)
2 Rear Window Defogger Grid
