Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Underhood Fuse Block (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 7: Lower Left Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Right Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 10: Steering Column Assembly (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Steering Column Assembly (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 15: Steering Column Assembly (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Steering Column Assembly (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 20: Upper Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Front Of Engine Compartment (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Lower Right Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Upper Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Upper Left Rear Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Lower Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Exhaust
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 34: Automatic Transmission Shift Lock Control Components
Courtesy of GENERAL MOTORS CORP.
Fig 35: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 36: Underside Of Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 37: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 38: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 40: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 41: Underside Of Front Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Front Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 46: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 47: Top Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 48: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 49: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 50: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 53: Center Rear Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 54: Underside Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 55: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Upper Left Side Of Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 57: Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 58: Upper Right Side Of Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 59: Left Rear Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Rear Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 62: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 63: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 64: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 65: Inside Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 66: Vehicle Roof
Courtesy of GENERAL MOTORS CORP.
Fig 67: Rear Of Driver's Seat Back
Courtesy of GENERAL MOTORS CORP.
Fig 68: Passenger's Heated Seat Elements
Courtesy of GENERAL MOTORS CORP.
Fig 69: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Steering System Components
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Front Of Engine Compartment (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Front Of Engine Compartment (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 75: Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Top Of Engine (5.3L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 77: Top Of Engine (5.3L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Underhood Fuse Block (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 81: Left Side Of Engine (5.3L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Left Side Of Engine (5.3L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 84: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Right Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 87: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 88: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Center Of Dash, Behind Radio
Courtesy of GENERAL MOTORS CORP.
Fig 90: Right End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 91: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 92: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 93: Front Passenger Compartment, Under Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 94: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

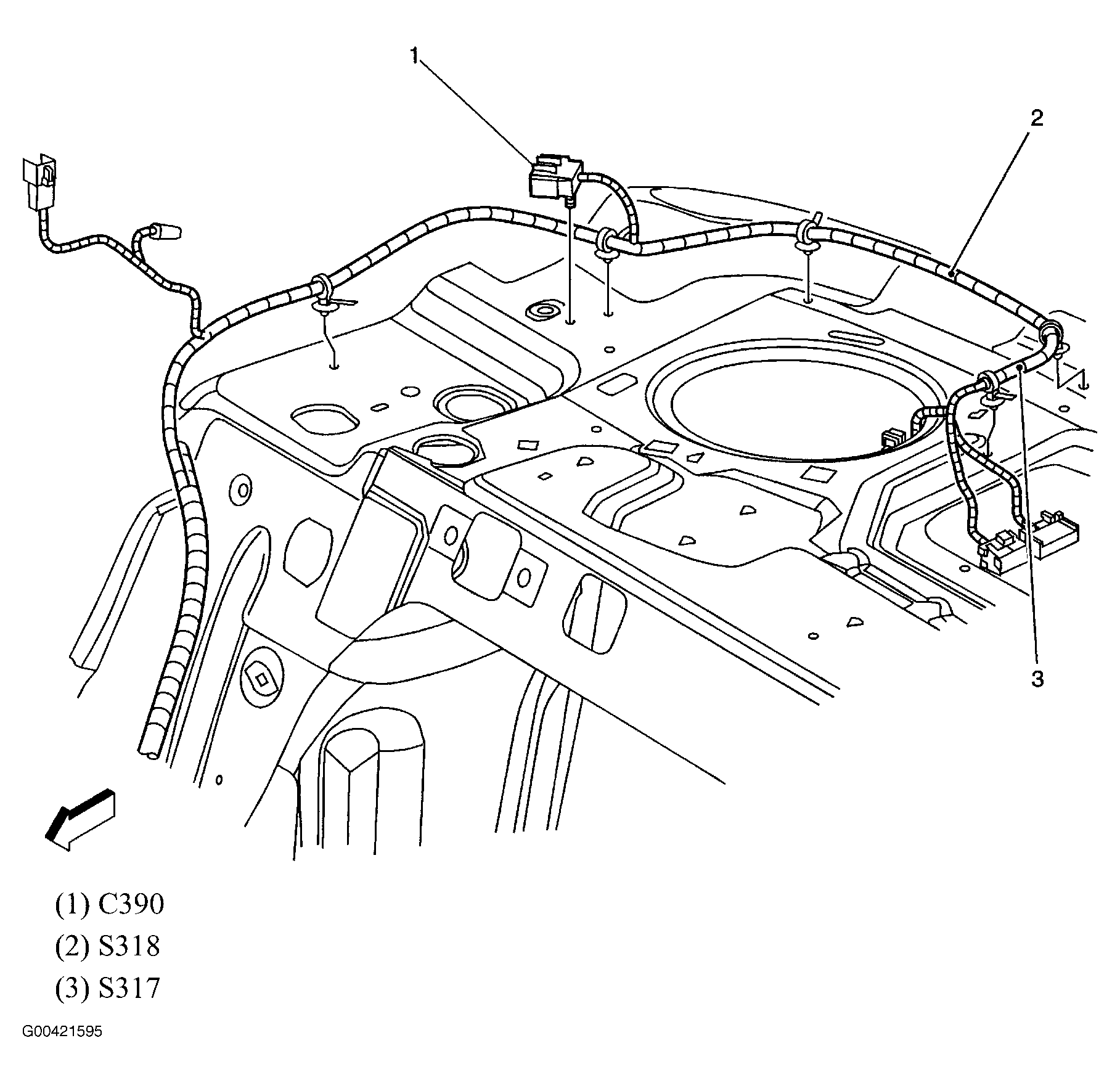

Fig 95: Top Right Side Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

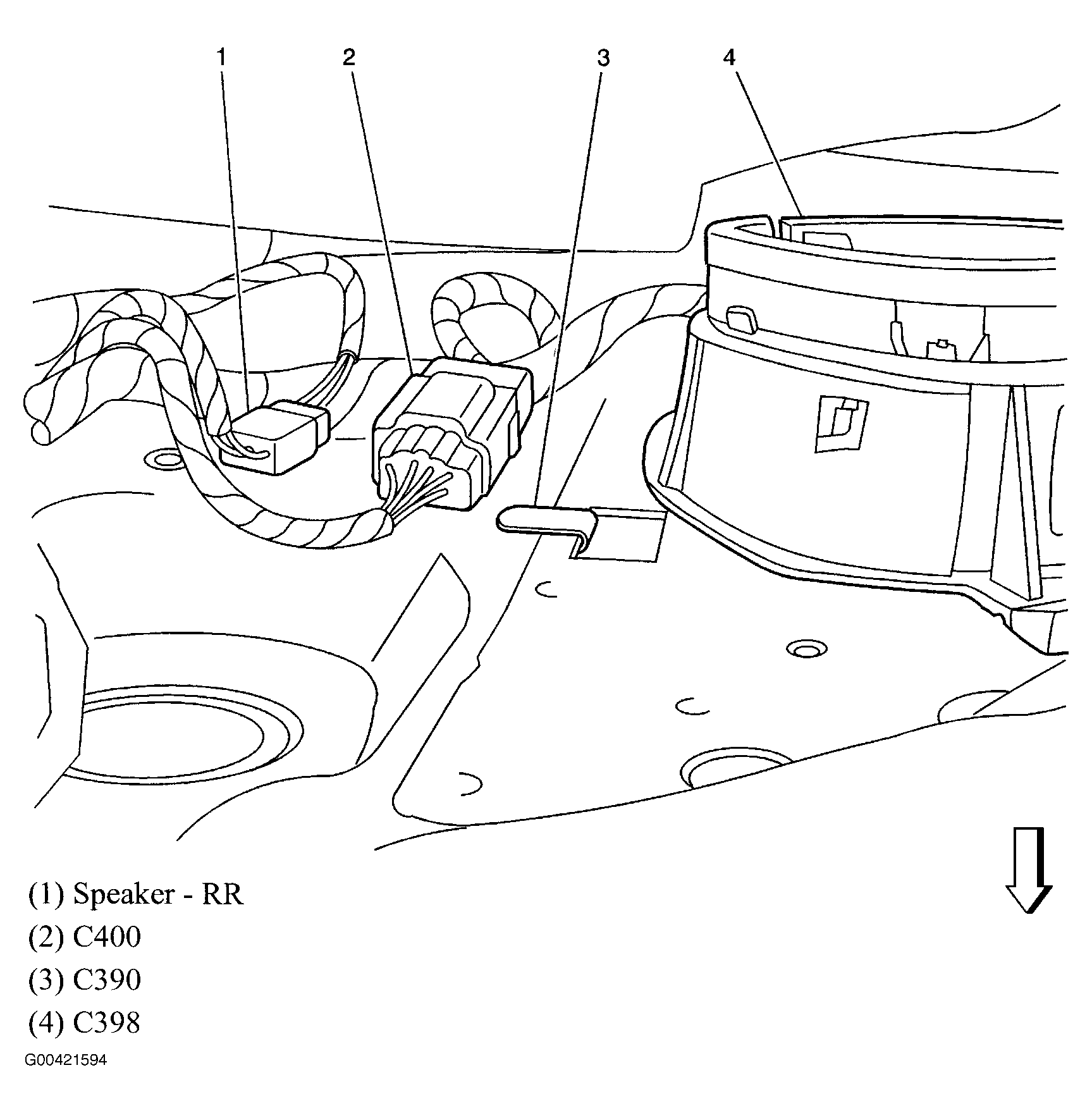

Fig 96: Top Right Side Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

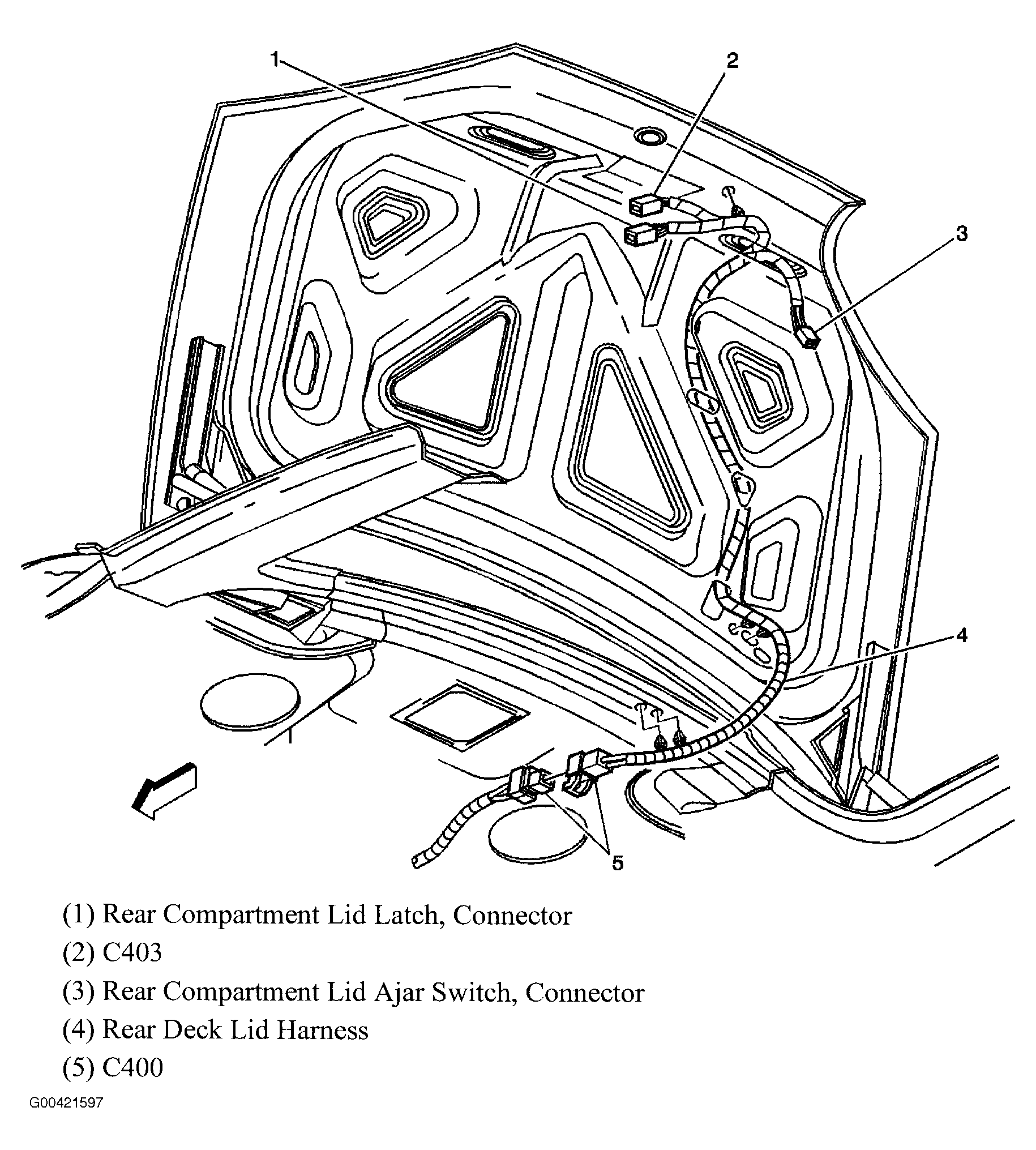

Fig 97: Rear Deck Lid
Courtesy of GENERAL MOTORS CORP.

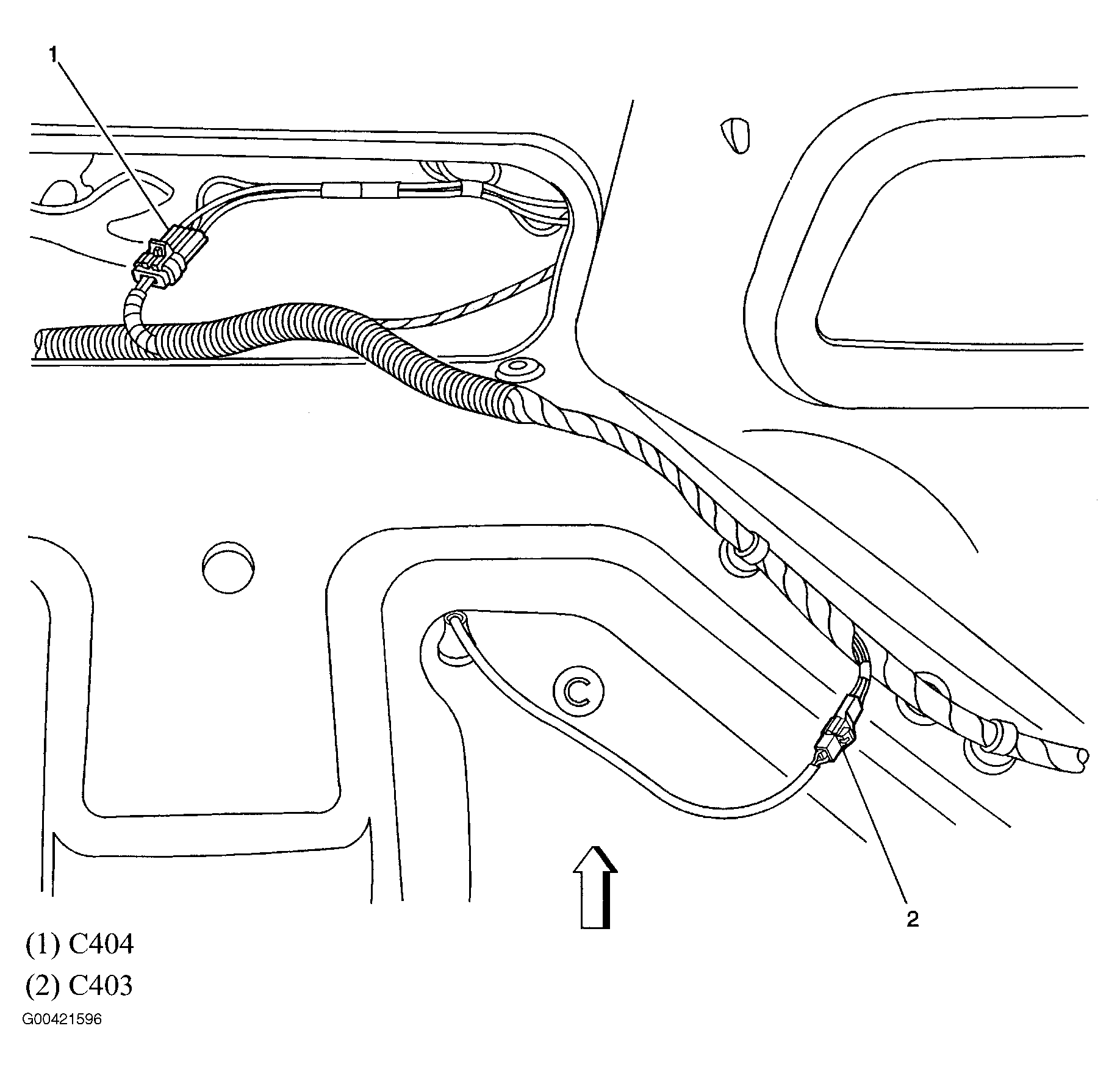

Fig 98: Rear Deck Lid
Courtesy of GENERAL MOTORS CORP.

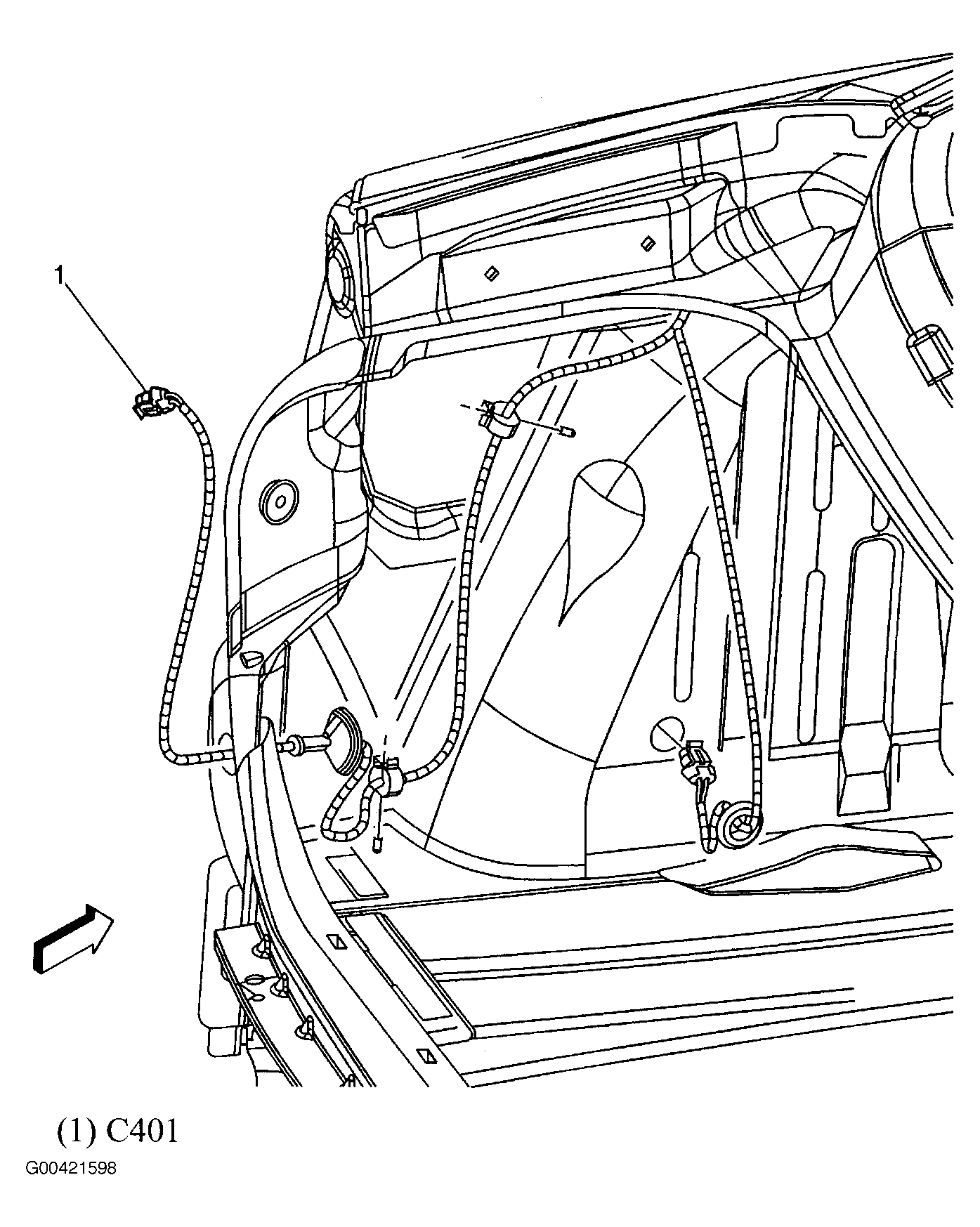

Fig 99: Left Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

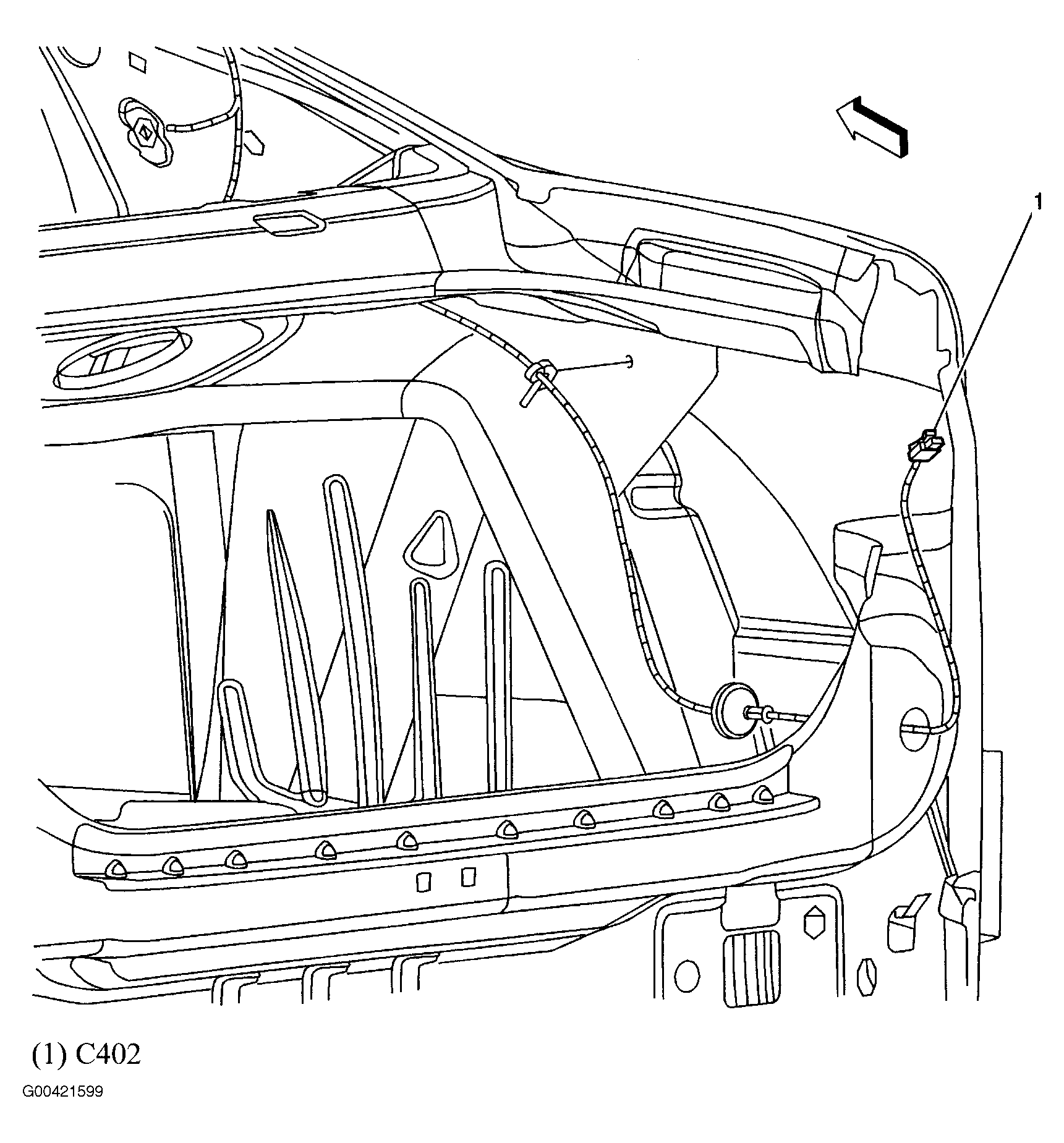

Fig 100: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
