Powertrain Control Module (PCM) C1

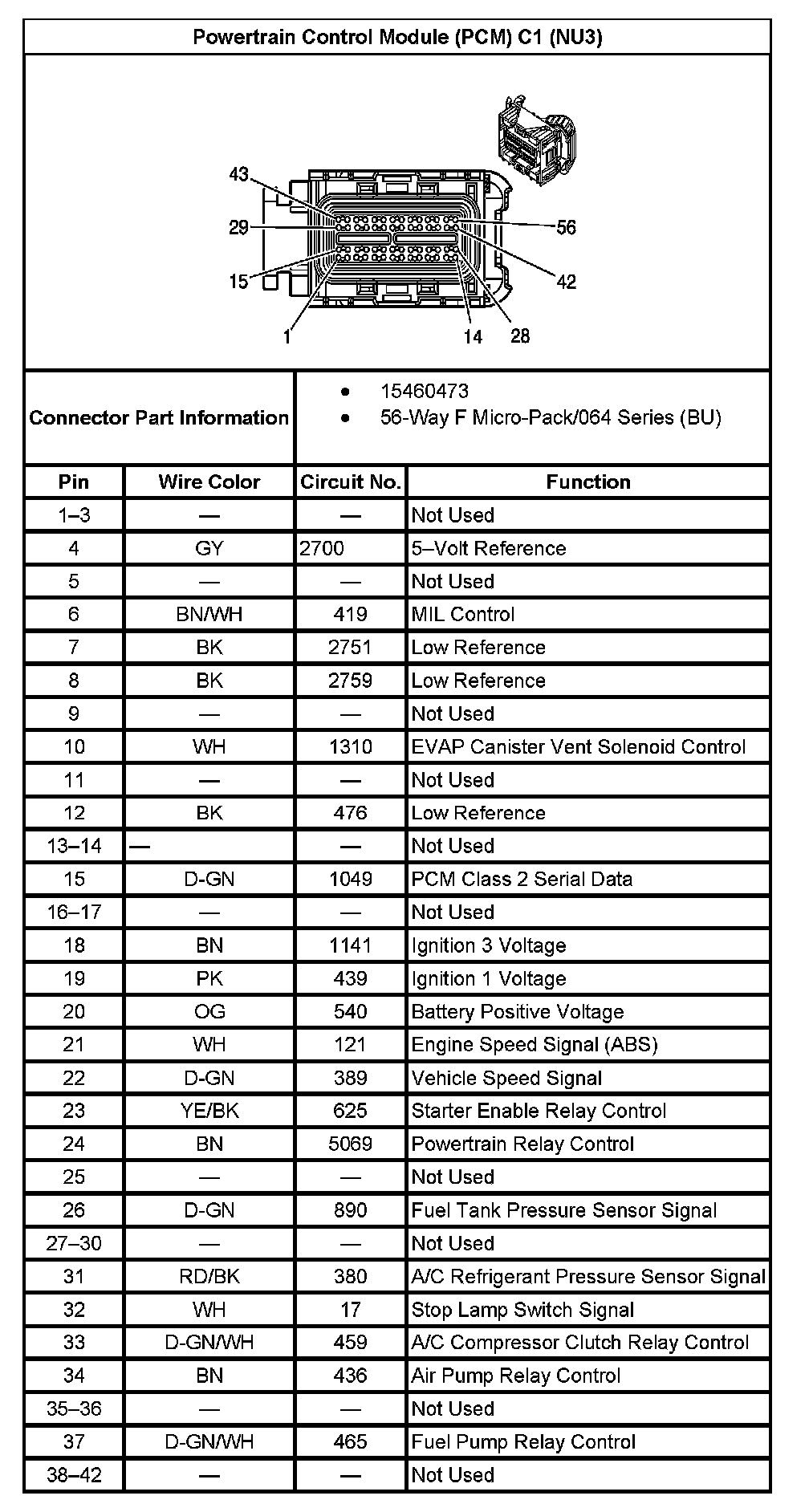

Powertrain Control Module (PCM) C1 (With RPO Code NU3) (Part 1):

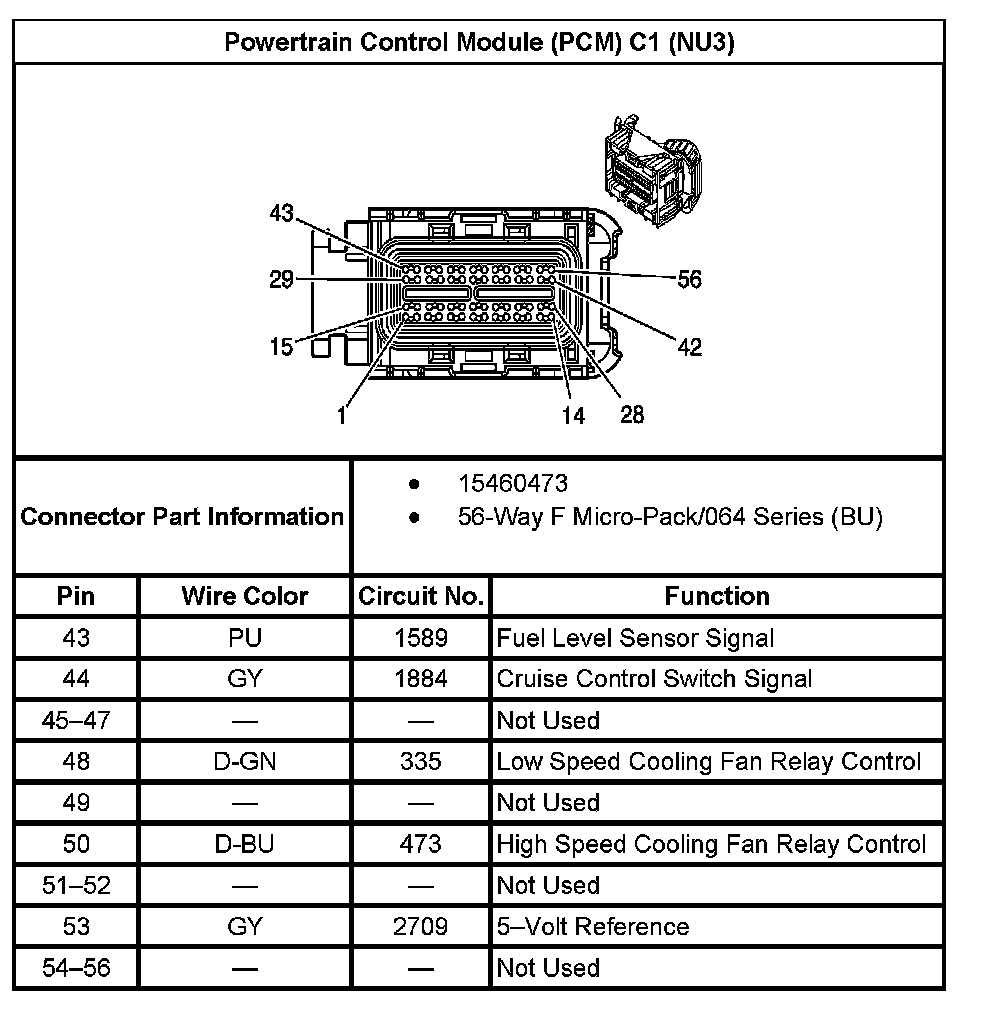

Powertrain Control Module (PCM) C1 (With RPO Code NU3) (Part 2):



Powertrain Control Module (PCM) C1 (Without RPO Code NU3) (Part 1):



Powertrain Control Module (PCM) C1 (Without RPO Code NU3) (Part 2):
