Connector Views

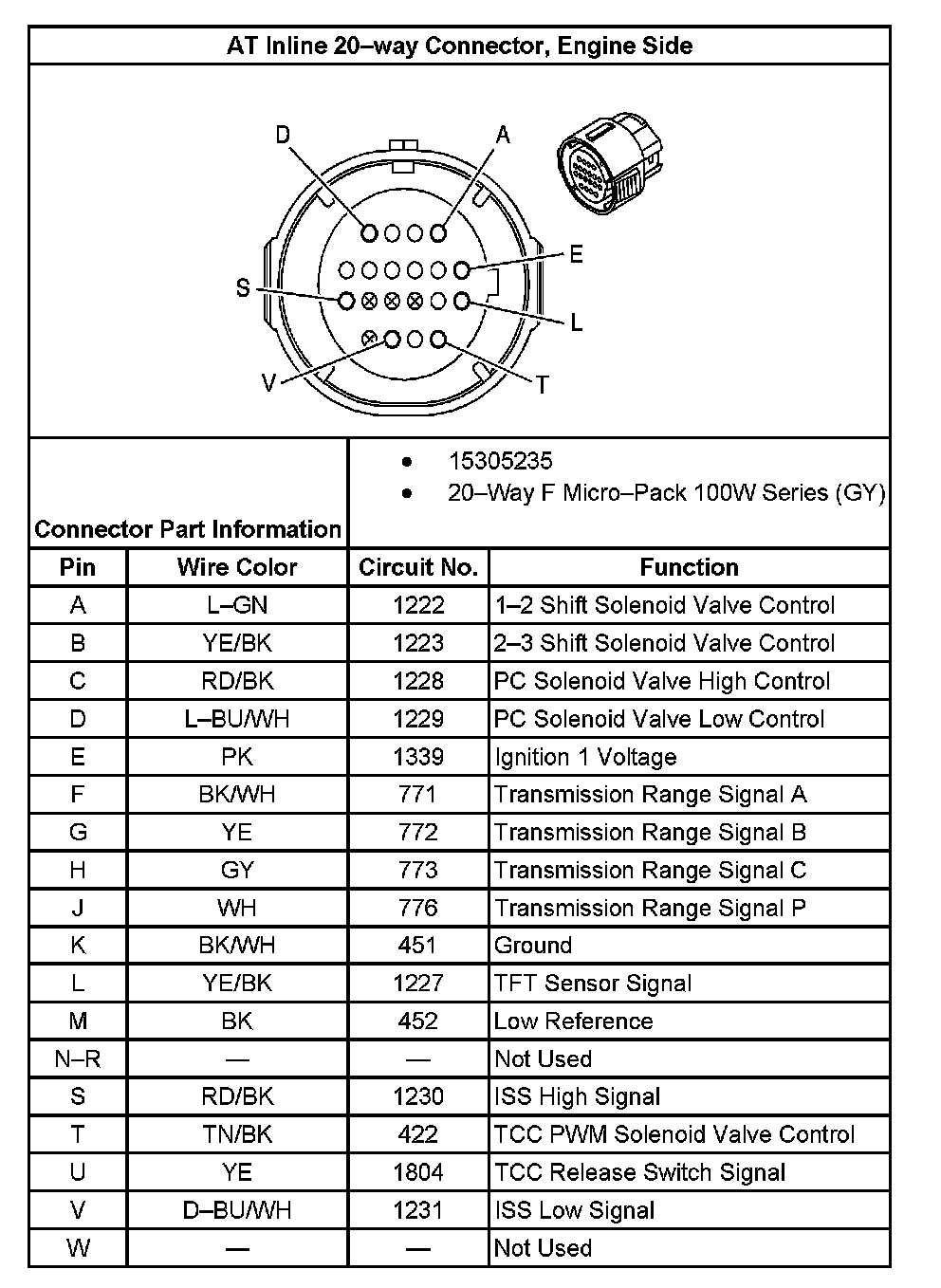

At Inline 20-Way Connector, Engine Side:

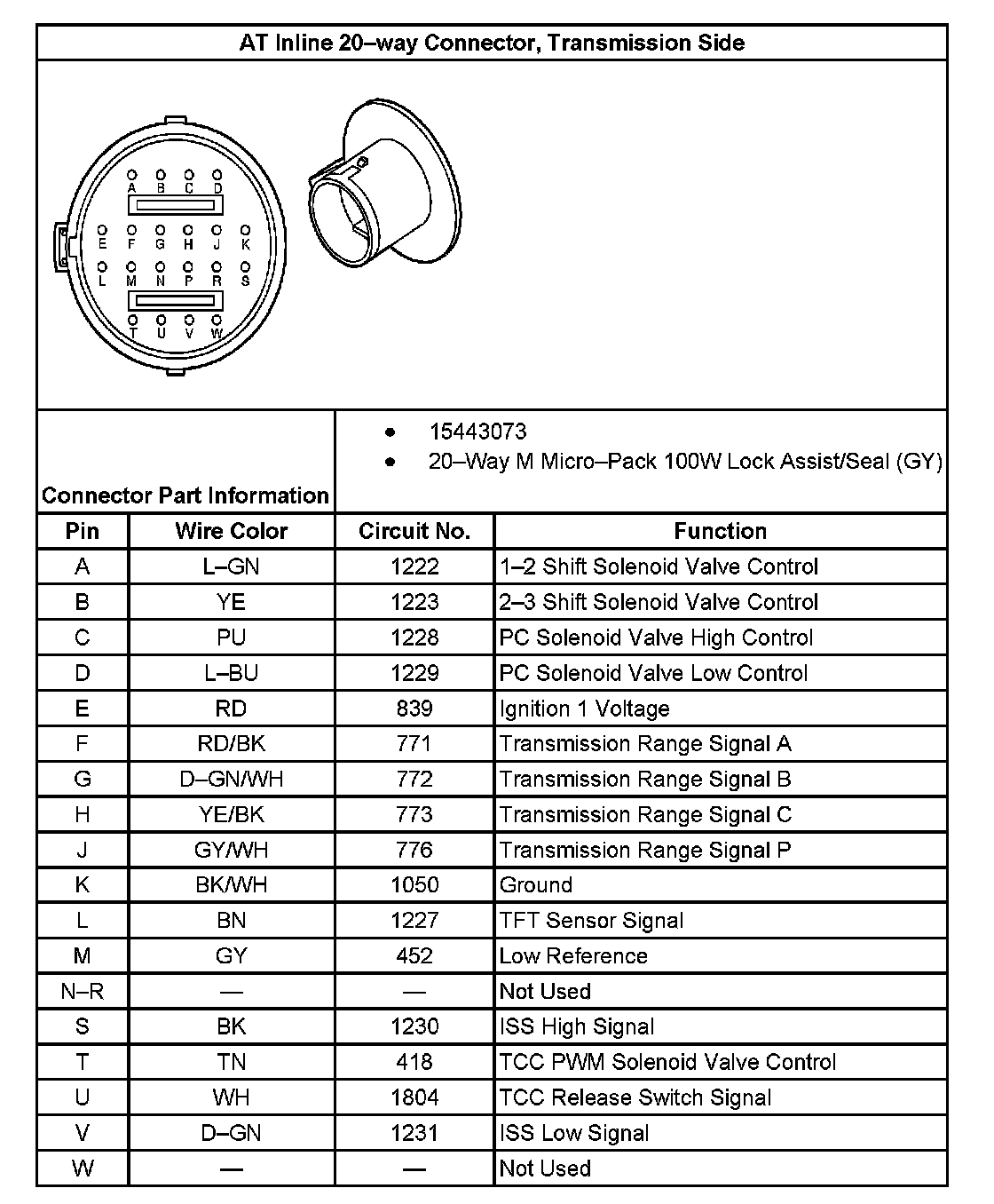

At Inline 20-Way Connector, Transmission Side:



Transmission Internal Mode Switch Connector, Wiring Harness Side:
