Power Window Switch Replacement

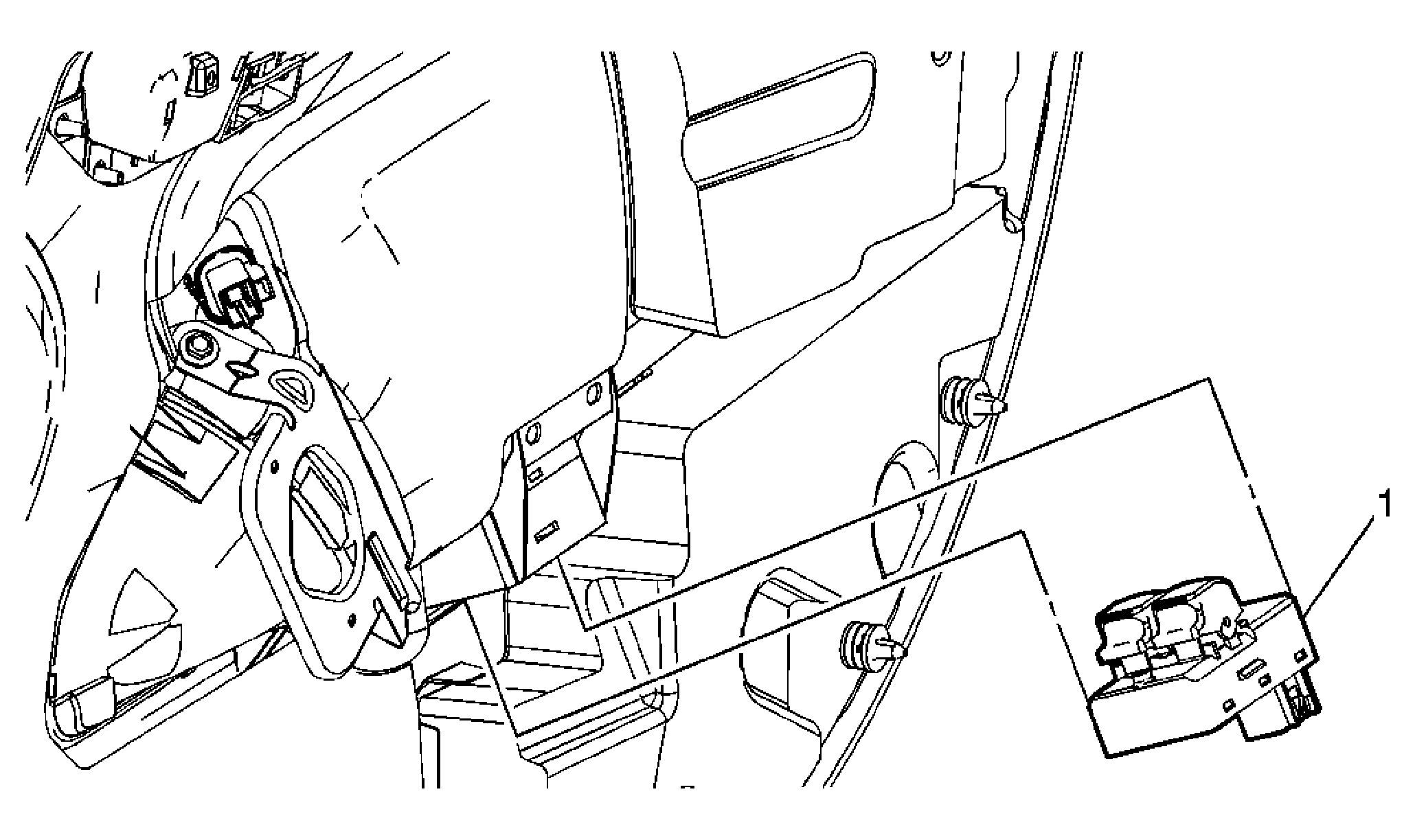

Fig 1: Power Window Switch
GM1581203Courtesy of GENERAL MOTORS CORP.
Power Window Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the door panel. Refer to Trim Panel Replacement - Door .
1 Side Window Switch Assembly
Tip:  Use a flat bladed tool to release the switch from the trim panel.
