Electronic Brake Control Module: Locations

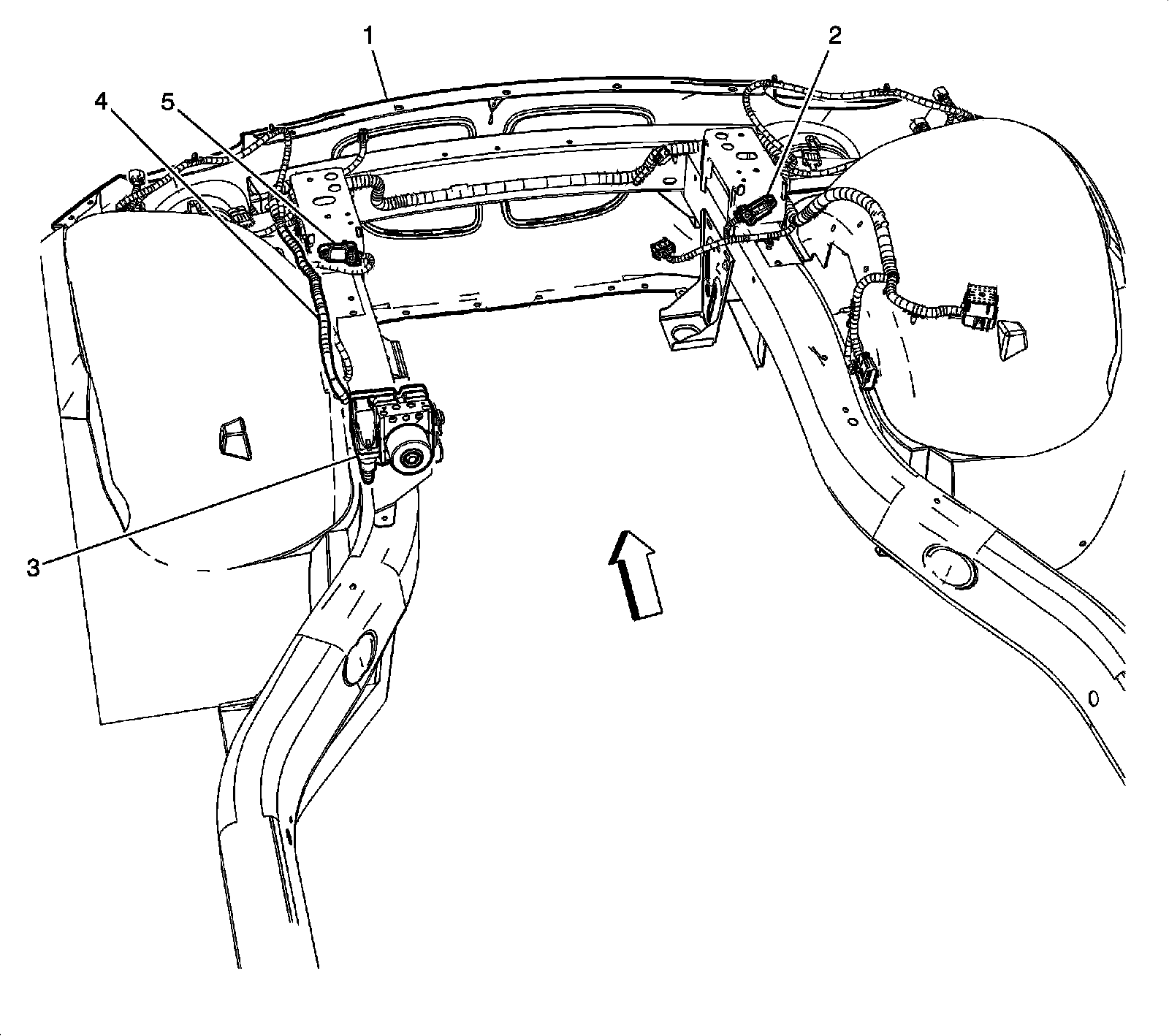

ABS Component Views

Front Engine Compartment:





1 - Front Fascia
2 - Inflatable Restraint Front End Discriminating Sensor-Right
3 - Electronic Brake Control Module (EBCM)
4 - Forward Lamp Harness
5 - Inflatable Restraint Front End Discriminating Sensor-Left
