Power Door Systems Component Views

Fig 1: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Ambient Light Sensor
3	Inflatable Restraint Passenger Airbag On/Off Indicator
4	Fog Lamp Switch
5	I/P Dimmer Switch
6	Traction Control Switch
7	HVAC Control Module
8	Inflatable Restraint I/P Module
9	Rear Compartment Lid Release Switch
10	Radio/Navigation Unit
11	Park Brake Lever
12	Cigar Lighter
13	Steering Wheel-Radio Controls
14	Steering Wheel-HVAC Controls
15	Inflatable Restraint Steering Wheel Module
16	Instrument Panel Cluster (IPC)

Fig 2: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator-Driver
2	Power Window Switch-Driver
3	Outside Rearview Mirror-Driver
4	Outside Rearview Mirror Switch
5	Speaker-LF Door (UQ3 or UW5)
6	C202 Driver Door Harness to I/P Body Harness
7	C201 Driver Door Harness to I/P Body Harness
8	Window Motor-Driver

Fig 3: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-RF Door (UQ3 or UW5)
2	Outside Rearview Mirror-Passenger
3	Door Lock Actuator-Passenger
4	Window Switch-Passenger
5	Window Motor-Passenger
6	C203 Passenger Door Harness to I/P Body Harness

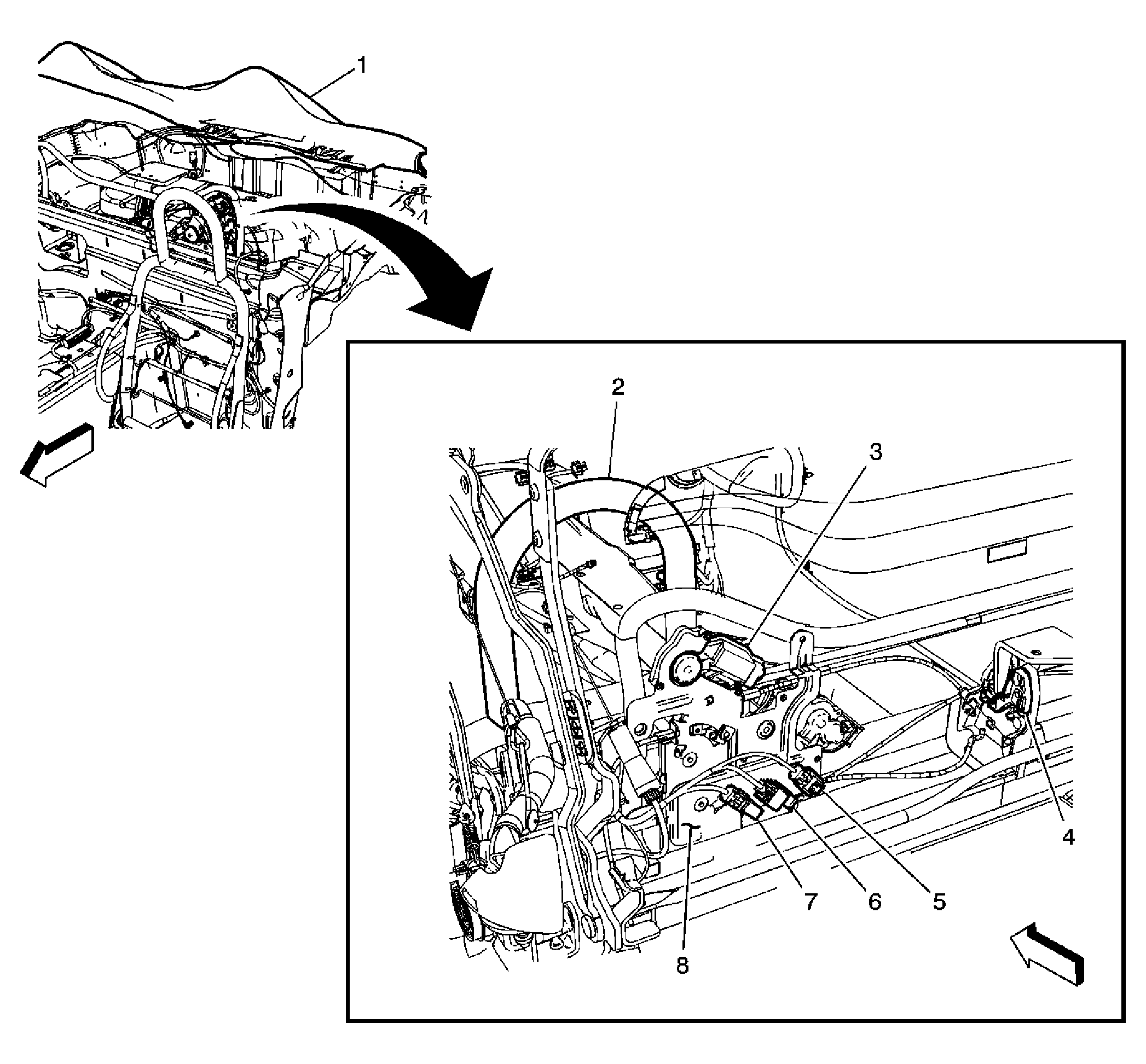

Fig 4: Rear Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid
2	Driver Seat Frame
3	Rear Compartment Lid Release Actuator
4	Rear Compartment Lid Ajar Switch
5	Rear Compartment Lid Ajar Switch Connector
6	Folding Top Cover Actuator Connector
7	Rear Compartment Lid Release Actuator Connector
8	Folding Top Cover Actuator
