Installation Procedure

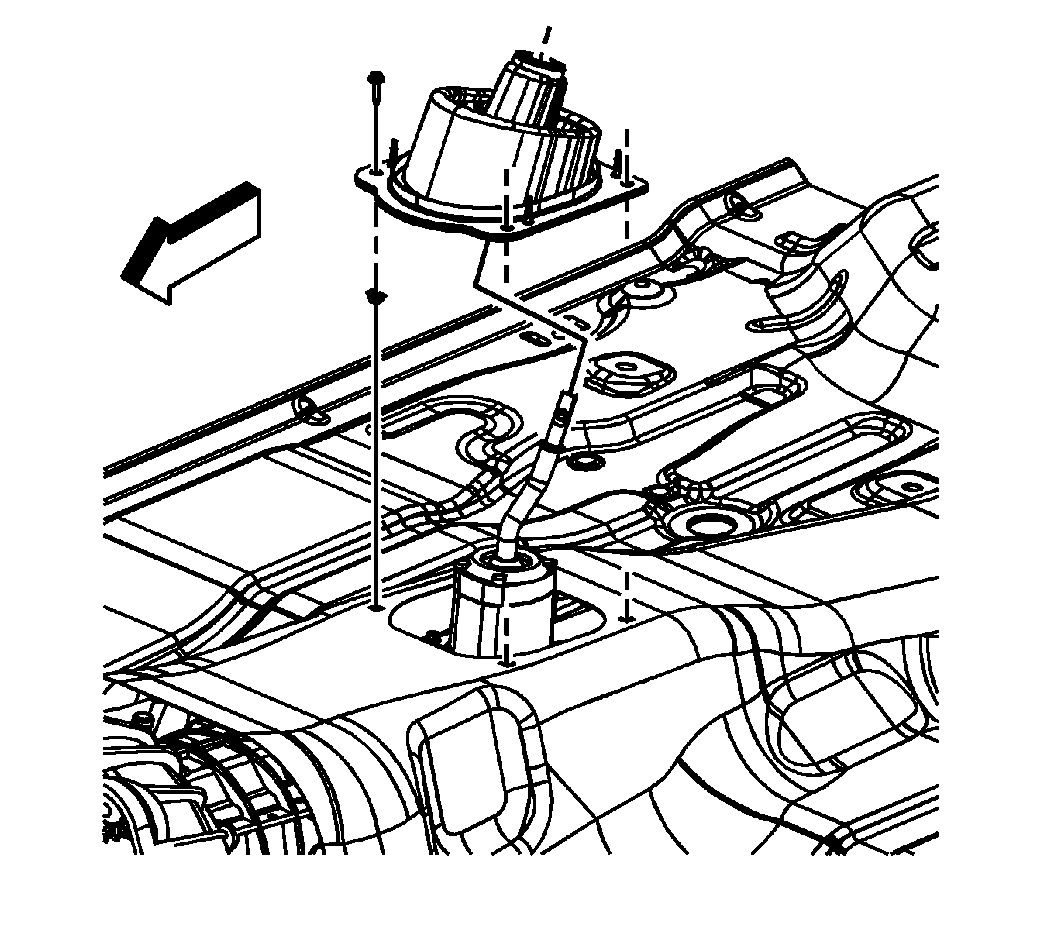

    Fig 1: View Of Control Lever Boot
    GM1388967Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control lever boot.
  2. Install the control lever boot rivets.
  3. Install the console. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages, and Console.
  4. Install the shift lever assembly. Refer to Shift Control Knob Replacement .
