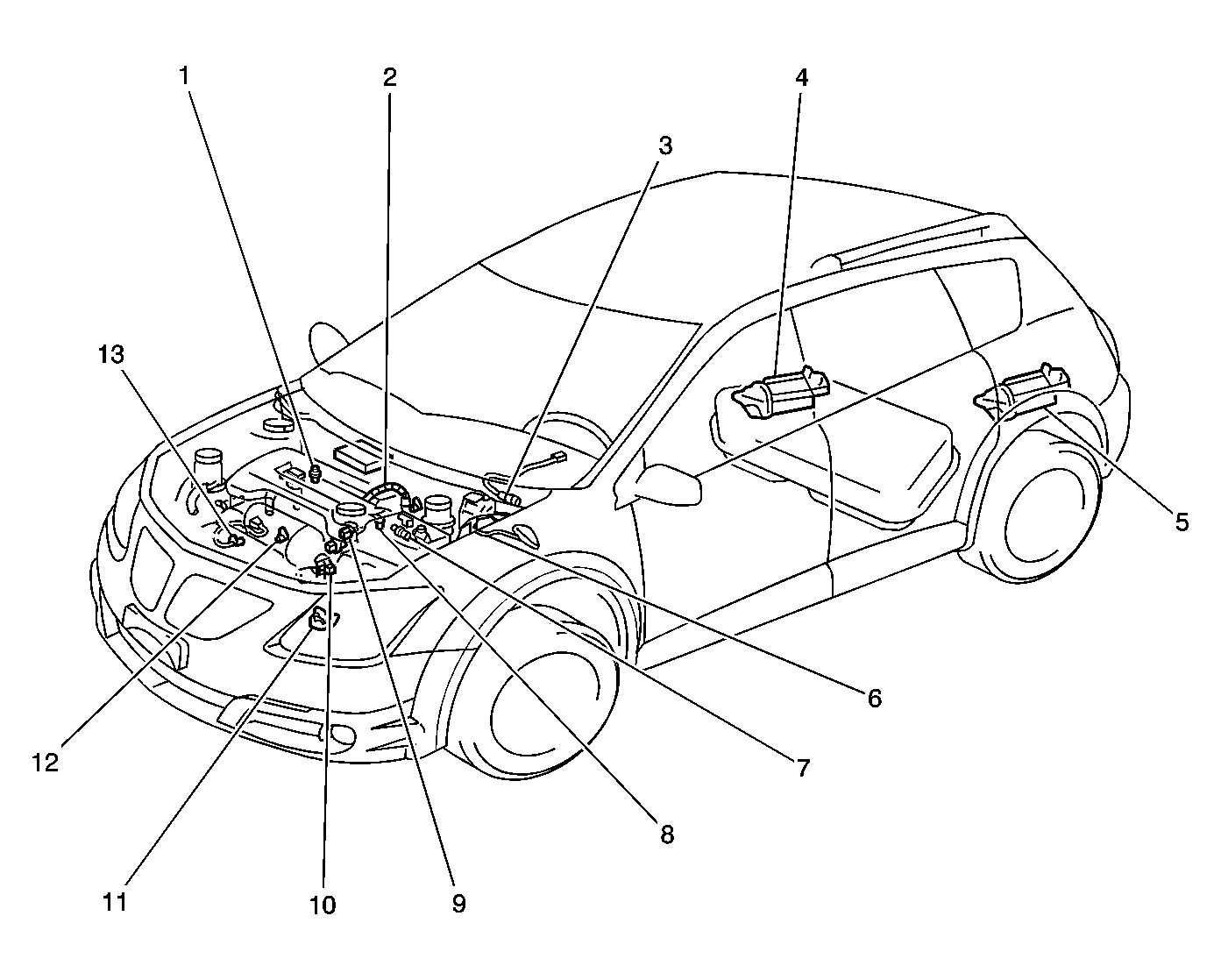

| 1 |
Power Steering Pressure Switch |
| 2 |
Heated Oxygen Sensor 1 - HO2S 1 |
| 3 |
Heated Oxygen Sensor 2- HO2S 2 |
| 4 |
EVAP Vacuum Leak Pump Assembly - AWD, includes Fuel Tank Pressure (FTP) Sensor |
| 5 |
EVAP Vacuum Leak Pump Assembly - FWD, includes Fuel Tank Pressure (FTP) Sensor |
| 6 |
Accelerator Pedal Position (APP) Sensor - FWD |
| 7 |
Engine Coolant Temperature (ECT) Sensor |
| 8 |
Mass Air Flow (MAF) Sensor |
| 9 |
Camshaft Position (CMP) Sensor |
| 10 |
Throttle Position (TP) Sensor - AWD or Throttle Actuator Control (TAC) Module - FWD, includes TP Sensor 1 and TP Sensor 2 |
| 11 |
PNP Switch, Automatic Transmission only |
| 12 |
Knock (KS) Sensor |
| 13 |
Crankshaft Position (CKP) Sensor |
