Engine Control Module (ECM) M

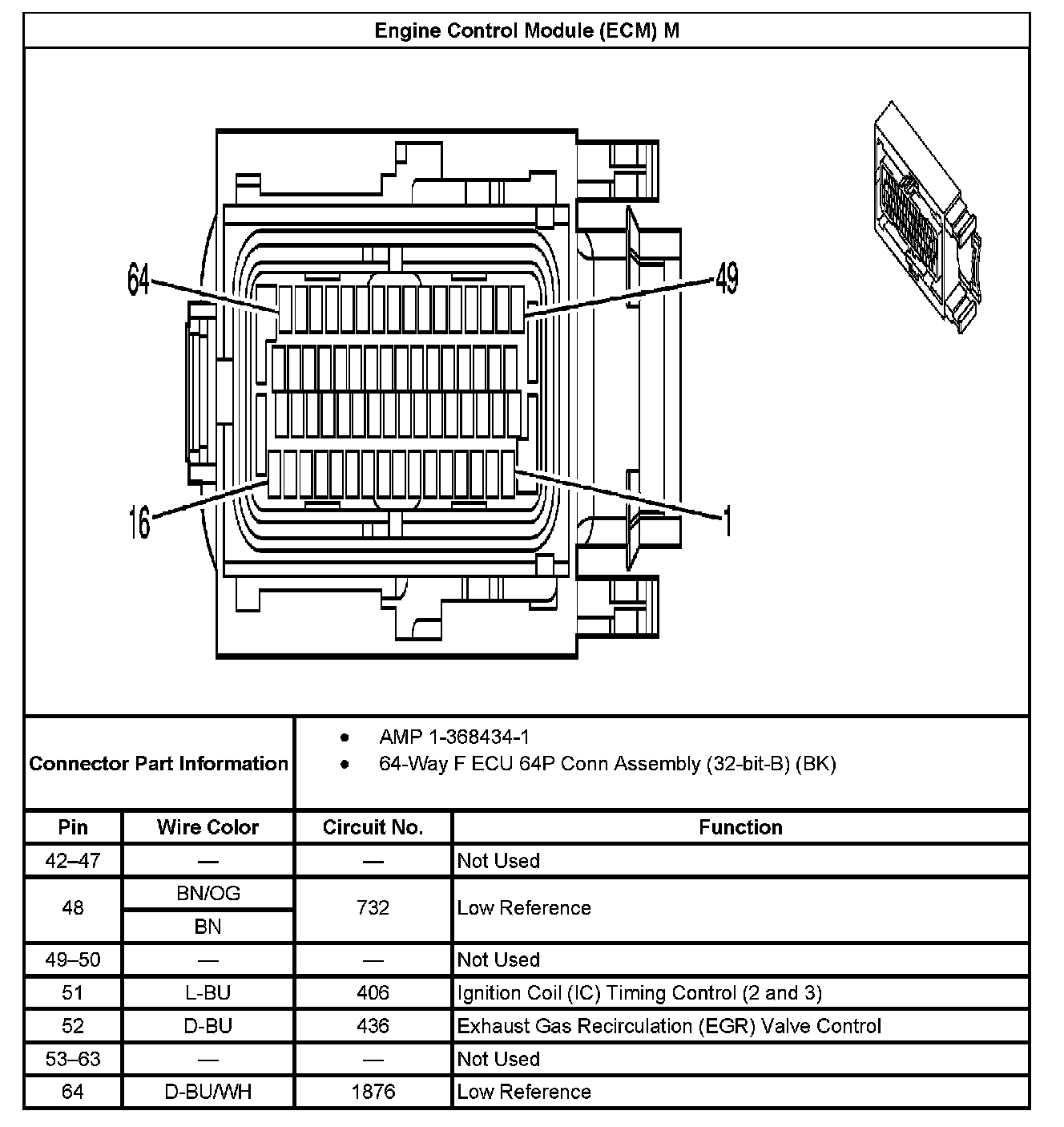

Engine Control Module (ECM) M (Part 1):

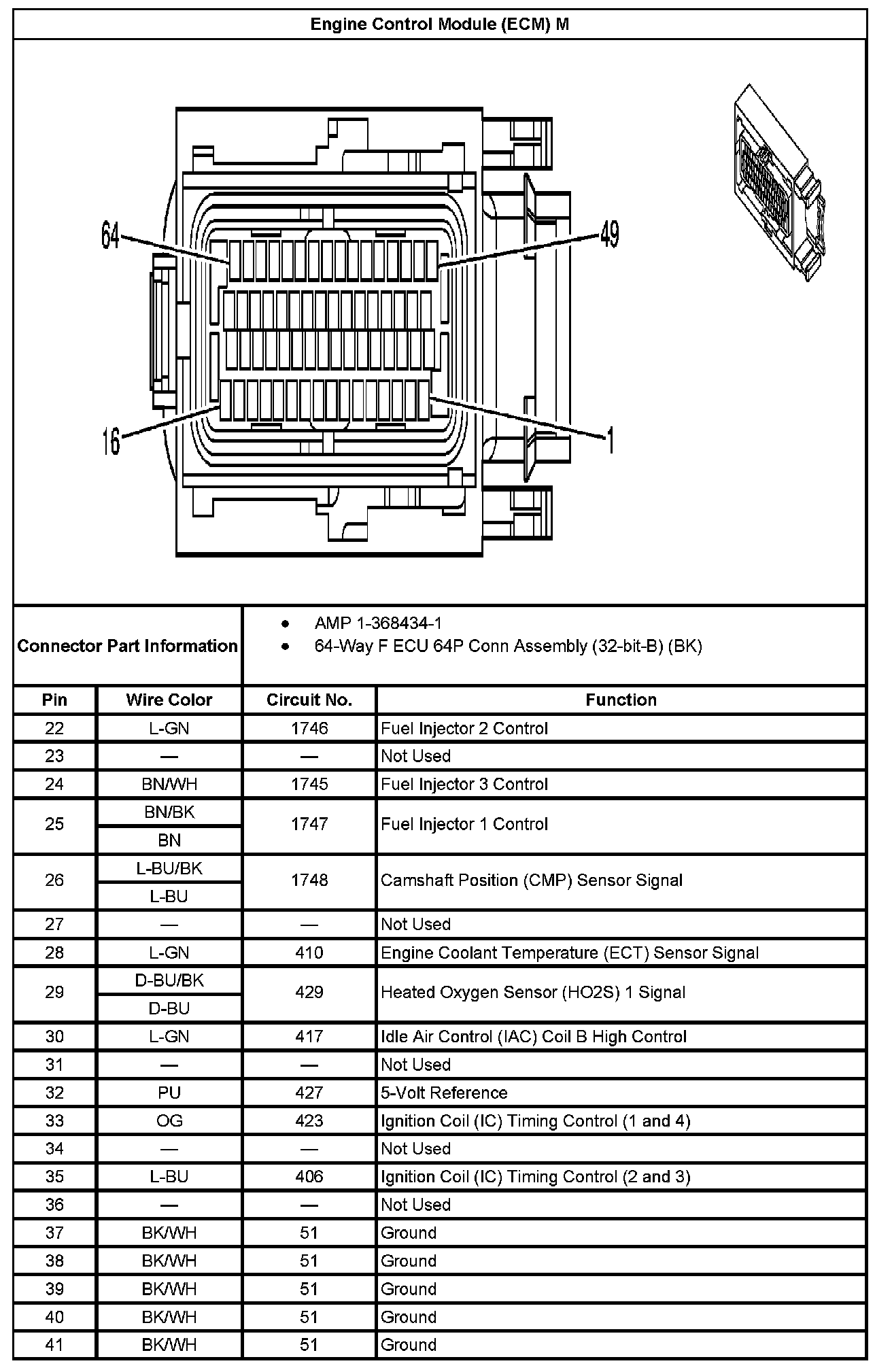

Engine Control Module (ECM) M (Part 2):

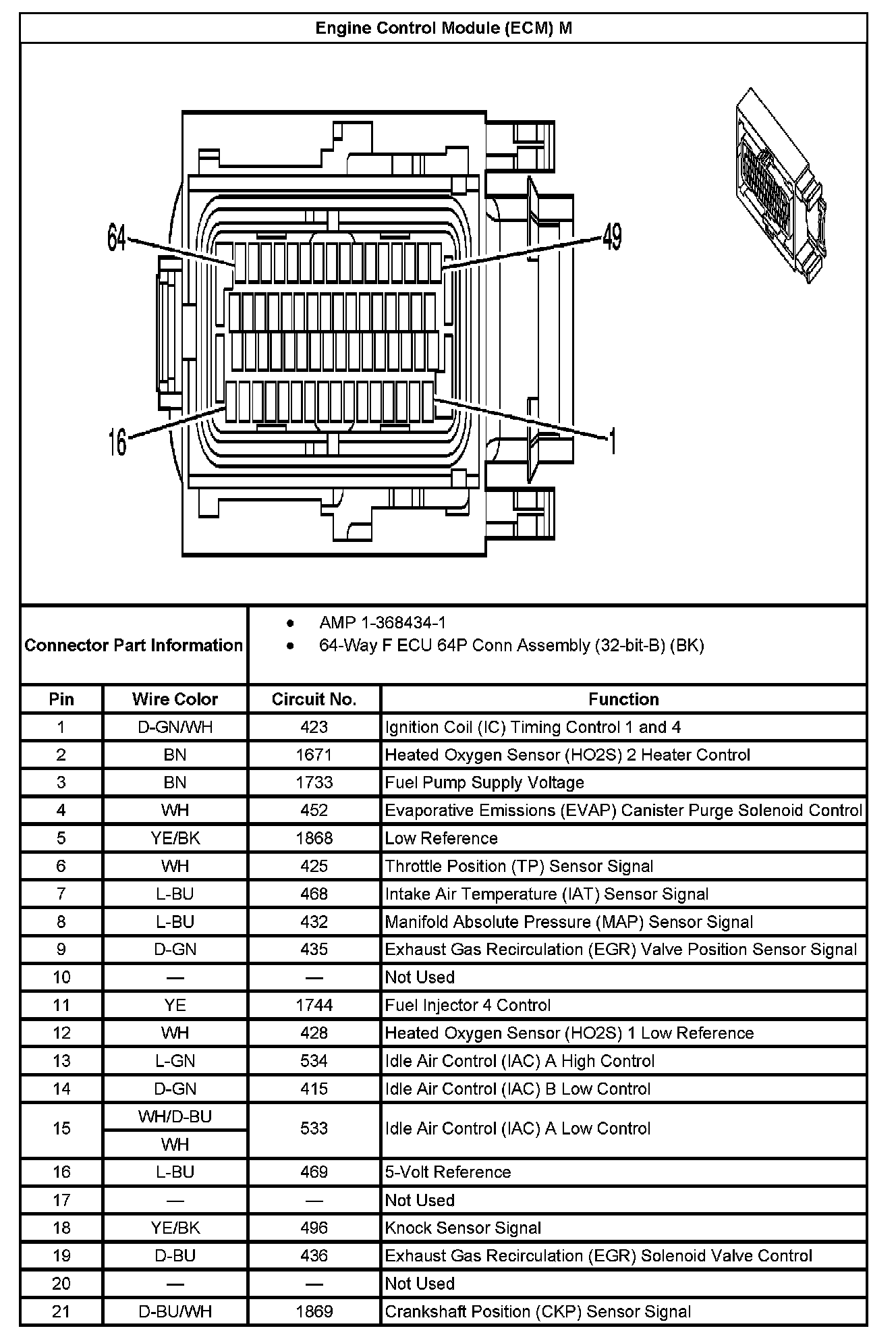

Engine Control Module (ECM) M (Part 3):
