Electrical Symbols

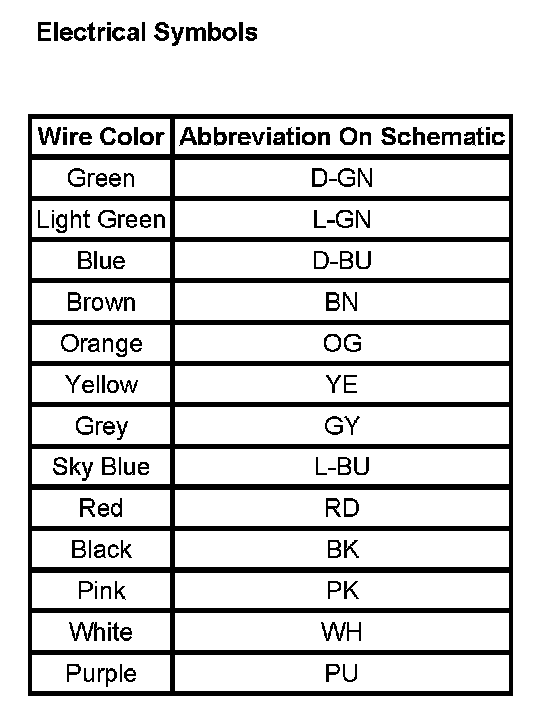

Electrical Symbols:

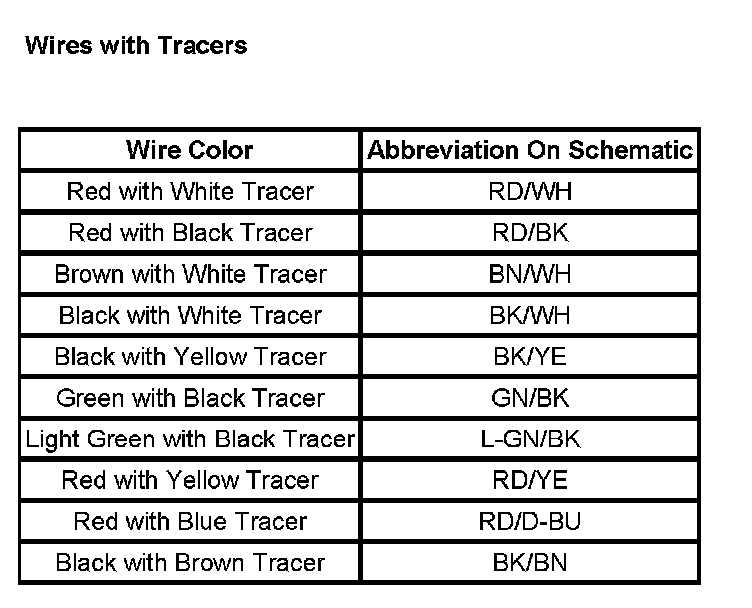

Wires With Tracers:

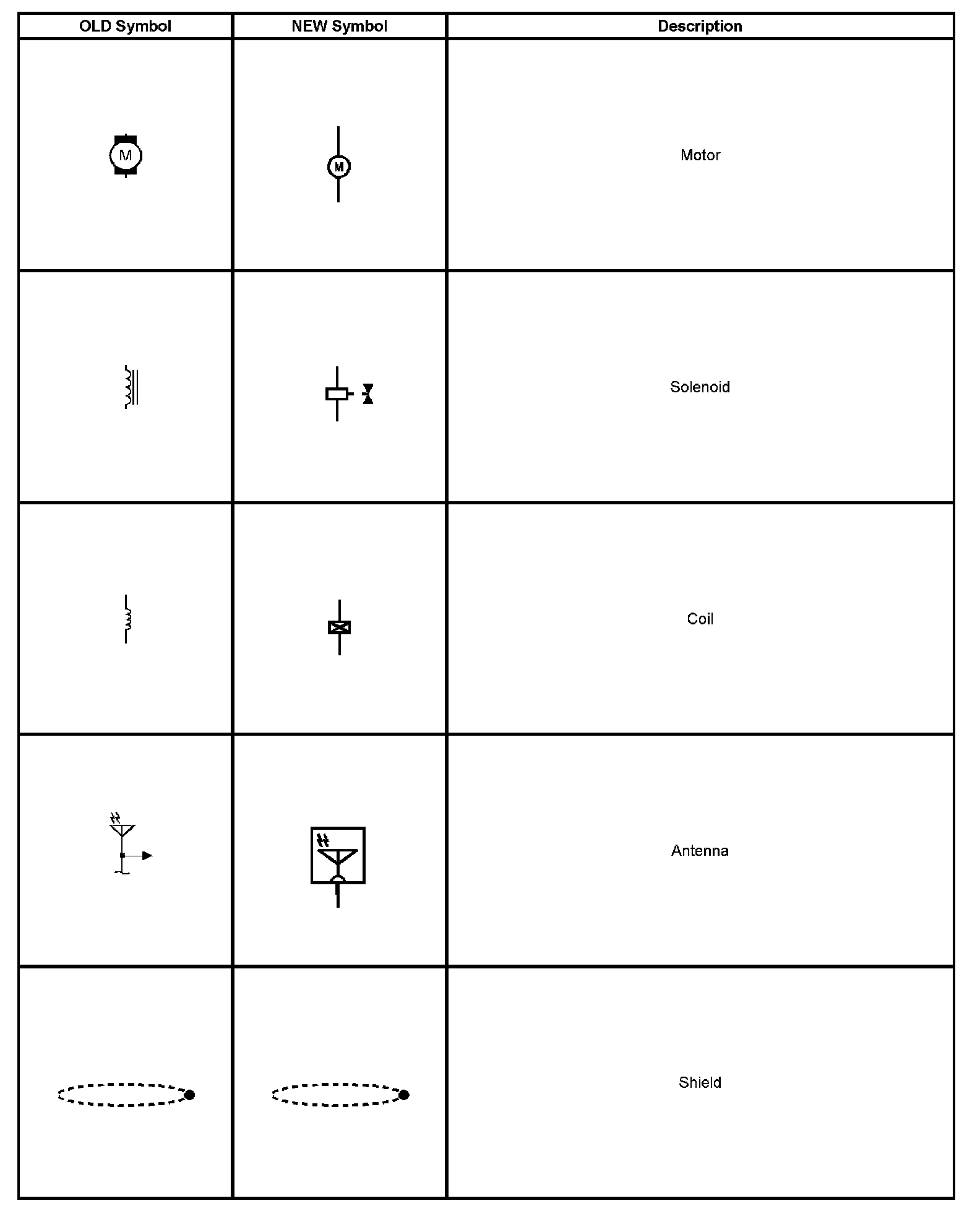

Symbol Descriptions (Part 1):

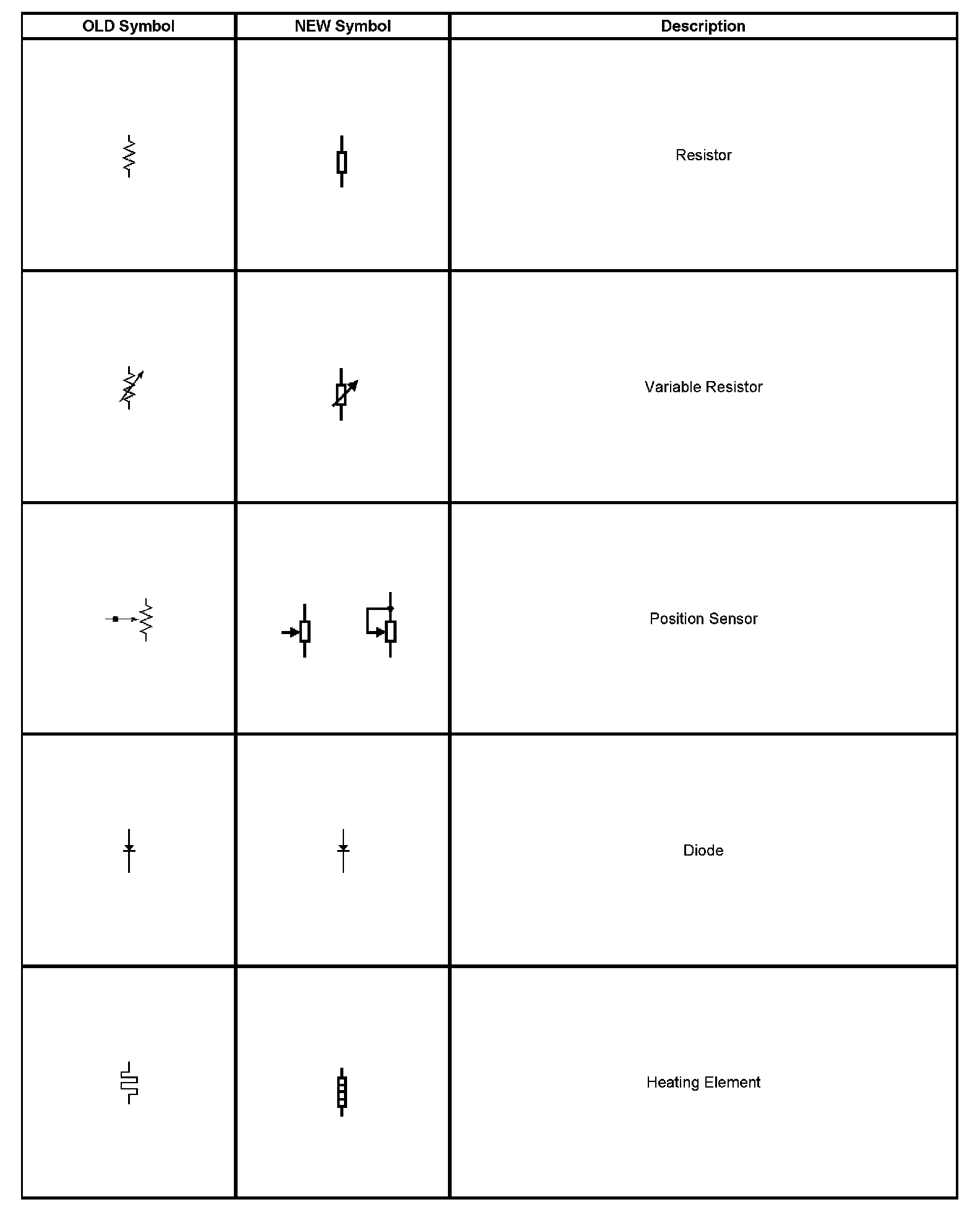

Symbol Descriptions (Part 2):

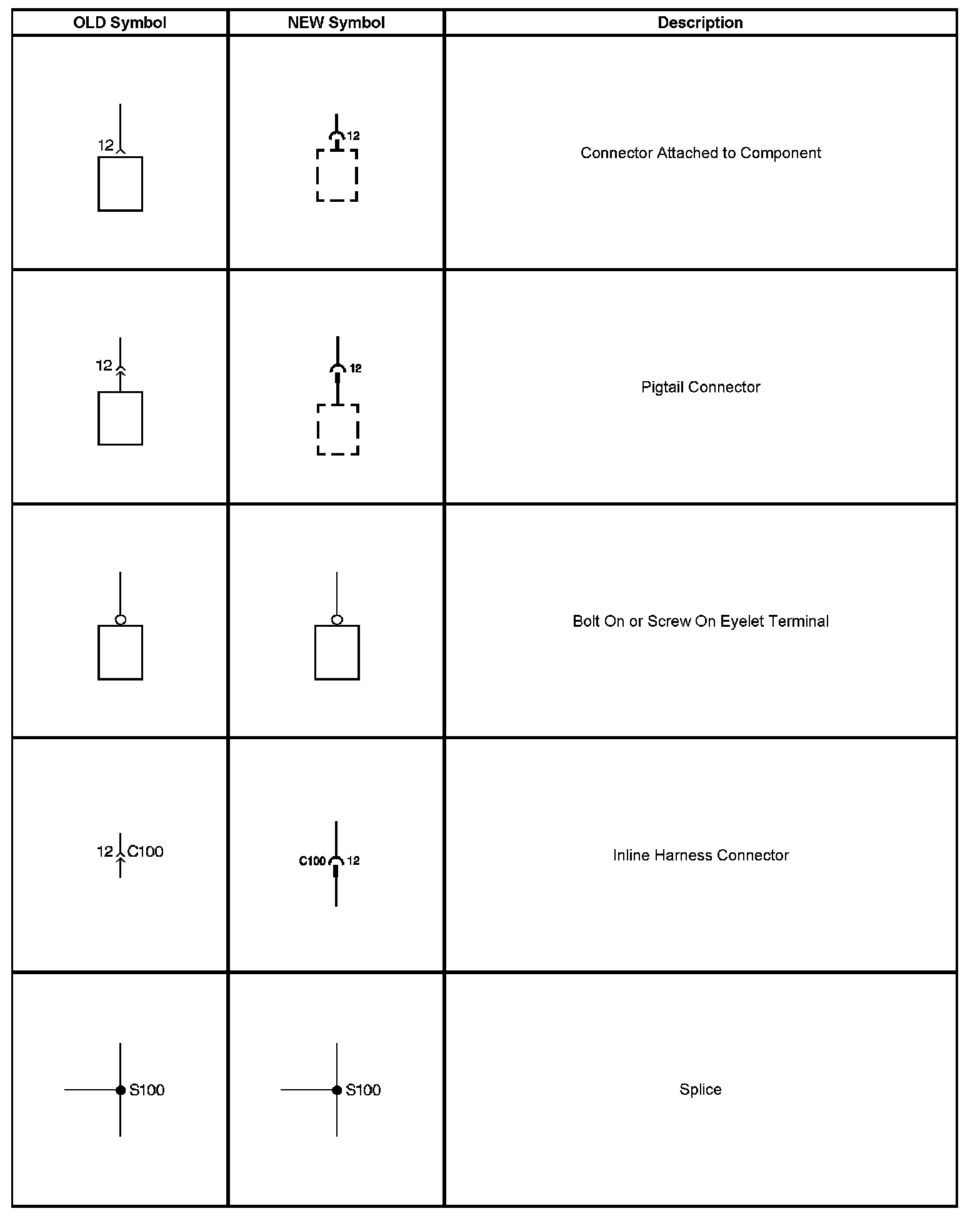

Symbol Descriptions (Part 3):

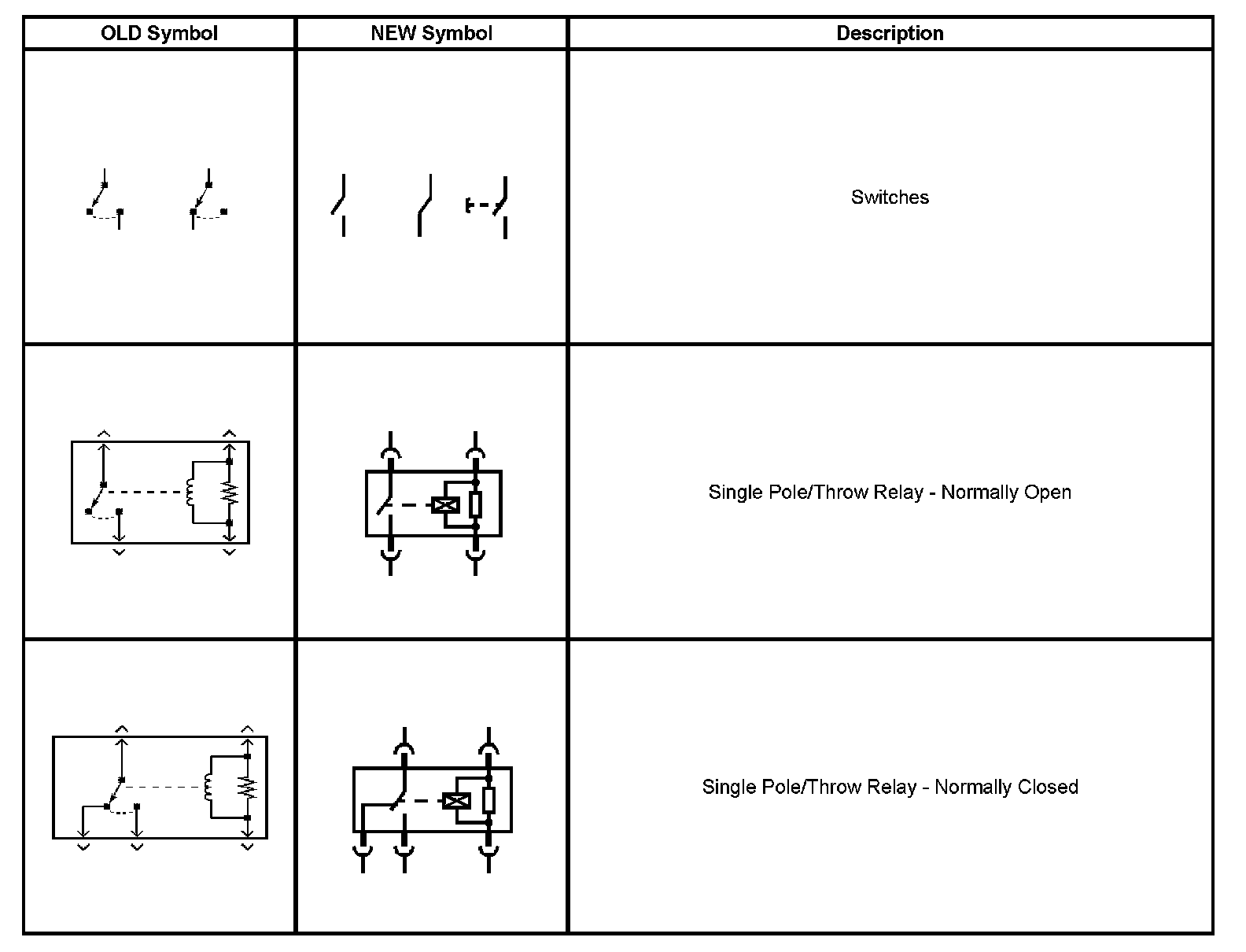

Symbol Descriptions (Part 4):

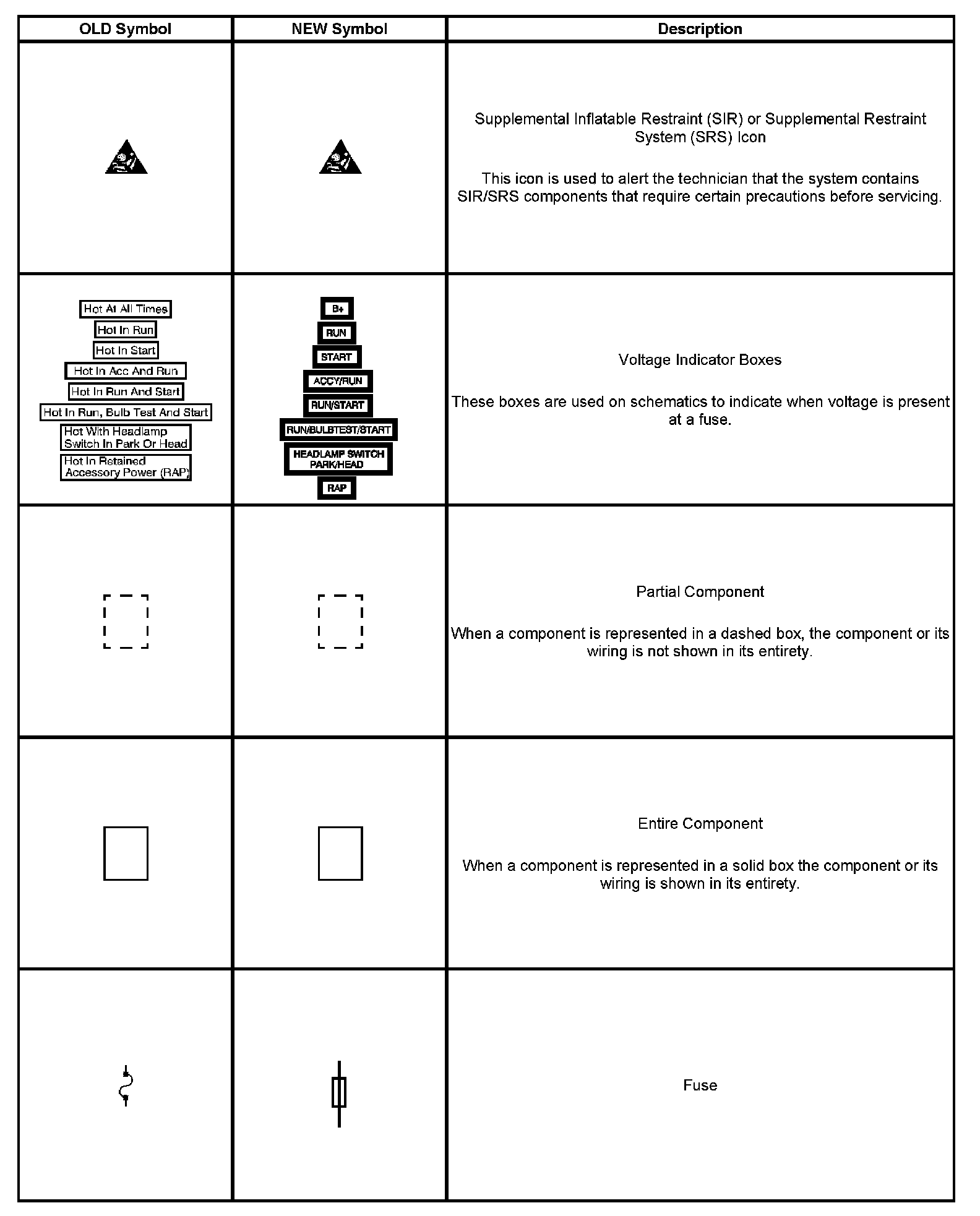

Symbol Descriptions (Part 5):

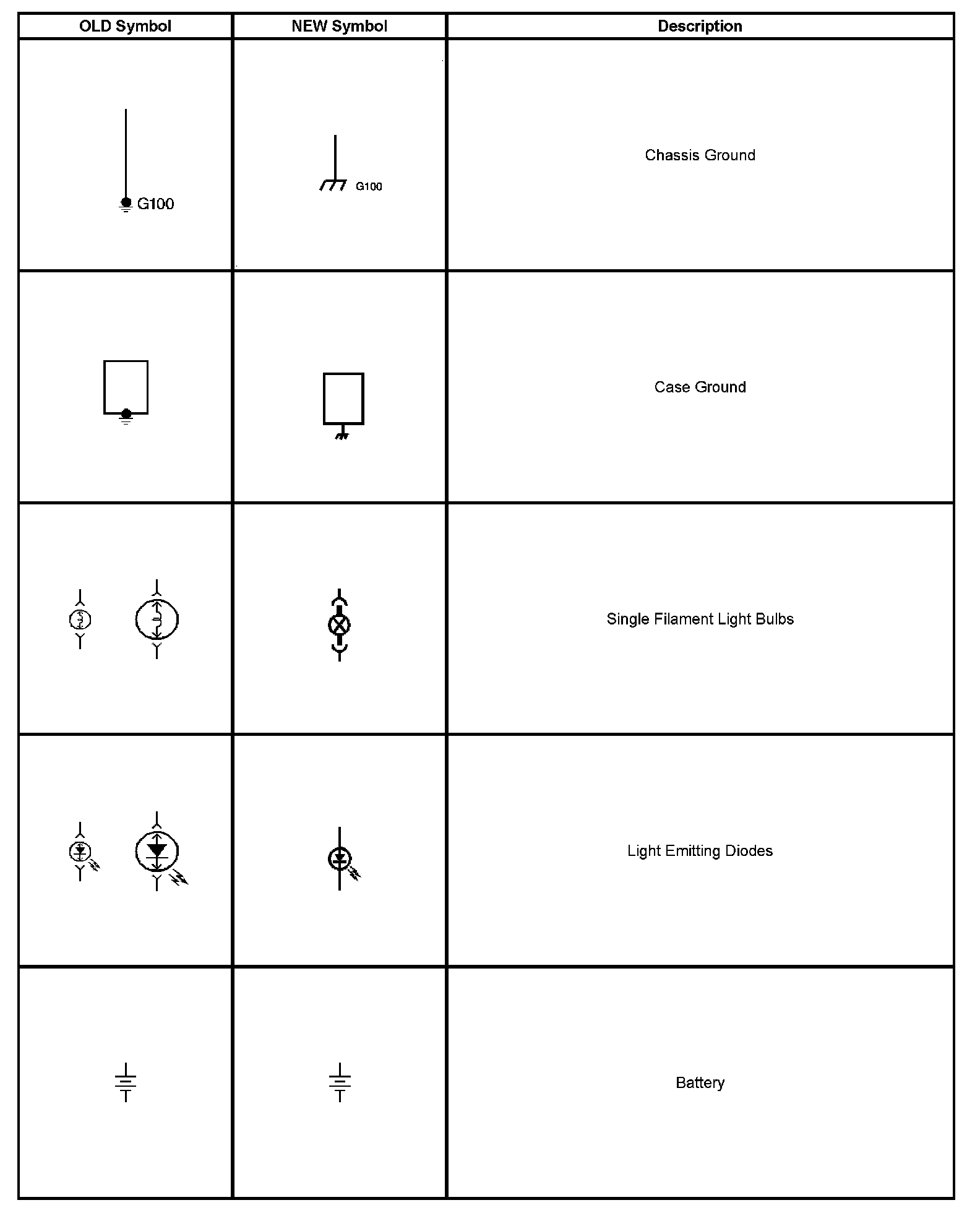

Symbol Descriptions (Part 6):
