Main Relay (Computer/Fuel System): Locations

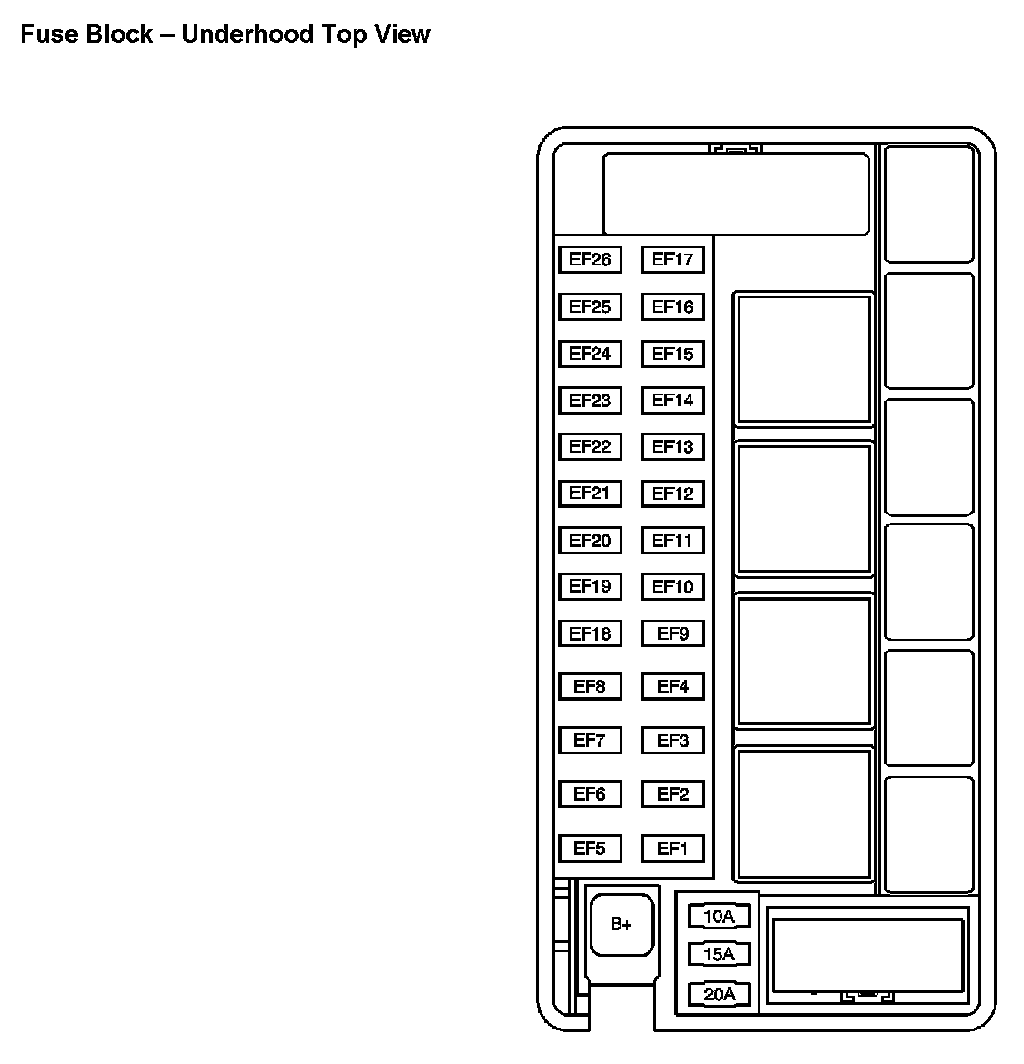

Location View:

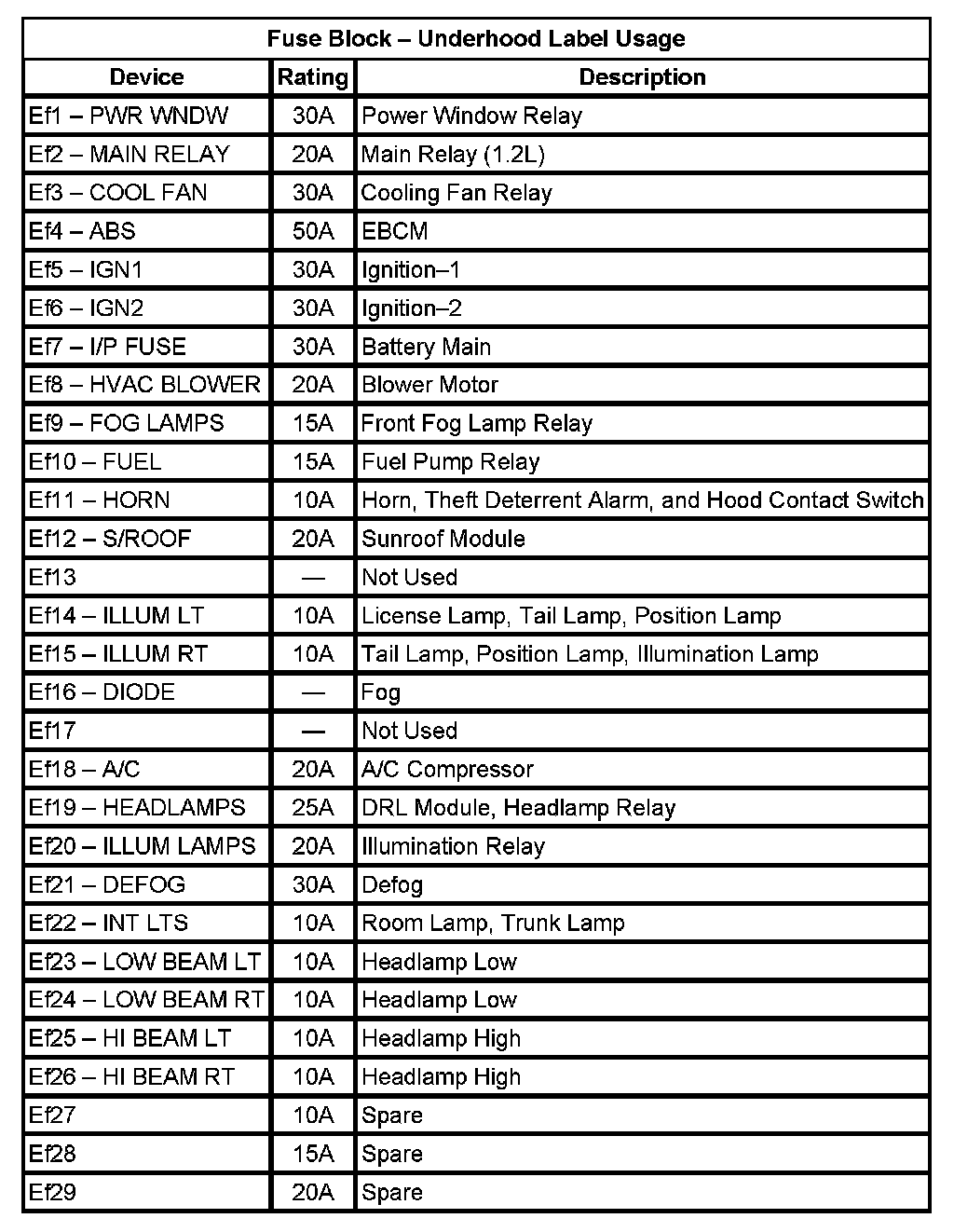

Application Table:

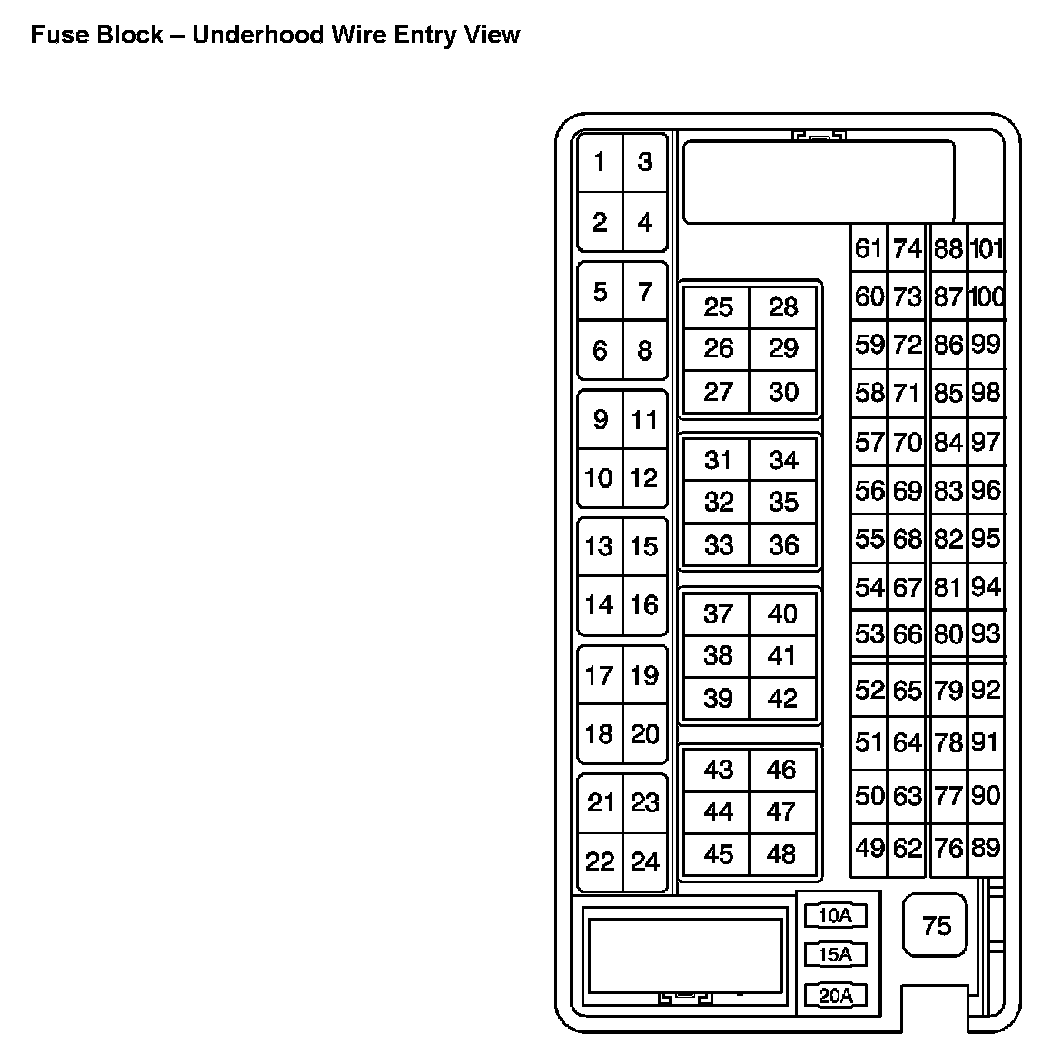

Location View:

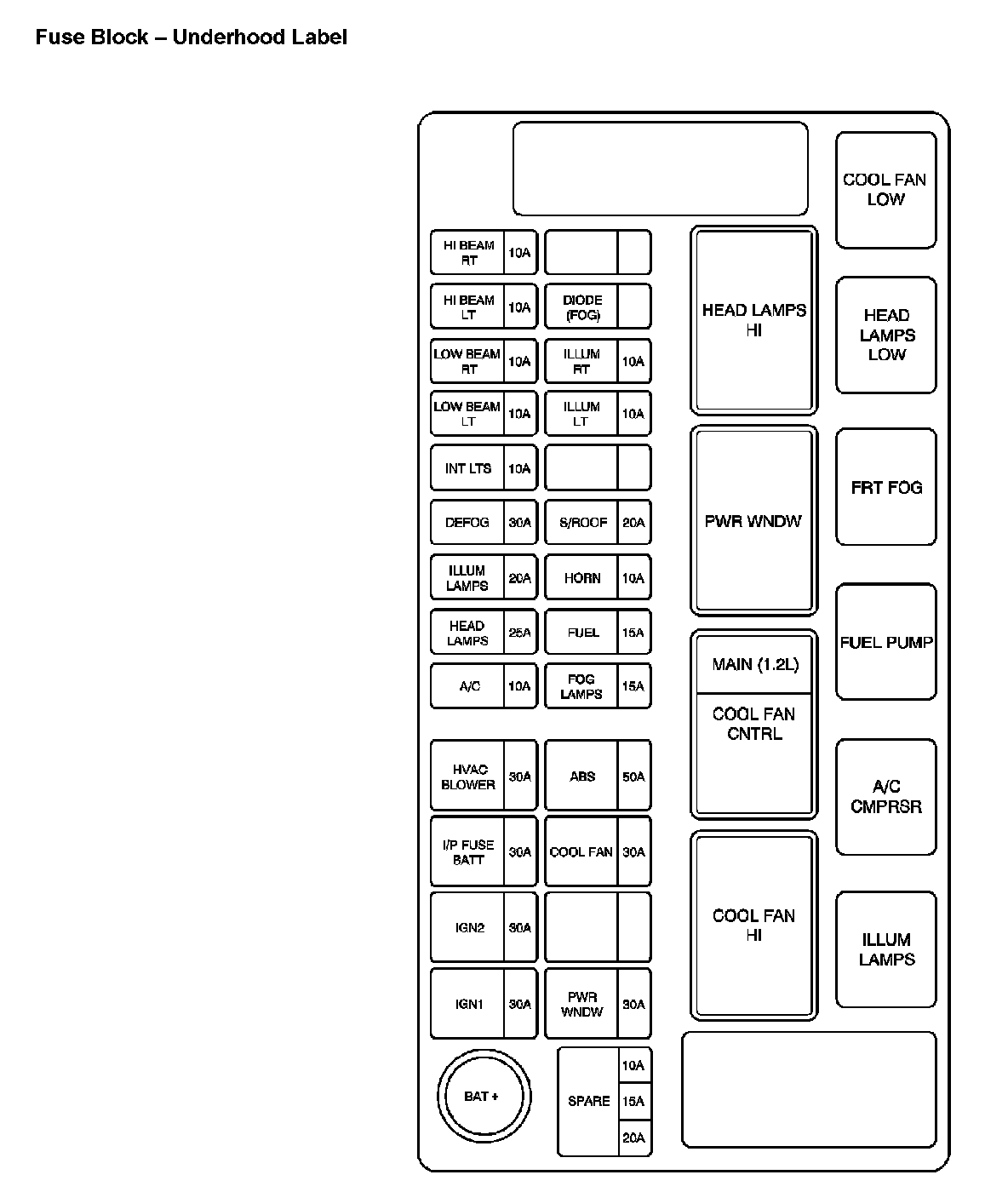

Location View:

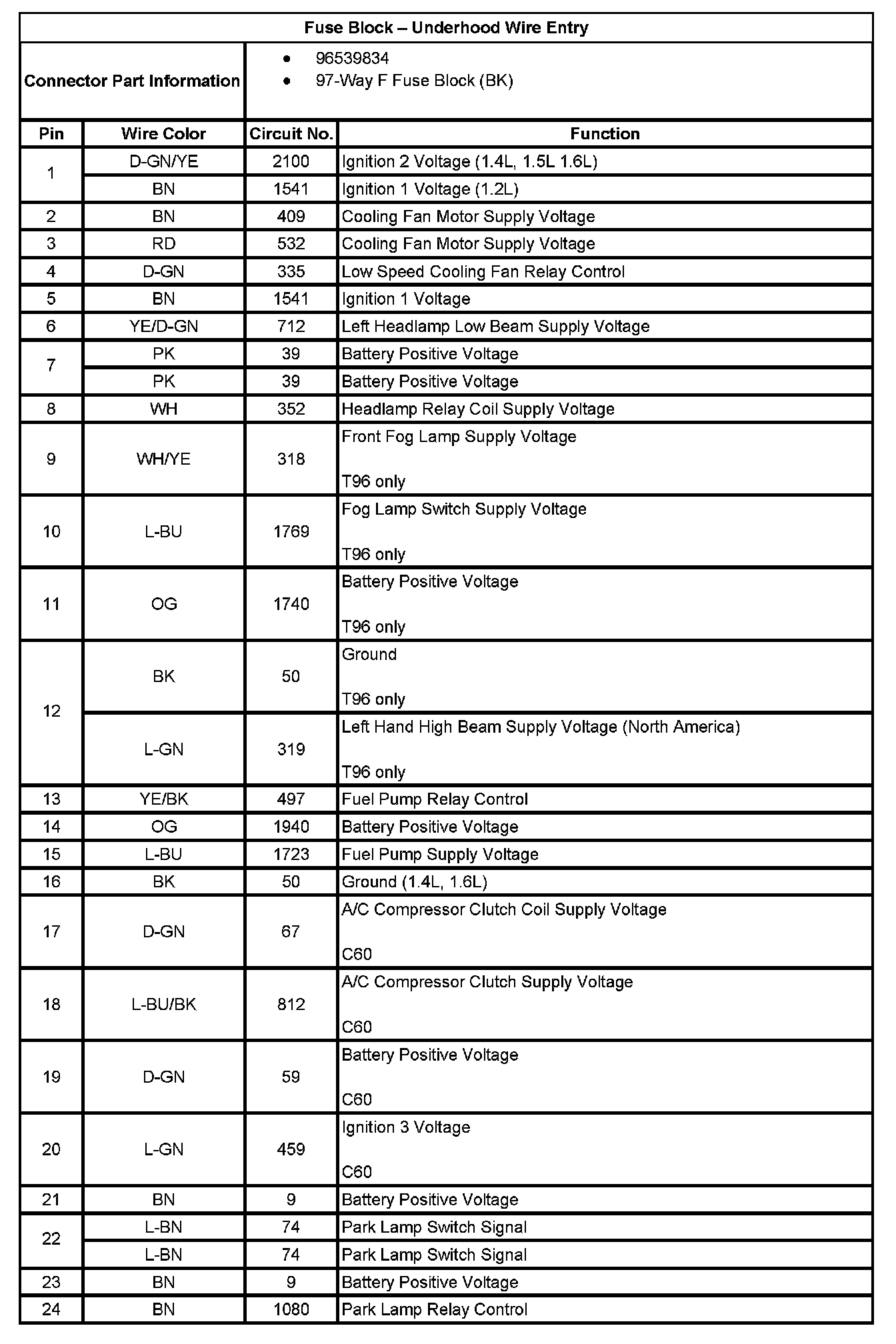

Fuse Block - Underhood Wire Entry (Part 1):

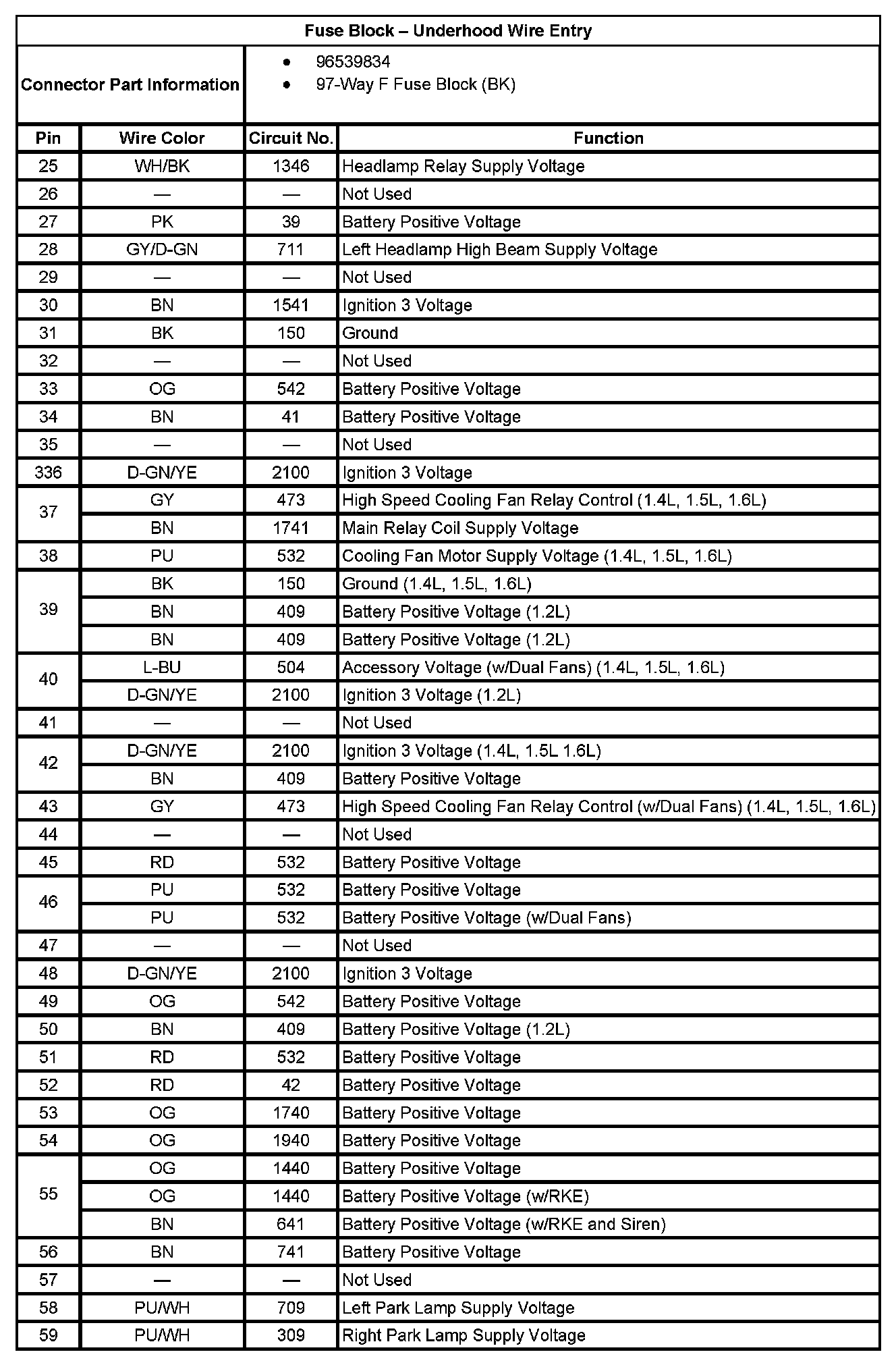

Fuse Block - Underhood Wire Entry (Part 2):

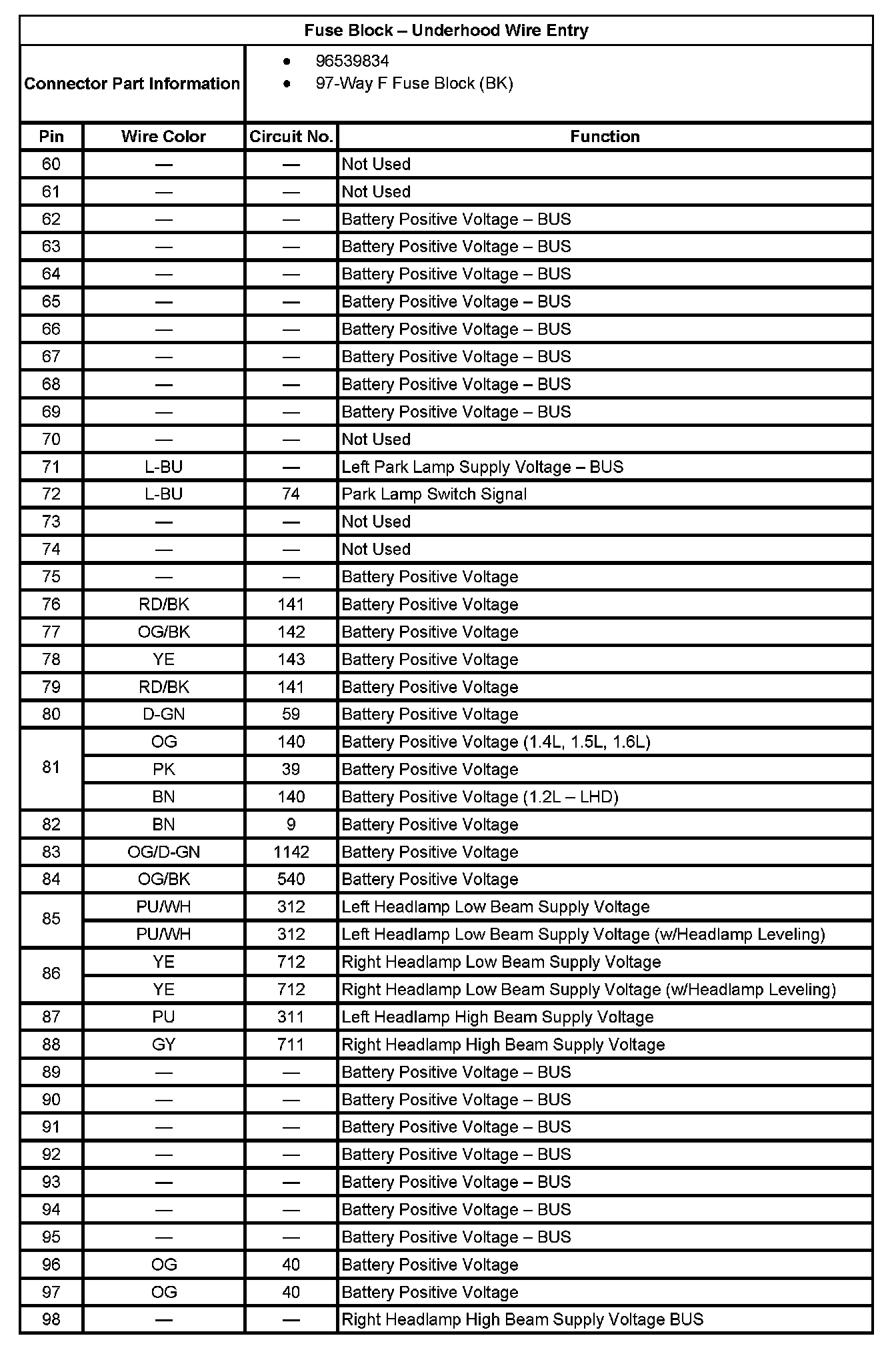

Fuse Block - Underhood Wire Entry (Part 3):

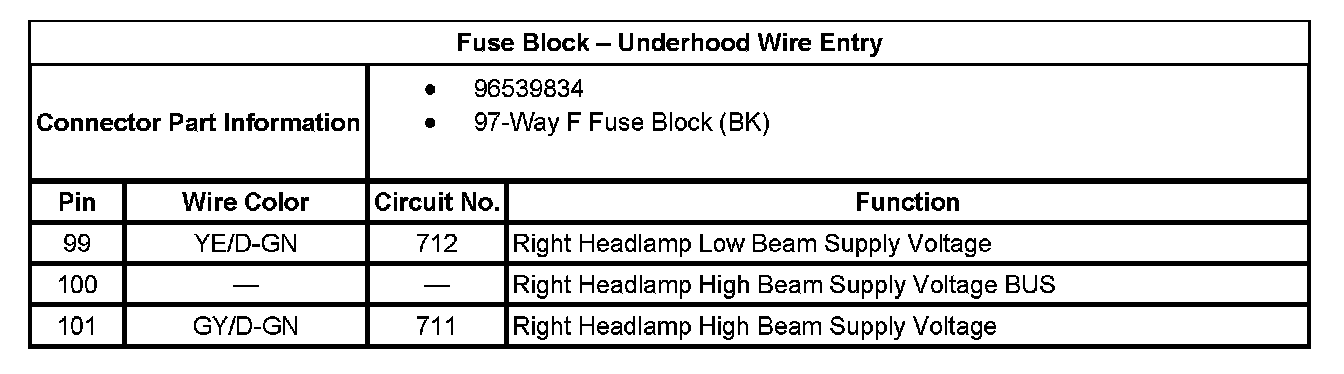

Fuse Block - Underhood Wire Entry (Part 4):
