Steering Wheel Control Switch Assembly Replacement

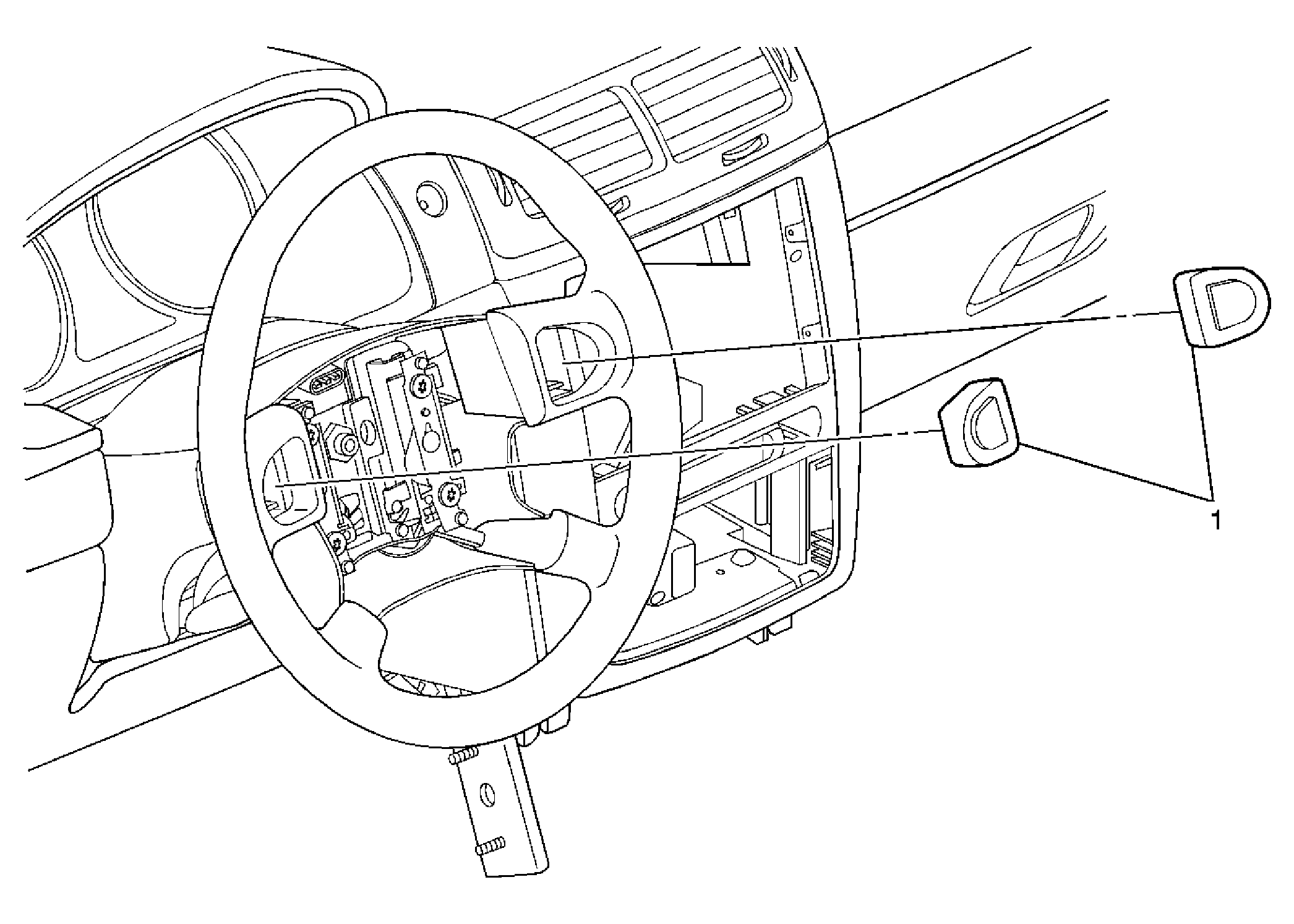

Fig 1: Steering Wheel Control Switch Assembly
GM1549896Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch Assembly Replacement

Callout Component Name
1 Steering Wheel Control Switch Assembly
Tip:
  • Pry out the switch using a small flat-bladed tool.
  • Disconnect the electrical connectors.
