Window Systems Component Views

Fig 1: Driver Door Components

GM1549156

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver (DG7)
3	Speaker - LF Door Tweeter (UQ3)
4	Window Motor (A31) - Driver
5	Outside Rearview Mirror Switch (DG7)
6	Door Lock Switch (AU3) - Driver
7	Window Switch (A31) - Driver
8	Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
9	Door Latch (AU3) - Driver

Fig 2: Passenger Door Components

GM1549158

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (AU3) - Passenger
3	Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
4	Door Lock Switch (AU3) - Passenger
5	Window Switch (A31) - Passenger
6	Speaker - RF Door Tweeter (UQ3)
7	Outside Rearview Mirror - Passenger (DG7)

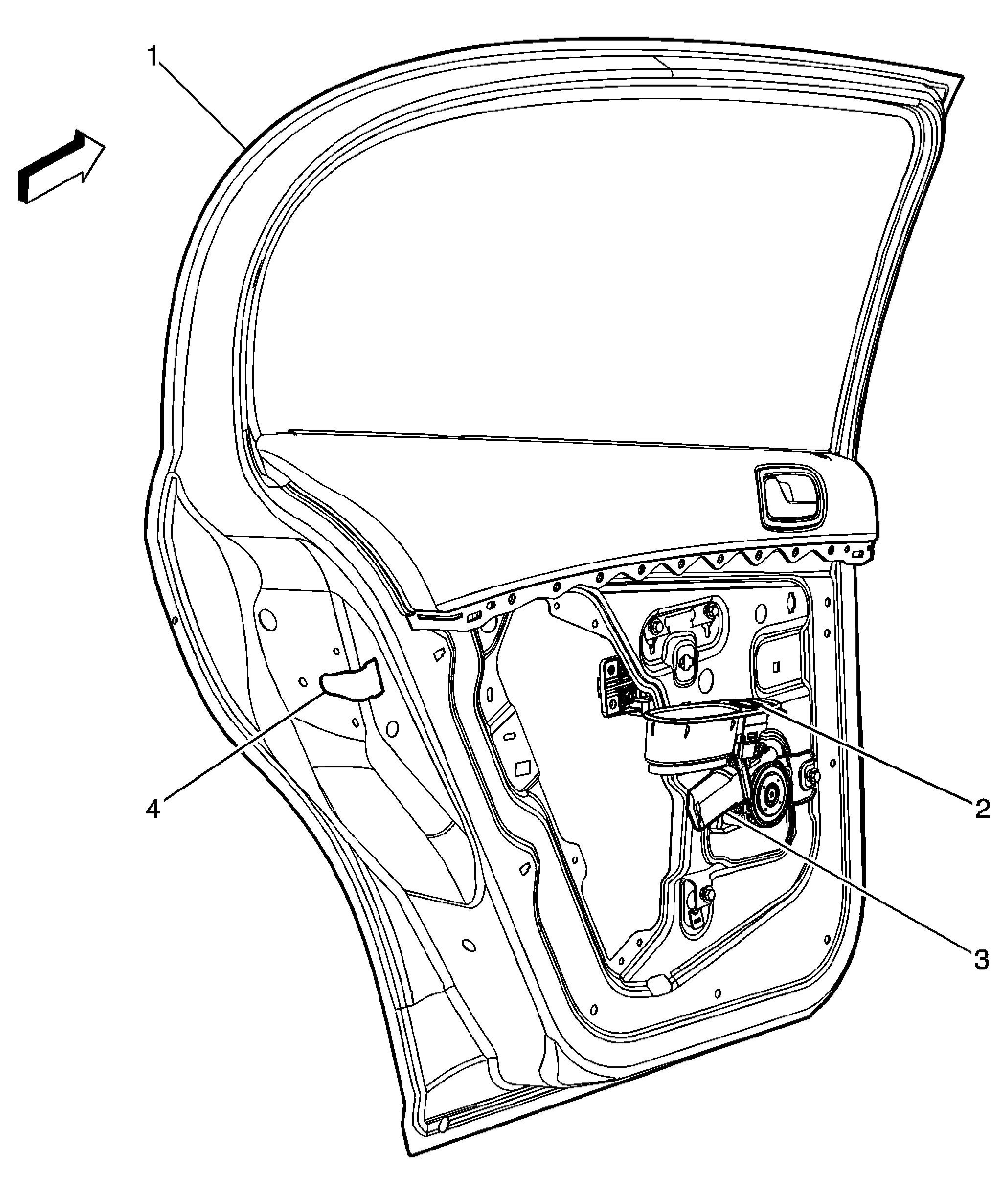

Fig 3: LR Door Components (Sedan)

GM1549159

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch (A31) - LR
3	Widow Motor (A31) - LR
4	Door Latch (AU3) - LR

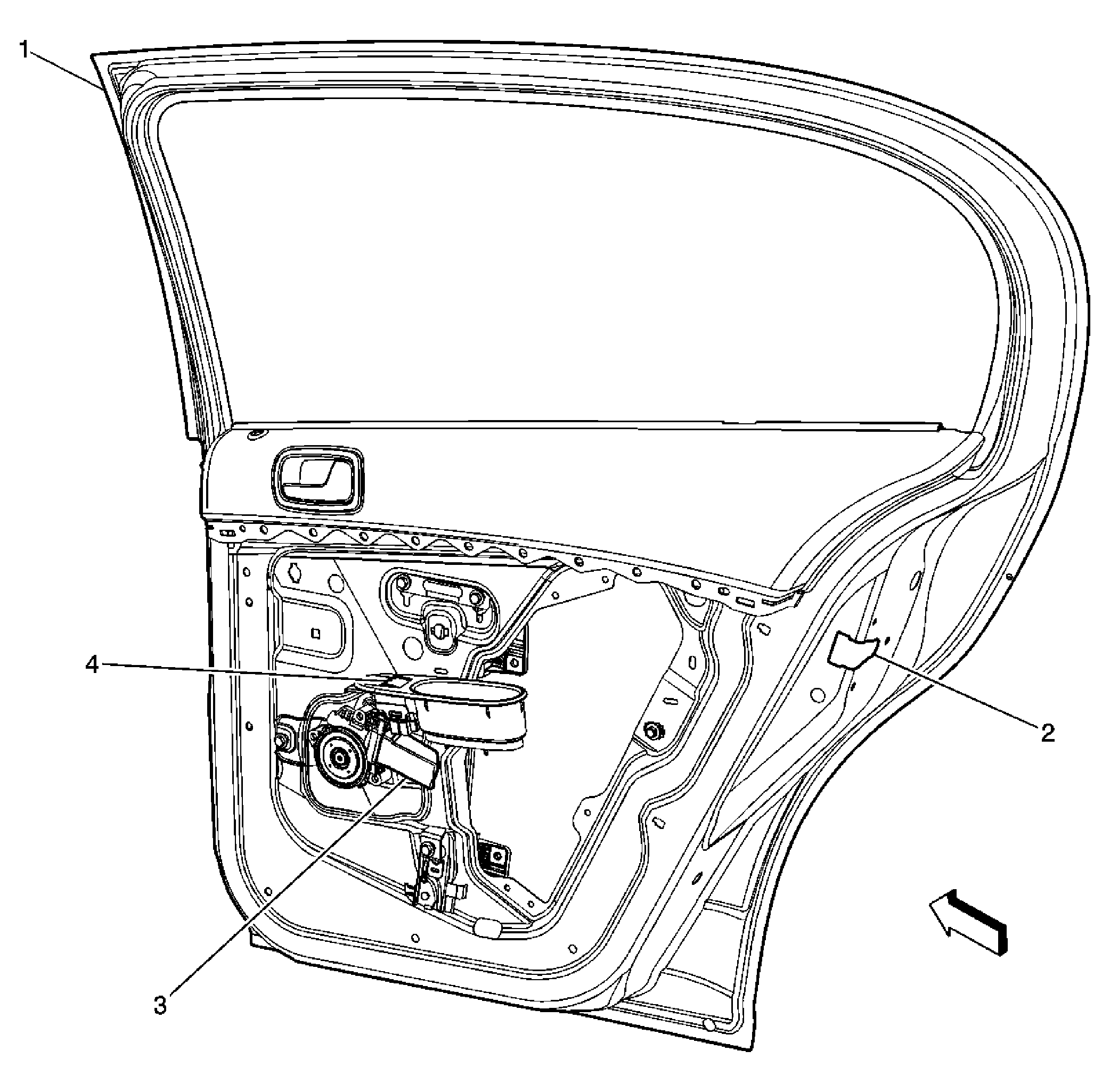

Fig 4: RR Door Components (Sedan)

GM1549160

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (A31) - RR
3	Widow Motor (A31) - RR
4	Window Switch (A31) - RR

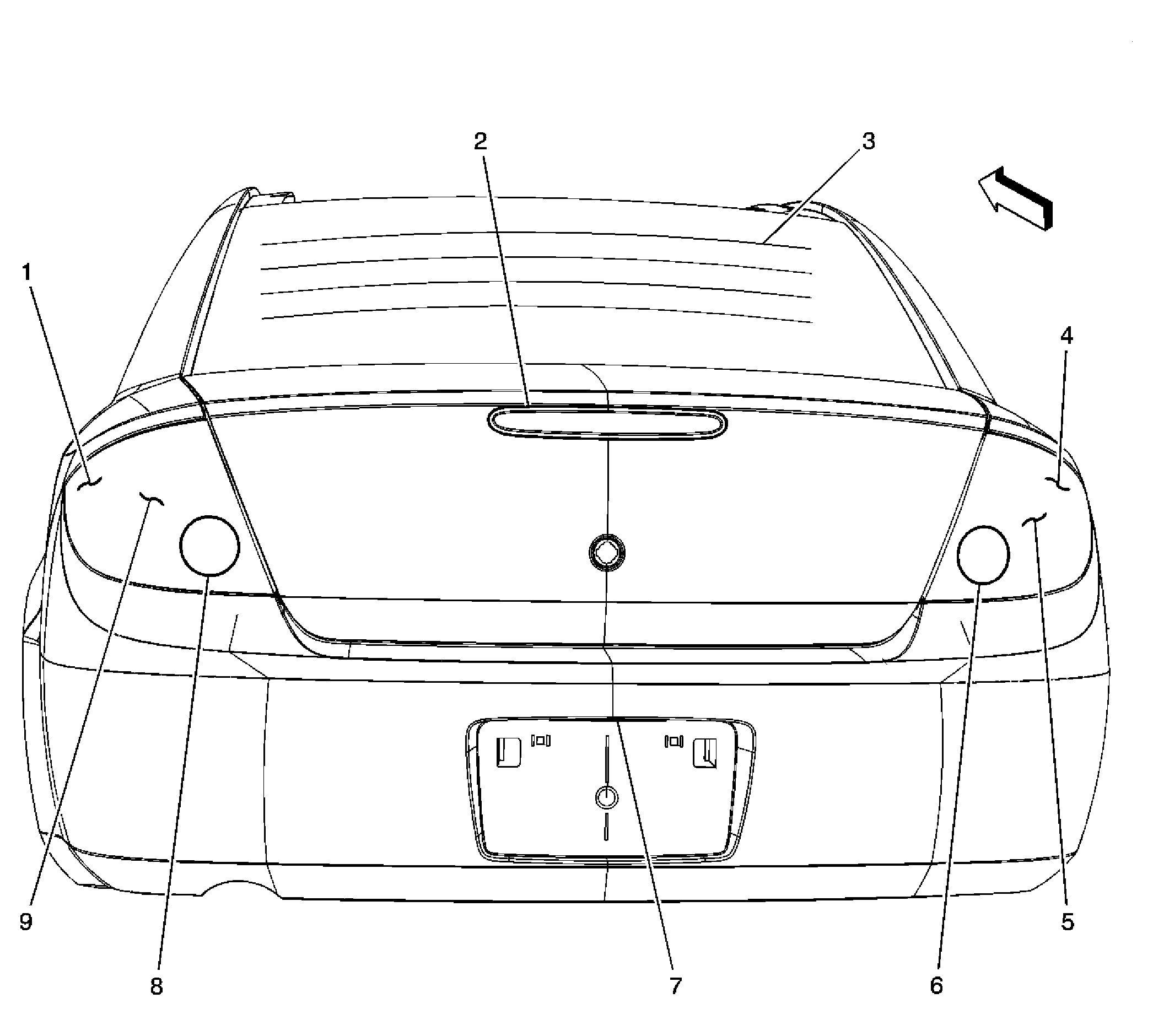

Fig 5: Rear Body - Sedan

GM1543922

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LR
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid
4	Marker Lamp - RR
5	Tail/Stop and Turn Signal Lamp - RR
6	Backup Lamp - Right
7	License Lamp
8	Backup Lamp - Left
9	Tail/Stop and Turn Signal Lamp - LR

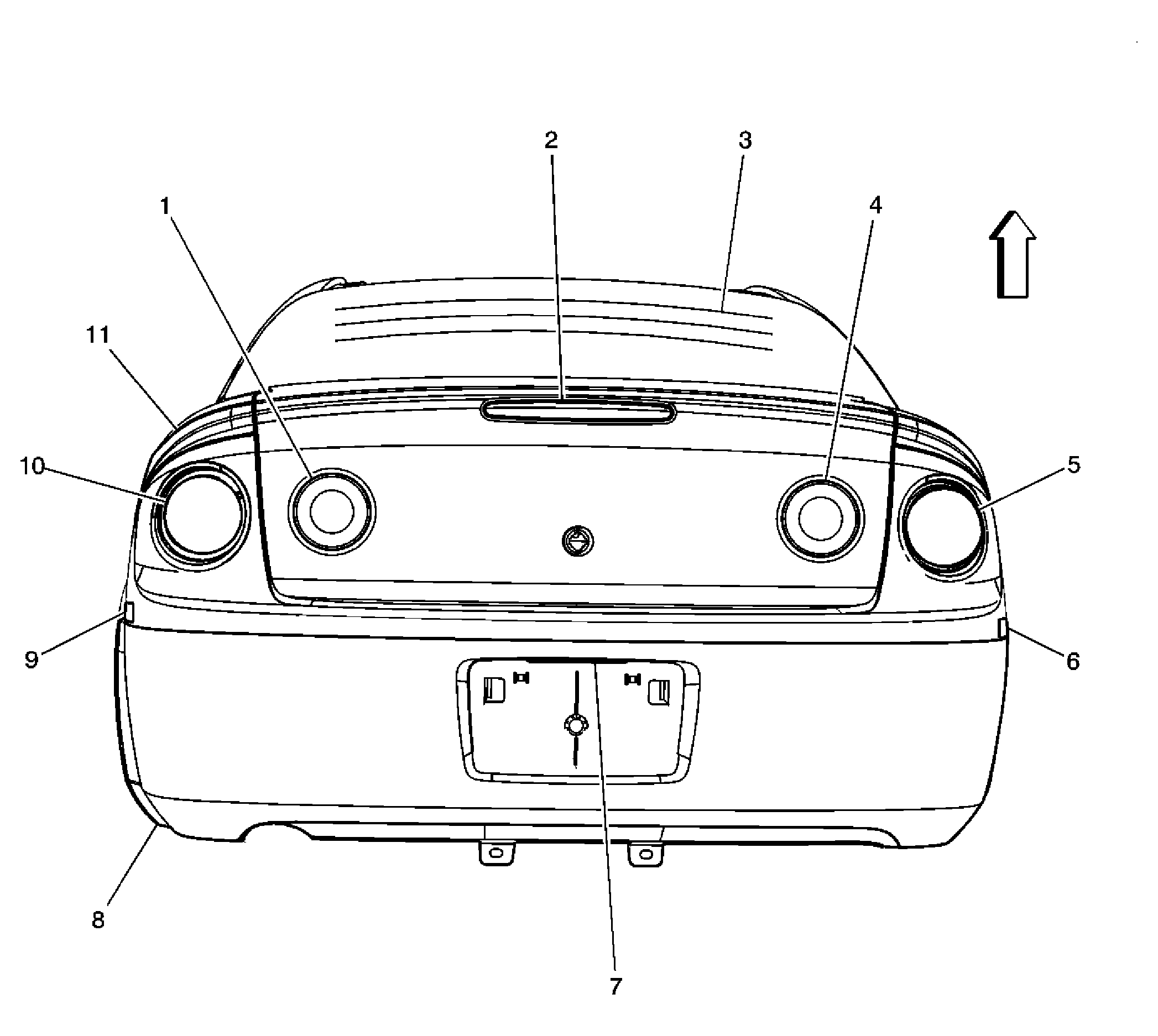

Fig 6: Rear of the Vehicle - Coupe

GM1546078

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid
4	Backup Lamp - Right
5	Tail/Stop and Turn Signal Lamp - Right
6	Marker Lamp - RR
7	License Lamp
8	Rear Fascia
9	Marker Lamp - LR
10	Tail/Stop and Turn Signal Lamp - Left
11	LR Fender
